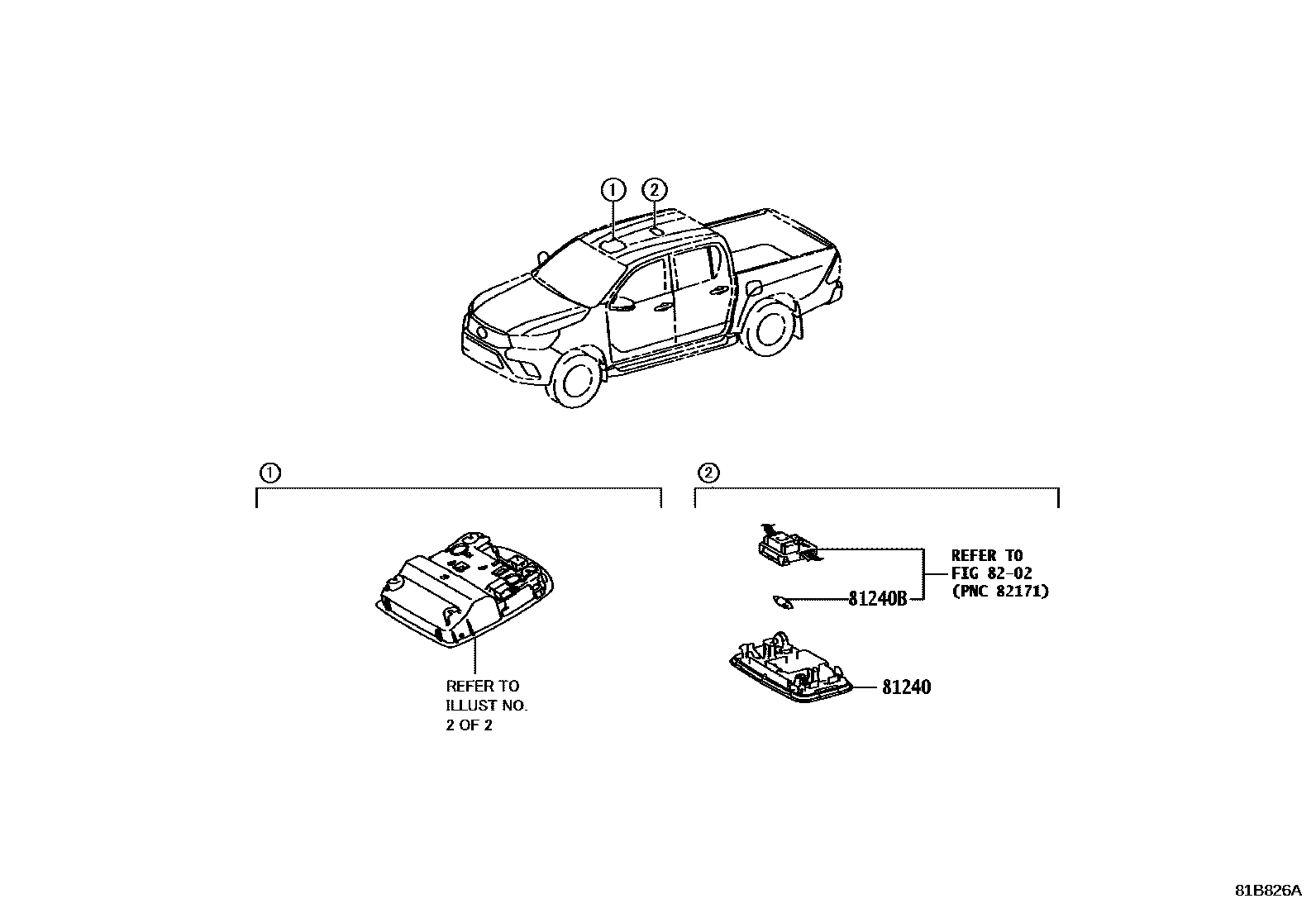

INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
main81240-0K090-B0iGUN125..6F..H..GCC;GGN125,GUN126..(DCRL,HTWC)..GCC; GUN126..H..IV3;GUN136..THP..LA;GUN126,135..6F..H..TH;GUN125,TGN126..THP..(5F,6FC)..(ARL,GEN,IDN,LA);GUN121,125..THP..6F..(L,S)..(ARL,GEN,IDN,LA,PH,SA,TH,VN);GUN120,122,126,13#,TGN121,136..THP..(L,S)..(ARL,GEN,LA,PH,TH,VN); GUN126..MHV..GCC;GUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC; GUN135..LHD..6F..H;GUN13#..THP..6FC..H;GUN121,126..6FC..TH;GUN126..H..MHV..(ARL,LA)..CBU;GUN125,126..THP..H..DCRL..(ARL,GEN,LA,PH,TWN,VN)..CBU202308-202407
LT.GRAY,TRIM2#; LT.GRAY,TRIM2#,3#; LT.GRAY,TRIM20; LT.GRAY,TRIM20,3#
main81240-0K090-C0iGGN125,GUN126..6FC..(DCRL,HTWC)..(GCC,PH,TH,VN); GUN121..6FC; GUN126..6FC..H..DCRL..ARL..CBU; GUN13#..THP..6FC..H;GUN126..H..MHV..(ARL,LA)..CBU;GUN126..THP..6FC..H..DCRL..(GEN,LA,TWN);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202308-202407
BLACK,TRIM21; BLACK,TRIM21,23,25; BLACK,TRIM21,25; BLACK,TRIM23
LT.GRAY,TRIM2#
81240BBULB, ROOM LAMP, NO.1
main90981-14011iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
12V 8W
8202WIRING & CLAMP
3 parts on this diagram · 2 diagrams in section
