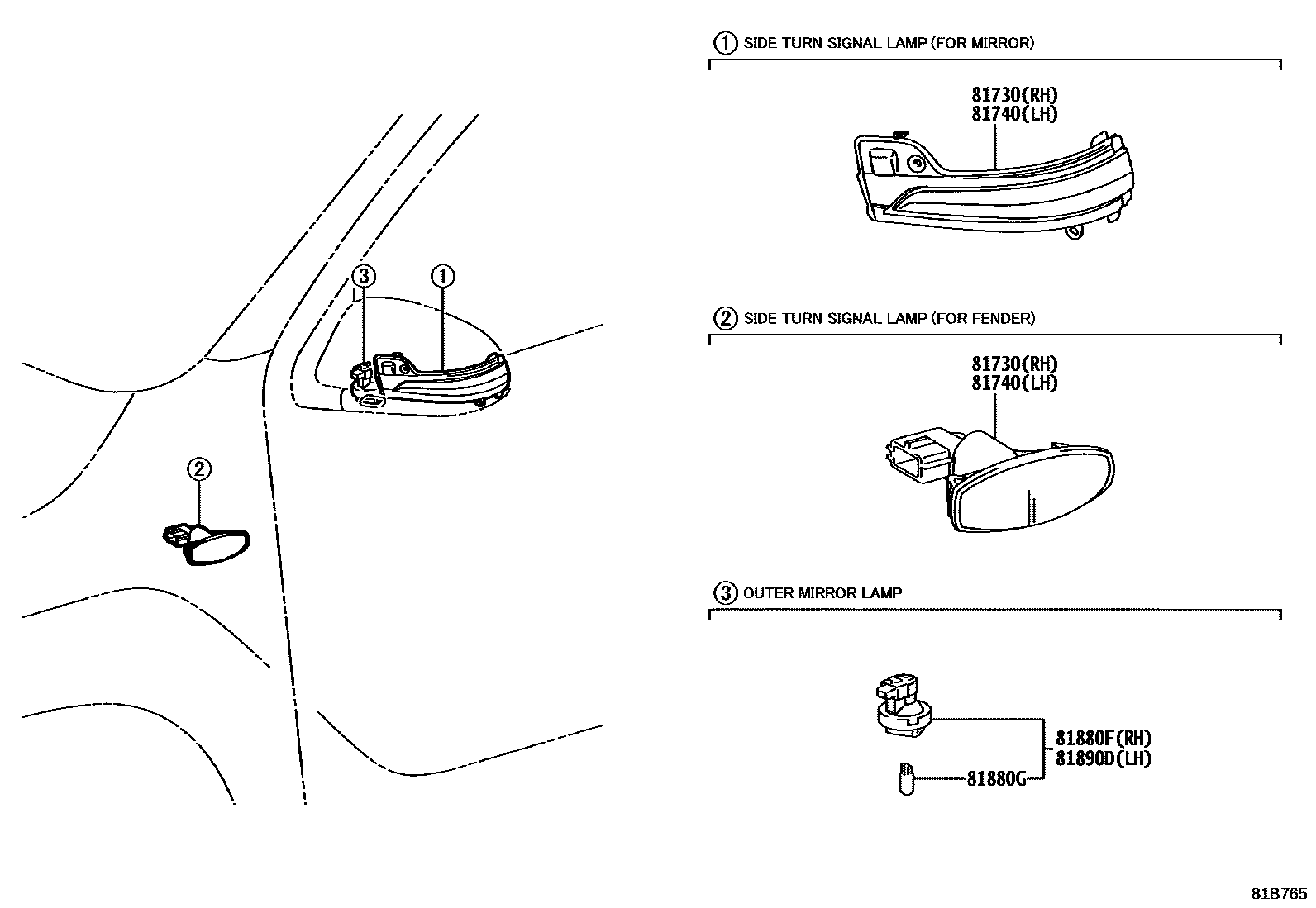

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
81730LAMP ASSY, SIDE TURN SIGNAL, RH
main81730-0K020iGUN120,122..S..TH;GUN125,135..THP..L..LA; GUN121..6FC; GUN122..TH;GUN120,121..6FC;GUN125,135..THP..L..LA; GUN125,135..THP..L..LA; GUN125..LHD..L..GEN; TGN121..GEN;GUN125..THP..6FC;GUN135..THP..S..LA;GUN125..THP..L..SA;TGN126..THP..L..LA;GUN125..RHD..THP..6F;GUN135..ARL,GEN,PH,TH,VN;TGN126..THP..(H,S)..(GCC,GEN,LA);GUN122,125..LHD..THP..MTM..(H,S);GGN125,GUN126,136,TGN120..THP..(DCRL,HTWC);GUN126,TGN121..(H,S)..(HTWC,MHV)..(ARL,GCC,LA); TGN126..L..GCC;GUN122,125,TGN121..MTM..L..GCC; TGN126..L..GEN; TGN136..GEN202308-202407
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT) & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR)& W(*SITL) & W(LOGO LAMP); TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
81740LAMP ASSY, SIDE TURN SIGNAL, LH
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
main81740-0K020iGUN120,122..S..TH;GUN125,135..THP..L..LA; GUN121..6FC; GUN122..TH;GUN120,121..6FC;GUN125,135..THP..L..LA; GUN125,135..THP..L..LA; GUN125..LHD..L..GEN; TGN121..GEN;GUN125..THP..6FC;GUN135..THP..S..LA;GUN125..THP..L..SA;TGN126..THP..L..LA;GUN125..RHD..THP..6F;GUN135..ARL,GEN,PH,TH,VN;TGN126..THP..(H,S)..(GCC,GEN,LA);GUN122,125..LHD..THP..MTM..(H,S);GGN125,GUN126,136,TGN120..THP..(DCRL,HTWC);GUN126,TGN121..(H,S)..(HTWC,MHV)..(ARL,GCC,LA); TGN126..L..GCC;GUN122,125,TGN121..MTM..L..GCC; TGN126..L..GEN; TGN136..GEN202308-202407
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&FRONT BUMPER-PAINTED(GR SPORT) & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR)& W(*SITL) & W(LOGO LAMP); TIRE & DISC WHEEL-265/60R18 ALUMINUM&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 ALUMINUM&WHEEL ARCH-WIDE TYPE&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); TIRE & DISC WHEEL-265/65R17 STEEL&WHEEL ARCH-WIDE TYPE&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); WHEEL ARCH-WIDE TYPE&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
81880FLAMP ASSY, OUTER MIRROR, RH
main81880-0K010iGUN125..6FC..GEN;GUN125,135..S..TH;GUN126..6FC..H..ARL;TGN126..6FC..H..GCC;GUN126,TGN126..THP..H..(HTWC,MHV)..LA;GGN125,GUN13#,TGN121..THP..(6F,6FC)..H;GUN125,126..THP..H..DCRL..(GEN,LA,PH,TH,VN); GUN125..H..GEN;GUN126..RHD..H..DCRL..GEN;GUN126..LHD..THP..6FC..H..GEN;GUN126,135..THP..6F..H..(LA,PH);GGN125,GUN13#..6FC..H..(ARL,GCC,PH,TH);GUN126..THP..6FC..H..(ARL,LA,PH,TH,VN); GUN126..6F..GCC; GUN126..6F..H..ARL; GUN135..S..PH;GUN126..6FC..DCRL..GCC202308-202407
BACK MONITOR-WITH(*PVM); OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA); OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); TIRE & DISC WHEEL-265/60R18, ALUMINUM&BACK MONITOR-WITH(*PVM)
81880GBULB, OUTER MIRROR LAMP ASSY
main99132-12050×2iGUN125..6FC..GEN;GUN125,135..S..TH;GUN126..6FC..H..ARL;TGN126..6FC..H..GCC;GUN126,TGN126..THP..H..(HTWC,MHV)..LA;GGN125,GUN13#,TGN121..THP..(6F,6FC)..H;GUN125,126..THP..H..DCRL..(GEN,LA,PH,TH,VN); GUN125..H..GEN;GUN126..RHD..H..DCRL..GEN;GUN126..LHD..THP..6FC..H..GEN;GUN126,135..THP..6F..H..(LA,PH);GGN125,GUN13#..6FC..H..(ARL,GCC,PH,TH);GUN126..THP..6FC..H..(ARL,LA,PH,TH,VN); GUN126..6F..GCC; GUN126..6F..H..ARL; GUN135..S..PH;GUN126..6FC..DCRL..GCC202308-202407
12V 5W; 12V 5W,BACK MONITOR-WITH(*PVM); 12V 5W,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL); 12V 5W,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA); 12V 5W,OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); 12V 5W,OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); 12V 5W,TIRE & DISC WHEEL-265/60R18, ALUMINUM&BACK MONITOR-WITH(*PVM)
81890DLAMP ASSY, OUTER MIRROR, LH
main81890-0K010iGUN125..6FC..GEN;GUN125,135..S..TH;GUN126..6FC..H..ARL;TGN126..6FC..H..GCC;GUN126,TGN126..THP..H..(HTWC,MHV)..LA;GGN125,GUN13#,TGN121..THP..(6F,6FC)..H;GUN125,126..THP..H..DCRL..(GEN,LA,PH,TH,VN); GUN125..H..GEN;GUN126..RHD..H..DCRL..GEN;GUN126..LHD..THP..6FC..H..GEN;GUN126,135..THP..6F..H..(LA,PH);GGN125,GUN13#..6FC..H..(ARL,GCC,PH,TH);GUN126..THP..6FC..H..(ARL,LA,PH,TH,VN); GUN126..6F..GCC; GUN126..6F..H..ARL; GUN135..S..PH;GUN126..6FC..DCRL..GCC202308-202407
BACK MONITOR-WITH(*PVM); OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA); OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA); OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH); TIRE & DISC WHEEL-265/60R18, ALUMINUM&BACK MONITOR-WITH(*PVM)
5 parts on this diagram · 1 diagram in section
