E
EPC Data

SEAT & SEAT TRACK

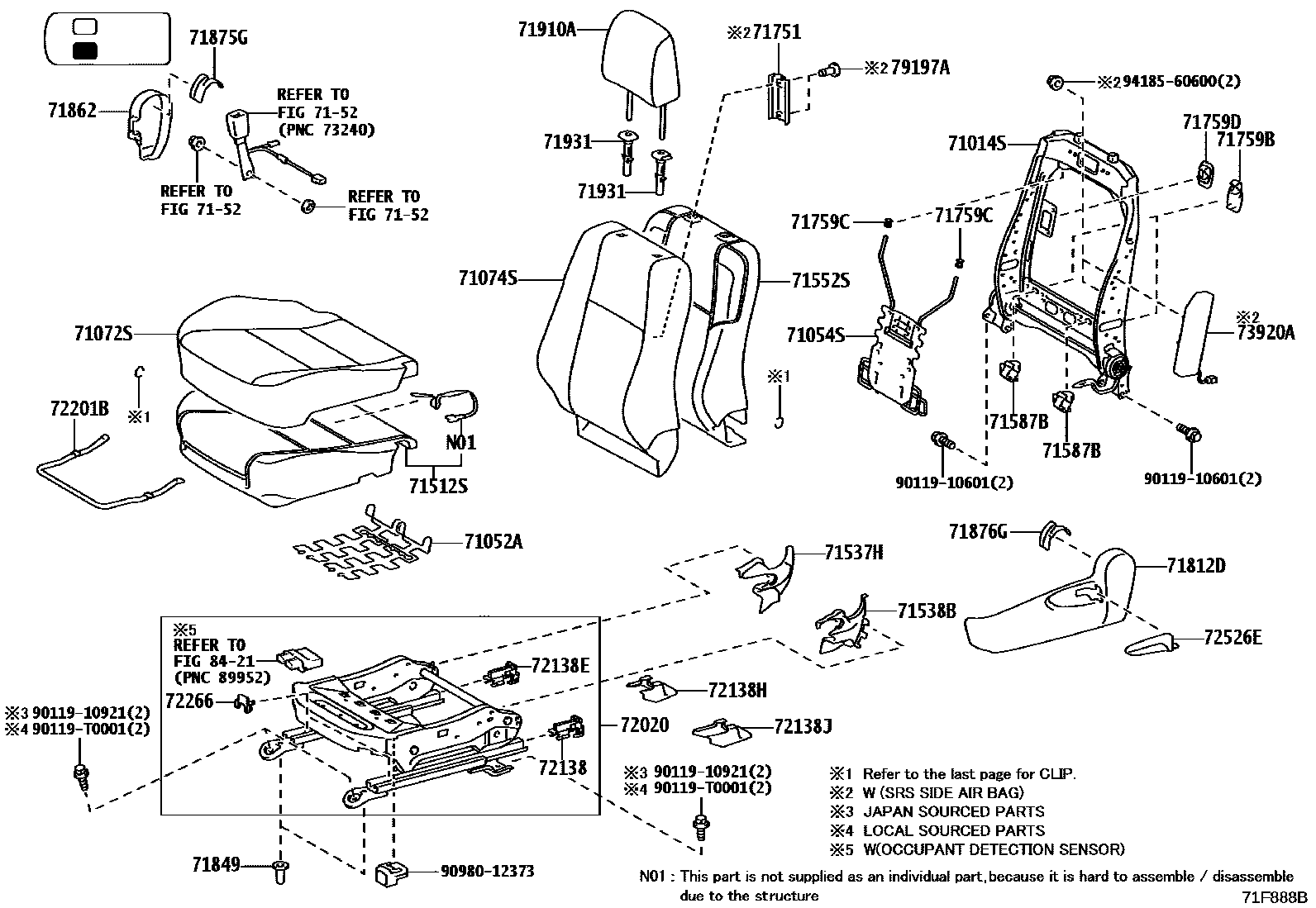

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-0K340i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71014-0K360i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71014-0K450i202311-202410
main71014-0K460i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)
main71014-0K480i202402-202412
main71014-0K520i202311-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)
main71014-0K540i202311-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-NATURAL LEATHER
main71014-0K690i202309-202408
main71014-0K700i202309-202408
main71014-0K790i202412
main71014-0KA10i202308-202408
main71014-0K500i202402-202410
SEAT COVER MATERIAL-NATURAL LEATHER
main71014-0K650i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-02350i202412
main71051-06070i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71051-0D060i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-VINYL LEATHER
main71051-0K090i202311-202410
SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71051-0K230i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71051-0K130i202311-202410
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
main71051-0K150i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
main71051-0K280i202311-202407
SEAT COVER MATERIAL-NATURAL LEATHER
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-0K030i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71053-0K040i202402-202412
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main71053-0K050i202311-202410
main71053-0K090i202309-202408
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0KG50-C1i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71072-0KG70-C2i202308-202407
BLACK,TRIM2#
main71072-0KG70-D2i202308-202407
MAROON,TRIM3#
main71072-0KK60-C1i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71072-0KK90-C2supersedes 71072-0KL20-C2i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71072-0KL70-C2i202402-202410
BLACK,TRIM2#
main71072-0KQ80-C0i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71072-0KQ80-D0i202308-202407
MAROON,TRIM3#
main71072-0KS10-C1i202309-202408
BLACK,TRIM2#
main71072-0KS30-C0i202309-202408
BLACK,TRIM2#
main71072-0KT00-C0i202412
BLACK,TRIM2#
main71072-0KT30-C0i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-0KT80-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KT80-D0i202311-202407
MAROON,TRIM3#
main71072-0KU10-C1i202310-202409
BLACK,TRIM2#
main71072-0KV00-C0supersedes 71072-0KU70-C0i202402-202412
BLACK,TRIM2#
main71072-0KV20-C1supersedes 71072-0KV00-C0i202404-202412
BLACK,TRIM2#
main71072-0KV71-C1i202311-202410
BLACK,TRIM2#
main71072-0KW20-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KX62-C1i202311-202410
BLACK,TRIM2#
main71072-0KX71-C4i202311-202410
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71072-F0020-C0i202308-202407
BLACK,TRIM2#
main71072-F0B31-C2i202311-202410
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-F0B60-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-F0B80-C0i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71072-F0B80-D0i202308-202407
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),MAROON,TRIM3#
main71072-F0B90-C0i202308-202407
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-F0C40-C0supersedes 71072-F0C30-C0i202308-202407
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-F0D10-C0i202311-202410
BLACK,TRIM2#
main71072-F0G30-C0i202311-202410
BLACK,TRIM2#
main71072-0KK80-C1supersedes 71072-0KL20-C2i202402-202410
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71072-0KN60-C2supersedes 71072-0KG60-C1i202308-202407
SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71072-0KQ40-C2i202402-202410
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KU20-C1i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-0KU60-C0i202402-202410
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-0KX20-C0supersedes 71072-0KG60-C1i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-0KZ10-C0i202308-202407
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-0KZ20-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-F0010-C1i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-F0220-C0supersedes 71072-F0C00-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITHOUT,BLACK/GRAY,TRIM2#
main71072-F0240-C0supersedes 71072-F0C00-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71072-F0250-C0supersedes 71072-F0C00-C0i202308-202407
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71072-F0260-C0i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK/GRAY,TRIM20
main71072-F0260-C1supersedes 71072-F0230-C0i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK/GRAY,TRIM21
main71072-F0821-C1i202311-202410
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-F0830-C1i202311-202410
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
main71072-F0B20-C1i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK/NEUTRAL WARM GRAY,TRIM2#
main71072-F0B70-C0i202308-202407
SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71072-F0C10-C0supersedes 71072-F0C00-C0i202308-202407
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-F0C20-D0i202308-202407
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION),MAROON,TRIM3#
main71072-F0F90-C0i202311-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP070-C1i202402-202410
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP090-C1i202402-202410
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP130-C1i202309-202408
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71072-YP260-C0i202308-202407
FRONT AIR CONDITIONER-AUTO&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP270-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71072-YP280-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP310-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP320-C0i202308-202407
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71072-YP340-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
main71072-YP540-C0supersedes 71072-F0230-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71072-YP550-C0supersedes 71072-F0230-C0i202308-202407
MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71072-YP610-C0i202308-202407
GR SPORT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
main71072-YP620-C1i202308-202407
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM2#
main71072-YP630-C0i202308-202407
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM23
main71072-YP630-C1i202308-202407
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM25
main71072-YP640-C1i202401-202407
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM2#
main71072-YP650-C1i202308-202407
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM2#
main71072-YP660-C0supersedes 71072-0KT10-C1i202412
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
main71072-YP681-C0i202311-202410
SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
main71072-YP700-C0i202309-202408
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
main71072-YP860-C1i202402-202410
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM2#
main71072-YP880-C1i202402-202410
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM2#
main71072-YPB50-C0i202405-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71072-YPD40-C0i202311-202404
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71072-YPE40-C0i202308-202407
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0K240-C4i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71074-0K501-C8i202406-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71074-0K591-24i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK/GRAY,TRIM2#
main71074-0K591-D1i202311-202407
MAROON,TRIM3#
main71074-0K710-C2i202402-202410
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71074-0K760-C4i202402-202410
FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#
main71074-0K810-C5supersedes 71074-0K800-C3i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71074-0K890-20supersedes 71074-0K820-C5i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#
main71074-0KA31-C7i202404-202412
BLACK/GRAY,TRIM2#
main71074-0KC32-20i202311-202410
BLACK,TRIM2#
main71074-0KG31-C7i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71074-0KK42-C7i202309-202408
BLACK,TRIM2#
main71074-0KK81-C3i202309-202408
BLACK,TRIM2#
main71074-0KL90-C4i202412
BLACK/GRAY,TRIM2#
main71074-0KN22-C5i202311-202410
BLACK,TRIM2#
main71074-0KN31-C6i202311-202410
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71074-0KP20-C1i202308-202407
BLACK,TRIM2#
main71074-0KP20-D1i202308-202407
MAROON,TRIM3#
main71074-0KR10-C0i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71074-0KR10-D0i202308-202407
MAROON,TRIM3#
main71074-0KT80-C1i202308-202407
BLACK,TRIM2#
main71074-0KU30-C4i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK/GRAY,TRIM2#
main71074-0KX81-C2i202311-202410
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KX90-C0i202308-202407
BLACK,TRIM2#
main71074-0KY30-C0i202308-202407
SRS AIR BAG-WITH(*DRP),BLACK/GRAY,TRIM2#
main71074-0KY30-D0i202308-202407
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),MAROON,TRIM3#
main71074-0KY40-C0i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK/GRAY,TRIM2#
main71074-0KY90-C0supersedes 71074-0KY80-C0i202308-202407
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM2#
main71074-F0040-C0i202311-202410
BLACK,TRIM2#
main71074-F0620-C0i202310-202409
BLACK,TRIM2#
main71074-0K480-C3supersedes 71074-0K430-C5i202308-202407
SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main71074-0K632-22i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK/GRAY,TRIM2#
main71074-0K740-C3supersedes 71074-0K800-C3i202402-202410
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71074-0KM30-C1i202402-202410
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71074-0KM80-C1supersedes 71074-0K430-C5i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71074-0KP10-C1i202406-202407
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71074-0KR20-C0i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71074-0KU01-C3i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71074-0KU11-C3i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71074-0KU20-C3i202308-202407
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71074-0KW12-C1i202311-202410
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-0KW21-C1i202311-202410
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
main71074-0KY60-C0i202308-202407
SEAT COVER MATERIAL-FABLIC(HI)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71074-0KY70-D0i202308-202407
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION),MAROON,TRIM3#
main71074-0KZ00-C0supersedes 71074-0KY50-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
main71074-0KZ10-C0supersedes 71074-0KY50-C0i202308-202407
SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2#
main71074-0KZ20-C0i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK/GRAY,TRIM2#
main71074-F0370-C0i202311-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-YP140-C2i202309-202408
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-YP150-C2i202402-202410
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-YP190-C3i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK/GRAY,TRIM2#
main71074-YP210-C2i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-YP220-C3i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-YP220-C4i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK/GRAY,TRIM2#
main71074-YP350-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-YP360-C0supersedes 71074-0KY90-C0i202308-202407
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71074-YP370-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71074-YP550-C0supersedes 71074-0KY90-C0i202404-202408
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
main71074-YP640-C1i202308-202407
GR SPORT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
main71074-YP660-C1i202308-202407
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM23
main71074-YP660-C2i202308-202407
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM25
main71074-YP670-C1i202401-202407
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM2#
main71074-YP680-C1supersedes 71074-0KM01-C6i202412
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
main71074-YP690-C1i202311-202410
SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
main71074-YP710-C0i202309-202408
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/RED,TRIM2#
main71074-YPA10-C1i202402-202410
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM2#
main71074-YPE10-C0i202308-202407
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM2#
main71074-YPE50-C0i202308-202407
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-0K031i202310-202409
main71502-0K170i202309-202408
main71502-0K180i202309-202408
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
main71502-0K200i202412
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71502-0K231i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71502-0K240supersedes 71502-0K050i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71502-0K460i202308-202407
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)
main71512-0K081i202308-202407
MLM ADVENTURE WIDE TREAD&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71512-0K091i202308-202409
main71512-0K170i202402-202410
main71512-0K240i202311-202410
main71512-0K251i202311-202410
SEAT COVER MATERIAL-NATURAL LEATHER
main71512-0K571i202308-202407
main71512-0K580i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)
main71512-0K591i202402-202412
main71512-0K631i202311-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)
main71512-0KA90supersedes 71512-0K091i202308-202407
MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-NATURAL LEATHER
main71502-0K210i202412
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71502-0K251i202402-202410
SEAT COVER MATERIAL-NATURAL LEATHER
main71502-YP030i202308-202407
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71502-YP040i202309-202408
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71512-0K181i202402-202410
SEAT COVER MATERIAL-NATURAL LEATHER
main71512-0K191i202402-202410
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71512-0K201i202402-202410
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71512-0K271i202311-202410
SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71512-0KA20i202311-202410
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
main71512-0KA50supersedes 71512-0K091i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
main71512-0KB00i202308-202407
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION)
main71512-0KB80i202311-202407
SEAT COVER MATERIAL-NATURAL LEATHER
main71512-YP010i202308-202407
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71512-YP020i202308-202407
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
7152
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
main71537-02170-C0i202308
BLACK,TRIM2#
main71537-02200-C0i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main71537-02300-C0i202308-202407
BLACK,TRIM2#
main71537-06130-C0i202308-202407
GR SPORT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71537-0D400i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71537-0K100-C0i202311-202410
BLACK,TRIM2#
main71537-0K110-C0i202311-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71537-0K150-C0supersedes 71537-0K150-C0i202308-202408
BLACK,TRIM2#
main71537-0K170-C0i202402-202412
BLACK,TRIM2#
main71537-0K230-C0i202309-202408
BLACK,TRIM2#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71537-0D400i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71538-02110-C0i202402-202412
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71538-02120-C0i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71538-02230-C0i202308-202407
BLACK,TRIM2#
main71538-06140-C0i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71538-0K080-C0i202311-202410
BLACK,TRIM2#
main71538-0K090-C0i202311-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71538-0K130-C0i202402-202412
BLACK,TRIM2#
main71538-0K190-C0i202309-202408
BLACK,TRIM2#
main71538-0K200-C0i202308-202408
BLACK,TRIM2#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-0K120i202308-202407
SEAT COVER MATERIAL-VINYL LEATHER
main71552-0K150i202406-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main71552-0K160supersedes 71552-0K140i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0K200i202308-202409
main71552-0K320supersedes 71552-0K340i202402-202410
SEAT COVER MATERIAL-VINYL LEATHER
main71552-0K350supersedes 71552-0K340i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)
main71552-0K390supersedes 71552-0K360i202402-202412
main71552-0K560i202311-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)
main71552-0K800i202309-202408
main71552-0KA30i202412
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71552-0KA70i202311-202410
main71552-0KB30i202311-202410
main71552-0KB90i202309-202408
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
main71552-0KD90i202308-202407
main71552-0KE10i202308-202407
MLM ADVENTURE WIDE TREAD&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71552-0KG20i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)
main71552-0KG60i202308-202407
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)
main71552-0KG70i202308-202409
main71552-0K130supersedes 71552-0K140i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0K330i202402-202410
SEAT COVER MATERIAL-VINYL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0K420i202402-202410
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71552-0K580i202311-202410
SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71552-0KA40i202412
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71552-0KB80i202309-202408
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71552-0KE30i202308-202407
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71552-0KG00i202311-202410
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
main71552-0KG10i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
main71552-0KG30i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71552-0KG80i202308-202407
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION)
main71552-0KG90supersedes 71552-0KG70i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
main71552-0KJ00i202401-202407
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
main71552-0KJ10i202308-202407
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-0K030×4i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71587-0K040×4i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)
main71587-0K050×4i202311-202410
71751HANGER, SEAT COVER
main71751-0K070×2i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
71759BHOOK, FRONT SEATBACK
main71759-0K140×4i202308-202407
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
71759CHOOK, FRONT SEATBACK, NO.1
main71759-0K060×4i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main71759-0K080×4i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)
main71759-0K140×2i202308-202407
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT)
71759DHOOK, FRONT SEATBACK, NO.2
main71759-0K070-C0×2i202308-202407
GR SPORT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71811-0K200-C0i202311-202410
BLACK,TRIM2#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-06390-C0i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71812-0D560-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71812-0D570-C0i202308-202407
SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71812-0D650-C1i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71812-0D660-C1i202308-202407
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71812-0K100-C0supersedes 71812-0K130-C0i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71812-0K110-C0i202311-202407
BLACK,TRIM2#,3#
main71812-0K120-C0supersedes 71812-0K120-C0i202308-202408
BLACK,TRIM2#
main71812-0K150-C0i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71812-0K200-C0i202311-202410
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71812-0K210-C0i202311-202410
SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71812-0K240-C0i202406-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71812-0K300-C0supersedes 71812-0K470-C0i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71812-0K330-C0supersedes 71812-0K470-C0i202402-202410
FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#
main71812-0K480-C0i202402-202412
BLACK,TRIM2#
main71812-0K500-C0i202309-202408
BLACK,TRIM2#
main71812-0K260-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71812-0K490-C0i202402-202410
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71849CAP, SEAT ADJUSTER COVER, LH
main71848-02040×2i202402-202412
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main71848-47010×2i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-06270-C0i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71862-0D440-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71862-0D450-C0i202308-202407
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71862-0K140-C0supersedes 71862-0K330-C0i202402-202412
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71862-0K200-C0i202311-202410
BLACK,TRIM2#
main71862-0K240-C0supersedes 71862-0K120-C0i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71862-0K250-C0i202311-202407
BLACK,TRIM2#,3#
main71862-0K270-C0supersedes 71862-0K330-C0i202402-202410
FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#
main71862-0K320-C0i202402-202412
BLACK,TRIM2#
main71862-0K340-C0i202309-202408
BLACK,TRIM2#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-06450-C0i202308-202407
GR SPORT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71875-0K120-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71875-0K150-C0i202311-202410
SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71875-0K160-C0i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71875-0K280i202308-202407
MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-NATURAL LEATHER
main71875-0K290-C0i202309-202408
BLACK,TRIM2#
main71875-0K130-C0i202308-202407
FRONT AIR CONDITIONER-AUTO&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-06470-C0i202308-202407
GR SPORT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71876-0K120-C0i202311-202407
SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71876-0K150-C0i202311-202410
SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71876-0K160-C0i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71876-0K280i202308-202408
main71876-0K290-C0i202309-202408
BLACK,TRIM2#
main71876-0K130-C0i202308-202407
FRONT AIR CONDITIONER-AUTO&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-0KL30-C0×2i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main71910-0KL50-C0×2i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71910-0KL60-C0×2i202404-202412
BLACK,TRIM2#
main71910-0KL90-C0×2i202308-202407
BLACK,TRIM2#
main71910-0KM10-C0×2i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71910-0KM10-D0×2i202311-202407
MAROON,TRIM3#
main71910-0KM20-C0×2i202310-202409
BLACK,TRIM2#
main71910-0KM50-C0×2i202412
BLACK,TRIM2#
main71910-0KM90-C0×2i202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71910-0KM90-D0×2i202308-202407
MAROON,TRIM3#
main71910-0KN10-C0×2i202308-202407
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71910-0KN10-D0×2i202308-202407
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),MAROON,TRIM3#
main71910-0KN30-C1×2i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK/GRAY,TRIM2#
main71910-0KP40-C0×2i202309-202408
BLACK,TRIM2#
main71910-0KP60-C0×2i202309-202408
BLACK/GRAY,TRIM2#
main71910-0KQ00-C0×2i202311-202410
BLACK,TRIM2#
main71910-0KQ11-C1×2i202311-202410
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main71910-0KQ20-C0×2i202311-202410
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71910-0KN20-D0×2i202308-202407
SEAT COVER MATERIAL-FABRIC(FOR SEAT VENTILATION),MAROON,TRIM3#
main71910-YP030-C0×2supersedes 71910-0KM60-C0i202412
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM2#
main71910-YP030-C1×2i202308-202407
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM2#
main71910-YP050-C0×2i202401-202407
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM23
main71910-YP050-C1×2i202401-202407
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GRAY,TRIM25
main71910-YP070-C0×2i202311-202410
SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM2#
main71910-YP090-C0×2i202309-202408
GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/GR RED,TRIM2#
main71910-YP320-C0×2i202402-202410
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
main71930-0D140-C1×2i202308-202407
W(LOCK),SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN),BLACK,TRIM2#
main71930-0K050-C1×2i202308-202407
W(LOCK),RUGGED X PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71930-47050-C5×2i202311-202410
W(LOCK),SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71931-0D150-C1×2supersedes 71931-0D150-C1i202308-202407
W/O(LOCK),MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main71931-0K040-C1×2i202311-202407
W/O(LOCK),BLACK,TRIM2#,3#
main71931-47030-C4×2i202311-202410
W/O(LOCK),SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71930-0D140-C0×2i202308-202407
W(LOCK),GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71930-0K050-C0×2i202309
W(LOCK),GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71931-0D150-C0×2i202308-202407
W/O(LOCK),GR SPORT&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
main71931-0K040-C0×2i202308-202407
W/O(LOCK),GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-0K060i202308-202409
main72020-0K070i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER
main72020-0K080i202308-202407
MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-NATURAL LEATHER
main72020-0K140i202402-202412
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main72020-0K150i202402-202410
main72020-0K180i202311-202410
main72020-0K190i202311-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)
main72020-0K200i202311-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-NATURAL LEATHER
main72020-0K270i202309-202408
main72020-0K320i202412
main72020-0K400i202308-202407
main72020-0K160i202402-202410
SEAT COVER MATERIAL-NATURAL LEATHER
main72020-0K560i202311-202407
SEAT COVER MATERIAL-NATURAL LEATHER
72138COVER, SEAT TRACK, OUTER LH
main72125-0D030i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main72125-0D120i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
72138ECOVER, SEAT TRACK, INNER LH
main72125-06090i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main72125-0D030i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
72138HCOVER, FRONT SEAT TRACK, LH REAR INNER
main72158-KK010-C0supersedes 72137-KK020-C0i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
main72137-KK010-C0supersedes 72137-KK020-C0i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72211-02160i202412
main72211-0D160i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main72211-0D170i202309-202408
main72211-0K120i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-VINYL LEATHER
main72211-0K200i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-06060×2i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main72265-0D080×2i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main72265-0K010×2supersedes 72265-0K010i202308-202408
72526EHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-06130-C0i202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main72526-0D260-C0supersedes 72525-0K010-C0i202308
BLACK,TRIM2#
main72526-0D360-C0supersedes 72525-0K010-C0i202308-202407
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main72526-0K250-C0i202311-202410
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
main72526-0K410-C0i202309-202408
BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0K050i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
sub73920-0K190
main73920-0K070i202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main73920-0K170i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
main73920-0K210i202308-202409
main73920-0K120i202311-202410
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
main73920-0K180i202308-202407
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
main73920-0K220supersedes 73920-0K210i202404-202408
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION)
79197ARIVET
main79197-0K010×4i202308-202407
CENTRAL AND SOUTH AMERICA SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
9011910601
main90119-10601
9011910921
main90119-10921
90119T0001
main90119-T0001
9098012373
main90980-12373
9418560600
main94185-60600

37 parts on this diagram · 21 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
