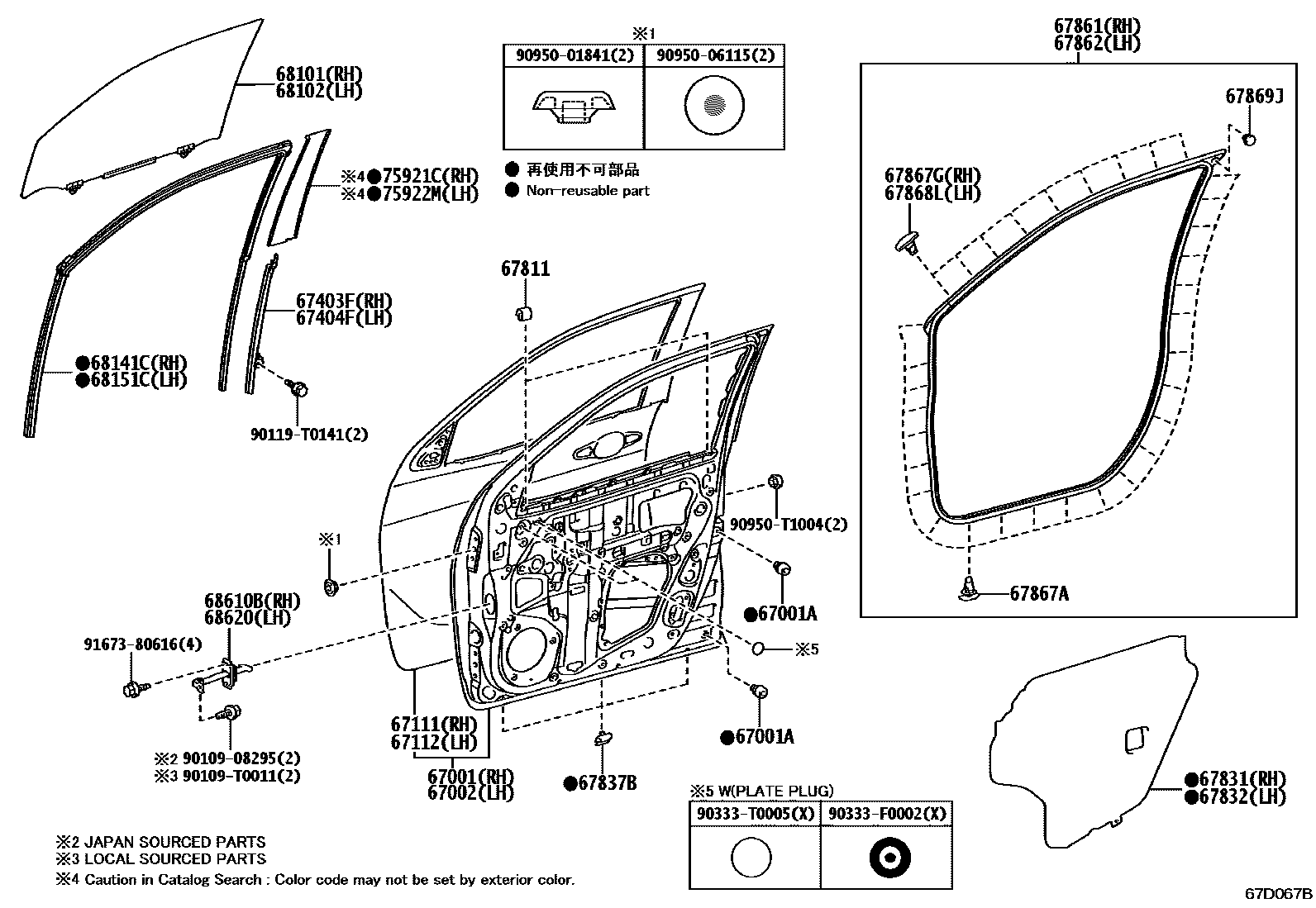

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM,W(POWER WINDOW) 0003 1DOOR TRIM,W/O(POWER WINDOW)

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-KK010iGUN126..IND,MMR202308-202409

67001ACUSHION, FRONT DOOR PANEL

main90541-09131×4iGUN126..IND,MMR202308-202409

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-KK010iGUN126..PKN202308

67111PANEL, FRONT DOOR, OUTER RH

main67111-KK010iGUN125,126..GHA,KEN202308-202412

67112PANEL, FRONT DOOR, OUTER LH

main67112-KK010iGUN125,126..GHA,KEN202308-202412

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K070iGUN126..PKN202308

main67403-0K080iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main67403-0K100iGUN126..IND202310-202409

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K070iGUN126..MMR202308-202409

main67404-0K080iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main67404-0K100iGUN126..IND202310-202409

67811PAD, FRONT DOOR SILENCER

main69759-0K030×4iGUN126..IND,MMR202308-202409

main69759-0K060×4iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SAP202402-202410

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K120iGUN126..MMR202308-202409

main67831-0K150iGUN126..IND202310-202409

main67831-0K160iGUN126..PKN202412

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0K120iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

main67832-0K150iGUN126..IND202310-202409

main67832-0K160iGUN126..PKN202412

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K093×6iGUN126..IND202310-202409

main67837-0K103×6iGUN125,126..GHA,KEN202402-202412

main67837-0K121×6iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

EXCEPT PLANT TMT

main67837-0K211×6iGUN125,126..MA202309-202408

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K121iGUN126..MMR202308-202409

main67861-0K151iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SAP202402-202410

main67861-0K162iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main67861-0K201iGUN126..IND202310-202409

main67861-0K241iGUN125,126..MA202309-202408

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K121iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

main67862-0K151iGUN125,126..GHA,KEN202402-202412

main67862-0K162iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main67862-0K201iGUN126..IND202310-202409

main67862-0K241iGUN125,126..MA202309-202408

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×48iGUN126..IND,MMR202308-202409

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52040×9iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52010×9iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-0K010iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main9004A-46317×2iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

main90467-06084×2iGUN126..IND202309-202409

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K192iGUN126..L..PKN202308

main68101-0K200iGUN122,125,135,LAN125,TGN121,126,136..(GHAP,KENP,SAP)..L202402-202410

main68101-0K210iGUN125,126,135,TGN126,136..AGTP..L202311-202410

main68101-0K272iGUN126..(H,S)..PKN202308

main68101-0K280iGGN125,GUN125,126,13#,LAN125,TGN126,136..(GHAP,KENP,SAP)..(H,S)202402-202410

main68101-0K290iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)202311-202410

main68101-0K330iGUN125,126..MA202309-202408

main68101-0K380iGGN125,GUN125,TGN126..H..GCC; GUN126..GCC202308-202407

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68101-0K390iGUN122..H; TGN121..H202308-202407

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68101-0K400iGUN126..IND202310-202409

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K192iGUN125..VN;GUN122..THP..(L,S);GUN135..6FC..(ARL,VN);GUN120,121,TGN120,121,136..THP;GUN135,TGN126..THP..L..(GCC,GEN,LA,TH);GUN125,126..THP..L..(ARL,GCC,GEN,IDN,LA,SA)202308-202407

main68102-0K200iGUN122,125,135,LAN125,TGN121,126,136..(GHAP,KENP,SAP)..L202402-202410

main68102-0K210iGUN125,126,135,TGN126,136..AGTP..L202311-202410

main68102-0K272iGUN126..MHV..(ARL,LA);GUN125,135..L..(PH,VN);TGN126..THP..(H,S)..(GCC,GEN,LA);GUN126..THP..(H,S)..DCRL..(ARL,GEN,LA,PH,TH,TWN,VN);GGN125,GUN125,13#..THP..(H,S)..(ARL,GCC,GEN,IDN,LA,PH,SA,TH)202308-202407

main68102-0K280iGGN125,GUN125,126,13#,LAN125,TGN126,136..(GHAP,KENP,SAP)..(H,S)202402-202410

main68102-0K290iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)202311-202410

main68102-0K330iGUN125,126..MA202309-202408

main68102-0K370iGGN125,GUN125,TGN126..H..GCC; GUN126..GCC202308-202407

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68102-0K380iGUN122..H; TGN121..H202308-202407

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68102-0K390iGUN126..IND202310-202409

68141CRUN, FRONT DOOR GLASS, RH

main68141-0K070iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

main68141-0K090iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202402-202410

main68141-0K100iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main68141-0K140iGUN126..IND202310-202409

main68141-0K150iGUN125,126..MA202309-202408

68151CRUN, FRONT DOOR GLASS, LH

main68151-0K070iGUN126..CAMP202308-202408

main68151-0K090iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHAP,KENP,SAP202402-202410

main68151-0K100iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main68151-0K140iGUN126..IND202310-202409

main68151-0K150iGUN125,126..MA202309-202408

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K091iGUN126..PKN202308

main68610-0K100iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main68610-0K110iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SAP202310-202410

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K091iGUN126..PKN202308

main68610-0K100iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main68610-0K110iGUN125,126..GHA,KEN202310-202412

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0K030iGUN135..GEN,PH,TH;GUN126..LHD..S..GEN;TGN126..THP..6FC..H;GUN126..H..MHV..(ARL,GCC,LA);GUN126,135..THP..S..(ARL,LA);TGN126..THP..5F..(H,S)..(GCC,LA);GUN125,136..THP..(H,S)..(ARL,LA,TH);GGN125,GUN122,125,126,TGN121..THP..H..(DCRL,HTWC); TGN126..S..GEN;GUN126..RHD..S..GEN;GUN122,125..THP..S..(GEN,SA)202308-202407

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75921-0K040iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)..LA; GUN126,13#..(H,S)..BZAG202311-202410

main75921-0K090iGUN125,126,135,LAN125,TGN126,136..SAP..S; GUN125..S..GHA;GGN125,GUN125,126,136..H..(GHA,KEN,SA)202402-202410

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0K030iGUN125,126..(CAMP,MAP)..H202308-202408

main75922-0K040iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)..LA; GUN126,13#..(H,S)..BZAG202311-202410

main75922-0K090iGUN125,126,135,LAN125,TGN126,136..SAP..S; GUN125..S..GHA;GGN125,GUN125,126,136..H..(GHA,KEN,SA)202402-202410

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

9010908295

main90109-08295

90109T0011

main90109-T0011

90119T0141

main90119-T0141

90333F0002

main90333-F0002

90333T0005

main90333-T0005

9095001841

main90950-01841

9095006115

main90950-06115

90950T1004

main90950-T1004

9167380616

main91673-80616

34 parts on this diagram · 3 diagrams in section
