CONSOLE BOX & BRACKET
58810JBOX ASSY, CONSOLE
MOROCCO SPEC,BLACK,TRIM2#
main58810-KK110-C0iGUN126..6F..L..BZAG;GUN126..(AGTP,SAP)..6F..S;GUN126,136..AGTP..6F..H..LA;GUN125,135,LAN125,TGN126,136..(AGTP,SAP)..MTM..(H,S)202308-202412
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
BLACK,TRIM2#
main58810-KK180-C0iGUN126..RHD..6FC..H..DCRL..GEN;GUN126,13#..RHD..THP..6FC..(L,S);GUN120,121,125,TGN121..RHD..THP..6FC202308-202412
BLACK,TRIM2#
BLACK,TRIM2#
OCEANIA GENERAL SPEC,BLACK,TRIM2#
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION),BLACK,TRIM2#
OCEANIA(EURO 5 REGULATION),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
OCEANIA GENERAL SPEC,BLACK,TRIM2#
BLACK,TRIM2#
58811ABOX, CONSOLE, FRONT
BLACK,TRIM2#
BLACK,TRIM2#,3#
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
MOROCCO SPEC,BLACK,TRIM2#
58815ACARPET, CONSOLE BOX
main58815-KK020iTGN121..5F..S;GUN122..RHD..GEN;GUN125..THP..6F..L..(GCC,SA);GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main58815-KK020iTGN121..5F..S;GUN122..RHD..GEN;GUN125..THP..6F..L..(GCC,SA);GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407
ASIA COLD COUNTRY SPEC
main58815-KK020iTGN121..5F..S;GUN122..RHD..GEN;GUN125..THP..6F..L..(GCC,SA);GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407
MOROCCO SPEC
58815BCARPET, CONSOLE BOX
main58815-KK010iTGN126..6FC..L;TGN126..L..GEN;GUN125..THP..6FC;GUN122,TGN121..5F..H;GUN125..THP..6F..(H,S);GUN135..ARL,GEN,PH,TH,VN;GUN126..MHV..(ARL,GCC,LA);GUN122,135..THP..S..(G202308-202407
MOROCCO SPEC
main58815-KK010iTGN126..6FC..L;TGN126..L..GEN;GUN125..THP..6FC;GUN122,TGN121..5F..H;GUN125..THP..6F..(H,S);GUN135..ARL,GEN,PH,TH,VN;GUN126..MHV..(ARL,GCC,LA);GUN122,135..THP..S..(G202308-202407
ASIA COLD COUNTRY SPEC
58818ACOVER, CONSOLE BOX, FR
BLACK,TRIM2#
BLACK,TRIM2#,3#
58901ABOX SUB-ASSY, CONSOLE, REAR
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
BLACK,TRIM2#
main58901-KK030-C0iTGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407
MOROCCO SPEC,BLACK,TRIM2#
main58901-KK030-C0iTGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#
main58901-KK030-C0iGUN122,126..(AGTP,SAP)..L..(LA,SA);GUN125,135,TGN126,136..AGTP..MTM..L202308-202412
BLACK,TRIM2#
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
58904BCOVER SUB-ASSY, PARKING BRAKE HOLE
main58904-KK060-C0iGUN125..6F..ARL;GUN126..MHV..ARL;GUN125..RHD..6FC..L;GUN125,126..RHD..THP..(H,S)..DCRL;GUN120,121,122,13#,TGN121..ARL,TH202308-202412
BLACK,TRIM2#
main58904-KK070-C0iTGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202308-202407
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
main58904-KK070-C0iGUN125..PH;TGN126..L..GEN;GUN135..GEN,PH,VN;GUN135..THP..S..LA;TGN126..THP..(H,S)..(GEN,LA);GUN122,125,126,136..LHD..THP..(H,S)..(GEN,LA,PH,SA,TWN,VN)202308-202407
BLACK,TRIM2#,3#
main58904-KK070-C0iGUN125..PH;TGN126..L..GEN;GUN135..GEN,PH,VN;GUN135..THP..S..LA;TGN126..THP..(H,S)..(GEN,LA);GUN122,125,126,136..LHD..THP..(H,S)..(GEN,LA,PH,SA,TWN,VN)202308-202412
BLACK,TRIM2#
main58904-KK070-C0iGUN125..PH;TGN126..L..GEN;GUN135..GEN,PH,VN;GUN135..THP..S..LA;TGN126..THP..(H,S)..(GEN,LA);GUN122,125,126,136..LHD..THP..(H,S)..(GEN,LA,PH,SA,TWN,VN)202308-202407
MOROCCO SPEC,BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#
BLACK,TRIM2#
main58904-KK090-C0iTGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
main58904-KK090-C0iTGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407
MOROCCO SPEC,BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#
ASIA COLD COUNTRY SPEC,BLACK/BLACK,TRIM2#
BLACK/RED,TRIM3#
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM23
sub58905-KK140
DOOR TRIM-GR SPORT & WITH(ILLUMINATION)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GRSPORT),BLACK/GR RED,TRIM23
sub58905-KK140
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM20,21
sub58905-KK140
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
sub58905-KK140
DOOR TRIM-GR SPORT & WITH(ILLUMINATION)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GRSPORT),BLACK/BLACK,TRIM20,21
sub58905-KK140
main58905-KK070-C8iGUN135..(L,S)..TH;GUN126..RHD..6F..S..GEN;GUN120,121,122,125..RHD..THP..S202308-202407
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#
main58905-KK070-C8iGUN135..(L,S)..TH;GUN126..RHD..6F..S..GEN;GUN120,121,122,125..RHD..THP..S202308-202407
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#
main58905-KK070-C8iGUN135..(L,S)..TH;GUN126..RHD..6F..S..GEN;GUN120,121,122,125..RHD..THP..S202308-202407
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#
main58905-KK070-C8iGUN135..(L,S)..TH;GUN126..RHD..6F..S..GEN;GUN120,121,122,125..RHD..THP..S202308-202407
FRONT AIR CONDITIONER-AUTO,BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM2#
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/BLACK,TRIM2#
main58905-KK080-C8iTGN126..H..GEN;GUN126..LHD..S..GEN;GUN135..THP..(H,S)..(LA,PH);GUN122,125..LHD..THP..S..(GEN,LA);GUN126,136,TGN126..THP..(H,S)..(LA,PH,VN)202308-202412
BLACK/BLACK,TRIM2#
main58905-KK080-C8iTGN126..H..GEN;GUN126..LHD..S..GEN;GUN135..THP..(H,S)..(LA,PH);GUN122,125..LHD..THP..S..(GEN,LA);GUN126,136,TGN126..THP..(H,S)..(LA,PH,VN)202308-202407
MOROCCO SPEC,BLACK/BLACK,TRIM2#
HEATER CONTROL PANEL-MANUAL AIR CONDITIONER&FRONT AIR CONDITIONER-MANUAL,BLACK/BLACK,TRIM2#
main58905-KK110-C0iGUN126..6FC..H..ARL;GUN126..RHD..THP..6F..H;GUN125,13#..RHD..THP..H;GUN126..RHD..6FC..H..DCRL..GEN202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
main58905-KK110-C0iGUN126..6FC..H..ARL;GUN126..RHD..THP..6F..H;GUN125,13#..RHD..THP..H;GUN126..RHD..6FC..H..DCRL..GEN202308-202407
BLACK/BLACK,TRIM20,21,25
BLACK/BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-SUEDE & LEATHER(FORGR SPORT),BLACK/GR RED,TRIM2#
BLACK/GR RED,TRIM23
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/BLACK,TRIM2#
main58905-KK120-C0iTGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202409
BLACK/BLACK,TRIM2#
main58905-KK120-C0iTGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202407
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&FRONT AIR CONDITIONER-AUTO&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
main58905-KK120-C0iTGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202407
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
main58905-KK120-C0iTGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202407
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2#
main58905-KK120-C0iTGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202407
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
main58905-KK120-C0iTGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202407
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2#
main58905-KK120-C0iTGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202407
MLM ADVENTURE WIDE TREAD&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2#
main58905-KK120-C0iTGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202407
MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2#
main58905-KK120-C0iTGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202407
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK/BLACK,TRIM2#
main58905-KK120-C0iTGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202407
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
main58905-KK120-C0iTGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202407
MLM ADVENTURE WIDE TREAD&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
main58905-KK120-C0iTGN126..H..GCC;GGN125,GUN122,125,126,135,TGN121..LHD..THP..H..(GCC,GEN,TWN)202308-202407
MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/BLACK,TRIM2#
BLACK/MAROON,TRIM3#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-KK010-C0iTGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202308-202407
BLACK,TRIM2#,3#
main58907-KK010-C0iTGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202308-202412
BLACK,TRIM2#
main58907-KK010-C0iTGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202308-202407
MOROCCO SPEC,BLACK,TRIM2#
main58907-KK010-C0iTGN121..5F..H;GGN125,GUN122,126..H..GCC;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..GCC202308-202407
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-KK010iTGN126..6FC..L;TGN126..L..GEN;GUN125..THP..6FC;GUN122,TGN121..5F..H;GUN125..THP..6F..(H,S);GUN135..ARL,GEN,PH,TH,VN;GUN126..MHV..(ARL,GCC,LA);GUN122,135..THP..S..(G202308-202407
MOROCCO SPEC
main58908-KK010iTGN126..6FC..L;TGN126..L..GEN;GUN125..THP..6FC;GUN122,TGN121..5F..H;GUN125..THP..6F..(H,S);GUN135..ARL,GEN,PH,TH,VN;GUN126..MHV..(ARL,GCC,LA);GUN122,135..THP..S..(G202308-202407
ASIA COLD COUNTRY SPEC
58951DDOOR, CONSOLE COMPARTMENT, OUTER
BLACK,TRIM2#
main58951-KK020-C5iGUN135..(L,S)..TH;GUN126..RHD..6F..S..GEN;GUN120,121,122,125..RHD..THP..S202308-202407
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#
main58951-KK020-C5iGUN135..(L,S)..TH;GUN126..RHD..6F..S..GEN;GUN120,121,122,125..RHD..THP..S202308-202407
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#
main58951-KK020-C5iGUN135..(L,S)..TH;GUN126..RHD..6F..S..GEN;GUN120,121,122,125..RHD..THP..S202308-202407
FRONT AIR CONDITIONER-AUTO,BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
CENTRAL AND SOUTH AMERICA SPEC&FRONT AIR CONDITIONER-AUTO&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#
CENTRAL AND SOUTH AMERICA SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#
main58951-KK070-C1iGUN125..PH;TGN126..6FC..L;TGN126..L..GEN;TGN126..S..(GCC,GEN);GUN125..6FC..(L,S)..GCC;GUN125..THP..6F..S..(GCC,SA,VN);GUN135,TGN121..(6F,6FC)..(L,S)..(GCC,VN)202308-202407
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#
main58951-KK070-C1iGUN126..L..BZAG;GUN125,135..6FC..L..BZAG;GUN125,LAN125,TGN126..LHD..SAP..S202308-202412
BLACK,TRIM2#
RED,TRIM3#
main58951-KK080-C3iTGN126..H..GEN;GUN126..LHD..S..GEN;GUN135..THP..(H,S)..(LA,PH);GUN122,125..LHD..THP..S..(GEN,LA);GUN126,136,TGN126..THP..(H,S)..(LA,PH,VN)202308-202407
HEATER CONTROL PANEL-MANUAL AIR CONDITIONER&FRONT AIR CONDITIONER-MANUAL,BLACK/GRAY,TRIM2#
BLACK/GRAY,TRIM2#
MOROCCO SPEC,BLACK/GRAY,TRIM2#
DOOR TRIM-GR SPORT & WITH(ILLUMINATION)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GRSPORT),BLACK/GRAY,TRIM20,21
sub58951-KK150
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#
sub58951-KK150
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM20,21
sub58951-KK150
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GR RED,TRIM23
sub58951-KK150
DOOR TRIM-GR SPORT & WITH(ILLUMINATION)&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GRSPORT),BLACK/GR RED,TRIM23
sub58951-KK150
BLACK,TRIM20,21,25
main58951-KK120-C0iGUN126..6FC..H..ARL;GUN126..RHD..THP..6F..H;GUN125,13#..RHD..THP..H;GUN126..RHD..6FC..H..DCRL..GEN202308-202407
BLACK,TRIM2#
main58951-KK120-C0iGUN126..6FC..H..ARL;GUN126..RHD..THP..6F..H;GUN125,13#..RHD..THP..H;GUN126..RHD..6FC..H..DCRL..GEN202308-202407
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-SUEDE & LEATHER(FORGR SPORT),BLACK/GR RED,TRIM2#
BLACK/GR RED,TRIM23
MLM ADVENTURE WIDE TREAD&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
GR SPORT WIDE TREAD&DOOR TRIM-LEATHER(GR SPORT(WIDE TREAD))&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
GR SPORT WIDE TREAD&SEAT COVER MATERIAL-SUEDE & LEATHER(FOR GR SPORT),BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE WIDE TREAD&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE WIDE TREAD&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&FRONT AIR CONDITIONER-AUTO&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&DOOR TRIM-LEATHER(MLM) & WITH(ILLUMINATION)&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#
MAROON,TRIM3#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main90541-T0008iTGN126..6FC..L;TGN126..L..GEN;GUN125..THP..6FC;GUN122,TGN121..5F..H;GUN125..THP..6F..(H,S);GUN135..ARL,GEN,PH,TH,VN;GUN126..MHV..(ARL,GCC,LA);GUN122,135..THP..S..(G202308-202407
ASIA COLD COUNTRY SPEC
MOROCCO SPEC
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
ASIA COLD COUNTRY SPEC
main58995-KK020iTGN126..L..GEN;GUN122,TGN121..5F..H;GUN125,TGN121..MTM..(ARL,PH);GUN122,135..THP..S..(GEN,LA);GUN125,126,136..THP..6F..(H,S);GUN121,122,135..6F..(GEN,PH,TH,VN);TGN1202308-202407
MOROCCO SPEC
main58995-KK030iGUN122..L..GEN;GUN122..(L,S)..(GCC,PH);TGN121..LHD..THP..5F..(L,S);TGN126..THP..5F..L..(GCC,LA);GUN125,126,135,TGN120,136..THP..MTM..L..(GCC,GEN,IDN,LA,SA)202308-202412
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
90119T0314
main90119-T0314
9015960431
main90159-60431
90159T0014
main90159-T0014
90167T0012
main90167-T0012
9046710161
main90467-10161
9167380616
main91673-80616
9167380816
main91673-80816
9352054014
main93520-54014
9354054012
main93540-54012
9356855014
main93568-55014

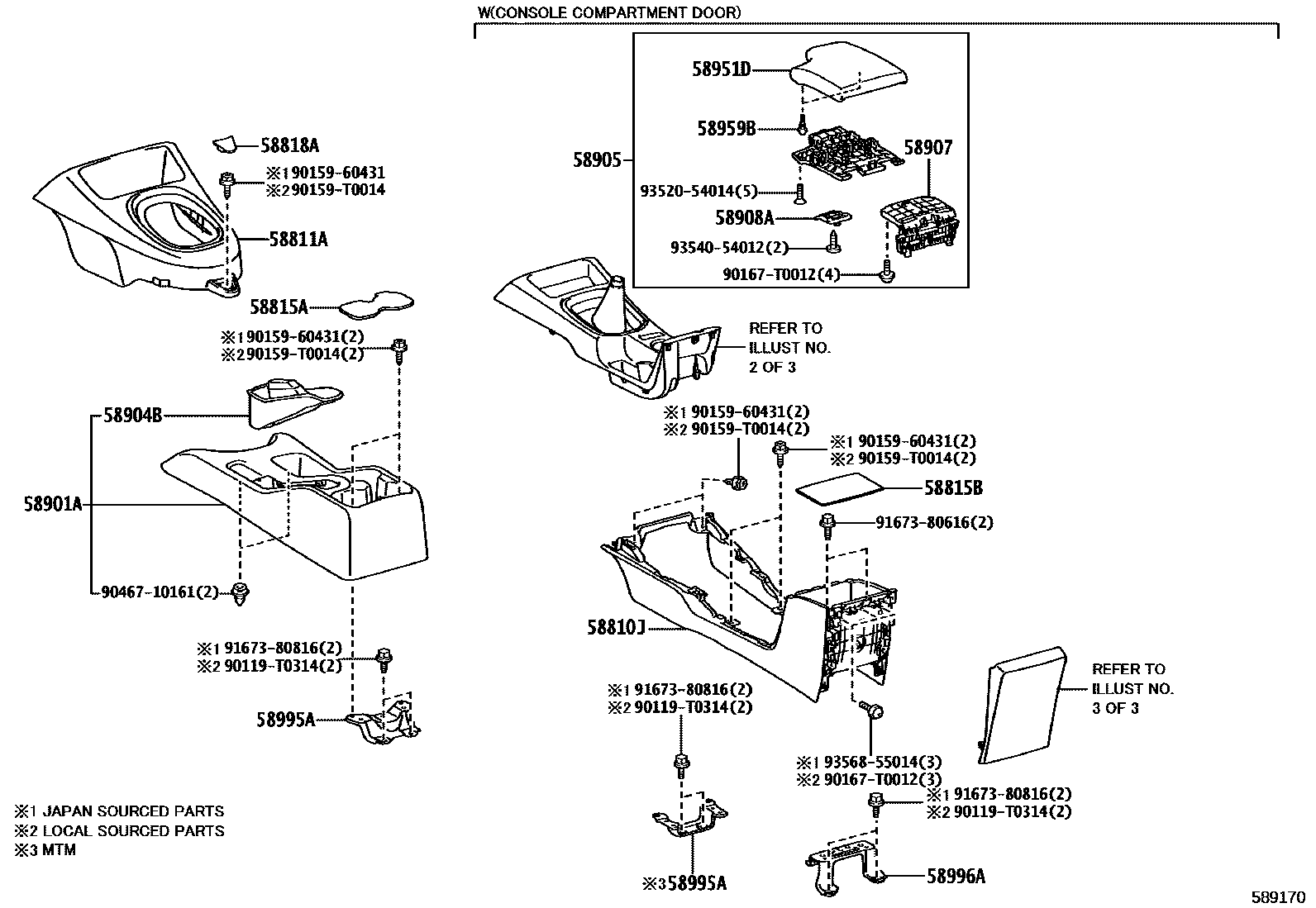

24 parts on this diagram · 4 diagrams in section
