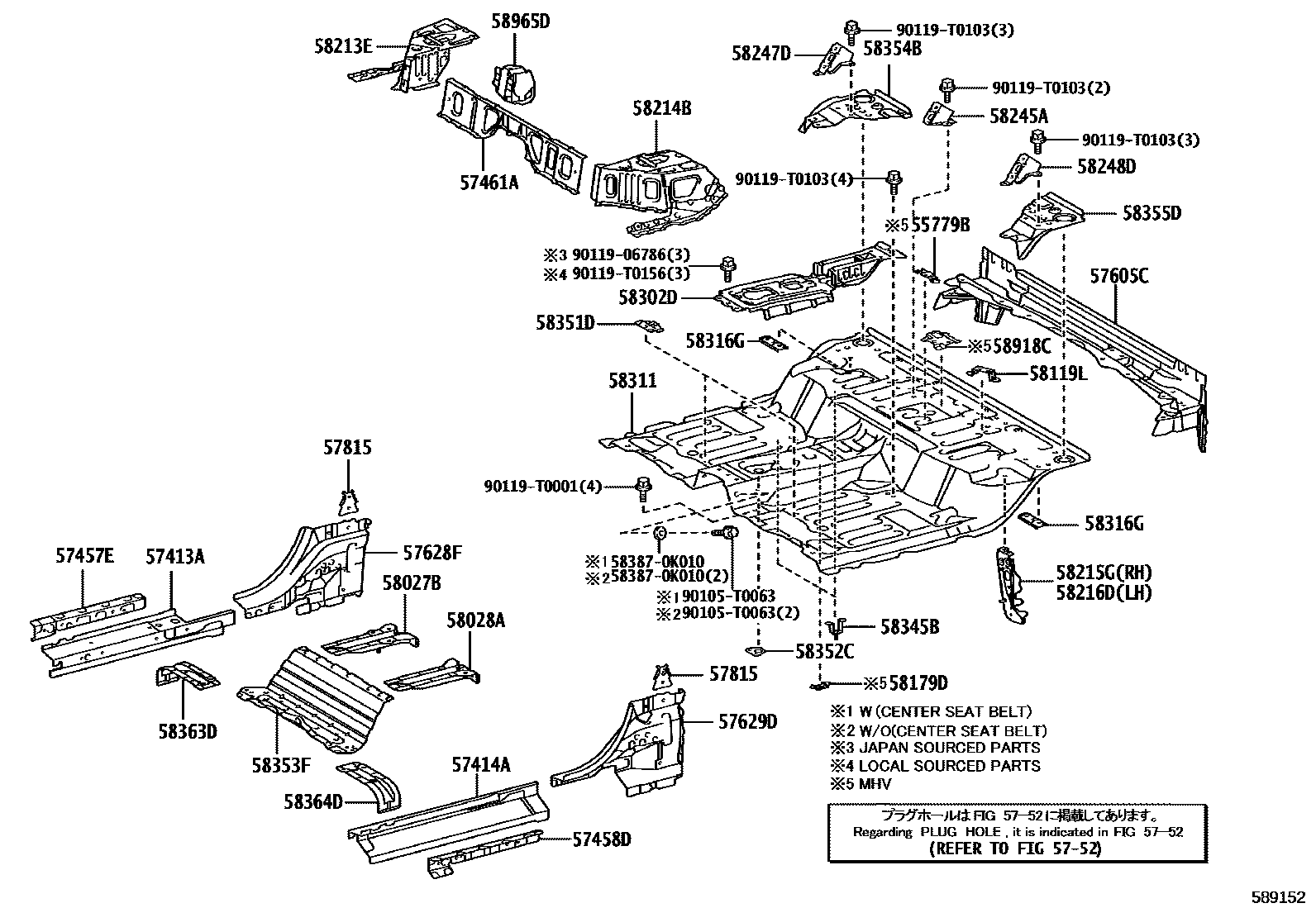

REAR FLOOR PANEL & REAR FLOOR MEMBER
55779BBRACKET, WIRING HARNESS MOUNTING
57413AMEMBER, FLOOR SIDE, INNER REAR RH
main57413-KK020iGUN126..AGTP,GHAP,KENP,SAP;GGN125,GUN122,125,13#,LAN125,TGN121,126,136..AGTP,GHAP,SAP202308-202410
57414AMEMBER, FLOOR SIDE, INNER REAR LH
57457EPATCH, FLOOR SIDE MEMBER, RR RH
57458DPATCH, FLOOR SIDE MEMBER, REAR LH
main57458-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
57461AMEMBER, CENTER FLOOR CROSS
5752HOLE PLUG
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57628FPLATE, REAR FLOOR SIDE MEMBER, RH
main57628-KK020iGUN126..AGTP,GHAP,KENP,SAP;GGN125,GUN122,125,13#,LAN125,TGN121,126,136..AGTP,GHAP,SAP202308-202410
57629DPLATE, REAR FLOOR SIDE MEMBER, LH
57815REINFORCEMENT, BELT ANCHOR, NO.1
58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR
main58027-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
58028AREINFORCE SUB-ASSY, SEAT BELT ANCHOR, NO.2
58119LPLATE, REAR FLOOR SIDE
main58348-KK020iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
58179DBRACKET, CLAMP FLOOR
58213EPANEL, SEAT FLOOR SIDE, RH
58214BPANEL, SEAT FLOOR SIDE, LH
58215GBRACKET, REAR SEAT MOUNTING, NO.1
58216DBRACKET, REAR SEAT MOUNTING, LH
58245ABRACKET, REAR SEAT HINGE, CENTER NO.1
main58248-KK010iGUN126..AGTP,GHAP,KENP,SAP;GGN125,GUN122,125,13#,LAN125,TGN121,126,136..AGTP,GHAP,SAP202308-202410
58247DBRACKET, REAR SEAT HINGE, OUTER RH
main58247-KK010iGUN126..AGTP,GHAP,KENP,SAP;GGN125,GUN122,125,13#,LAN125,TGN121,126,136..AGTP,GHAP,SAP202308-202410
58248DBRACKET, REAR SEAT HINGE, OUTER LH
main58204-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
58302DPANEL SUB-ASSY, REAR FLOOR, FRONT
58311PAN, REAR FLOOR
FRONT SEAT-BENCH TYPE(FOR TWO PERSONS)
main58311-KK110iGUN122,126..LHD..S..GEN; GUN125..LHD..S..GEN; TGN121..5F..H;GUN125..RHD..(H,S)..GEN;GUN126..RHD..6FC..DCRL..GEN;GUN125,TGN121,126..6FC..GCC;GUN125,TGN126..MTM..(H,S)..(GCC,IDN);GGN125,GUN122,126..H..(DCRL,HTWC)..GCC;GUN125,135,TGN126..MTM..L..(GEN,IDN,VN); TGN121..5F..S;GUN122..RHD..GEN;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407
ASEAN GENERAL SPEC&REAR HEADREST-WITH(RH/LH); ASIA COLD COUNTRY SPEC&REAR HEADREST-WITH(RH/LH); CAMBODIA SPEC&REAR HEADREST-WITH(RH/LH); FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); OCEANIA GENERAL SPEC&REAR HEADREST-WITH(RH/LH); REAR HEADREST-WITH(RH/LH)
REAR HEADREST-WITH(RH/LH)
58316GRETAINER, REAR SEAT, NO.1
main58316-KK010×2iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58351DREINFORCEMENT, REAR FLOOR PANEL
main57555-KK010×2iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2
main58352-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3
main58353-KK010iTGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4
58355DREINFORCEMENT, REAR FLOOR PANEL, NO.5
main58355-0K060iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH
58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH
main58363-0K010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
58918CBRACKET, BOX SUPPORT
58965DBRACKET, JACK SUPPORT
main58967-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
583870K010PLATE, REAR FLOOR FINISH
main58387-0K010
90105T0063
main90105-T0063
9011906786
main90119-06786
90119T0001
main90119-T0001
90119T0103
main90119-T0103
90119T0156
main90119-T0156
41 parts on this diagram · 1 diagram in section
