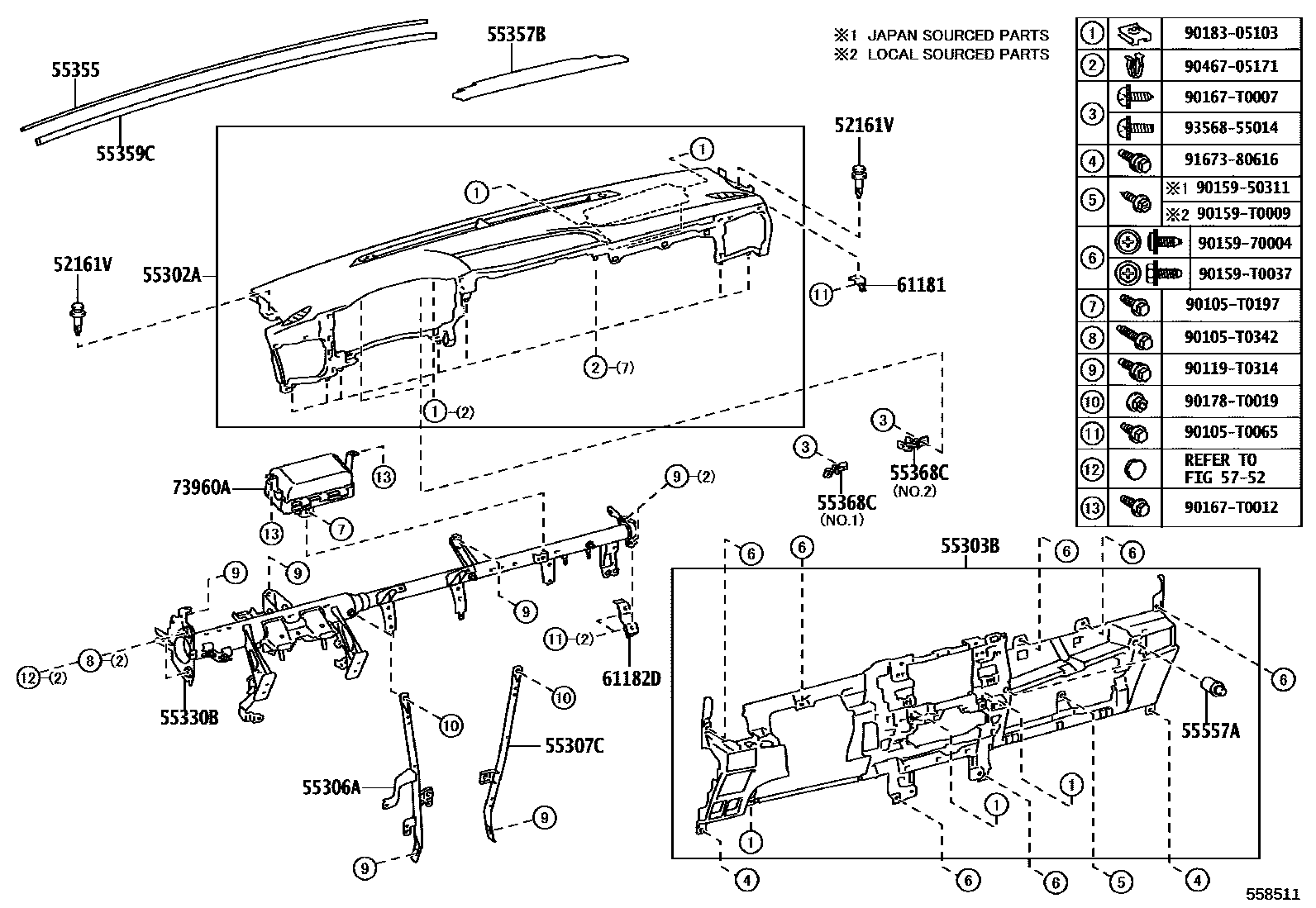

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-0K040×2iGUN125,126..GHA,KEN202308-202412

(L)

main52161-16010×2iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..AGTP,SAP202308-202410

(J)

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-KK041-C0iGUN126..PKN202308

BLACK,TRIM2#

main55302-KK111-C0iGGN125,GUN122,125,126,TGN12#..GCC; TGN126..THP..(GEN,LA);GUN122,125,126,13#,TGN121,136..LHD..THP..(GEN,LA,PH,SA,TWN,VN)202308-202407

BLACK,TRIM2#; BLACK,TRIM2#,3#

main55302-KK160-C0iGUN126,136..6FC..H..ARL..CBU202308-202407

SPEAKER-9SPEAKER & JBL,BLACK,TRIM2#

main55302-KK170-C0supersedes 55302-KK111-C0iGUN126..CAMP202308-202408

SPEAKER-9SPEAKER & JBL,BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-KK030-C0iGUN126..IND202310-202409

BLACK,TRIM2#

main55303-KK040-C0iGUN126..CAMP202308-202408

BLACK,TRIM2#

main55303-KK050-C0iGUN125,126..KEN202308-202412

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-KK030iGUN125,126..KEN202408-202412

EXCEPT MADE IN TH

main55306-KK050iGUN135..AGTP;GGN125,GUN122,125,126,136,LAN125,TGN121,126,136..LHD..(AGTP,SAP)202408-202410

EXCEPT MADE IN TH

main55306-KK060iGUN122,125,TGN12#..L..GCC; TGN121..5F..S;GUN125..THP..L..SA202308-202407

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)

main55306-KK080supersedes 55306-KK040iGUN126..IND202408-202409

MADE IN THAILAND

main55306-KK090iGUN126..MMR202408-202409

MADE IN THAILAND

main55306-KK100iGUN125,LAN125..LHD..SAP..L; GUN135..L..SA202408-202410

MADE IN THAILAND; SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG),MADE IN THAILAND

main55306-KK040iGUN125..RHD..6F..L..GEN202308-202407

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-KK030iGGN125,GUN125,126,13#,TGN136..RHD..SA202408-202410

EXCEPT MADE IN TH

main55307-KK040iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..LHD..(AGTP,CAMP,GHAP,MMRP,SAP)202308-202408

main55307-KK070iGGN125,GUN125,126,13#,TGN136..RHD..SA202408-202410

MADE IN THAILAND

main55307-KK080iGUN125,126..GHA202408-202412

MADE IN THAILAND

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-KK330iGUN122,125,TGN12#..MTM..L..GCC; TGN121..5F..S;GUN125..THP..L..SA202308-202407

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)

main55330-KK370iGUN125,TGN126..6FC..L..GCC202308-202407

main55330-KK450supersedes 55330-KK320iGUN122,125,126,136,TGN121..RHD..MTM..(ARL,GEN,IDN)202308-202407

main55330-KK460iGUN126..6FC..PKN202308

main55330-KK470iGUN120,121,126,135..6FC..TH202308-202407

main55330-KK480iGUN121,122,125,126,135..6F..TH202308-202407

main55330-KK490iGUN125..6F..L..GCC; TGN126..5F..H..GCC;GUN126,135..LHD..THP..6F;TGN126..THP..5F..(GEN,LA);GUN122,125,136,TGN121..LHD..THP..MTM..(H,S);GUN122,125,TGN121,136..LHD..THP..L..(GEN,LA,PH,SA)202308-202407

SRS AIR BAG-WITH(*DRP)

main55330-KK500iGUN126..GHA202308-202412

main55330-KK320iGUN125..RHD..6F..L..GEN202308-202407

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-KK020iGGN125,GUN125,126,13#,TGN136..RHD..SA202308-202410

main55355-KK030iGUN126..CAMP202308-202408

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-KK030iGUN125,126..CAMP,MAP202308-202408

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-KK030iGGN125,GUN125,126,13#,TGN136..RHD..(H,S)..SA202308-202410

main55359-KK040iGUN126..MMR202308-202409

55368CBRACKET, METER MOUNTING

main55368-KK010iGUN126..PKN202308

NO.1:REFER ILLUST.

main55368-KK020iGUN126..PKN202308

NO.2:REFER ILLUST.

main55368-KK030iGUN126..MMR202308-202409

NO.2:REFER ILLUST.

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-0K030×2iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

5752HOLE PLUG

→ Go to FIG 57-52

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-KK030iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407

61182DBRACKET, INSTRUMENT PANEL SIDE

main61125-KK010iGUN126..CAMP202308-202408

main61126-KK010iGUN125,126..KEN202308-202412

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0K010iGUN126..IND202308-202409

main73960-0K060iGUN125,126..KEN202402-202412

main73960-0K070iGUN126..CAMP202308-202408

main73960-0K080iGUN125,126..GHA202402-202412

main73960-0K130iGGN125,GUN125,126,13#,TGN126,136..AGTP202311-202410

main73960-0K150iGUN125,126,13#,TGN121..ARL202308-202407

main73960-0K160iGUN126..TWN202308-202407

90105T0065

main90105-T0065

90105T0197

main90105-T0197

90105T0342

main90105-T0342

90119T0314

main90119-T0314

9015950311

main90159-50311

9015970004

main90159-70004

90159T0009

main90159-T0009

90159T0037

main90159-T0037

90167T0007

main90167-T0007

90167T0012

main90167-T0012

90178T0019

main90178-T0019

9018305103

main90183-05103

9046705171

main90467-05171

9167380616

main91673-80616

9356855014

main93568-55014

30 parts on this diagram · 8 diagrams in section
