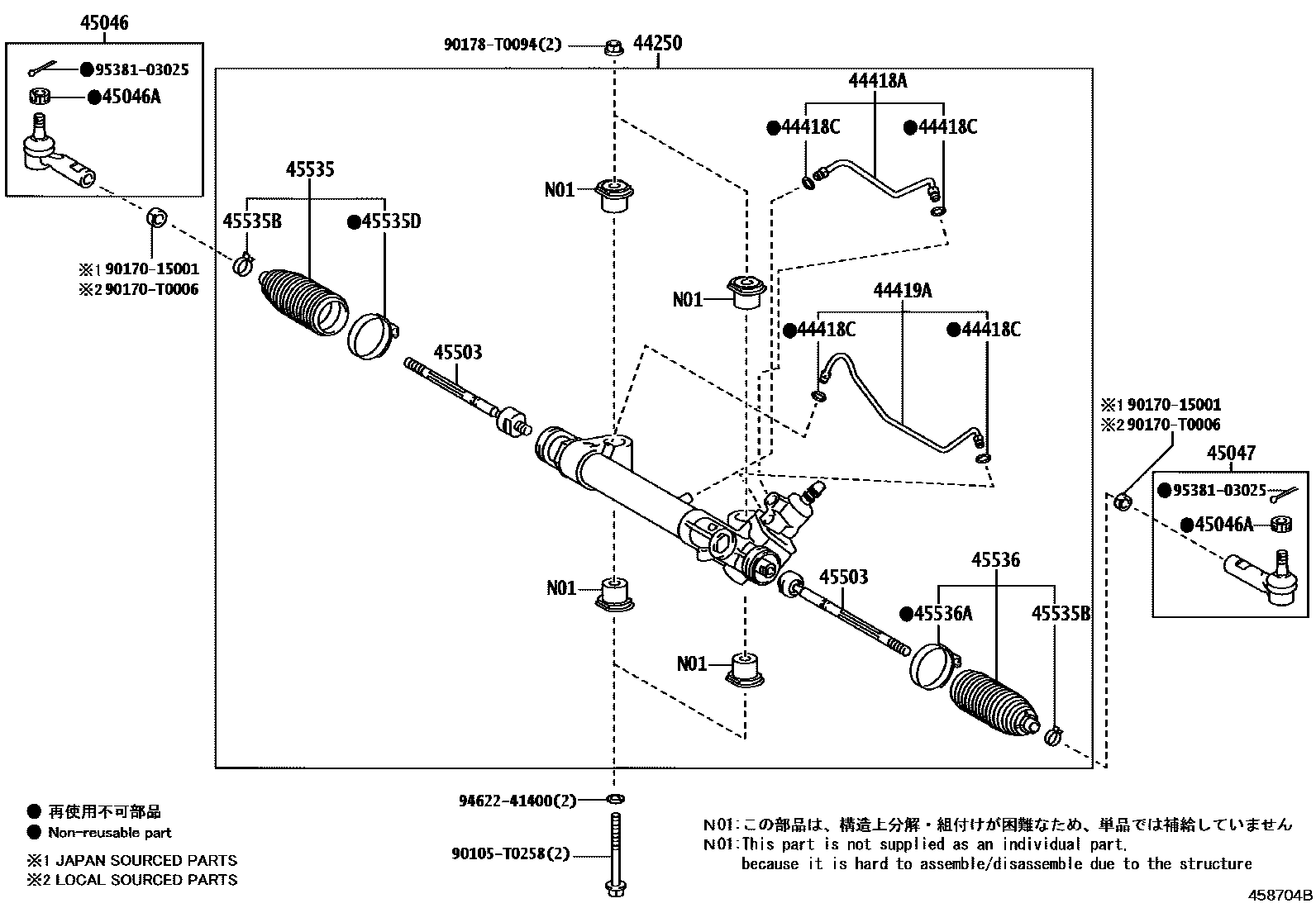

FRONT STEERING GEAR & LINK
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
TIRE & DISC WHEEL-205R16C STEEL
TIRE & DISC WHEEL-225/70R17C STEEL; TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-205R16C STEEL
TIRE & DISC WHEEL-205R16C STEEL
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT)
main44250-0KA31iGGN125..GCC;GUN126..6FC..(PH,VN); GUN126..6F..PH;GUN135..6FC..H..PH; GUN126..6FC..DCRL..GCC; GUN126..6FC..PH202308-202407
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&WHEEL ARCH-WIDE TREAD TYPE(IN LINE ACCESSORY)
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); WIDE TREAD
44418ATUBE, STEERING RIGHT TURN PRESSURE
44418CRING, O(FOR STEERING TURN PRESSURE TUBE)
44419ATUBE, STEERING LEFT TURN PRESSURE
45046END SUB-ASSY, TIE ROD, RH
main45046-09A30iGGN125..GCC;GUN126..6FC..(PH,VN); GUN126,136..6FC..H..ARL..CBU; GUN126..6F..PH;GUN135..6FC..H..PH; GUN126..6FC..H..DCRL..(ARL,GCC)..CBU; GUN126..6FC..H..DCRL..ARL..CBU; GUN126..6FC..PH202308-202407
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE WIDE TREAD&WHEEL ARCH-WIDE TREAD TYPE(IN LINE ACCESSORY)
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
main45046-09A30iGGN125..GCC;GUN126..6FC..(PH,VN); GUN126,136..6FC..H..ARL..CBU; GUN126..6F..PH;GUN135..6FC..H..PH; GUN126..6FC..H..DCRL..(ARL,GCC)..CBU; GUN126..6FC..H..DCRL..ARL..CBU; GUN126..6FC..PH202308-202407
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE WIDE TREAD&WHEEL ARCH-WIDE TREAD TYPE(IN LINE ACCESSORY)
45503END SUB-ASSY, STEERING RACK
main45503-0K130×2iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126,13#,TGN136..THP..(DCRL,HTWC)202308-202407
main45503-0K090×2iGGN125..GCC;GUN126..6FC..(PH,VN); GUN126,136..6FC..H..ARL..CBU; GUN126..6F..PH;GUN135..6FC..H..PH; GUN126..6FC..H..DCRL..(ARL,GCC)..CBU; GUN126..6FC..H..DCRL..ARL..CBU; GUN126..6FC..PH202308-202407
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18(WHETE LETTER), ALUMINUM; MLM ADVENTURE WIDE TREAD&TIRE & DISC WHEEL-265/60R18, ALUMINUM; MLM ADVENTURE WIDE TREAD&WHEEL ARCH-WIDE TREAD TYPE(IN LINE ACCESSORY)
45535BOOT, STEERING RACK, NO.1
main45535-09390iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126,13#,TGN136..THP..(DCRL,HTWC)202308-202407
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536BOOT, STEERING RACK, NO.2
main45535-09390iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126,13#,TGN136..THP..(DCRL,HTWC)202308-202407
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
90105T0258
main90105-T0258
9017015001
main90170-15001
90170T0006
main90170-T0006
90178T0094
main90178-T0094
9462241400
main94622-41400
9538103025
main95381-03025
19 parts on this diagram · 4 diagrams in section
