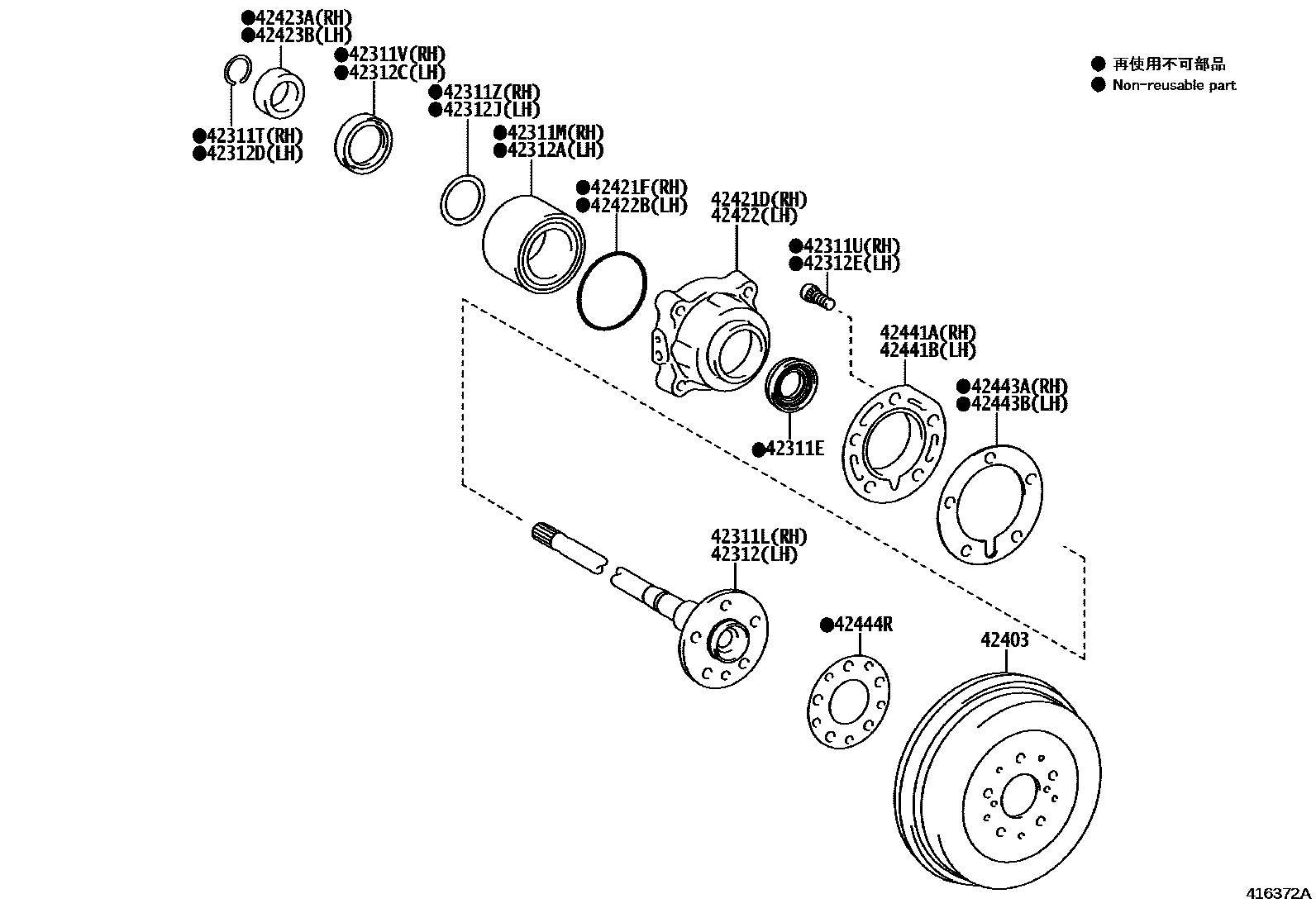

REAR AXLE SHAFT & HUB
42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)
42311LSHAFT, REAR AXLE, RH
SAUDI ARABIA SPEC
main42311-KK070iGGN125,GUN126..6FC..(DCRL,HTWC)..GCC; GGN125..GCC; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU; GUN136..H..ARL202308-202407
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT; MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT
42311MBEARING(FOR REAR AXLE SHAFT RH)
VSC-WITHOUT
42311TRING, SNAP(FOR REAR AXLE SHAFT RH)
42311UBOLT, HUB(FOR REAR AXLE RH)
main90942-02081×5iGUN120,121,122,TGN120,121..THP; GUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126,13#,TGN136..THP..(DCRL,HTWC)202308-202407
42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)
main90310-T0008iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
42311ZWASHER(FOR REAR AXLE SHAFT RH)
main90208-T0001iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
42312SHAFT, REAR AXLE, LH
SAUDI ARABIA SPEC
main42311-KK070iGGN125,GUN126..6FC..(DCRL,HTWC)..GCC; GGN125..GCC; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU; GUN136..H..ARL202308-202407
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT; MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT
42312ABEARING(FOR REAR AXLE SHAFT LH)
VSC-WITHOUT
main90366-T0060iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)
main90310-T0008iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
42312DRING, SNAP(FOR REAR AXLE SHAFT LH)
main90520-T0033iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
42312EBOLT, HUB(FOR REAR AXLE LH)
42312JWASHER(FOR REAR AXLE SHAFT LH)
42403DRUM SUB-ASSY, REAR BRAKE
VSC-WITHOUT
42421DCASE, REAR AXLE BEARING, RH
main42421-KK050iGGN125,GUN126..6FC..(DCRL,HTWC)..GCC; GGN125..GCC; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU; GUN136..H..ARL202308-202407
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT; MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT
42421FRING, O (FOR REAR AXLE BEARING CASE RH)
42422CASE, REAR AXLE BEARING, LH
main42422-KK050iGGN125,GUN126..6FC..(DCRL,HTWC)..GCC; GGN125..GCC; GUN126..6F..PH;GUN126,13#..6FC..H..(ARL,PH)..CBU; GUN136..H..ARL202308-202407
GR SPORT WIDE TREAD; GR SPORT WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT; MLM ADVENTURE WIDE TREAD; MLM ADVENTURE WIDE TREAD&DIFFERENTIAL LOCK-WITHOUT
42422BRING, O (FOR REAR AXLE BEARING CASE LH)
42423ARETAINER, REAR AXLE BEARING, INNER RH
42423BRETAINER, REAR AXLE BEARING, INNER LH
main42423-KK010iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
42441ADEFLECTOR, BRAKE DRUM OIL RH
42441BDEFLECTOR, BRAKE DRUM OIL LH
42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH
42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH
42444RGASKET, BRAKE DRUM (FOR REAR AXLE)
25 parts on this diagram · 2 diagrams in section
