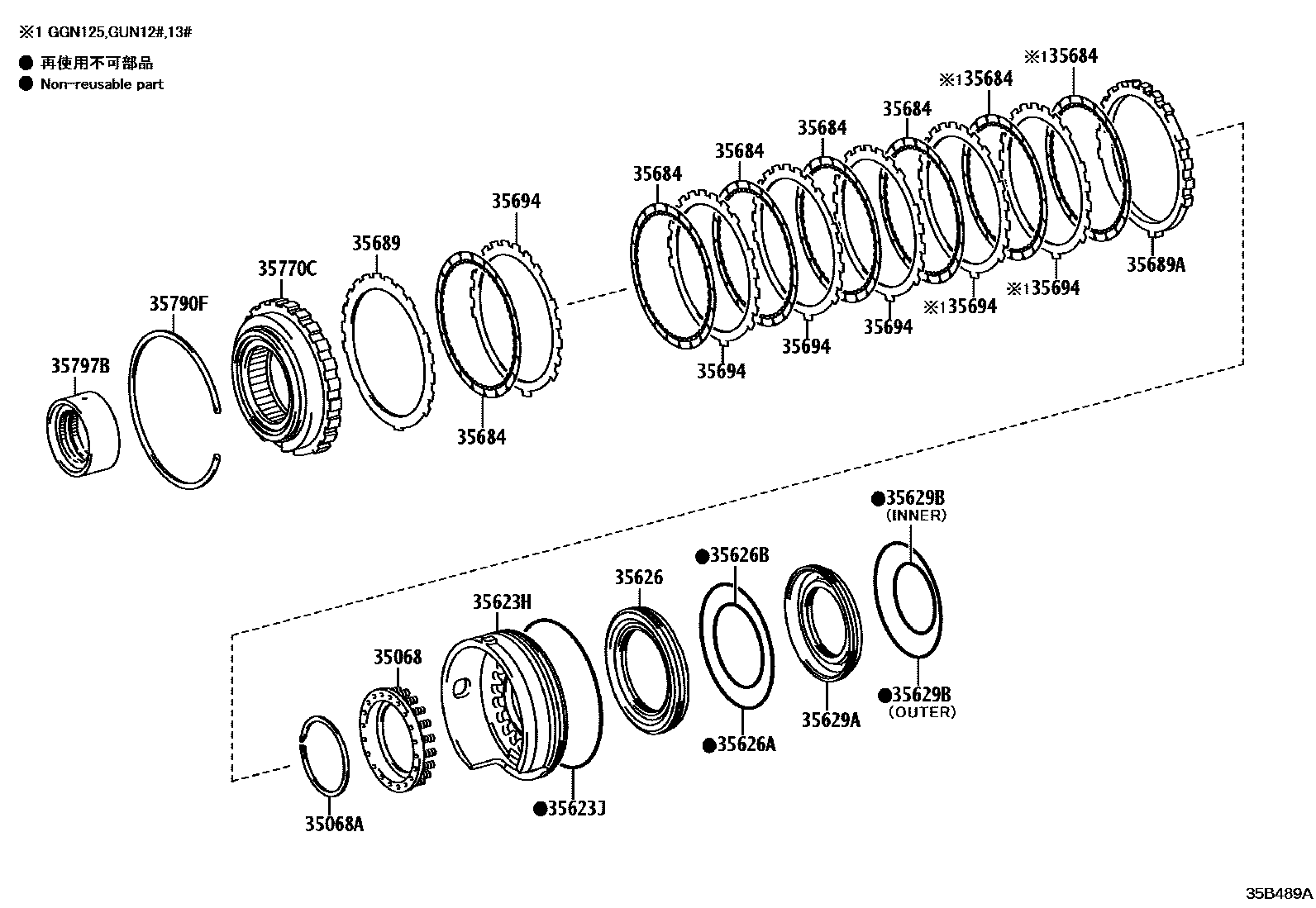

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
TYPE B:REFER 35-01
main35068-60010iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35623HPISTON, 1ST & REVERSE BRAKE
TYPE B:REFER 35-01
TYPE B:REFER 35-01
main35623-71010iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
TYPE A:REFER 35-01
35623JRING, O (FOR 1ST & REVERSE BRAKE)
main90301-99087iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH; TOYOTA STOP & START SYSTEM-WITHOUT
TYPE B:REFER 35-01
35626SLEEVE, BRAKE REACTION
main35626-50010iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
35626ARING (FOR BRAKE REACTION SLEEVE OUTER)
TYPE A:REFER 35-01
TYPE B:REFER 35-01
35626BRING (FOR BRAKE REACTION SLEEVE INNER)
main90301-79003iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
main90301-T0074iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
TYPE B:REFER 35-01
35629APISTON, BRAKE, NO.4
35629BRING, O (FOR BRAKE PISTON NO.4)
main90301-67006iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T/P A:REF35-01,INNER; TOYOTA STOP & START SYSTEM-WITH,T/P A:REF35-01,INNER; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,INNER
T/P A:REF35-01,OUTER
main90301-T0075iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
T/P B:REF35-01,OUTER
T/P B:REF35-01,INNER
35684DISC, BRAKE, NO.4
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35689FLANGE, BRAKE, NO.4
T=1.8,MARK 0
T=1.97,MARK 1
T=2.11,MARK 3
T=2.25,MARK 4
T=2.39,MARK 5
T=2.53,MARK 7
T=2.67,MARK 8
T=2.81,MARK10
T=2.95,MARK 11
T=3.09,MARK 12
T=3.23,MARK 14
35689AFLANGE, BRAKE, NO.4
35694PLATE, BRAKE, NO.4
main35694-0K010×6iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GGN125,GUN120,121,125,13#..THP..6FC;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN); TGN121,126..6FC..(ARL,GCC,GEN)202308-202407
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35770CCLUTCH ASSY, 1WAY NO.3
TYPE B:REFER 35-01
main35770-60030iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)
main90521-99131iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
35797BRACE, 1 WAY CLUTCH, INNER
main35797-60020iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
16 parts on this diagram · 1 diagram in section
