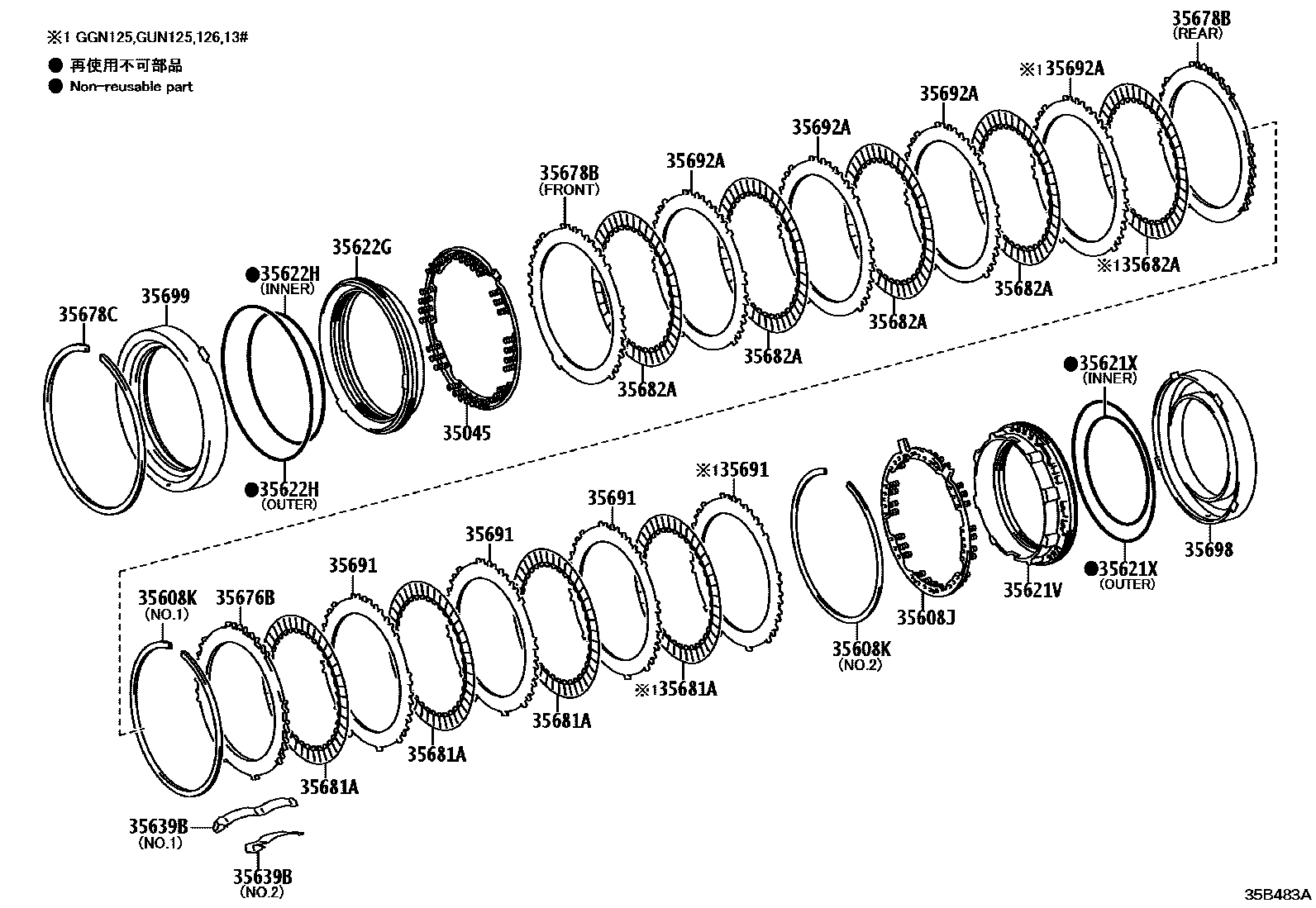

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
TYPE B:REFER 35-01
main35045-71010iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
main35608-0K010iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
TYPE B:REFER 35-01
main35608-71010iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
main90520-99156iGUN126..6FC..TH; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T/P A:REF.35-01,NO.1; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.1
main90520-99157iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T/P A:REF.35-01,NO.2; TOYOTA STOP & START SYSTEM-WITH,T/P A:REF.35-01,NO.2; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.2
main90520-T0288iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
T/P B:REF.35-01,NO.2
T/P B:REF.35-01,NO.1
35621VPISTON, BRAKE, NO.1
main35621-0K010iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GGN125,GUN120,121,125,13#..THP..6FC;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN)202308-202407
TYPE B:REFER 35-01
TYPE B:REFER 35-01
main35621-71010iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
TYPE A:REFER 35-01
35621XRING, O (FOR BRAKE PISTON NO.1)
main90301-99115iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T/P A:REF35-01,OUTER; TOYOTA STOP & START SYSTEM-WITH,T/P A:REF35-01,OUTER; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,OUTER
main90301-99123iGUN126..6FC..TH; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T/P A:REF35-01,INNER; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,INNER
T/P B:REF35-01,INNER
T/P B:REF35-01,OUTER
35622GPISTON, BRAKE, NO.2
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TYPE A:REFER 35-01
TYPE A:REFER 35-01
35622HRING, O (FOR BRAKE PISTON NO.2)
main90301-99132iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T/P A:REF35-01,INNER; TOYOTA STOP & START SYSTEM-WITH,T/P A:REF35-01,INNER; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,INNER
main90301-99179iGUN126..6FC..TH; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T/P A:REF35-01,OUTER; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,OUTER
main90301-T0077iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
T/P B:REF35-01,OUTER
T/P B:REF35-01,INNER
35639BSPRING, BRAKE PLATE STOPPER
main35639-71010iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T/P A:REF.35-01,NO.1; T/P B:REF.35-01,NO.1; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.1
main35639-71020iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T/P A:REF.35-01,NO.2; T/P B:REF.35-01,NO.2; TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.2
35676BFLANGE, BRAKE, NO.1
main35676-71010iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T=4.9,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=4.9,TYPE A:REFER 35-01; T=4.9,TYPE B:REFER 35-01
main35676-71020iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T=5.0,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.0,TYPE A:REFER 35-01; T=5.0,TYPE B:REFER 35-01
T=5.1,TYPE A:REFER 35-01
main35676-71040iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T=5.2,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.2,TYPE A:REFER 35-01; T=5.2,TYPE B:REFER 35-01
main35676-71050iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T=5.3,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.3,TYPE A:REFER 35-01; T=5.3,TYPE B:REFER 35-01
main35676-71060iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T=5.4,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.4,TYPE A:REFER 35-01; T=5.4,TYPE B:REFER 35-01
T=5.5,TYPE A:REFER 35-01; T=5.5,TYPE B:REFER 35-01
main35676-71080iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T=5.6,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.6,TYPE A:REFER 35-01; T=5.6,TYPE B:REFER 35-01
T=5.7,TYPE A:REFER 35-01; T=5.7,TYPE B:REFER 35-01
main35676-71100iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T=5.8,TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; T=5.8,TYPE A:REFER 35-01; T=5.8,TYPE B:REFER 35-01
35678BFLANGE, BRAKE, NO.2
main35678-71010iGUN126..6FC..DCRL..GCC; GUN126..6FC..TH; GUN126..6FC..TH;GUN126..MHV..(ARL,GCC,LA);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T=3.8,T/P A:REF35-01,REAR; T=3.8,T/P B:REF35-01,FRONT; T=3.8,T/P B:REF35-01,REAR; T=3.8,TOYOTA STOP & START SYSTEM-WITH,T/P B:REF35-01,REAR; T=3.8,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,REAR,T/P B:REF35-01,FRONT
main35678-71020iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T=2.0,T/P A:REF35-01,FRONT; T=2.0,T/P B:REF35-01,FRONT; T=2.0,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
main35678-71030iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T=2.1,T/P A:REF35-01,FRONT; T=2.1,T/P B:REF35-01,FRONT; T=2.1,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
main35678-71040iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T=2.2,T/P A:REF35-01,FRONT; T=2.2,T/P B:REF35-01,FRONT; T=2.2,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
T=2.3,T/P A:REF35-01,FRONT
T=2.4,T/P A:REF35-01,FRONT
T=2.5,T/P A:REF35-01,FRONT
main35678-71080iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
T=2.6,T/P A:REF35-01,FRONT; T=2.6,T/P B:REF35-01,FRONT; T=2.6,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF35-01,FRONT
T=2.7,T/P A:REF35-01,FRONT; T=2.7,T/P B:REF35-01,FRONT
T=2.8,T/P A:REF35-01,FRONT; T=2.8,T/P B:REF35-01,FRONT
35678CRING, SNAP (FOR BRAKE NO.2)
main90520-99155iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
main90520-T0291iGUN121,136..THP..6FC; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,125,135,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
(L),TYPE B:REF.35-01; TYPE B:REFER 35-01
35681ADISC, BRAKE, NO.1
TYPE B:REFER 35-01
main35681-71010×4iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35682ADISC, BRAKE, NO.2
main35682-0K010×4iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GGN125,GUN120,121,125,13#..THP..6FC;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN); TGN121,126..6FC..(ARL,GCC,GEN)202308-202407
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35691PLATE, BRAKE, NO.1
main35691-0K010×3iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GGN125,GUN120,121,125,13#..THP..6FC;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN); TGN121,126..6FC..(ARL,GCC,GEN)202308-202407
TYPE B:REFER 35-01
main35691-71010×4iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35692APLATE, BRAKE, NO.2
main35692-0K010×3iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GGN125,GUN120,121,125,13#..THP..6FC;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN); TGN121,126..6FC..(ARL,GCC,GEN)202308-202407
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35698CYLINDER, BRAKE, NO.1
TYPE A:REFER 35-01; TYPE B:REFER 35-01
35699CYLINDER, BRAKE, NO.2
main35699-71010iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
17 parts on this diagram · 1 diagram in section
