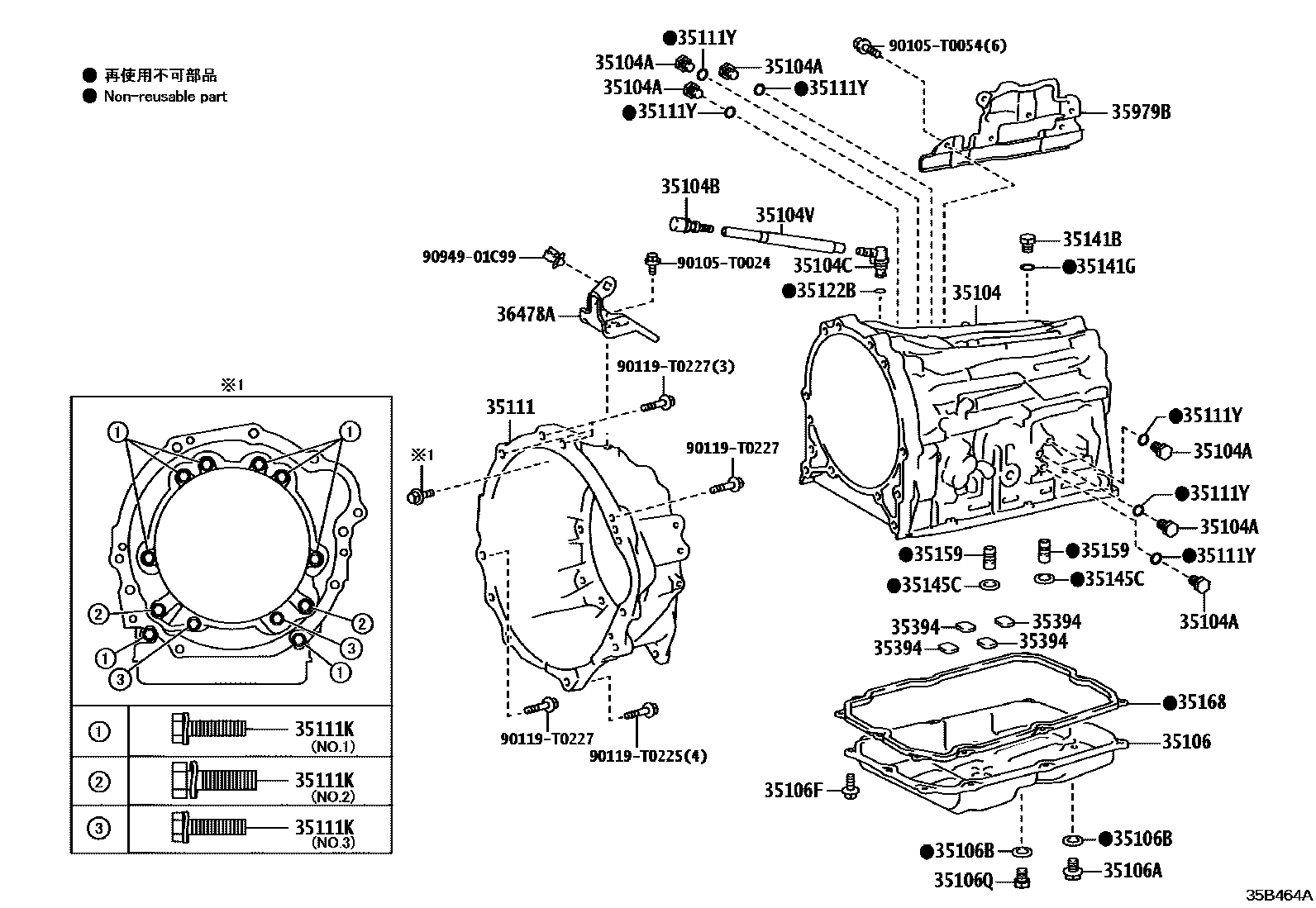

TRANSMISSION CASE & OIL PAN (ATM)
35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION
TYPE B:REFER 35-01
TYPE A:REFER 35-01
35104APLUG, AUTOMATIC TRANSMISSION CASE
main90341-08001×6iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35104BPLUG, BREATHER, NO.1 (ATM)
main90930-03211iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
(L),TYPE B:REF.35-01
35104CPLUG, BREATHER, NO.2 (ATM)
main90930-03220iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
main90930-T3006iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
(L),TYPE B:REF.35-01
35104VHOSE (FOR BREATHER PLUG)
TYPE A:REFER 35-01
TYPE A:REFER 35-01
main90447-11080iGUN125..THP..6FC;GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN); GUN126..6FC..TH; GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
TYPE A:REFER 35-01; TYPE B:REFER 35-01
35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
TYPE B:REFER 35-01
main35106-71050iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35106APLUG SUB-ASSY, DRAIN (ATM)
main90341-10011iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35106BGASKET, DRAIN PLUG (ATM)
main35178-30010×2iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)
TYPE B:REFER 35-01
35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)
TYPE A:REFER 35-01; TYPE B:REFER 35-01
35111HOUSING, AUTOMATIC TRANSMISSION
TYPE B:REFER 35-01
TYPE B:REFER 35-01
TYPE B:REFER 35-01
main35111-71030iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
TYPE A:REFER 35-01
TYPE A:REFER 35-01
35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)
main90119-08C62iGUN126..6FC..DCRL..GCC; GUN126..6FC..TH;GUN126..MHV..(ARL,GCC,LA);GUN120,121,125,13#..THP..6FC202308-202407
*8-1.25PX30-23.5; *8-1.25PX30-23.5,TOYOTA STOP & START SYSTEM-WITH
main90119-10232×8iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
*10-1.5PX35-30,T/P A:REF.35-01,NO.1; *10-1.5PX35-30,T/P B:REF.35-01,NO.1; *10-1.5PX35-30,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.1
main90119-10947×2iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
*10-1.50PX35-29.3,T/P A:REF.35-01,NO.3; *10-1.50PX35-29.3,T/P B:REF.35-01,NO.3; *10-1.50PX35-29.3,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.3
main90119-12378×2iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
*12-1.75PX38-30,T/P A:REF.35-01,NO.2; *12-1.75PX38-30,T/P B:REF.35-01,NO.2; *12-1.75PX38-30,TOYOTA STOP & START SYSTEM-WITHOUT,T/P A:REF.35-01,NO.2
35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)
main90301-06196×6iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
TYPE B:REFER 35-01
35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
main90301-08015iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
(L),TYPE B:REF.35-01; TYPE B:REFER 35-01
35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)
main90341-14011iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)
main90301-11030iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
main90301-T0069iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
TYPE B:REFER 35-01
35145CGASKET, TRANSAXLE CASE
TYPE A:REFER 35-01; TYPE B:REFER 35-01
35159GASKET, BRAKE DRUM
main35159-0K010×2iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
TYPE B:REFER 35-01
main35159-71010×2iGUN126..6FC..TH; GUN135..6FC..TH;GUN126..6FC..DCRL..GCC; GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35168GASKET, AUTOMATIC TRANSMISSION OIL PAN
(L),TYPE B:REF.35-01
main35168-71010iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
(J),TYPE B:REF.35-01; TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
main35394-30011×4iGUN126..6FC..TH; GUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN); GUN135..THP..6FC;GUN126..THP..6FC..DCRL..(ARL,GCC,GEN,LA,PH,TWN,VN)202308-202407
TOYOTA STOP & START SYSTEM-WITHOUT,TYPE A:REFER 35-01; TYPE A:REFER 35-01; TYPE B:REFER 35-01
35979BINSULATOR, TRANSMISSION, RH
main35979-0K010iGUN126..THP..6FC..S;GUN126..THP..6FC..H..DCRL..GEN;GUN126..THP..6FC..H..(ARL,GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,13#,TGN121,126..THP..6FC..(ARL,GCC,GEN,IDN,LA,PH,TH,VN)202308-202407
36478ABRACKET, TRANSMISSION BREATHER
90105T0024
main90105-T0024
90105T0054
main90105-T0054
90119T0225
main90119-T0225
90119T0227
main90119-T0227
9094901C99
main90949-01C99
27 parts on this diagram · 3 diagrams in section
