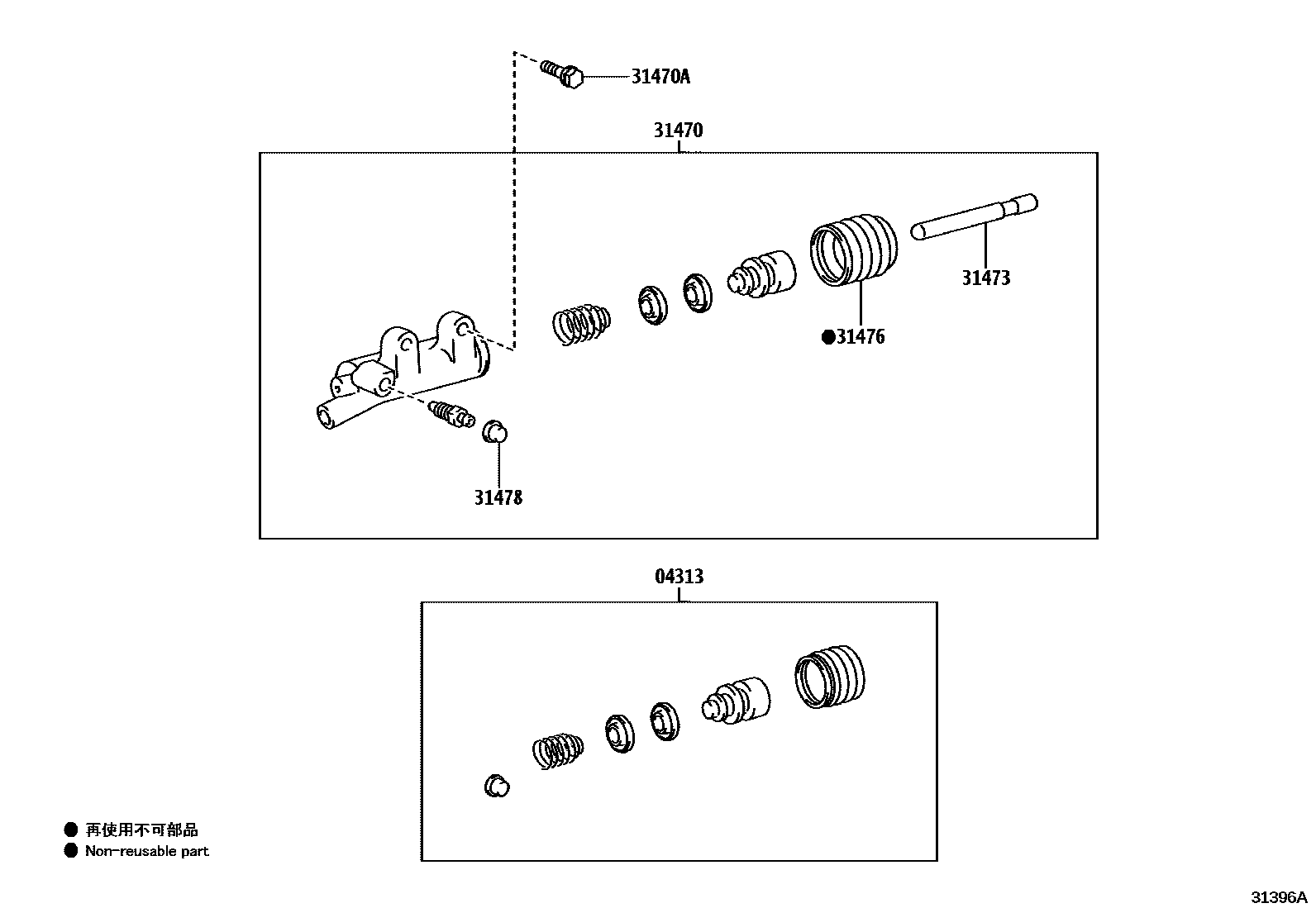

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0K070iGUN122..THP202308-202410

main04313-0K080iGUN126..6F..IND202308-202412

main04313-0K090iTGN12#,136..THP..5F..(ARL,GCC,GEN,LA)202308-202410

main04313-0K100iLAN125202402-202410

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0K080iGUN122..THP202308-202410

main31470-0K090iTGN12#,136..THP..5F..(ARL,GCC,GEN,LA)202308-202410

main31470-0K100iGUN125,126,13#..(AGTP,SAP)..6F202308-202412

main31470-0K170iLAN125202402-202410

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-T0221iGUN122,125,126,13#,LAN125,TGN121,126,136..(AGTP,SAP)..MTM202308-202412

*8-1.25PX25-20.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-04010iLAN125202402-202410

main31473-0K010iTGN12#,136..THP..5F..(ARL,GCC,GEN,LA)202308-202410

main31473-0K030iGUN125,126..6F..(GHA,KEN)202308-202412

main31473-0K040iGUN122..THP202308-202410

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-04010iTGN126..THP..5F..(GCC,GEN,LA);GUN121,122,125,126,13#,TGN120,121,136..THP..MTM202308-202412

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iTGN126..THP..5F..(GCC,GEN,LA);GUN121,122,125,126,13#,TGN120,121,136..THP..MTM202308-202412

6 parts on this diagram · 3 diagrams in section
