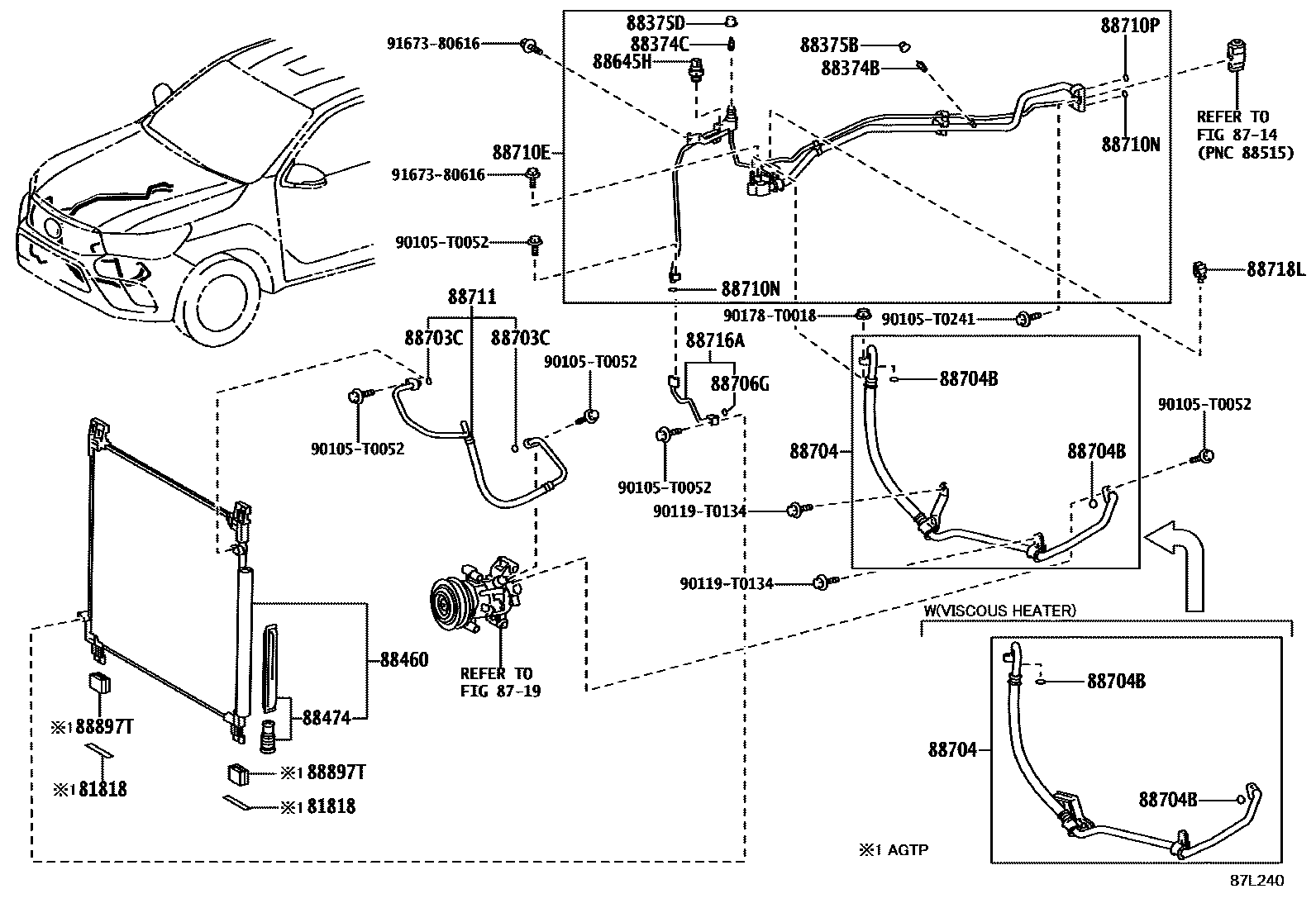

HEATING & AIR CONDITIONING - COOLER PIPING
81818PACKING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
main88374-02020iGUN125..(H,S)..SA;GUN125..LHD..L..SA;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..SA; GUN125..RHD..L..SA202301-202401
FRONT AIR CONDITIONER-MANUAL
88375BCAP, SERVICE VALVE, NO.1
main88375-02140iGUN125..(H,S)..SA;GUN125..LHD..L..SA;GGN125,GUN122,126,13#,TGN121,126,136..SA; GUN125..RHD..L..SA202301-202401
FRONT AIR CONDITIONER-MANUAL
88375DCAP, SERVICE VALVE, NO.2
main88375-02150iGUN125..(H,S)..SA;GUN125..LHD..L..SA;GGN125,GUN122,126,13#,TGN121,126,136..SA; GUN125..RHD..L..SA202301-202401
FRONT AIR CONDITIONER-MANUAL
88460CONDENSER ASSY, COOLER
main88460-0K430iGUN125..(H,S)..SA;GUN125..LHD..L..SA;GGN125,GUN122,126,13#,TGN121,126,136..SA; GUN125..RHD..L..SA202301-202401
FRONT AIR CONDITIONER-MANUAL
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
88474DRYER, COOLER
88645HSWITCH, PRESSURE NO.1
main88645-0K030iGGN125,GUN12#,13#,TGN12#,136..(MMRP,THP)..(ARL,GCC,GEN,LA,MMR,PH,TH,TWN,VN)202208-202307
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
ID=10.2,OD=15.0; ID=10.2,OD=15.0,EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
main90099-14120×2iGGN125,GUN12#,13#,TGN12#,136..(MMRP,THP)..(ARL,GCC,GEN,IDN,LA,MMR,PH,TH,VN)202208-202307
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
main88704-0KD90iGUN125..(H,S)..SA;GUN122,126,13#..SA;GUN125..LHD..L..SA; GUN125..RHD..L..SA202301-202401
FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)
ASIA COLD COUNTRY SPEC
88704BRING, O(FOR SUCTION HOSE)
main90068-14024×2iGUN125..(H,S)..SA;GUN125..LHD..L..SA;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..SA; GUN125..RHD..L..SA202301-202401
ID=13.4,OD=18.2; ID=13.4,OD=18.2,FRONT AIR CONDITIONER-MANUAL
ID=13.4,OD=18.2
88706GRING, O(FOR LIQUID TUBE)
main90068-14023iGUN125..(H,S)..SA;GUN125..LHD..L..SA;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..SA; GUN125..RHD..L..SA202301-202401
ID=6.7,OD=10.3; ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL
ID=6.7,OD=10.3; ID=6.7,OD=10.3,EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
ID=6.7,OD=10.3
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
main88710-0KE70supersedes 88710-0KQ30iGUN126..6FC..TH; GUN126..THP..6F;GUN120,121,122,125,13#..THP..(ARL,GCC,GEN,LA,PH,TH,VN);GUN126..(MMRP,THP)..6FC..(ARL,GCC,GEN,LA,MMR,PH,TWN,VN)202208-202307
TOYOTA STOP & START SYSTEM-WITHOUT
main88710-0KF80iGUN125..(H,S)..SA;GUN122,126,13#..SA;GUN125..LHD..L..SA; GUN125..RHD..L..SA202301-202401
FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH
FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
main88710-0KR40iGUN125,126..H..GCC; GUN125,135..THP..6F..LA;GUN126..THP..6FC..H..LA;GUN122,125..MTM..L..GCC..CBU202208-202307
FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
main90099-14119×2iGUN125,135..THP..6F..LA;GUN126..THP..6FC..H..LA; GUN126..6FC..TH; GUN126..THP..6F;GGN125,GUN120,121,122,125,13#,TGN12#,136..THP;GUN126..(MMRP,THP)..6FC..(ARL,GCC,GEN,LA,MMR,PH,TWN,VN); TGN121..5F..H;GGN125,TGN126..H..GCC202208-202307
ID=6.7,OD=10.3; ID=6.7,OD=10.3,FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL); ID=6.7,OD=10.3,FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL); ID=6.7,OD=10.3,TOYOTA STOP & START SYSTEM-WITHOUT
ID=10.8,OD=15.6,FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=13.4,OD=18.2
main90099-14121supersedes 90099-14119iGUN126..6FC..TH; GUN126..THP..6F;GUN120,121,122,125,13#..THP;GUN126..(MMRP,THP)..6FC..(ARL,GCC,GEN,LA,MMR,PH,TWN,VN)202208-202307
ID=13.4,OD=18.2; ID=13.4,OD=18.2,TOYOTA STOP & START SYSTEM-WITHOUT
ID=6.7,OD=10.3; ID=6.7,OD=10.3,TOYOTA STOP & START SYSTEM-WITH
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)
88716APIPE, COOLER REFRIGERANT LIQUID, A
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
main88716-0KQ80iGGN125,GUN12#,13#,TGN12#,136..(MMRP,THP)..(ARL,GCC,GEN,IDN,LA,MMR,PH,TH,VN)202208-202307
main88716-0KR20iGUN125..(H,S)..SA;GUN125..LHD..L..SA;GGN125,GUN122,126,13#,LAN125,TGN121,126,136..SA; GUN125..RHD..L..SA202301-202401
FRONT AIR CONDITIONER-MANUAL
88718LCLAMP, PIPING
main88718-0KF20iGGN125,TGN12#,136..THP; GUN126..6FC..TH; GUN126..THP..6F;GUN120,121,122,125,13#..THP;GUN126..(MMRP,THP)..6FC..(ARL,GCC,GEN,LA,MMR,PH,TWN,VN)202208-202307
TOYOTA STOP & START SYSTEM-WITHOUT
main88718-0KW80iGGN125,LAN125,TGN121,126,136..SA; GUN125..(H,S)..SA;GUN122,126,13#..SA;GUN125..LHD..L..SA; GUN125..RHD..L..SA202301-202401
FRONT AIR CONDITIONER-MANUAL
88897TGROMMET, COOLER
90105T0052
main90105-T0052
90105T0241
main90105-T0241
90119T0134
main90119-T0134
90178T0018
main90178-T0018
9167380616
main91673-80616
26 parts on this diagram · 11 diagrams in section
