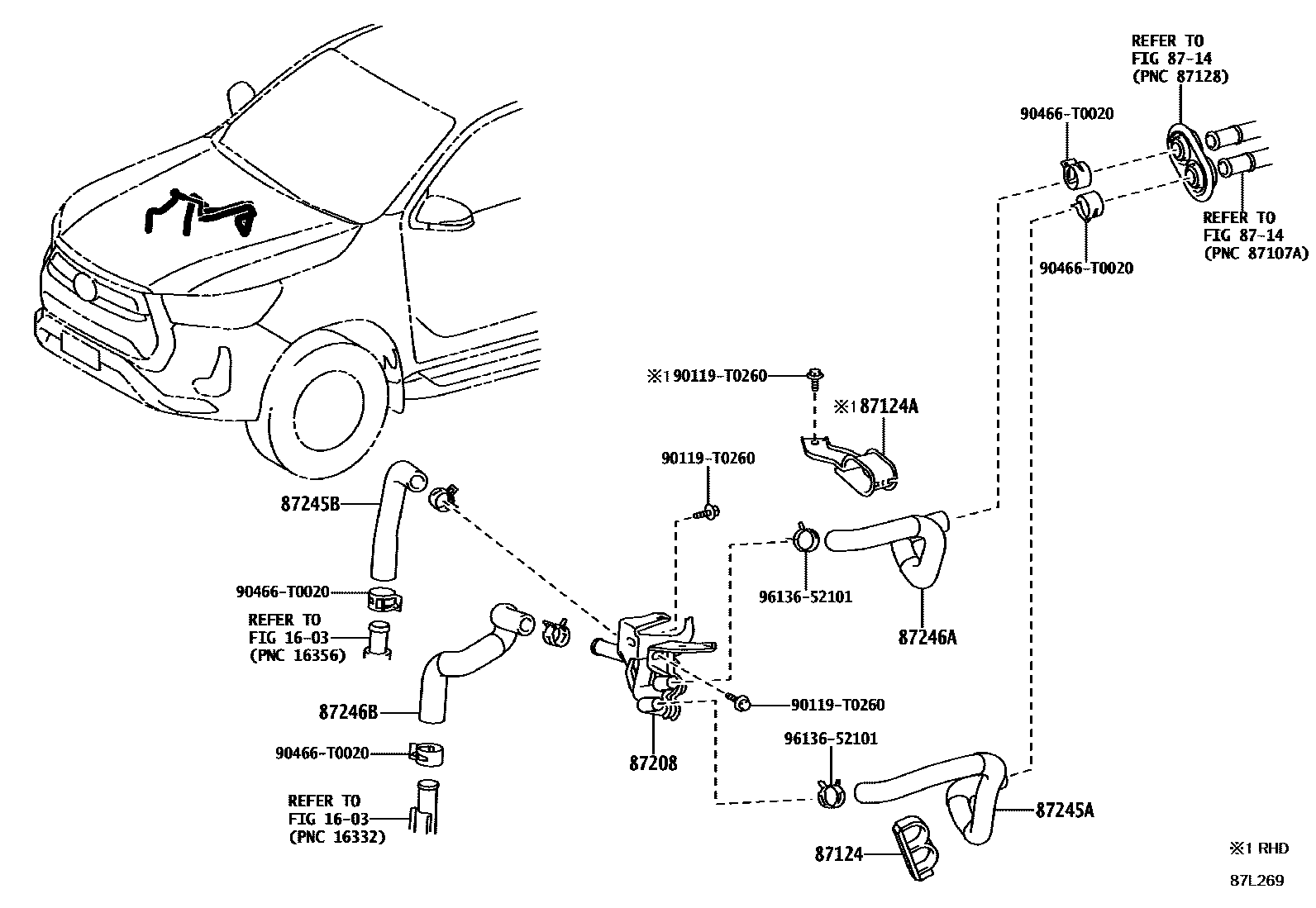

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87124CLAMP, HEATER

main87124-0K070iGGN125..GCC202208-202307

main87124-0K130iGGN125..LA202211-202310

main87124-0K150iGUN126..MMR202208-202309

main87124-0K170iGUN125,126..H..MA202209-202308

main87124-0K300iGUN126..IND202210-202309

main87124-42030iLAN125202301-202401

main88718-6B070iGUN125,126,13#..AGTP202211-202310

87124ACLAMP, HEATER

main87124-0K060iLAN125202301-202401

main87124-0K210iGGN125..SA202301-202401

main87124-0K200iGUN125..LHD..GEN;GUN125..6FC..L..GEN202208-202307

ASIA COLD COUNTRY SPEC

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87208PIPE SUB-ASSY, HEATER WATER

main87208-0K240iTGN121..ARL202208-202307

main87208-0K280iTGN12#,136..LHD..THP202208-202307

main87208-0K300iTGN126,136..AGTP202211-202310

main87208-0K320iGGN125..GCC202208-202307

main87208-0K340iGGN125..LA202211-202310

87245AHOSE, HEATER WATER, INLET A

main87245-0KB20iTGN12#,136..LHD..THP202208-202307

main87245-0KB40iTGN121..ARL202208-202307

main87245-0KB82iGUN125,126..H..MA202209-202308

main87245-0KC20iTGN126,136..AGTP202211-202310

main87245-0KD10iGUN125..RHD..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN202208-202307

EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main87245-0KE02iGUN125,135..(L,S)..TH; GUN125..LHD..GEN;GUN125..6FC..L..GEN; GUN135..6F..H..PH;GUN125,135..H..(IDN,TH);GUN135..THP..6F..(GEN,LA,VN);GUN135..6FC..(ARL,GEN,PH,VN);GUN126..THP..(ARL,GCC,GEN,LA,PH,TH,VN);GUN122,125,136..THP..(ARL,GCC,GEN,LA,VN); GUN135..6F..S..PH202208-202307

ASIA COLD COUNTRY SPEC; FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-MANUAL

main87245-0KG60iGGN125..GCC202208-202307

main87245-0KJ00iGGN125..LA202211-202310

main87245-0KJ30iGGN125..SA202301-202401

main87245-0KK30iLAN125202301-202401

main87245-0KL31iGUN126..IND202210-202309

main87245-71010iGUN125,126,13#..AGTP202211-202310

87245BHOSE, HEATER WATER, INLET B

main87245-0K480iGGN125..LA202211-202310

main87245-0K590iGGN125..SA202208-202401

main87245-0KF30iTGN121,126,136..SA202208-202401

main87245-0KG10iTGN126,136..AGTP202211-202310

main87245-0KE80iGUN125..LHD..GEN;GUN125..6FC..L..GEN202208-202307

ASIA COLD COUNTRY SPEC

87246AHOSE, HEATER WATER, OUTLET A

main87245-0K850iTGN121..ARL202208-202307

main87245-0KB30iTGN12#,136..LHD..THP202208-202307

main87245-0KB91iGUN125,126..H..MA202209-202308

main87245-0KC30iTGN126,136..AGTP202211-202310

main87245-0KE11iGUN122,125,126,13#..SA202208-202401

main87245-0KE51iGUN126..IND202210-202309

main87245-0KF00iGUN125..RHD..L..GEN;GUN126..RHD..6F..H..GEN; GUN126..TWN202208-202307

EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main87245-0KG70iGGN125..GCC202208-202307

main87245-0KJ10iGGN125..LA202211-202310

main87245-0KJ40iGGN125..SA202301-202401

main87245-0KK40iLAN125202301-202401

main87245-71020iGUN125,126,13#..AGTP202211-202310

87246BHOSE, HEATER WATER, OUTLET B

main87245-0K490iGGN125..LA202211-202310

main87245-0K600iGGN125..SA202208-202401

main87245-0KF20iTGN12#,136..THP202208-202307

main87245-0KG00iTGN126,136..AGTP202211-202310

main87245-0KE90iGUN125..LHD..GEN;GUN125..6FC..L..GEN202208-202307

ASIA COLD COUNTRY SPEC

90119T0260

main90119-T0260

90466T0020

main90466-T0020

9613652101

main96136-52101

12 parts on this diagram · 6 diagrams in section
