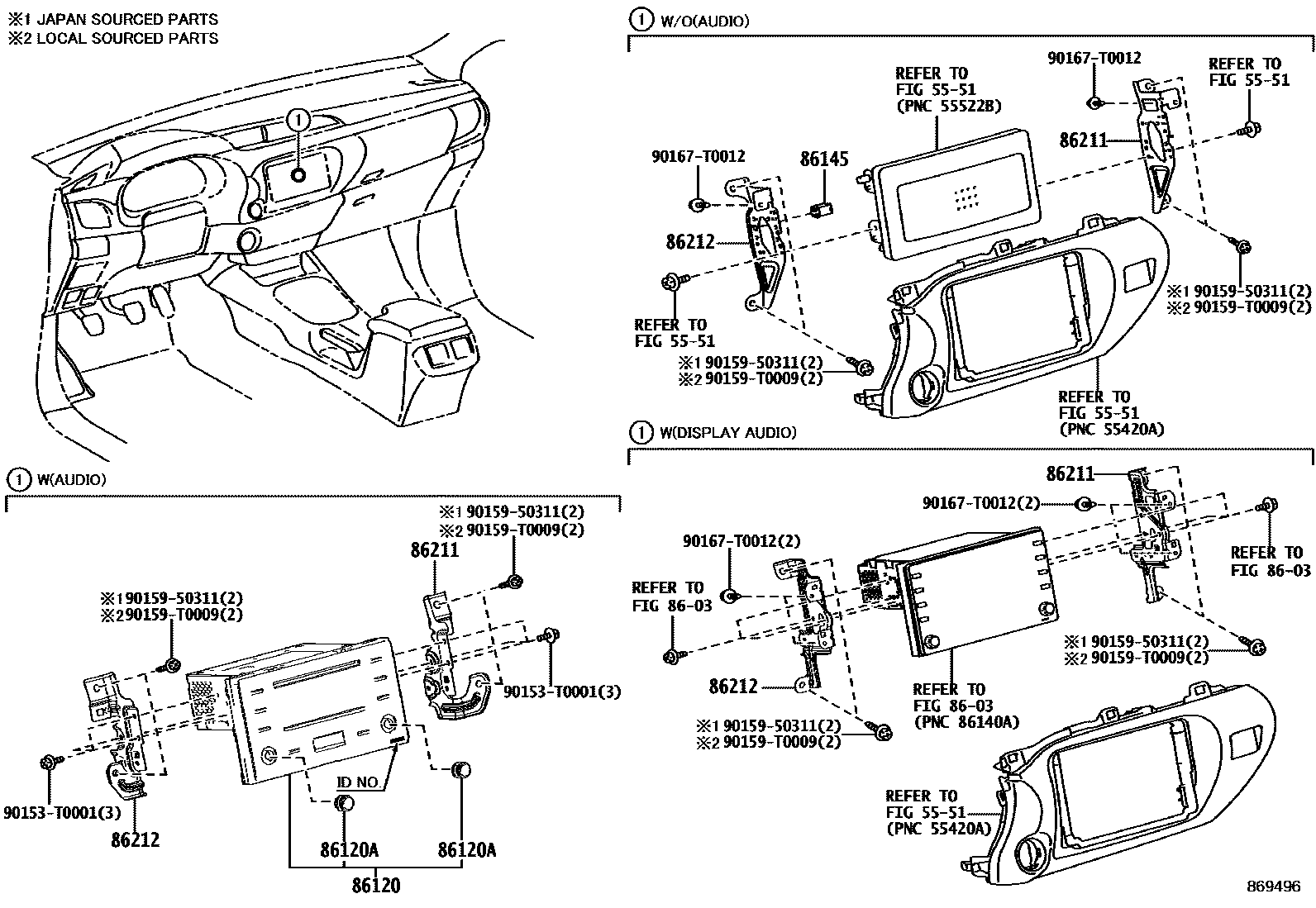

RADIO RECEIVER & AMPLIFIER & CONDENSER
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
8603NAVIGATION & FRONT MONITOR DISPLAY
86120RECEIVER ASSY, RADIO
DENSO TEN,ID=100892; DENSO TEN,ID=100892,ASIA COLD COUNTRY SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM & CD & *BT & RDS&SPEAKER-4SPEAKER
86120AKNOB, RADIO RECEIVER SWITCH
ASIA COLD COUNTRY SPEC&STEERING SWITCH-WITH(AUDIO & TELEPHONE)&AUDIO-AM/FM & CD &*BT & RDS&SPEAKER-4SPEAKER
86145CONNECTOR, ANTENNA MALE
main86145-52010iGUN122..L..IV3;GUN125..H..GCC;GUN126..6F..GCC;TGN126..(H,S)..GCC;GUN126..RHD..S..GEN;GUN135..THP..(LA,VN);TGN120,121..LHD..THP;GUN126..RHD..6FC..H..GEN;GUN125,TGN126..LHD..L..GEN;GUN125..RHD..6F..(L,S)..GEN;GUN122..THP..5F..(L,S)..CBU;GUN126..THP..(H,L)..(LA,TWN);GUN125..THP..6FC..(GEN,IDN,LA);GUN125..THP..L..(GCC,IDN,LA,PH);TGN126..THP..5F..(L,S)..(GCC,LA);GUN125,126..THP..6F..S..(IDN,LA,VN); GUN122..S..IV3;TGN126..6FC..L;GUN125..LHD..S..GEN;GUN126..RHD..6F..H..GEN202208-202307
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
86211BRACKET, RADIO, NO.1
main86211-KK050supersedes 86211-KK100iGUN125,126,13#,TGN136..BZAG; GUN126..AGTP..6FC..LA;GUN126..AGTP..6F..S..LA;GUN125,135,TGN126,136..AGTP..(L,S)..LA202208-202310
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86211-KK100supersedes 86211-KK050iGUN122..L..IV3;TGN121..6FC..S;TGN126..5F..GCC;GUN122..S..GCC..CBU;GUN125,TGN121..MTM..L..GCC;GGN125,TGN126..6FC..(H,S)..GCC; GUN122..L..IV3;TGN126..5F..GCC;GUN125..(H,L)..GCC;GUN126..RHD..S..GEN;GUN125..LHD..L..GEN;TGN126..6FC..H..GCC;GUN126..RHD..6FC..H..GEN;TGN126..THP..S..(GCC,LA);GUN125..THP..6FC..(GEN,LA);GGN125,TGN120,121..LHD..THP;GUN125..RHD..6F..(L,S)..GEN;GUN126..THP..(H,L)..(GCC,LA);GUN122..(L,S)..(GCC,GEN)..CBU;GUN125,126,135..THP..6F..S..LA; GUN122..TH;GUN122..S..IV3;TGN126..6FC..L;GUN125..S..(GCC,TH);GUN126..THP..6FC..S..LA;GUN126..RHD..6F..H..GEN;GUN125,TGN126..LHD..S..GEN;GUN120,121,135,TGN136..(L,S)..(GEN,PH,TH); GUN125..LHD..L..GEN202208-202307
AUDIO-*DA(FOR EMERGING MARKET); AUDIO-*DA(FOR EMERGING MARKET) & DAB; AUDIO-AM/FM & CD & *BT & RDS
main86211-KK130supersedes 86211-KK100iGUN125,135..ARL;GUN126..LHD..GEN;GUN126..ARL,PH,TH,VN;GUN136,TGN121..THP..(ARL,LA);GGN125,GUN122,126..(5F,6FC)..H..GCC;GUN125,135,TGN126..THP..H..(GEN,LA,PH,TH); GUN126..6F..GCC;GUN125,135..S..TH;GUN122..S..GCC..CBU;GUN125..LHD..S..GEN;GUN126..RHD..H..GEN;GUN125..6FC..S..GEN;GUN125,TGN121,126..H..GCC;GUN125,TGN120..MTM..L..GCC; GUN126..THP..H..LA;GUN125..6FC..S..GEN;GUN126..RHD..6FC..H..GEN; TGN121..5F..H;GUN125,TGN126..(5F,6FC)..H..GCC; TGN126..5F..H..GCC202208-202307
AUDIO-*DA(8INCH) & *BT; AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT
86212BRACKET, RADIO, NO.2
main86212-KK100supersedes 86212-KK050iGUN122..L..IV3;TGN121..6FC..S;TGN126..5F..GCC;GUN122..S..GCC..CBU;GUN125,TGN121..MTM..L..GCC;GGN125,TGN126..6FC..(H,S)..GCC; GUN122..L..IV3;TGN126..5F..GCC;GUN125..(H,L)..GCC;GUN126..RHD..S..GEN;GUN125..LHD..L..GEN;TGN126..6FC..H..GCC;GUN126..RHD..6FC..H..GEN;TGN126..THP..S..(GCC,LA);GUN125..THP..6FC..(GEN,LA);GGN125,TGN120,121..LHD..THP;GUN125..RHD..6F..(L,S)..GEN;GUN126..THP..(H,L)..(GCC,LA);GUN122..(L,S)..(GCC,GEN)..CBU;GUN125,126,135..THP..6F..S..LA; GUN122..TH;GUN122..S..IV3;TGN126..6FC..L;GUN125..S..(GCC,TH);GUN126..THP..6FC..S..LA;GUN126..RHD..6F..H..GEN;GUN125,TGN126..LHD..S..GEN;GUN120,121,135,TGN136..(L,S)..(GEN,PH,TH); GUN125..LHD..L..GEN202208-202307
AUDIO-*DA(FOR EMERGING MARKET); AUDIO-*DA(FOR EMERGING MARKET) & DAB; AUDIO-AM/FM & CD & *BT & RDS
main86212-KK130supersedes 86212-KK100iGUN125,126,135..BZAG;GUN126,TGN126..AGTP..MTM..H..LA;GGN125,GUN136,TGN136..AGTP..(H,L); GUN126..AGTP..6FC..LA;GUN125,135,TGN136..AGTP..LA;GUN126,TGN126..AGTP..MTM..S..LA202208-202310
AUDIO-*DA(8INCH) & *BT
90153T0001
main90153-T0001
9015950311
main90159-50311
90159T0009
main90159-T0009
90167T0012
main90167-T0012
11 parts on this diagram · 2 diagrams in section
