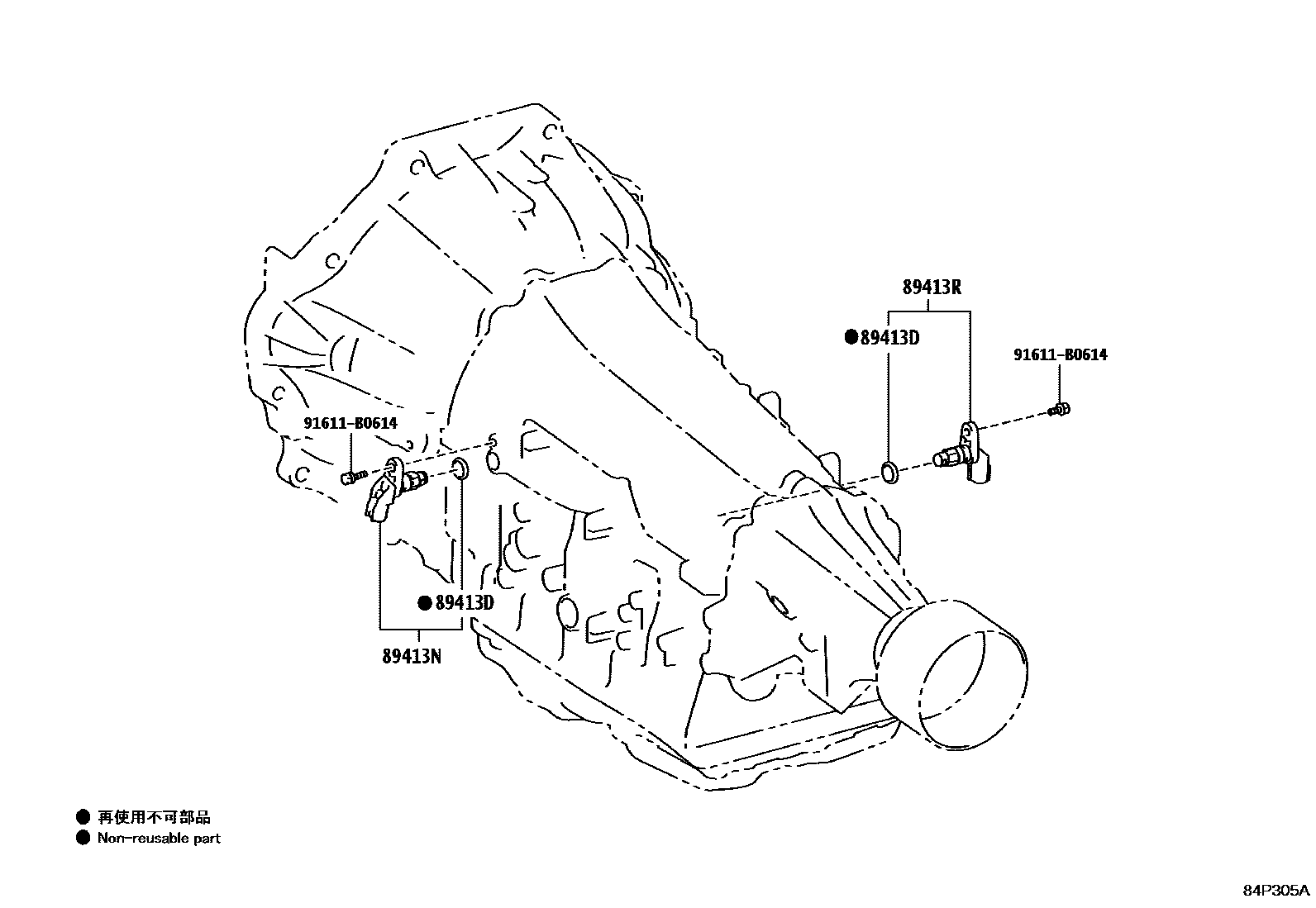

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1AC60 0002 1RC61

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC; GUN126..6F..H..(ARL,GCC,GEN,TH); GUN126..6F..PH;GUN126..6F..S..ARL202208-202307

VSC-WITH(*HSAC & *TSC & *DAC & LSD)

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-12020iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202307

89413RSENSOR, TRANSMISSION REVOLUTION (SP2)

main89413-12020iGGN125,GUN120,121,125,126,13#,TGN121,126..THP..6FC202208-202307

91611B0614

main91611-B0614

4 parts on this diagram · 2 diagrams in section
