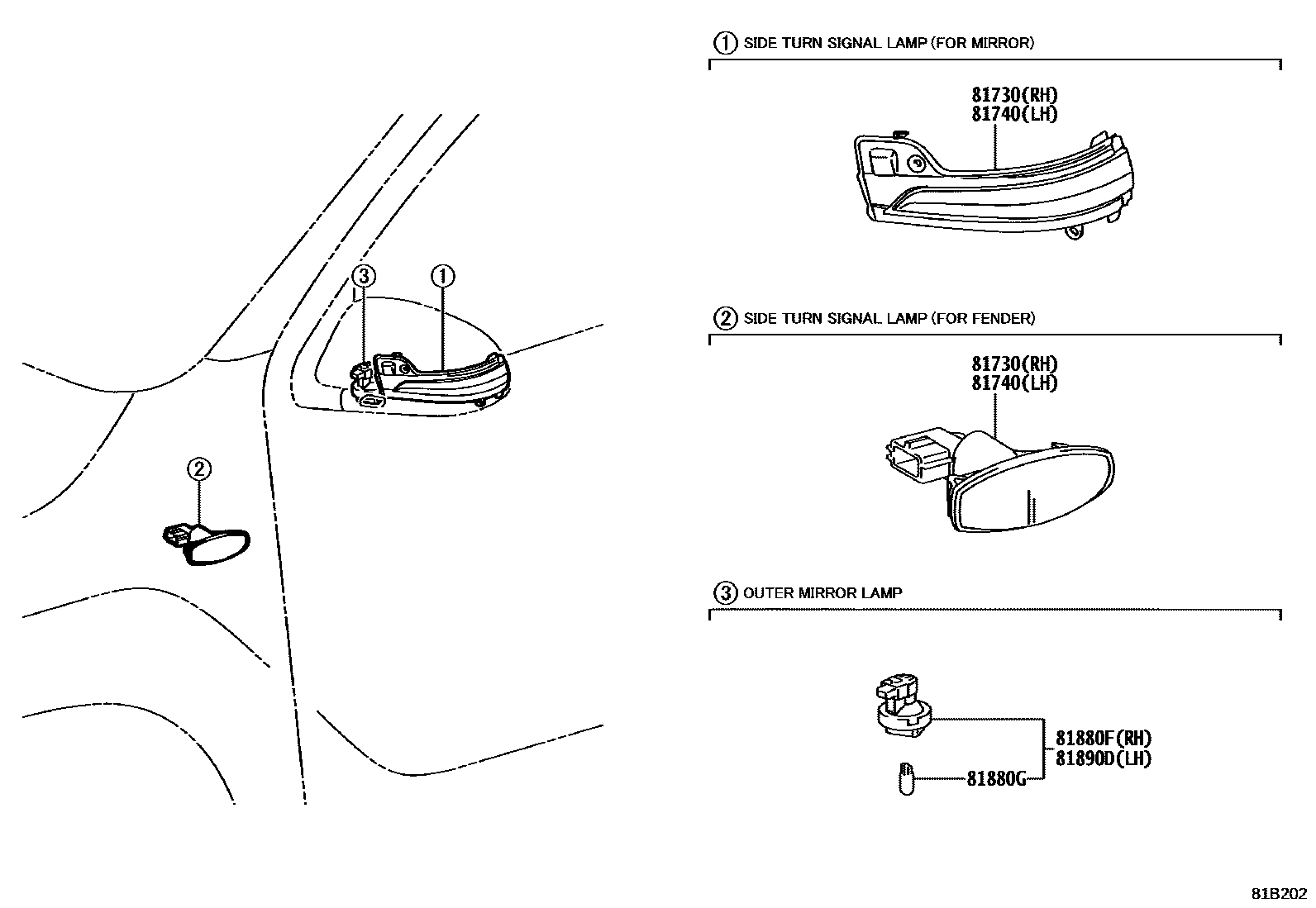

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
81730LAMP ASSY, SIDE TURN SIGNAL, RH
main81730-0K020supersedes 81730-0K111iGUN120,122..S..TH;GUN125,126,135..THP..L..LA; GUN121; GUN121;GUN135..THP..L..LA;GUN122,125..THP..L..(LA,TH);GUN120,TGN126,136..L..(GEN,TH); GUN125,126,135..THP..L..LA; TGN121..GEN;GUN135..THP..S..LA;TGN126..THP..L..LA;GUN125..THP..6FC..L;GUN125,126..THP..(H,S);GUN135..ARL,GEN,PH,TH,VN;GGN125,GUN136,TGN120..THP;GUN125..6F..L..(ARL,GEN,IDN);GUN122,TGN121,126..LHD..THP..(H,S); TGN126..L..GCC;GUN122,125,TGN121..MTM..L..GCC..CBU202208-202307
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR)& W(*SITL) & W(LOGO LAMP)
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
81740LAMP ASSY, SIDE TURN SIGNAL, LH
main81740-0K020supersedes 81730-0K111iGUN120,122..S..TH;GUN125,126,135..THP..L..LA; GUN121; GUN121;GUN135..THP..L..LA;GUN122,125..THP..L..(LA,TH);GUN120,TGN126,136..L..(GEN,TH); GUN125,126,135..THP..L..LA; TGN121..GEN;GUN135..THP..S..LA;TGN126..THP..L..LA;GUN125..THP..6FC..L;GUN125,126..THP..(H,S);GUN135..ARL,GEN,PH,TH,VN;GGN125,GUN136,TGN120..THP;GUN125..6F..L..(ARL,GEN,IDN);GUN122,TGN121,126..LHD..THP..(H,S); TGN126..L..GCC;GUN122,125,TGN121..MTM..L..GCC..CBU202208-202307
GR SPORT&TIRE & DISC WHEEL-215/55R17,ALUMINUM(FOR GR SPORT)&OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL); POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR)& W(*SITL) & W(LOGO LAMP)
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
81880FLAMP ASSY, OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
81880GBULB, OUTER MIRROR LAMP ASSY
12V 5W,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL); 12V 5W,OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
81890DLAMP ASSY, OUTER MIRROR, LH
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL); OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*MIH)
5 parts on this diagram · 1 diagram in section
