SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM20,3#
main73023-KK010-C0iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA,TWN);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202307
BLACK,TRIM21,25
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM2#
main73023-KK010-C0iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA,TWN);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202307
BLACK,TRIM21,25
73119PLATE, SEAT BELT WEBBING CLIP
73135ACOVER, SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM2#
BLACK,TRIM21
LT.GRAY,TRIM20,NO.1:REFER ILLUST.
main73135-KK010-C0iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA,TWN);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202307
BLACK,TRIM21,25,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,NO.2:REFER ILLUST.
main73135-KK020-C0iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA,TWN);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202307
BLACK,TRIM21,NO.2:REFER ILLUST.
73136ACOVER, SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM20,NO.1:REFER ILLUST.
main73135-KK010-C0iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA,TWN);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202307
BLACK,TRIM21,25,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,NO.2:REFER ILLUST.
main73135-KK020-C0iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA,TWN);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202307
BLACK,TRIM21,NO.2:REFER ILLUST.
73178ACAP, SEAT BELT ANCHOR COVER
LT.GRAY,TRIM2#
main73178-KK010-C0×2iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA,TWN);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202307
BLACK,TRIM21,25
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
LT.GRAY,TRIM20,3#
main73200-0D051-C0×2iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA,TWN);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202307
BLACK,TRIM21,25
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK/GRAY,TRIM2#
main73210-0K840-C1iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202307
BLACK/BLACK,TRIM21
RED/BLACK,TRIM25
BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM21
BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM21
BLACK,TRIM20
BLACK,TRIM23
BLACK/LT.GRAY,TRIM20
BLACK/BLACK,TRIM21
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK/GRAY,TRIM2#
main73220-0K550-C1iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202307
BLACK/BLACK,TRIM21
RED/BLACK,TRIM25
BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM21
BLACK/GRAY,TRIM2#
BLACK/BLACK,TRIM21
BLACK,TRIM20
BLACK,TRIM23
BLACK/LT.GRAY,TRIM20
BLACK/BLACK,TRIM21
73230BELT ASSY, FRONT SEAT INNER, RH
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KA50-C0iGUN125,126,135,TGN126..THP..LA;GUN122,136,TGN121,136..LHD..THP..(H,L)..(GEN,LA)202208-202307
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#
CENTRAL AND SOUTH AMERICA SPEC,BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#,3#
main73230-0K870-C0iGUN126,135..AGTP..L;GUN126,135..AGTP..S..LA;GUN125,TGN126,136..AGTP..(L,S)202211-202310
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-LEATHER(FOR SEAT VENTILATION),BLACK,TRIM2#
CENTRAL AND SOUTH AMERICA SPEC,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
main73230-0KJ10-C0supersedes 73230-0KA20-C0iGUN125..LHD..S..(GEN,VN);GUN126,135,TGN126..LHD..(6F,6FC)..(GEN,PH,VN)202208-202307
BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
732140K010PLATE, FRONT SEAT BELT ANCHOR
main73214-0K010
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
90105T0064
main90105-T0064
90109T0041
main90109-T0041
90109T0056
main90109-T0056
90178T0017
main90178-T0017
9167380616
main91673-80616

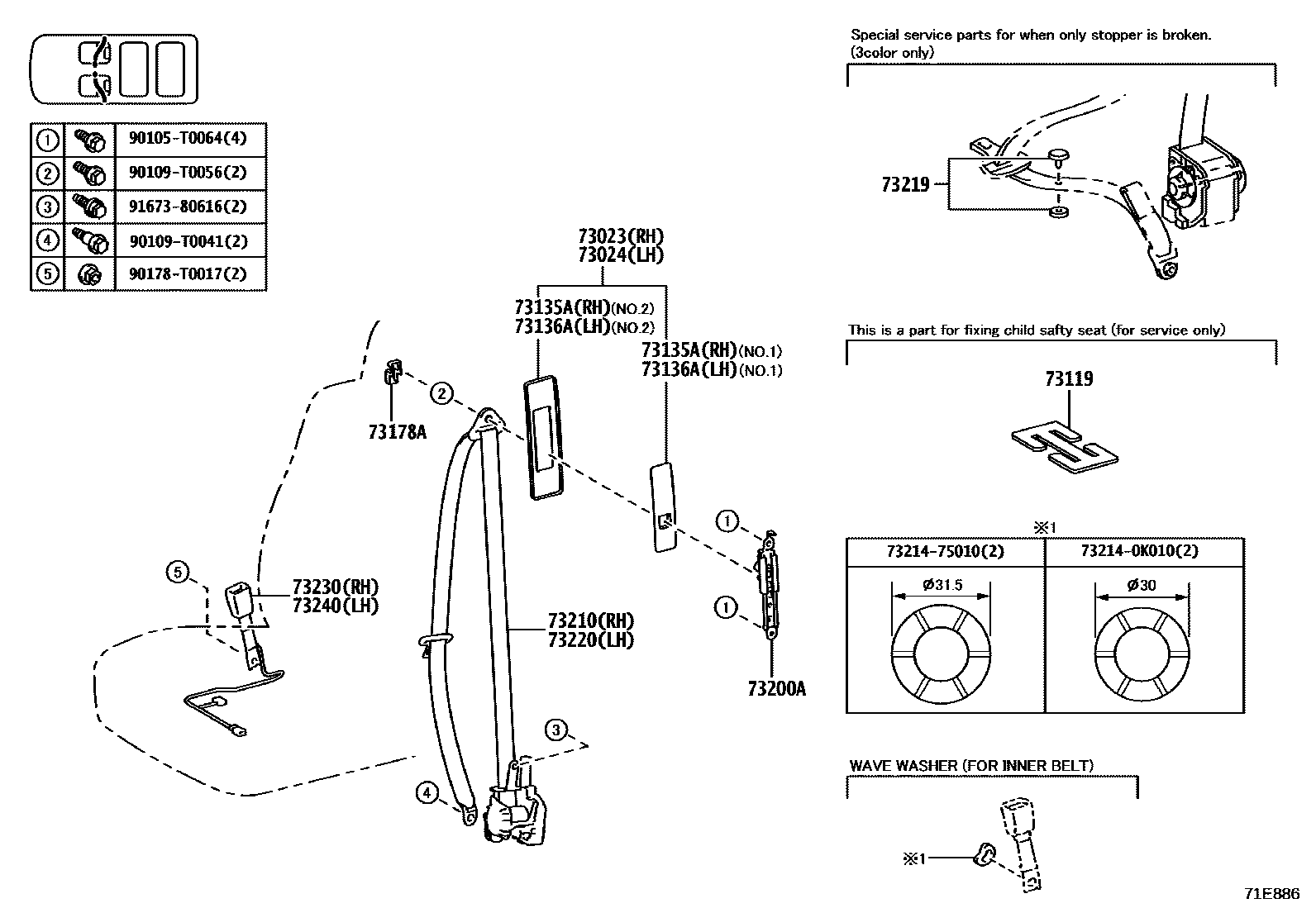

19 parts on this diagram · 5 diagrams in section
