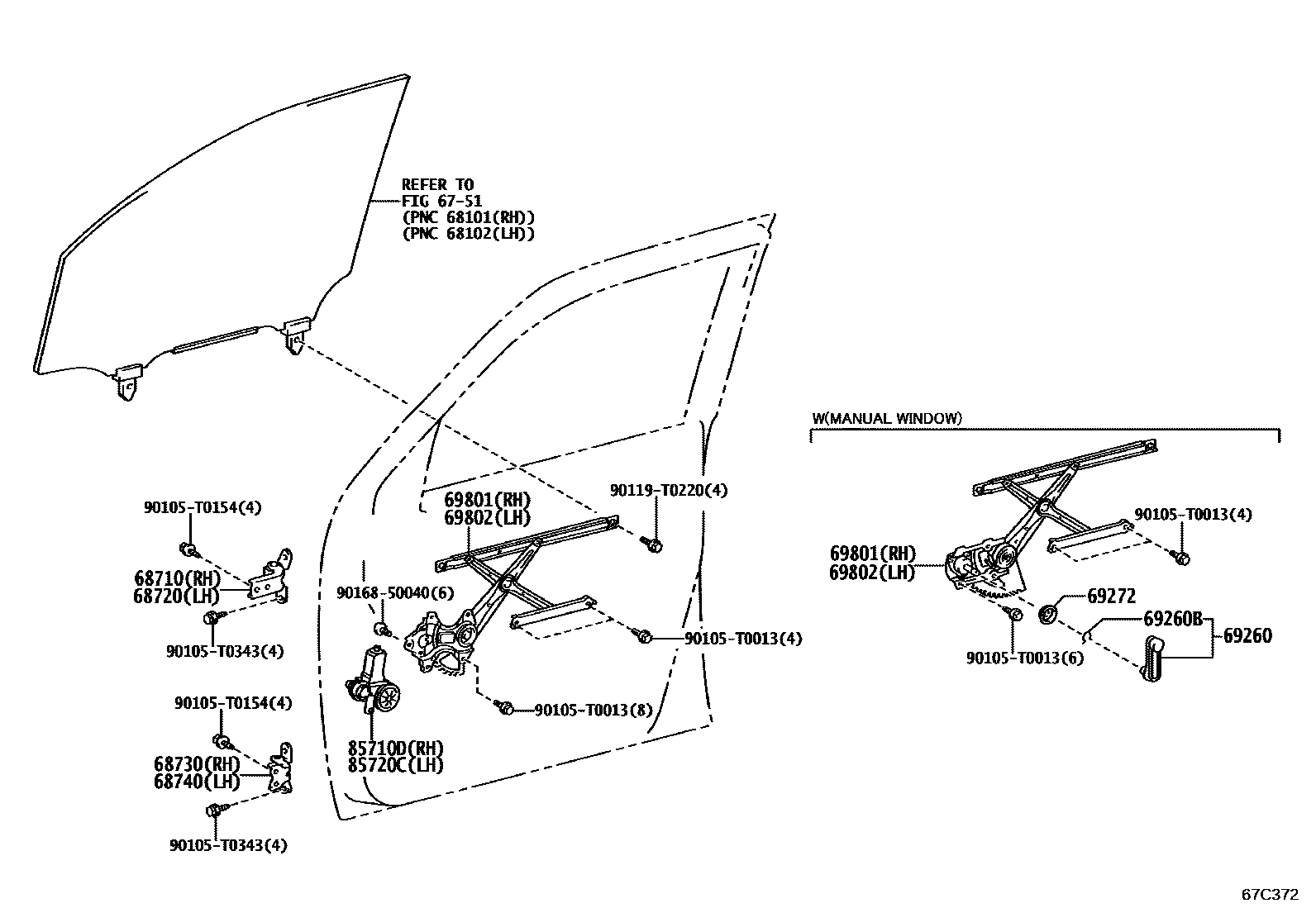

FRONT DOOR WINDOW REGULATOR & HINGE
6751FRONT DOOR PANEL & GLASS
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-0K010-C0×2iGUN125..THP..L..(IDN,LA,PH);GUN122,126,135..LHD..THP..L..(GEN,LA,PH); TGN126..L..GCC;GUN122,125,TGN121..MTM..L..GCC202208-202307
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT,BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-0D351iGUN122..L..TH;TGN126..THP..LA;GUN135..PH,TH,VN;GUN135..THP..S..LA;TGN126..(H,S)..GCC;GUN125..THP..6F..(H,S)..(GCC,IDN,LA,TH,VN);GUN122,126,136,TGN121..THP..(H,S)..(GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,TGN120..THP..(5F,6FC)..(GCC,IDN,LA,TH); TGN126..L..GCC;GUN122,125,126,135,TGN121..THP..MTM..L..(GCC,LA)..CBU202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69801-0K140iGUN122..LHD..L..GEN; GUN122..S..GEN;GUN122..RHD..GEN;GUN125,126,13#,TGN121,126,136..ARL,GEN202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69801-0K150supersedes 69810-0K270iGUN122,125,LAN125,TGN121,126..L..SA; GUN125..RHD..L..SA; TGN136..SA;GGN125,GUN125,126,13#,LAN125,TGN126..(H,S)..SA202301-202401
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69801-0K160supersedes 69810-0K310iGUN125,135..AGTP..L..LA; GUN125,135..BZAG;GUN125,135..AGTP..S..LA;GGN125,GUN126,136,TGN126,136..AGTP202211-202310
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69810-0K270iGUN122,125,135,LAN125,TGN121,126..L..SA; GUN126..S..SA; GUN135..S..SA;GUN125..RHD..6F..S..SA202301-202401
EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-0D331iGUN122..L..TH;TGN126..THP..LA;GUN135..PH,TH,VN;GUN135..THP..S..LA;TGN126..(H,S)..GCC;GUN125..THP..6F..(H,S)..(GCC,IDN,LA,TH,VN);GUN122,126,136,TGN121..THP..(H,S)..(GCC,LA,PH,TH,TWN,VN);GGN125,GUN120,121,125,TGN120..THP..(5F,6FC)..(GCC,IDN,LA,TH); TGN126..L..GCC;GUN122,125,126,135,TGN121..THP..MTM..L..(GCC,LA)..CBU202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69802-0K140iGUN122..LHD..L..GEN; GUN122..S..GEN;GUN122..RHD..GEN;GUN125,126,13#,TGN121,126,136..ARL,GEN202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69802-0K150supersedes 69820-0K290iGUN122,125,LAN125,TGN121,126..L..SA; GUN125..RHD..L..SA; TGN136..SA;GGN125,GUN125,126,13#,LAN125,TGN126..(H,S)..SA202301-202401
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69802-0K160supersedes 69820-0K320iGUN125,135..AGTP..L..LA; GUN125,135..BZAG;GUN125,135..AGTP..S..LA;GGN125,GUN126,136,TGN126,136..AGTP202211-202310
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69820-0K260iTGN126..L..GCC;GUN125,TGN121..THP..MTM..L..(GCC,IDN,LA,PH);GUN122,126,135..LHD..THP..L..(GCC,GEN,LA,PH)202208-202307
main69820-0K290iGUN122,125,135,LAN125,TGN121,126..L..SA; GUN126..S..SA; GUN135..S..SA;GUN125..RHD..6F..S..SA202301-202401
EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85710-0D570iTGN126..(H,S)..GCC;TGN126..THP..(L,S)..LA;GUN135..(L,S)..(PH,VN);GUN125,TGN120..LHD..THP..(5F,6FC);GUN125..THP..6F..(H,S)..(GCC,LA,VN);GUN122,126,13#,TGN121..THP..(H,S)..(GCC,LA); TGN126..L..GCC;GUN122,125,126,135,TGN121..THP..MTM..L..(GCC,LA)..CBU202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85710-0K180iGUN122..LHD..L..GEN; GUN125..L..GEN;GUN122..RHD..GEN;TGN121,126,136..GEN;GUN122,125,126..LHD..S..GEN; GUN125..LHD..H..GEN;GUN126..LHD..6FC..H..GEN202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH
main85710-0K190iGUN122,125..RHD..L..GEN; GUN13#..ARL,GEN;GUN125,TGN121..ARL;GUN125,126..LHD..H..GEN;GUN125,126..RHD..(H,S)..(ARL,GEN)202208-202307
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main85710-0K200iGUN125,126,TGN121,126..6FC..H..GCC; GUN125,126,TGN121,126..MTM..H..GCC; GUN126..THP..6FC..H..LA; GUN135..S..TH;TGN126..THP..H..LA;GUN126..PH,TH,TWN,VN;GUN135..(H,L)..(PH,TH);GUN125..(H,S)..(IDN,TH);GGN125,GUN120,121,122..THP..(6F,6FC); TGN126..THP..S..LA;GUN126..THP..6F..H..LA202208-202307
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main85710-0K280iGUN125..AGTP..6FC..LA;GUN126..AGTP..6FC..H..LA; GUN126,136..H..BZAG;GGN125,TGN126..AGTP..H; TGN126,136..AGTP..S;GUN126..AGTP..6F..H..LA202211-202310
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main85710-0K290iGUN125,135..AGTP..L..LA; GUN125,135..BZAG;GUN126..AGTP..H..LA;GUN125,13#..AGTP..(H,S)..LA;GUN126,TGN126,136..AGTP..(L,S); GUN126,136..H..BZAG202211-202310
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85720-0K170iGUN126..L..LA; GUN135..PH,VN;TGN126..6FC..H..GCC;GUN125..THP..S..(LA,VN);GUN135,TGN126..THP..MTM..(H,S)..(GCC,LA);GUN126..THP..(H,S)..(GCC,LA,PH,TH,TWN,VN);GGN125,GUN122,125,13#,TGN121..THP..H..(GCC,LA,TH)202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85720-0K180iGUN122..LHD..L..GEN; GUN125..LHD..L..GEN;GUN13#,TGN121,136..(L,S)..(ARL,GEN);GUN122,125,126..RHD..(L,S)..(ARL,GEN); GUN125..LHD..S..GEN; GUN125..RHD..H..GEN202208-202307
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY); WIRELESS DOOR LOCK-WITH
main85720-0K190iGUN125..6FC..S..GEN; GUN135,TGN126..GEN;GUN122,125,126..LHD..S..GEN;GUN125,126,136..H..(ARL,GEN)202208-202307
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX & ANSWER BACK)
main85720-0K290iGUN125,135..AGTP..L..LA; TGN126..AGTP..L;GUN125,126,135,TGN136..L..BZAG202211-202310
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
90105T0013
main90105-T0013
90105T0154
main90105-T0154
90105T0343
main90105-T0343
90119T0220
main90119-T0220
9016850040
main90168-50040
17 parts on this diagram · 1 diagram in section
