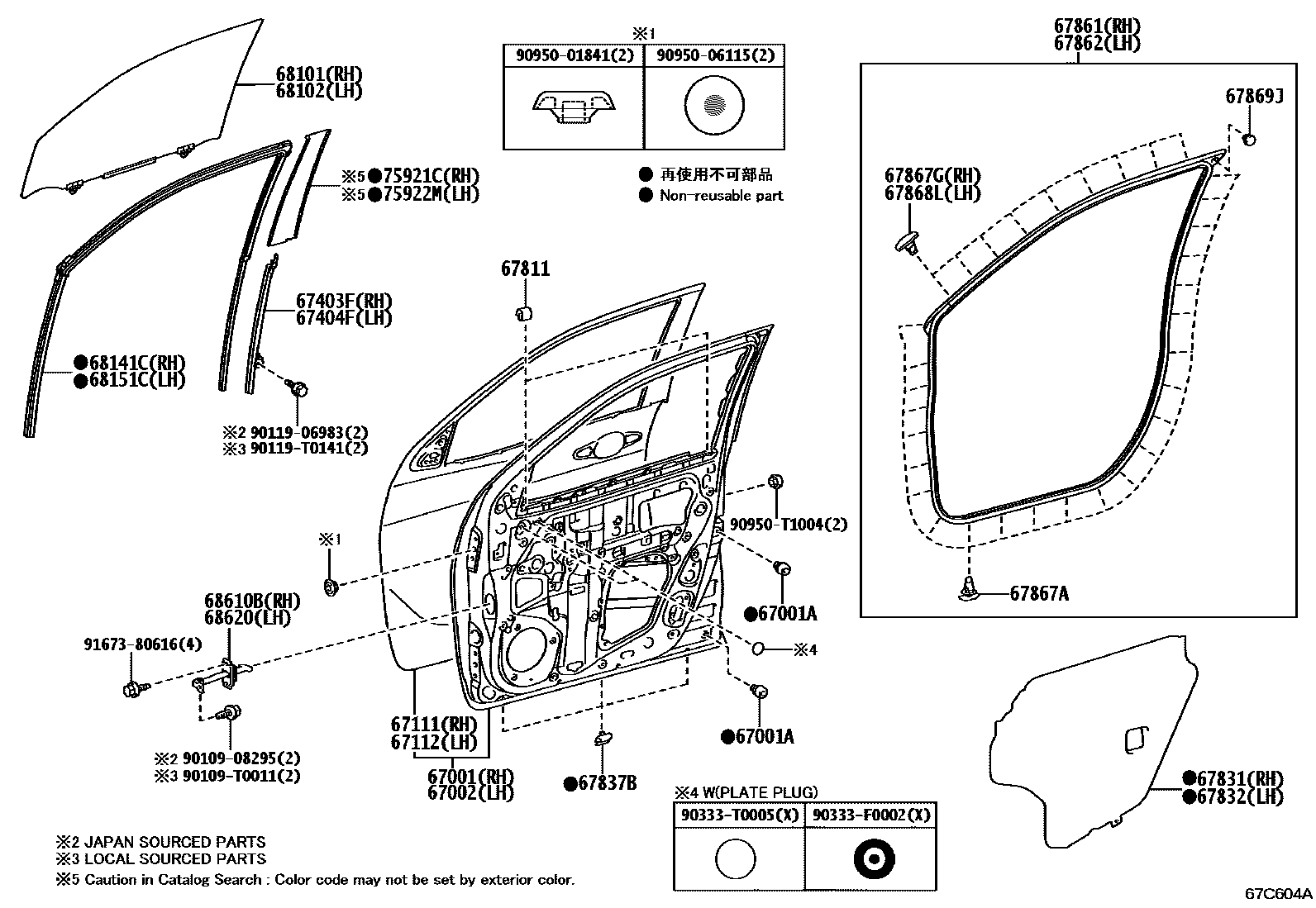

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM,W(POWER WINDOW) 0003 1DOOR TRIM,W/O(POWER WINDOW)

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-KK010iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA202208-202401

67001ACUSHION, FRONT DOOR PANEL

main90541-09131×4iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA202208-202401

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-KK010iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202310

67111PANEL, FRONT DOOR, OUTER RH

main67111-KK010iGUN125,126..MA202208-202308

67112PANEL, FRONT DOOR, OUTER LH

main67112-KK010iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202310

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K070iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

main67403-0K080iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main67403-0K100iGUN126..IND202210-202309

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K070iGUN126..MMR202208-202309

main67404-0K080iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main67404-0K100iGUN125,126..GHA,KEN202210-202403

67811PAD, FRONT DOOR SILENCER

main69759-0K030×4iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202310

main69759-0K060×4iGUN125,126..GHA,KEN202301-202403

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K120iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202310

main67831-0K150iGUN126..IND202210-202309

main67831-0K160iGUN126..PKN202303

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0K120iGUN125,126..GHA,KEN202208-202403

main67832-0K150iGUN126..IND202210-202309

main67832-0K160iGUN126..PKN202303

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K092×6iGGN125,GUN12#,13#,TGN12#,136202208-202209

PLANT TMT

main67837-0K093×6iGGN125,GUN12#,13#,TGN12#,136..THP202210-202307

PLANT TMT

main67837-0K103×6iGUN125,126..GHA,KEN202301-202403

main67837-0K121×6iGUN126..PKN202211

EXCEPT PLANT TMT

main67837-0K211×6iGUN125,126..MA202209-202308

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K121iGUN126..MMR202208-202309

main67861-0K151iGUN125,126..GHA,KEN202301-202403

main67861-0K162iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main67861-0K201iGUN126..IND202210-202309

main67861-0K241iGUN125,126..MA202209-202308

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K121iGUN126..PKN202208

main67862-0K151iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA202301-202401

main67862-0K162iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main67862-0K201iGUN126..IND202210-202309

main67862-0K241iGUN125,126..MA202209-202308

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×48iGUN126..PKN202208

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52040×9iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52010×9iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-0K010iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main9004A-46317×2iGUN126..MMR202212-202309

main90467-06084×2iGUN125,126..GHA,KEN202208-202403

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K192iGUN125..VN;GUN122..THP..(L,S);GUN135..6FC..(ARL,VN);GUN135..THP..L..(LA,TH);GUN120,121,TGN120,121,136..THP;GUN125,126,TGN126..THP..L..(ARL,GCC,GEN,IDN,LA)202208-202307

main68101-0K200iGUN122,125,135,LAN125,TGN121,126,136..L..SA202301-202401

main68101-0K210iGUN125,126,135,TGN126,136..AGTP..L202211-202310

main68101-0K272iGUN125,135..L..(PH,VN);GUN126..THP..(H,S)..(ARL,GEN,LA,PH,TH,TWN,VN);GGN125,GUN125,13#,TGN126..THP..(H,S)..(ARL,GCC,GEN,IDN,LA,PH,TH)202208-202307

main68101-0K280iGGN125,GUN125,126,13#,LAN125,TGN126,136..(H,S)..SA202301-202401

main68101-0K290iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)202211-202310

main68101-0K330iGUN125,126..MA202209-202308

main68101-0K380iGGN125,GUN125,TGN126..H..GCC; GUN126..GCC202208-202307

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68101-0K390iGUN122..H; TGN121..H202208-202307

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68101-0K400iGUN126..IND202210-202309

main68101-0K430iGUN126..(H,S)..PKN202303

main68101-0K440iGUN126..L..PKN202303

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K192iGUN125..VN;GUN122..THP..(L,S);GUN135..6FC..(ARL,VN);GUN135..THP..L..(LA,TH);GUN120,121,TGN120,121,136..THP;GUN125,126,TGN126..THP..L..(ARL,GCC,GEN,IDN,LA)202208-202307

main68102-0K200iGUN122,125,135,LAN125,TGN121,126,136..L..SA202301-202401

main68102-0K210iGUN125,126,135,TGN126,136..AGTP..L202211-202310

main68102-0K272iGUN125,135..L..(PH,VN);GUN126..THP..(H,S)..(ARL,GEN,LA,PH,TH,TWN,VN);GGN125,GUN125,13#,TGN126..THP..(H,S)..(ARL,GCC,GEN,IDN,LA,PH,TH)202208-202307

main68102-0K280iGUN125,126..(H,S)..(GHA,KEN)202301-202403

main68102-0K290iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)202211-202310

main68102-0K330iGUN125,126..MA202209-202308

main68102-0K370iGGN125,GUN125,TGN126..H..GCC; GUN126..GCC202208-202307

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68102-0K380iGUN122..H; TGN121..H202208-202307

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

main68102-0K390iGUN126..IND202210-202309

main68102-0K430iGUN126..(H,S)..PKN202303

main68102-0K440iGUN126..L..PKN202303

68141CRUN, FRONT DOOR GLASS, RH

main68141-0K070iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

main68141-0K090iGUN125,126..GHA,KEN202301-202403

main68141-0K100iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main68141-0K140iGUN126..IND202210-202309

main68141-0K150iGUN125,126..MA202209-202308

68151CRUN, FRONT DOOR GLASS, LH

main68151-0K070iGGN125,GUN12#,13#,TGN12#,136..THP202208-202307

main68151-0K090iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA202301-202401

main68151-0K100iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main68151-0K140iGUN126..IND202210-202309

main68151-0K150iGUN125,126..MA202209-202308

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K091iGUN126..PKN202208

main68610-0K100iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main68610-0K110iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA202210-202401

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K091iGUN126..MMR202208-202309

main68610-0K100iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main68610-0K110iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA202210-202401

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0K030iGUN126..(H,S)..PKN202208

main75921-0K040iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)..LA; GUN126,13#..(H,S)..BZAG202211-202310

main75921-0K090iGGN125,GUN125,126,136..H..SA; GUN125,126,135,LAN125,TGN126,136..S..SA202301-202401

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0K030iGUN126..(H,S)..PKN202208

main75922-0K040iGGN125,GUN125,126,13#,TGN126,136..AGTP..(H,S)..LA; GUN126,13#..(H,S)..BZAG202211-202310

main75922-0K090iGGN125,GUN125,126,136..H..SA; GUN125,126,135,LAN125,TGN126,136..S..SA202301-202401

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

90333F0002

main90333-F0002

90333T0005

main90333-T0005

9095001841

main90950-01841

9095006115

main90950-06115

90950T1004

main90950-T1004

9167380616

main91673-80616

35 parts on this diagram · 3 diagrams in section
