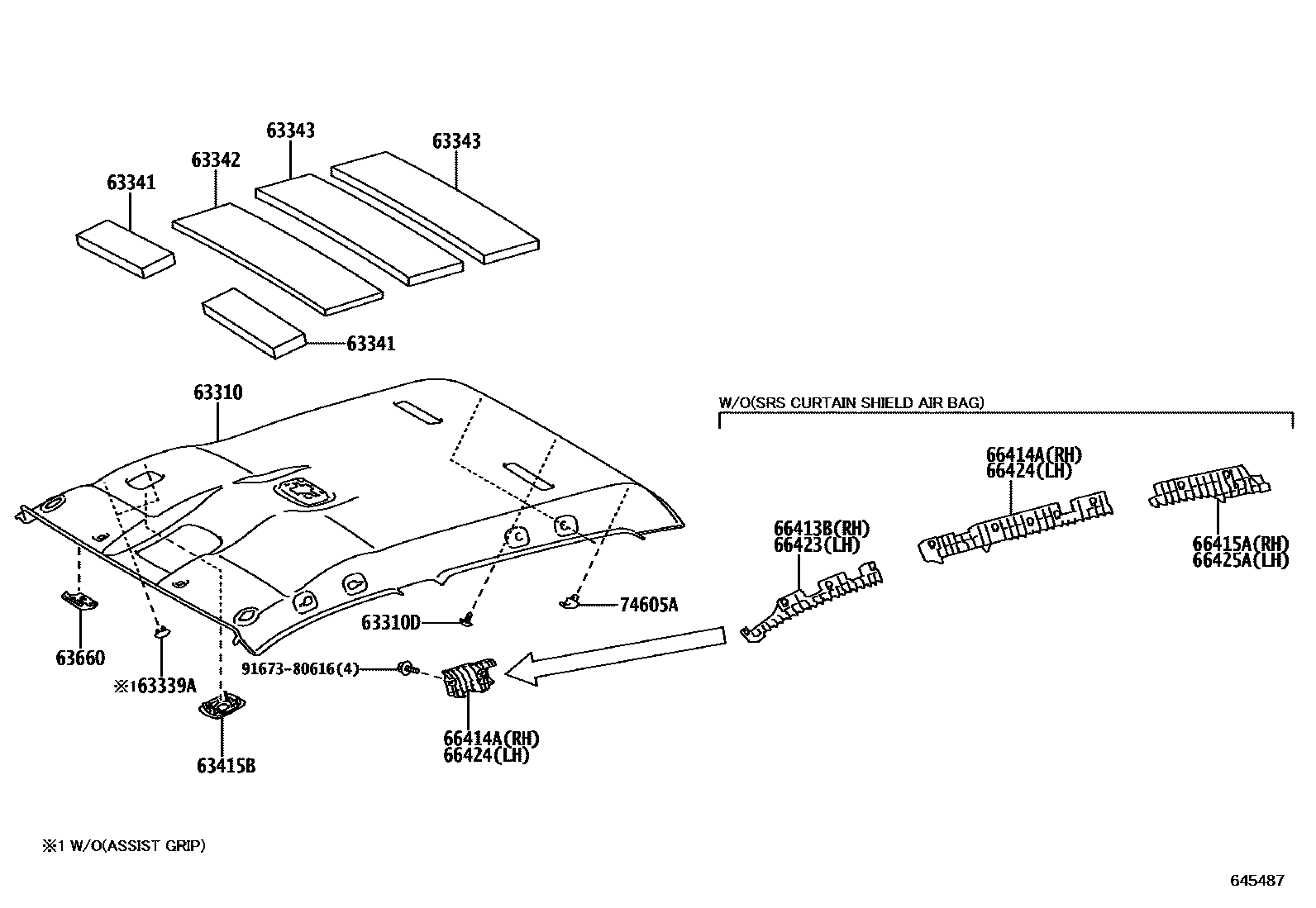

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-0KB11-B0iGUN136..AGTP;GUN126..6F..H..BZAG202211-202310

LT. GRAY,TRIM2#

main63310-0KB11-B0iGUN126..AGTP..6FC..H;GUN126..AGTP..6F..H..LA202211-202310

ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM20

main63310-0KB11-B0iGUN126..AGTP..6FC..H;GUN126..AGTP..6F..H..LA202211-202310

ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#

main63310-0KB40-B0iGUN126..PKN202303

LT. GRAY,TRIM2#

main63310-0KL50-B0iGUN126..MA202209-202308

ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM20

main63310-0KL50-B0iGUN125..MA202209-202308

LT. GRAY,TRIM2#

main63310-0KQ71-B0iGUN126..AGTP..6FC..H;GUN126..AGTP..6F..H..LA202211-202310

LT. GRAY,TRIM20

main63310-0KQ71-B0iGUN126..AGTP..6FC..H;GUN126..AGTP..6F..H..LA202211-202310

LT. GRAY,TRIM2#

main63310-0KQ71-B0iGUN136..AGTP;GUN126..6F..H..BZAG202211-202310

ACTIVE SAFETY PACKAGE-WITH,LT. GRAY,TRIM2#

main63310-0KQ71-C0iGUN126..AGTP..6F..H..LA202211-202310

BLACK,TRIM21,23,25

main63310-0KQ71-C0iGUN126..AGTP..6FC..H202211-202310

BLACK,TRIM21

main63310-0KW30-C0iGUN126..MA202209-202308

BLACK,TRIM2#

main63310-F0160-B0iGUN126..RHD..H..SA202301-202401

AUDIO-*DA(8INCH) & *BT,LT. GRAY,TRIM2#

main63310-F0160-B0iGUN126..RHD..H..SA202301-202401

AUDIO-WITHOUT & WITH(AUDIO LESS COVER),LT. GRAY,TRIM2#

main63310-F0160-B0iGUN126..RHD..H..SA202301-202401

EXPORT FROM SA,LT. GRAY,TRIM20

main63310-F0160-B0iGUN126..RHD..H..SA202301-202403

LT. GRAY,TRIM2#

main63310-F0160-B0iGUN126..RHD..H..SA202301-202401

LT. GRAY,TRIM20

main63310-F0160-B0iGUN125..LHD..S..SA;GUN125,135,TGN136..(H,L)..SA;GUN122,126,LAN125,TGN121,126..(L,S)..SA202301-202401

AUDIO-*DA(FOR EMERGING MARKET),LT. GRAY,TRIM2#

main63310-F0160-C0iGUN126..RHD..6FC..H..SA202301-202401

BLACK,TRIM21,23,25

main63310-F0160-C0iGUN126..LHD..SA202301-202401

EXPORT FROM SA,BLACK,TRIM21

main63310-F0160-C0iGUN126..LHD..SA202301-202401

EXPORT FROM SA,BLACK,TRIM21,23,25

main63310-F0170-B0iGGN125,GUN126,136..RHD..H..SA202301-202401

LT. GRAY,TRIM20

main63310-F0170-B0iGGN125,GUN126,136..RHD..H..SA202301-202401

LT. GRAY,TRIM2#

main63310-F0170-C0iGGN125,GUN136..SA;GUN126..6F..H..SA202301-202401

BLACK,TRIM21,23,25

main63310-F0170-C0iGGN125,GUN136..SA;GUN126..6F..H..SA202301-202401

BLACK,TRIM21

main63310-F0380-B0iGUN126..MMR202302-202309

LT. GRAY,TRIM20

main63310-F0380-C0iGUN126..MMR202302-202309

BLACK,TRIM21

main63310-F0450-B0iGUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC202208-202307

LT. GRAY,TRIM20

main63310-F0450-B0iGUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC202208-202307

LT. GRAY,TRIM20,3#

main63310-F0450-B0iGUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC202208-202309

LT. GRAY,TRIM2#

main63310-F0450-B0iGUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC202208-202307

ASIA COLD COUNTRY SPEC,LT. GRAY,TRIM2#

main63310-F0450-B0iGUN135..6FC..H;GUN126..6FC..TH;GUN135..LHD..6F..H;GUN125,126..THP..H..(GEN,LA,PH,TWN,VN)202208-202307

LT. GRAY,TRIM2#,3#

main63310-F0450-C0iGUN135..6FC..H;GUN126..6F..(GCC,PH);GUN126..THP..H..(GEN,LA,TWN);GUN125,135..6F..H..(GCC,GEN,PH)202208-202307

BLACK,TRIM21

main63310-F0450-C0iGUN135..6FC..H;GUN126..6F..(GCC,PH);GUN126..THP..H..(GEN,LA,TWN);GUN125,135..6F..H..(GCC,GEN,PH)202208-202307

BLACK,TRIM21,25

main63310-F0450-C0iGUN135..6FC..H;GUN126..6F..(GCC,PH);GUN126..THP..H..(GEN,LA,TWN);GUN125,135..6F..H..(GCC,GEN,PH)202208-202307

GR SPORT,BLACK,TRIM2#

main63310-F0450-C0iGUN135..6FC..H;GUN126..6F..(GCC,PH);GUN126..THP..H..(GEN,LA,TWN);GUN125,135..6F..H..(GCC,GEN,PH)202208-202307

GR SPORT&HIGH MOUNT STOP LAMP-WITH,BLACK,TRIM2#

main63310-F0460-B0iTGN126..S..GEN202208-202307

LT. GRAY,TRIM2#

main63310-F0470-B0iGUN126,136..H..ARL..CBU202208-202307

AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT. GRAY,TRIM2#

main63310-F0470-B0iGUN126..H..IV3202208-202307

AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM20,3#

main63310-F0470-B0iGUN126..H..IV3202208-202307

LT. GRAY,TRIM20

main63310-F0470-B0iGUN126..H..IV3202208-202307

LT. GRAY,TRIM2#

main63310-F0470-B0iTGN126..GCC;GUN122..S..GCC;GUN122..L..IV3;TGN121..6FC..S;GUN125,TGN121..MTM..L..GCC202208-202307

AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM2#,3#

main63310-F0470-B0iTGN126..GCC;GUN122..S..GCC;GUN122..L..IV3;TGN121..6FC..S;GUN125,TGN121..MTM..L..GCC202208-202307

AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT. GRAY,TRIM20,3#

main63310-F0470-B0iTGN126..GCC;GUN122..S..GCC;GUN122..L..IV3;TGN121..6FC..S;GUN125,TGN121..MTM..L..GCC202208-202307

AUDIO-*DA(8INCH) & *BT & DAB,LT. GRAY,TRIM2#,3#

main63310-F0470-C0iGGN125..GCC202208-202307

BLACK,TRIM21,25

main63310-F0470-C0iGGN125..GCC202208-202307

BLACK,TRIM21

main63310-F0470-C0iGGN125..GCC202208-202307

GR SPORT&HIGH MOUNT STOP LAMP-WITH&AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM2#

main63310-F0470-C0iGGN125..GCC202208-202307

AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM21,25

main63310-F0470-C0iGGN125..GCC202208-202307

AUDIO-*DA(FOR EMERGING MARKET) & DAB,BLACK,TRIM21,25

main63310-F0480-B0iTGN126..H..GEN202208-202307

LT. GRAY,TRIM2#

63310DCLIP, ROOF HEADLINING

main90467-T0004-B0iGGN125,GUN126..GCC;GUN125..6F..H..GCC202208-202307

LT.GRAY,TRIM2#,3#

main90467-T0004-B0iGUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC202208-202307

LT.GRAY,TRIM20,3#

main90467-T0004-B0iGUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC202208-202403

LT.GRAY,TRIM2#

main90467-T0004-B0iGUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC202208-202401

LT.GRAY,TRIM20

main90467-T0004-C1iGUN121202208-202401

BLACK,TRIM21

main90467-T0004-C1iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA,TWN);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202307

BLACK,TRIM21,25

main90467-T0004-C1iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA,TWN);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202401

BLACK,TRIM21,23,25

main90467-T0004-C1iGUN13#..THP..6FC..H;GUN126..THP..6FC..H..(GEN,LA,TWN);GUN125,126,135..THP..6F..H..(ARL,GCC,GEN,LA,PH)202208-202307

BLACK,TRIM23

main90467-T0004-C1iGUN126..MA202209-202308

BLACK,TRIM21,23

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-0K030-B0iGGN125,GUN126..GCC;GUN125..6F..H..GCC202208-202307

LT.GRAY,TRIM20

main63339-0K030-B0iGGN125,GUN126..GCC;GUN125..6F..H..GCC202208-202308

LT.GRAY,TRIM2#

main63339-0K030-B0iGGN125,GUN126..GCC;GUN125..6F..H..GCC202208-202307

ASSIST GRIP-ROOF:3 & PILLAR(REAR):2,LT.GRAY,TRIM2#

main63339-0K030-B0iGUN121;GUN126..RHD..6F..H..GEN202208-202307

LT.GRAY,TRIM2#,3#

main63339-0K030-B0iGUN121;GUN126..RHD..6F..H..GEN202208-202307

LT.GRAY,TRIM20,3#

main63339-0K030-C0iGUN121202208-202307

BLACK,TRIM21,23,25

main63339-0K030-C0iGGN125,GUN126..6FC..GCC202208-202307

BLACK,TRIM23

main63339-0K030-C0iGGN125,GUN126..6FC..GCC202208-202307

BLACK,TRIM21

63341PAD, ROOF SILENCER, NO.1

main63342-0K230iGUN126..PKN202208-202309

main63342-0K400iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main63342-0K420iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA202301-202403

main63342-0K860iGUN125,126..MA202209-202308

63342PAD, ROOF SILENCER, NO.2

main63342-0K240iGGN125,GUN12#,13#,TGN12#,136..THP202208-202310

main63342-0K430iGUN125,126..GHA,KEN202301-202403

main63342-0K870iGUN125,126..MA202209-202308

63343PAD, ROOF SILENCER, NO.3

main63342-0K460iGUN126..IND,MMR202208-202309

main63342-0K490iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main63342-0K500iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA202301-202403

main63342-0K880iGUN125,126..MA202209-202308

63415BGRILLE, ROOF SPEAKER, RH

main63415-0K010-B0iTGN126..(H,S)..GEN202208-202307

LT.GRAY,TRIM2#

63660COVER ASSY, ROOF HEADLINING TRIM, NO.1

main63359-0K040-B0iGUN126,136..H..ARL..CBU202208-202307

AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE,LT.GRAY,TRIM2#

main63359-0K040-B0iGUN126,136..H..ARL..CBU202208-202307

LT.GRAY,TRIM20

main63359-0K040-B0iGUN126,136..H..ARL..CBU202208-202307

LT.GRAY,TRIM2#

main63359-0K040-B0iGUN126,136..H..ARL..CBU202208-202307

AUDIO-*DA(8INCH) & *BT & DAB,LT.GRAY,TRIM20,3#

main63359-0K040-B0iGUN126,136..H..ARL..CBU202208-202307

AUDIO-*DA(8INCH) & *BT & DAB,LT.GRAY,TRIM2#,3#

main63359-0K040-B0iGUN126,136..H..ARL..CBU202208-202307

AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM20,3#

main63359-0K040-B0iGUN126,136..H..ARL..CBU202208-202307

AUDIO-*DA(FOR EMERGING MARKET) & DAB,LT.GRAY,TRIM2#,3#

main63359-0K040-C0iGGN125..GCC202208-202307

AUDIO-*DA(FOR EMERGING MARKET) & DAB,BLACK,TRIM21,25

main63359-0K040-C0iGUN136..H..ARL;GUN126..6F..H..ARL202208-202307

BLACK,TRIM21,25

main63359-0K040-C0iGUN136..H..ARL;GUN126..6F..H..ARL202208-202307

BLACK,TRIM21

main63359-0K040-C0iGUN136..H..ARL;GUN126..6F..H..ARL202208-202307

GR SPORT&HIGH MOUNT STOP LAMP-WITH&AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM2#

main63359-0K040-C0iGUN136..H..ARL;GUN126..6F..H..ARL202208-202307

AUDIO-*DA(8INCH) & *BT & DAB,BLACK,TRIM21,25

main63359-KK010-B0iGUN125,135,TGN136..RHD..S..SA202301-202401

LT.GRAY,TRIM20

main63359-KK010-B0iGGN125,GUN126,136..RHD..H..SA202301-202401

LT.GRAY,TRIM2#

main63359-KK010-C0iGGN125,GUN136..SA;GUN126..6F..H..SA202301-202401

BLACK,TRIM21,23,25

main63359-KK010-C0iGUN126..RHD..6FC..H..SA202301-202401

BLACK,TRIM21

66413BSPACER, SIDE RAIL, FRONT RH

main66413-0K080iGUN126..PKN202208-202308

main66413-0K080iGUN122..H,S;GUN122..RHD..L;TGN126..GCC,GEN;GUN126..RHD..GEN;GUN125,126..H..GCC;GUN125..RHD..(GEN,TH);GUN135..(L,S)..(PH,TH);GUN125..LHD..(L,S)..GEN;GUN122,135..L..(202208-202307

SRS AIR BAG-WITH(*DRP)

main66413-KK020iGUN125..GHA,KEN202301-202403

66414ASPACER, SIDE RAIL, REAR RH

main66414-0K100iGUN135..H..PH;GUN126..6F..PH;GUN126..LHD..S..GEN202208-202307

SRS AIR BAG-WITH(*DRP)

main66414-0K100iGUN126..PKN202208-202308

main66414-KK010iGUN135..S..SA;GUN125,TGN136..RHD..MTM..S..SA202208-202401

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main66414-KK010iGUN126..GHA,KEN202208-202403

main66414-KK010iGUN126..LHD..GEN;GUN135..H..(PH,TH);GUN122..LHD..L..GEN;GUN125..LHD..H..GEN;GUN135..6FC..(ARL,GEN,VN);GUN135..THP..6F..(GEN,LA);GUN125..THP..6F..(ARL,LA,VN);GUN126.202208-202307

ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main66414-KK020iGUN125..LHD..6FC..SA;GUN125..6F..(L,S)..SA;GUN122,135,LAN125,TGN121,126,136..SA202301-202403

66415ASPACER, SIDE RAIL, REAR NO.2 RH

main66415-0K160iGUN135..H..PH;GUN126..6F..PH;GUN126..LHD..S..GEN202208-202307

SRS AIR BAG-WITH(*DRP)

main66415-0K160iGUN125..S..MA202208-202308

main66415-KK020iGUN125..GHA,KEN202301-202403

66423SPACER, SIDE RAIL, FRONT LH

main66423-0K080iGUN122..H,S;GUN122..RHD..L;TGN126..GCC,GEN;GUN126..RHD..GEN;GUN125,126..H..GCC;GUN125..RHD..(GEN,TH);GUN135..(L,S)..(PH,TH);GUN125..LHD..(L,S)..GEN;GUN122,135..L..(202208-202307

SRS AIR BAG-WITH(*DRP)

main66423-0K080iGUN125..S..MA202208-202308

main66423-KK020iGUN125..GHA,KEN202301-202403

66424SPACER, SIDE RAIL, REAR LH

main66424-0K100iGUN122..H,S;GUN122..RHD..L;TGN126..GCC,GEN;GUN126..RHD..GEN;GUN125,126..H..GCC;GUN125..RHD..(GEN,TH);GUN135..(L,S)..(PH,TH);GUN125..LHD..(L,S)..GEN;GUN122,135..L..(202208-202307

SRS AIR BAG-WITH(*DRP)

main66424-0K100iGUN125..S..MA202208-202308

main66424-KK010iGUN125..L..GEN;TGN126..H..GEN;GUN125..6F..S..GEN;GUN126..RHD..6FC..S..GEN;GUN122,126..RHD..MTM..(H,L)..GEN202208-202401

SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main66424-KK010iGUN135..L..VN;GUN125..S..IDN;GUN125..RHD..H..GEN;GUN125..6FC..S..GEN;GUN126..RHD..6F..S..GEN;GUN126..RHD..6FC..H..GEN202208-202307

ASSIST GRIP-ROOF:4 & PILLAR(FRONT):2&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)

main66424-KK010iGUN125,126..H..MA202208-202403

main66424-KK020iGUN125..LHD..6FC..SA;GUN125..6F..(L,S)..SA;GUN122,135,LAN125,TGN121,126,136..SA202301-202403

66425ASPACER, SIDE RAIL, REAR NO.2 LH

main66425-0K160iGUN135..H..PH;GUN126..6F..PH;GUN126..LHD..S..GEN202208-202307

SRS AIR BAG-WITH(*DRP)

main66425-0K160iGUN125..S..MA202208-202308

main66425-KK020iGUN125..GHA,KEN202301-202403

74605AHOOK SUB-ASSY, COAT

main74631-0K040-B0iGUN126..AGTP..6FC..H;GUN126..AGTP..6F..H..LA202208-202310

LT.GRAY,TRIM2#

main74631-0K040-B0iGUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC202208-202307

LT.GRAY,TRIM2#,3#

main74631-0K040-B0iGUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC202208-202307

LT.GRAY,TRIM20,3#

main74631-0K040-B0iGUN125..6F..(L,S)..GCC;GUN122,125,TGN12#..(5F,6FC)..GCC202208-202310

LT.GRAY,TRIM20

main74631-0K040-C0iGGN125,GUN126..6FC..(GCC,PH,TH,VN)202208-202307

BLACK,TRIM23

main74631-0K040-C0iGUN126..6FC..H..ARL..CBU202208-202310

BLACK,TRIM21,23,25

main74631-0K040-C0iGUN126..6FC..H..ARL..CBU202208-202310

BLACK,TRIM21

main74631-0K040-C0iGGN125,GUN126..6FC..(GCC,PH,TH,VN)202208-202307

BLACK,TRIM21,25

main74631-0K040-C0iGUN126..MA202209-202308

BLACK,TRIM21,23

main74631-KK020-B0iGUN126..S..SA;GUN122,125,135,LAN125,TGN121,126,136..SA202301-202403

LT.GRAY,TRIM2#

main74631-KK020-B0iGGN125,GUN126,136..H..SA202301-202401

LT.GRAY,TRIM20

main74631-KK020-C0iGGN125,GUN136..SA;GUN126..6F..H..SA202301-202401

BLACK,TRIM21,23,25

main74631-KK020-C0iGUN126..6FC..H..SA202301-202401

BLACK,TRIM21

9167380616

main91673-80616

16 parts on this diagram · 1 diagram in section
