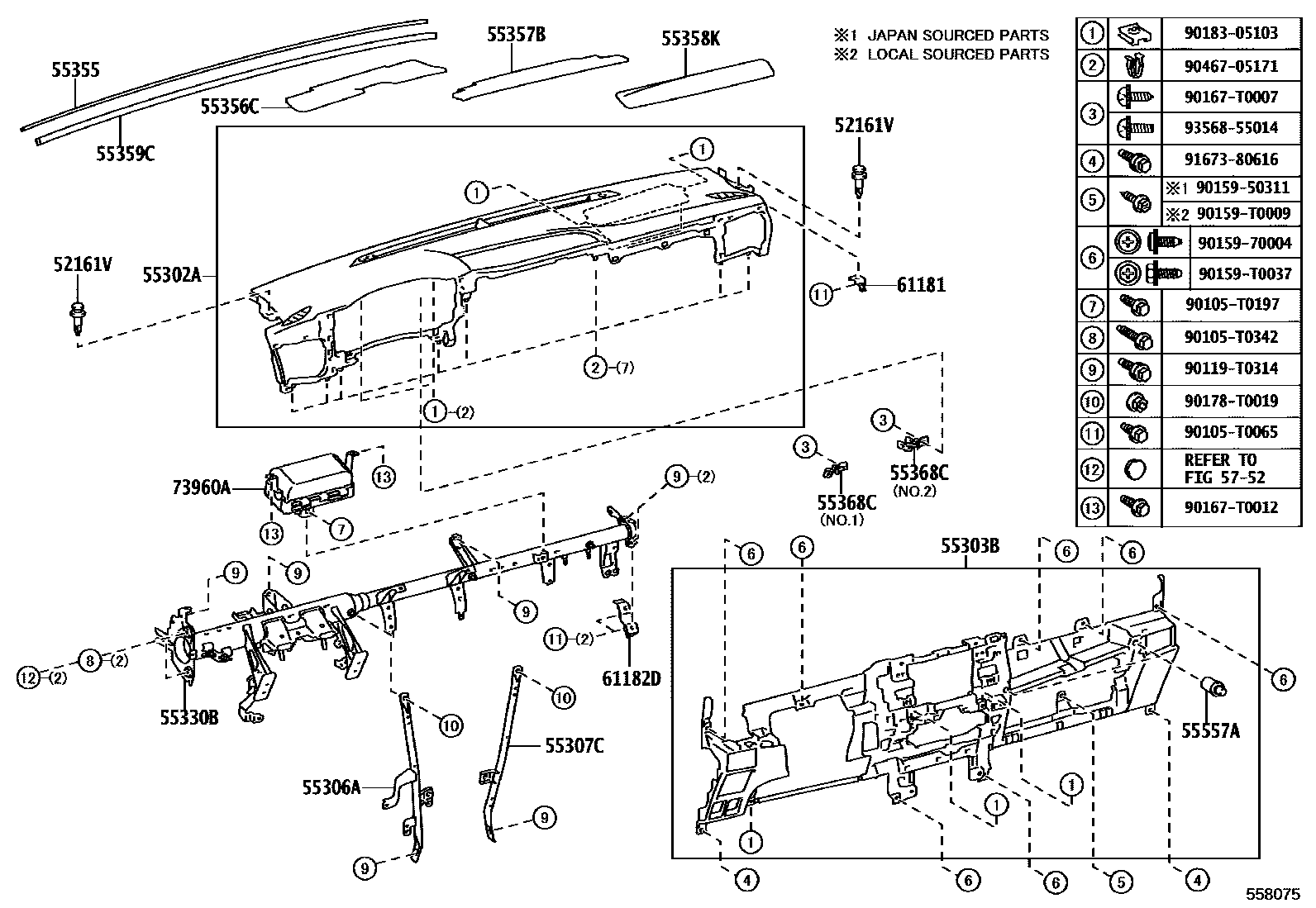

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-0K040iGGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA202208-202403

(L)

main52161-16010iGUN126..IND,MMR202208-202403

(J)

sub52161-0K040

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-KK041-C0iGUN125,126..KEN202208-202403

BLACK,TRIM2#

main55302-KK111-C0iGUN126..MMR202208-202403

BLACK,TRIM2#

main55302-KK111-C0iGGN125,GUN122,125,126,TGN12#..GCC202208-202307

BLACK,TRIM2#,3#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-KK030-C0iGUN125,126..KEN202208-202403

BLACK,TRIM2#

sub55303-KK050

main55303-KK040-C0iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..SA202208-202403

BLACK,TRIM2#

main55303-KK040-C0iGGN125,GUN122,125,126,TGN12#..GCC202208-202307

BLACK,TRIM2#,3#

main55303-KK050-C0iGUN126..IND202301-202309

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-KK030iGUN126..RHD..(H,S);GGN125,GUN120,121,122,125,13#,TGN121,136..RHD202208

main55306-KK040iGUN126..L..PKN202303

main55306-KK050iTGN126..GEN,LA,SA;TGN126..(H,S)..GCC;GUN135..LHD..(AGTP,THP);GUN122,125,TGN121..LHD..(H,S);GGN125,GUN126,136,LAN125,TGN136..LHD;GUN122,125,TGN121..LHD..L..(BZAG,GEN202208-202403

main55306-KK060iGUN135..L..SA;GUN122,125,TGN12#..L..GCC202208-202401

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-KK030iGGN125,GUN12#,13#,TGN121,136..RHD202208

main55307-KK040iGGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD202208-202403

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-KK320iGUN126..L..PKN202303

main55330-KK330iGUN122,125,TGN12#..MTM..L..GCC202208-202401

SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)

main55330-KK370iGUN125,TGN126..6FC..L..GCC202208-202307

main55330-KK450iGUN125,126..6F..KEN202208-202403

main55330-KK460iGUN126..6FC..PKN202208-202403

main55330-KK470iGUN120,121,126,135..6FC..TH202208-202307

main55330-KK480iGUN122,125,126,135..6F..TH202208-202307

main55330-KK490iGUN122,125,LAN125,TGN121,126,136..LHD..MTM..SA202208-202403

main55330-KK490iTGN126..5F..H..GCC;GUN126,135..LHD..THP..6F;TGN126..THP..5F..(GEN,LA);GUN122,125,136,TGN121..LHD..THP..MTM..(H,S);GUN122,125,TGN121,136..LHD..THP..L..(GEN,LA,PH)202208-202307

SRS AIR BAG-WITH(*DRP)

main55330-KK500iGUN126..MMR202208-202401

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-KK020iGGN125,GUN125,126,13#,TGN136..RHD..SA202208-202403

main55355-KK030iGUN126..MMR202208-202403

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-KK070iGUN125,135..L..(PH,VN);GGN125,GUN126,136,LAN125,TGN126,136..H,S;GUN125,135..(H,S)..(BZAG,GCC,GEN,IDN,LA,MA,PH,SA,TH)202208-202302

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-KK030iGUN126..IND,MMR202208-202403

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-KK070iGUN125,135..L..(PH,VN);GGN125,GUN126,136,LAN125,TGN126,136..H,S;GUN125,135..(H,S)..(BZAG,GCC,GEN,IDN,LA,MA,PH,SA,TH)202208-202302

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-KK030iGUN125,126,13#..RHD..THP..(H,S)202208-202403

main55359-KK040iGUN126..MMR202208-202401

55368CBRACKET, METER MOUNTING

main55368-KK010iGGN125,GUN12#,13#,TGN12#,136..THP202208-202403

NO.1:REFER ILLUST.

main55368-KK020iGUN12#,13#,TGN121..RHD..THP202208-202403

NO.2:REFER ILLUST.

main55368-KK030iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..SA202208-202403

NO.2:REFER ILLUST.

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-0K030iGUN126..IND,MMR202208-202403

5752

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-KK030iGGN125,GUN125,126,13#,TGN126,136..AGTP202208-202403

61182DBRACKET, INSTRUMENT PANEL SIDE

main61125-KK010iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..SA202208-202403

main61126-KK010iGUN126..PKN202208-202403

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0K010iGUN126..PKN202208-202309

main73960-0K060iGGN125,GUN125,126,13#,TGN136..RHD..SA202301-202403

main73960-0K070iGGN125,GUN122,125,126,13#,TGN12#,136..LHD..(MMRP,THP)..(GCC,GEN,LA,MMR,PH,VN)202208-202307

main73960-0K080iGUN125,126..GHA202301-202403

main73960-0K130iGGN125,GUN125,126,13#,TGN126,136..AGTP202211-202310

main73960-0K150iGUN125,126,13#,TGN121..ARL202208-202307

main73960-0K160iGUN126..TWN202208-202307

90105T0065

main90105-T0065

90105T0197

main90105-T0197

90105T0342

main90105-T0342

90119T0314

main90119-T0314

9015950311

main90159-50311

9015970004

main90159-70004

90159T0009

main90159-T0009

90159T0037

main90159-T0037

90167T0007

main90167-T0007

90167T0012

main90167-T0012

90178T0019

main90178-T0019

9018305103

main90183-05103

9046705171

main90467-05171

9167380616

main91673-80616

9356855014

main93568-55014

32 parts on this diagram · 8 diagrams in section
