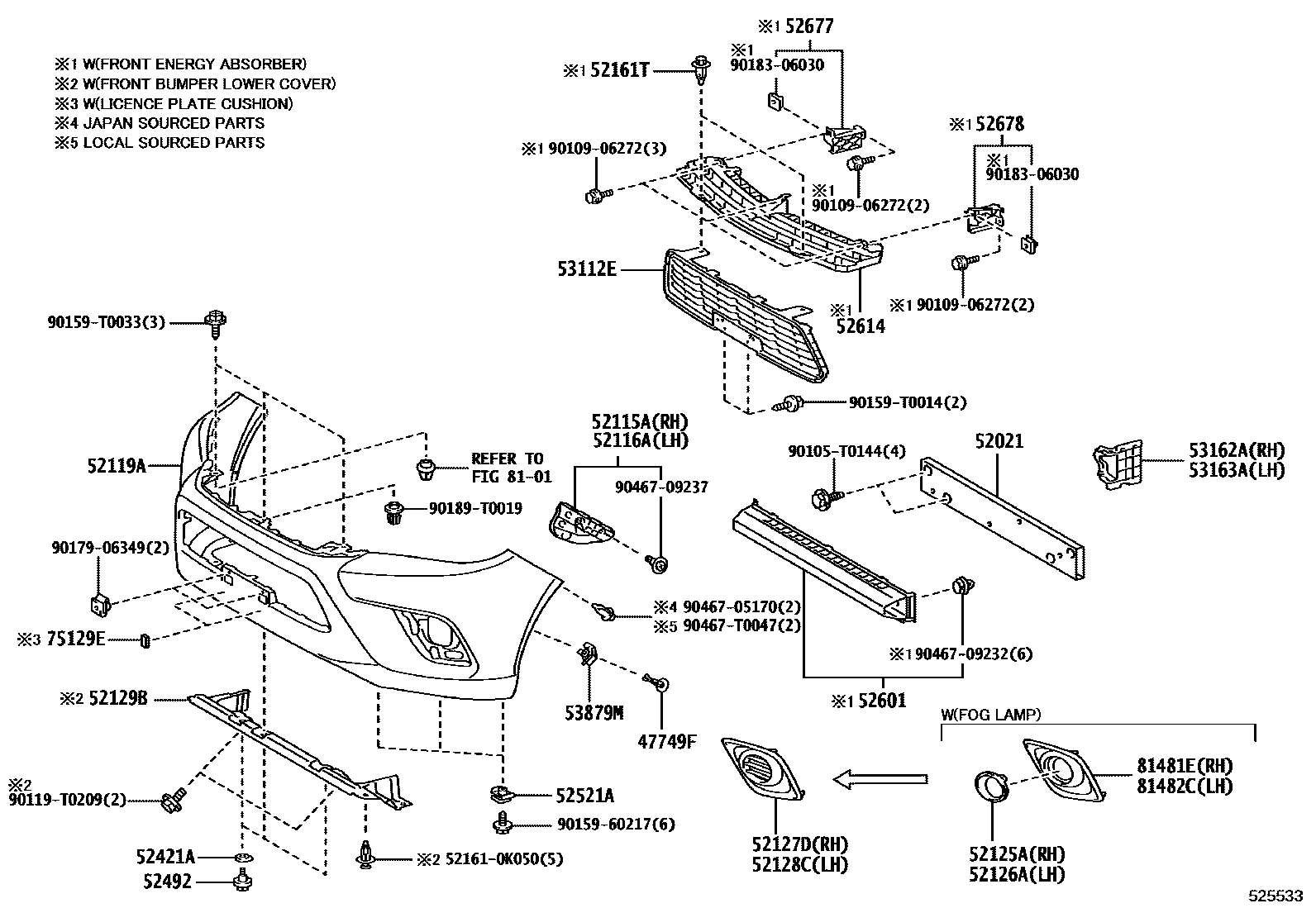

FRONT BUMPER & BUMPER STAY

0001 1NARROW TYPE 0002 1WIDE TYPE 0003 1W(STEEL BUMPER) 0004 1MLM SPEC,NARROW TYPE 0005 1MLM SPEC & W(WIDE FENDER) 0006 1GR SPORT 0007 1GR SPORT 0008 1GR SPORT WIDE TREAD

47749FCLIP, PIN HOLD

main47749-50090202208-202403

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-KK010202208-202403

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-0K110202208-202310

main52115-0K120202301-202403

main52115-0K180202208-202310

main52115-0K190202301-202403

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-0K110202208-202310

main52116-0K120202301-202403

main52116-0K180202208-202310

main52116-0K190202301-202403

52119ACOVER, FRONT BUMPER

main52119-0K820202208-202307

main52119-0K860202301-202401

main52119-0KE40202303

main52119-0M951202208-202307

main52119-0M973202211-202310

main52119-0M977202208-202307

main52119-0M979202301-202403

main52119-0M991202301-202403

main52119-0M992202301-202403

main52119-0M999202211-202310

main52119-F0901202211-202310

main52119-F0905202208-202307

main52119-F0906202208-202309

main52119-F0909202209-202308

main52119-F0910202303

main52119-F0932202303

52125ABRACKET, FOG LAMP MOUNTING, RH

main52125-0K200202303

52126ABRACKET, FOG LAMP MOUNTING, LH

main52126-0K200202303

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-0K200202208-202310

main52127-0K210202301-202403

main52127-0K230202208-202307

main52127-0K850202208-202310

main52127-0K880202301-202403

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-0K200202208-202310

main52128-0K210202301-202403

main52128-0K230202208-202307

main52128-0K850202208-202310

main52128-0K880202301-202403

52129BCOVER, FRONT BUMPER, LOWER

main52129-KK010202208-202403

52161TPIECE, FRONT BUMPER

main52161-0K040202208-202307

52421APAD, FRONT BUMPER

main52421-60191202208-202403

52492BOLT, BUMPER PAD, NO.2

main52491-60010202208-202403

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05114202208-202403

52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY

main52601-0K010202208-202307

main52601-0K140202208-202307

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-0K010202208-202307

52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH

main52675-0K010202208-202307

52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH

main52676-0K010202208-202307

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-0K120202208-202307

main53112-0K130202301-202403

main53112-0K160202211-202310

main53112-0K290202303

53162ADEFLECTOR, FRONT BUMPER STONE, RH

main53162-KK010202208-202403

53163ADEFLECTOR, FRONT BUMPER STONE, LH

main53163-KK010202208-202403

53879MRETAINER, FRONT FENDER LINER

main53879-50020202208-202403

75129ECUSHION, FRONT LICENCE PLATE

main75129-48010202211-202310

8101HEADLAMP

→ Go to FIG 81-01

81481ECOVER, FOG LAMP, RH

main52127-0K410202303

main52127-0K860202208-202310

main52127-0K870202208-202310

main52127-0K890202301-202401

main52127-0KA00202301-202403

main52127-0KA20202303

main52127-0KA30202303

81482CCOVER, FOG LAMP, LH

main52128-0K410202303

main52128-0K860202208-202310

main52128-0K870202208-202310

main52128-0K890202301-202401

main52128-0KA00202301-202403

main52128-0KA20202303

main52128-0KA30202303

521610K050CUSHION, REAR BUMPER GUARD, NO.1

main52161-0K050

90105T0144

main90105-T0144

9010906272

main90109-06272

90119T0209

main90119-T0209

9015960217

main90159-60217

90159T0014

main90159-T0014

90159T0033

main90159-T0033

9017906349

main90179-06349

9018306030

main90183-06030

90189T0019

main90189-T0019

9046705170

main90467-05170

9046709232

main90467-09232

9046709237

main90467-09237

90467T0047

main90467-T0047

40 parts on this diagram · 8 diagrams in section
