REAR DISC BRAKE CALIPER & DUST COVER

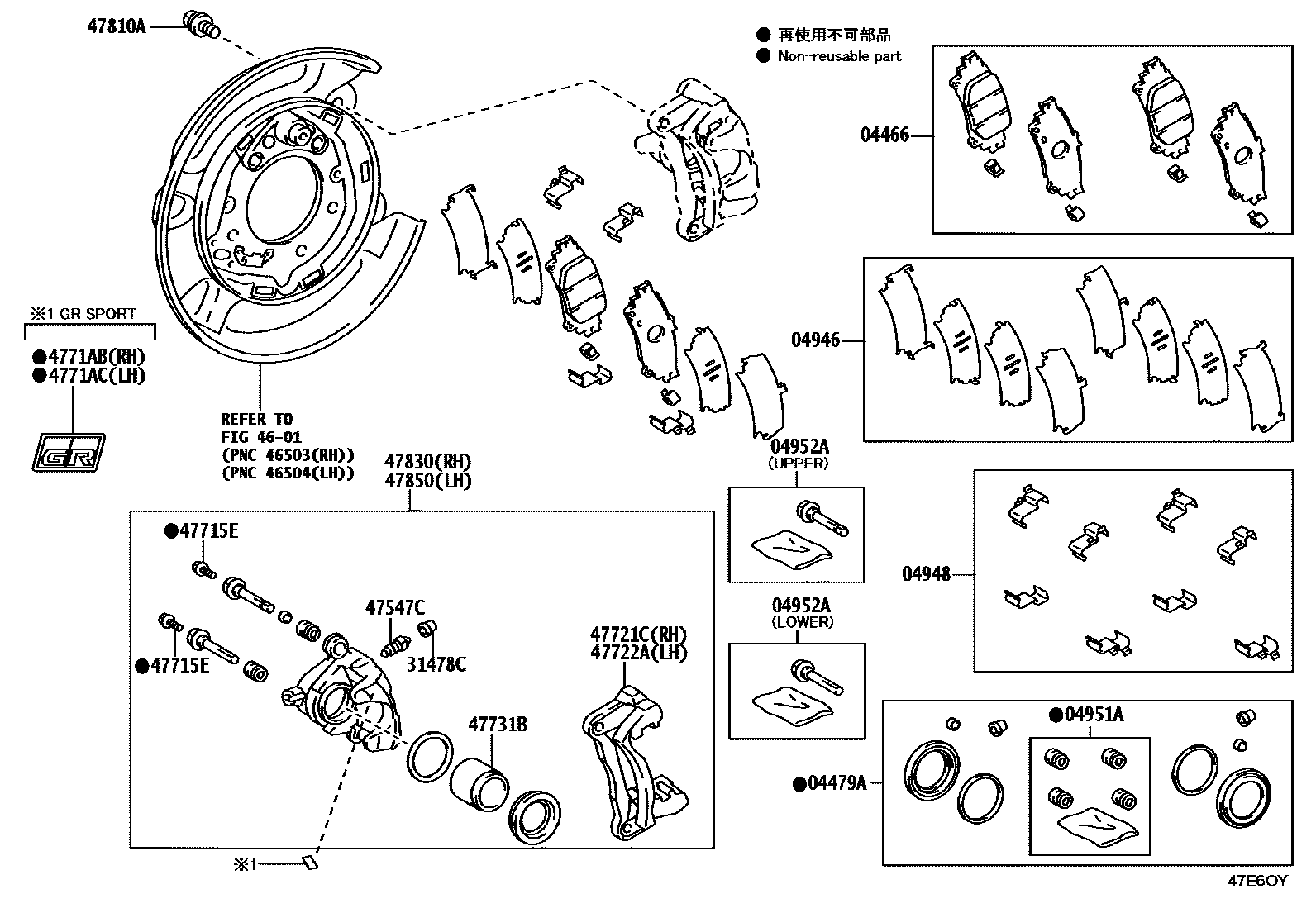

Parts diagram

04466PAD KIT, DISC BRAKE, REAR

main04466-0K010i202301-202310

MARK AK NS542,GR SPORT WIDE TREAD

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0K020i202208-202307

MLM ADVENTURE WIDE TREAD

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0K010i202208-202307

MLM ADVENTURE WIDE TREAD

04948FITTING KIT, DISC BRAKE, REAR

main04948-0D010i202208-202307

MLM ADVENTURE WIDE TREAD

04951ABUSH KIT, DISC BRAKE, REAR

main04951-0K040i202208-202307

MLM ADVENTURE WIDE TREAD

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-0K080×2i202208-202307

MLM ADVENTURE WIDE TREAD,LOWER SIDE

main04952-0K090×2i202301-202310

GR SPORT WIDE TREAD,UPPER SIDE

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0D040×2i202302

GR SPORT WIDE TREAD

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030×2i202302

GR SPORT WIDE TREAD

47715EBOLT(FOR REAR DISC BRAKE CYLINDER SLIDE)

main90016-AA603×4i202301

GR SPORT WIDE TREAD

4771ABORNAMENT, BRAKE CALIPER MARK, RH

main4771A-0K070i202301-202307

GR SPORT WIDE TREAD

4771ACORNAMENT, BRAKE CALIPER MARK, LH

main4771A-0K080i202301-202307

GR SPORT WIDE TREAD

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0K010i202208-202307

MLM ADVENTURE WIDE TREAD

main47821-0K040i202301-202307

GR SPORT WIDE TREAD

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0K010i202208-202307

MLM ADVENTURE WIDE TREAD

main47822-0K040i202302

GR SPORT WIDE TREAD

47731BPISTON, REAR DISC BRAKE

main47831-0K010×2i202208-202307

MLM ADVENTURE WIDE TREAD

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-T0495×4i202208-202307

MLM ADVENTURE WIDE TREAD

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0K040i202301-202307

GR SPORT WIDE TREAD

main47830-0K050i202208-202307

MLM ADVENTURE WIDE TREAD

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0K040i202301

GR SPORT WIDE TREAD

main47850-0K050i202208-202307

MLM ADVENTURE WIDE TREAD

18 parts on this diagram · 1 diagram in section
