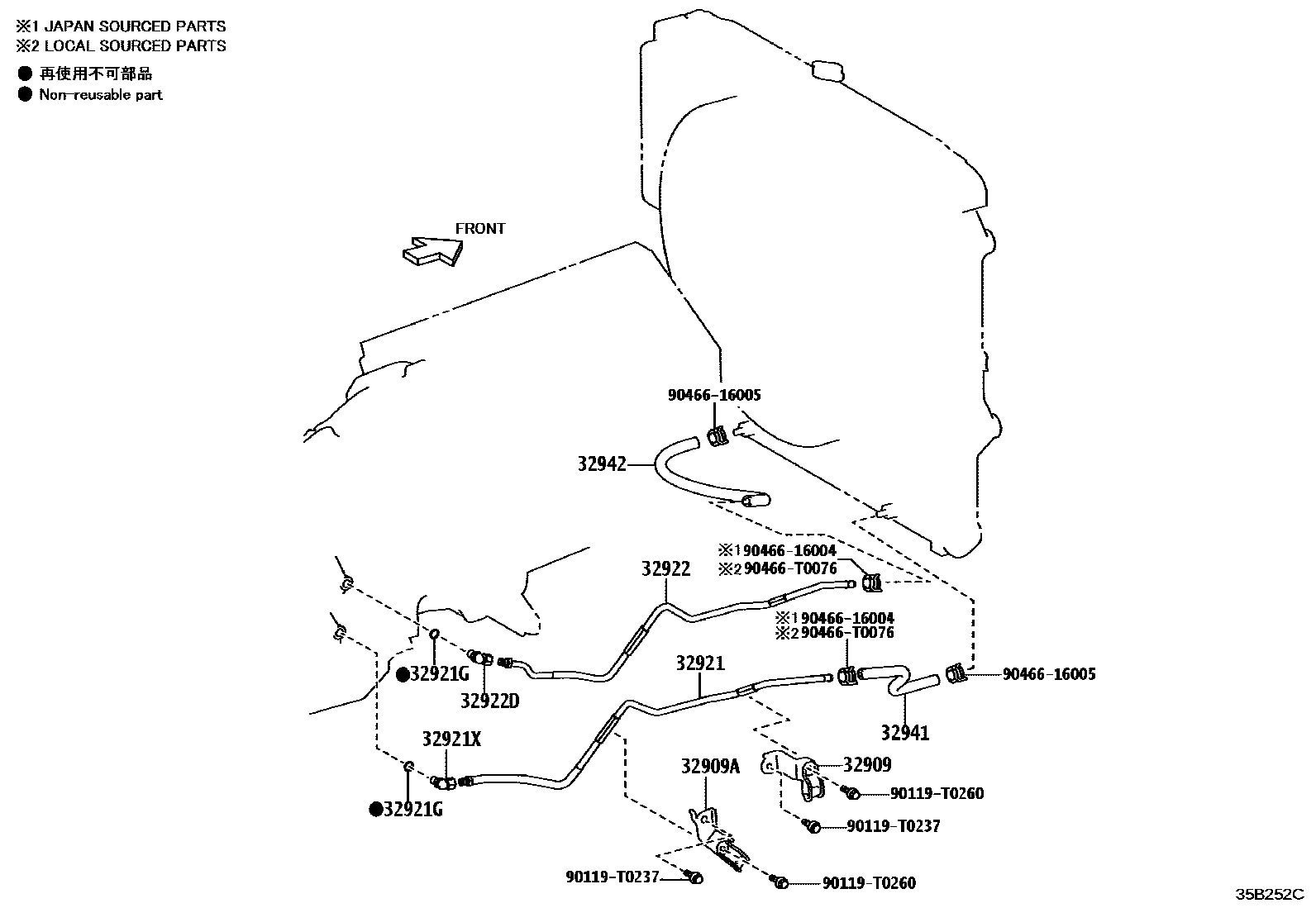

OIL COOLER & TUBE (ATM)

0001 1AC60F 0002 1AC60E,AC60F 0003 1AC60E,AC60F

32909CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1

main32909-KK030iGUN126..6FC..PKN202208

main32909-KK090iTGN121,126..THP..6FC202208-202307

main32909-KK110iGGN125..GCC202208-202307

32909ACLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.2

main32909-KK020iGUN125,126,13#..AGTP..6FC202208-202310

main32909-KK080iTGN121,126..THP..6FC202208-202307

main32909-KK100iGGN125..GCC202208-202307

32921TUBE, OIL COOLER INLET, NO.1

main32921-0K090iGUN125,126,13#..AGTP..6FC202208-202310

main32921-0K110iTGN121,126..THP..6FC202208-202307

main32921-0K120iGGN125..GCC202208-202307

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iGUN126..6FC..IND202208-202309

(J)

main90301-T0069×2iGUN126..MMR202208-202309

(L)

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-16009iGUN126..6FC..(IND,MMR)202208-202309

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0K090iGUN126..6FC..PKN202208

main32922-0K110iTGN121,126..THP..6FC202208-202307

main32922-0K120iGGN125..GCC202208-202307

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-16009iGGN125,GUN125,126,13#,TGN126..6FC..SA202208-202401

32941HOSE, OIL COOLER INLET, NO.1

main32941-0K010iGUN120,121,125,126,13#..THP..6FC202208-202307

main32941-0K030iTGN121,126..THP..6FC202208-202307

main32941-0K040iGGN125..GCC202208-202307

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0K010iGUN120,121,125,126,13#..THP..6FC202208-202307

main32942-0K030iTGN126..6FC..SA202301-202401

main32942-0K040iGGN125..GCC202208-202307

main32942-0K060iTGN121,126..THP..6FC202208-202307

90119T0237

main90119-T0237

90119T0260

main90119-T0260

9046616004

main90466-16004

9046616005

main90466-16005

90466T0076

main90466-T0076

14 parts on this diagram · 3 diagrams in section
