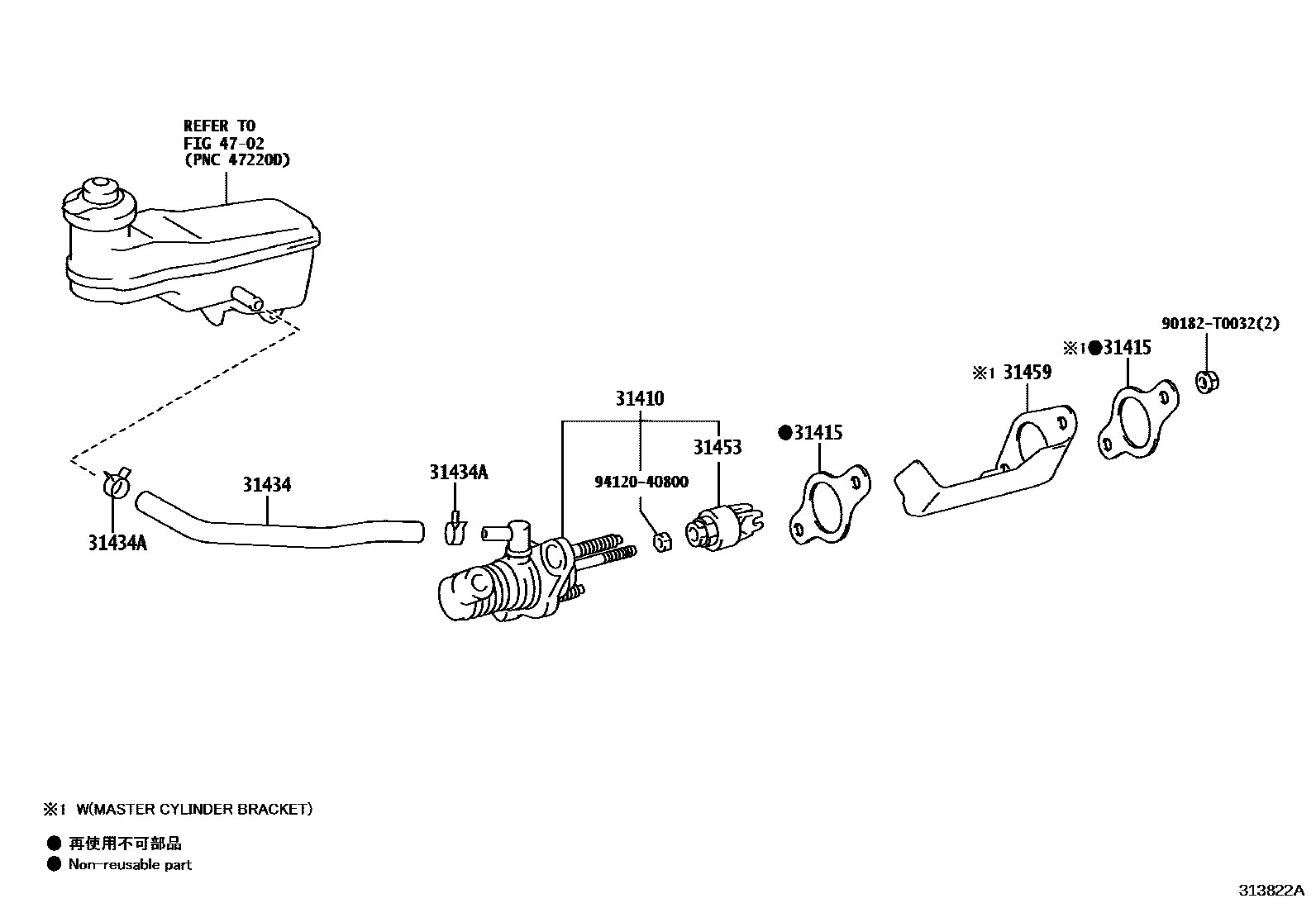

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K014iTGN12#,136..THP..5F202208-202307

main31420-0K061iGUN126..6F..H..(ARL,GCC,GEN,TH)202208-202307

VSC-WITH(*HSAC & *TSC & *DAC & LSD)

main31420-0K071iGUN126..6F..PKN202208

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iGUN125,126..6F..KEN202208-202403

31434TUBE, CLUTCH RESERVOIR

main31434-0K041iGUN126..6F..S..ARL202208-202307

VSC-WITH(*HSAC & *TSC & *DAC & LSD)

main31434-0K050iGUN126,136..6F..H..BZAG202211-202310

main31434-0K051iGUN126..6F..PH202208-202307

VSC-WITH(*HSAC & *TSC & *DAC & LSD)

main31434-0K061iGUN125..6F..MA202209-202308

main31434-0K081iGUN126..6F..IND202210-202309

main31434-0K091iGUN126..6F..PKN202208

main31434-0K110iGUN126..6F..(L,S)..BZAG;GUN126,136..AGTP..6F..LA;GUN125,135,TGN126,136..AGTP..MTM202211-202310

main31434-0K111iGUN126..LHD..6F..S..GEN;GUN126..THP..6F..(LA,PH);GUN122,125,13#,TGN12#,136..LHD..THP..MTM202208-202307

VSC-WITH(*HSAC & *TSC)

main31434-0K101iGUN126..S..IND202303-202309

VSC-WITH(*HSAC & *TSC & LSD)

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0015×2iGUN122,125,126,13#,TGN12#,136..THP..MTM202208-202307

main90466-T0052×2iGUN125,126,13#,TGN126,136..AGTP..MTM202211-202310

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-0K010iLAN125,TGN121,126,136..5F..SA202208-202401

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-0K010iGUN126..6F..IND202210-202309

main31459-71010iGUN126..6F..PKN202208

4702

90182T0032

main90182-T0032

9412040800

main94120-40800

9 parts on this diagram · 2 diagrams in section
