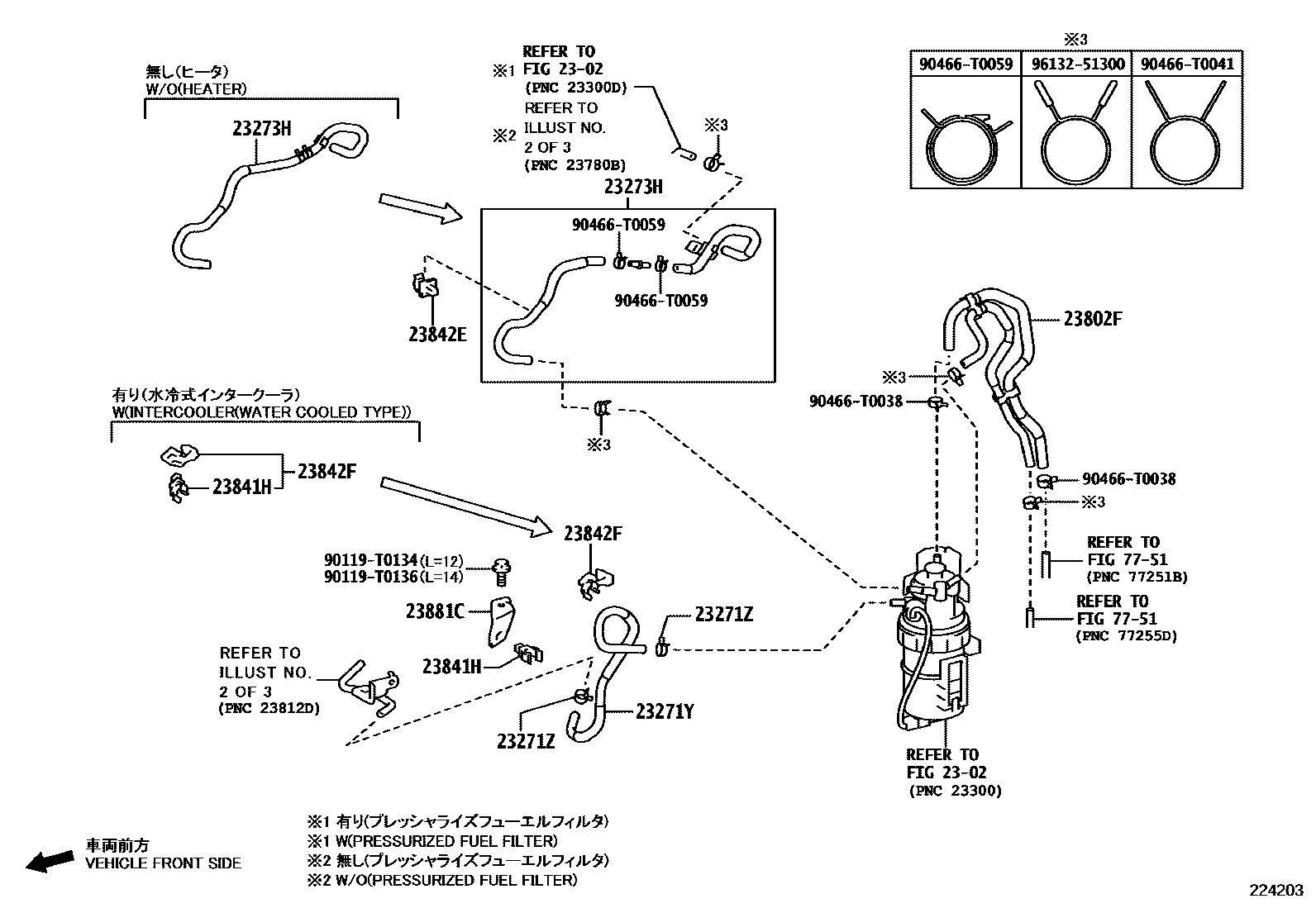

INJECTION PUMP ASSEMBLY

0001 1 0002 1W(PRESSURIZED FUEL FILTER) 0003 1W/O(PRESSURIZED FUEL FILTER) 0004 1 0005 1

2302

23271YHOSE, FUEL

main23271-0E031i1GDFTV..GUN126..TWN202208-202307

EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main23271-0E041i1GDFTV,2GDFTV..GUN125,126..MA202208-202403

23271ZCLIP, HOSE

main90466-T0023i1GDFTV,2GDFTV..GUN12#,13#..THP202208-202403

23273HHOSE, FUEL, NO.2

main23273-0E040i1GDFTV..GUN126..L..BZAG;1GDFTV..GUN126..6FC..S..BZAG202211-202310

BRAZIL SPEC

main23273-0L132i1GDFTV..GUN126..PKN202208-202403

main23273-0L132i1GDFTV..GUN126,136..THP;2GDFTV..GUN135..6F..H..PH;2GDFTV..GUN125,135..H..(IDN,TH);2GDFTV..GUN135..THP..6F..(GEN,LA,VN);2GDFTV..GUN135..6FC..(ARL,GEN,PH,VN);2GDFTV..202208-202307

FRONT AIR CONDITIONER-MANUAL

main23273-0L132i1GDFTV..GUN126,136..THP;2GDFTV..GUN135..6F..H..PH;2GDFTV..GUN125,135..H..(IDN,TH);2GDFTV..GUN135..THP..6F..(GEN,LA,VN);2GDFTV..GUN135..6FC..(ARL,GEN,PH,VN);2GDFTV..202208-202307

FRONT AIR CONDITIONER-AUTO

main23273-0L200i2GDFTV..GUN125..S..MA202208-202308

main23273-54190i5LE..LAN125202301-202401

23802FHOSE, FUEL

main23801-0E020i2GDFTV..GUN125..THP..LA;1GDFTV..GUN126..THP..H..LA;1GDFTV..GUN126..THP..6F..S..LA202208-202307

EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main23801-0E020i2GDFTV..GUN125..THP..LA;1GDFTV..GUN126..THP..H..LA;1GDFTV..GUN126..THP..6F..S..LA202208-202307

EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)

main23801-0E020i1GDFTV..GUN126..IND202208-202309

main23801-0L050i1GDFTV,2GDFTV..GUN125,126..GHA,KEN202208-202403

23841HCLAMP, FUEL HOSE

main23841-0L010i1GDFTV,2GDFTV..GUN125,126,13#..AGTP202208-202403

THA SOURCED PARTS

main23841-0L030i1GDFTV..GUN126..IND202210-202309

IND SOURCED PARTS

23842ECLAMP, FUEL PIPE, NO.1

main23841-0L041i1GDFTV..GUN126..PKN202208-202403

THA SOURCED PARTS

main23841-0L061i1GDFTV..GUN126..IND202210-202309

IND SOURCED PARTS

23842FCLAMP, FUEL PIPE, NO.2

main23842-0E010i2GDFTV..GUN125..RHD..L..GEN;1GDFTV..GUN126..RHD..6F..H..GEN202208-202307

EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)

main23842-0L010i1GDFTV..GUN126..IND,MMR202208-202403

THA SOURCED PARTS

main23842-0L030i1GDFTV..GUN126..IND202210-202309

IND SOURCED PARTS

23881CBRACKET, FUEL HOSE

main23881-0E011i1GDFTV,2GDFTV..GUN12#,13#..THP202208-202403

TYPE B:REFER ILLUST.

7751

90119T0134

main90119-T0134

90119T0136

main90119-T0136

90466T0038

main90466-T0038

90466T0041

main90466-T0041

90466T0059

main90466-T0059

9613251300

main96132-51300

16 parts on this diagram · 5 diagrams in section
