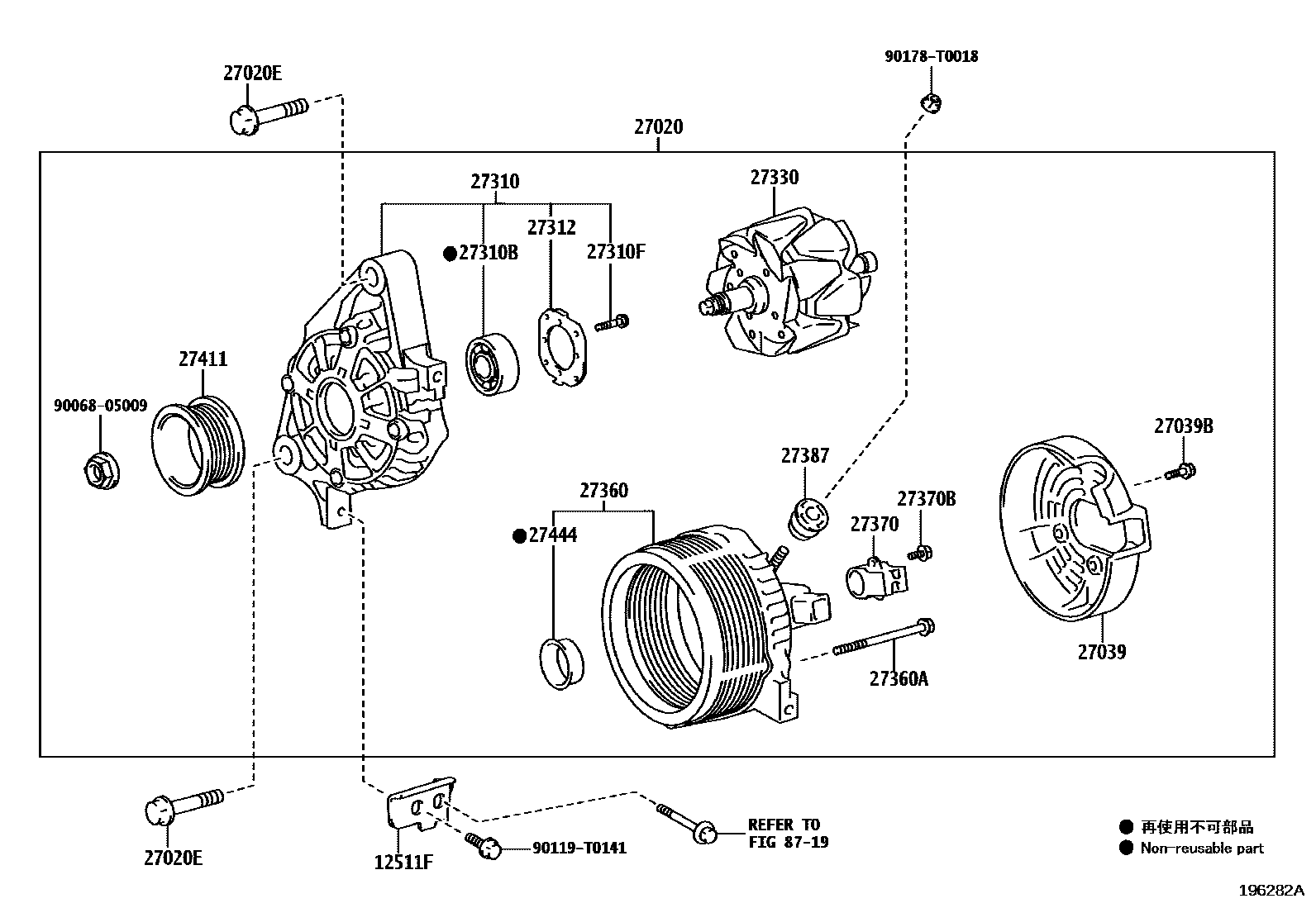

ALTERNATOR
12511FBRACKET, ALTERNATOR, NO.1
27020ALTERNATOR ASSY
main27060-0C080i2TRFE..TGN121..6FC..H;2TRFE..TGN126..THP..LA;2TRFE..TGN126..6FC..(H,S)..GCC202208-202310
12V 100A
main27060-0C110i2TRFE..TGN121..5F..H;2TRFE..TGN126..6FC..L;2TRFE..TGN126..H..GEN;2TRFE..TGN126..5F..(GCC,GEN);1TRFE,2TRFE..TGN120,121,136..THP..(L,S)202208-202307
12V 80A
12V 90A
12V 90A
12V 100A
main27060-0L150i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202211-202310
12V 90A,SEG
12V 100A
main27060-0L160i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202211-202310
12V 100A,DENSO
12V 90A,SEG
main27060-0L280i1GDFTV..GUN126..6F..(GEN,PH,TH);1GDFTV..GUN126..6FC..(GEN,PH,VN);2GDFTV..GUN125..(H,L)..(GEN,IDN,PH);2GDFTV..GUN125..6F..S..(GEN,IDN,TH,VN);1GDFTV,2GDFTV..GUN120,12202208-202307
12V 80A,TOYOTA STOP & START SYSTEM-WITHOUT
12V 80A
12V 80A,DENSO
main27060-0L290i2GDFTV..GUN125..6FC..S..GEN;1GDFTV,2GDFTV..GUN122,125,126,13#..THP..(GCC,LA)202208-202307
12V 100A
12V 100A
12V 115A
12V 130A,TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
12V 130A,TOYOTA STOP & START SYSTEM-WITH
12V 130A
12V 90A
27020EBOLT(FOR ALTERNATOR)
(L)
(J)
27039COVER, ALTERNATOR REAR END
main27039-0L180i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202211-202310
SEG
DENSO
main27039-0M100i2TRFE..TGN121..5F..H;2TRFE..TGN126..6FC..L;2TRFE..TGN126..5F..(GCC,GEN);1GDFTV..GUN126..6F..(GEN,PH,TH);1GDFTV..GUN126..6FC..(GEN,PH,VN);1TRFE,2TRFE..TGN120,121..TH202208-202307
TOYOTA STOP & START SYSTEM-WITHOUT
main27039-0T300i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202211-202310
DENSO
main27039-0V220i2TRFE..TGN121..6FC..H;2TRFE..TGN126..THP..LA;2GDFTV..GUN125..6FC..S..GEN;2TRFE..TGN126..6FC..(H,S)..GCC;1G#,2GDFTV..GGN125,GUN122,125,126,13#..THP..(ARL,GCC,LA,TWN)202208-202310
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
27039BBOLT(FOR ALTERNATOR REAR END COVER)
main90068-04046i2TRFE..TGN121..6FC..H;2TRFE..TGN126..THP..LA;2GDFTV..GUN125..6FC..S..GEN;2TRFE..TGN126..6FC..(H,S)..GCC;1G#,2GDFTV..GGN125,GUN122,125,126,13#..THP..(ARL,GCC,LA,TWN)202208-202310
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
main90099-04627i1GDFTV..GUN126..6FC..GCC;1GDFTV..GUN126..6F..(GCC,TH);2GDFTV..GUN125,135..H..(GCC,TH)202208-202307
TOYOTA STOP & START SYSTEM-WITH
27310FRAME ASSY, DRIVE END, ALTERNATOR
main27310-0C110i2TRFE..TGN121..5F..H;2TRFE..TGN126..6FC..L;2TRFE..TGN126..H..GEN;2TRFE..TGN126..5F..(GCC,GEN);1TRFE,2TRFE..TGN120,121,136..THP..(L,S)202208-202307
DENSO
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
TOYOTA STOP & START SYSTEM-WITH
main27310-30240i1GDFTV..GUN126..6FC..GCC;1GDFTV..GUN126..6F..(GCC,TH);2GDFTV..GUN125,135..H..(GCC,TH)202208-202307
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
main90068-10033i2TRFE..TGN121..6FC..H;2TRFE..TGN126..THP..LA;2TRFE..TGN126..6FC..(H,S)..GCC202306-202307
FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)
FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)
main90068-10047i2TRFE..TGN121..5F..H;2TRFE..TGN126..6FC..L;2TRFE..TGN126..H..GEN;2TRFE..TGN126..5F..(GCC,GEN);1TRFE,2TRFE..TGN120,121,136..THP..(L,S)202208-202306
sub90068-10029
FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)
sub90068-10033
FRONT AIR CONDITIONER-AUTO(DOP - PLANT INSTALL)
sub90068-10033
sub90068-10033
sub90068-10033
main90068-10052i1GDFTV..GUN126..6F..TH;2GDFTV..GUN125..6F..S..GEN;2GDFTV..GUN125..S..(IDN,MA,TH,VN);2GDFTV..GUN125..(H,L)..(GEN,IDN,MA,PH);1GDFTV..GUN126..GEN,IND,MA,MMR,PH,PKN,VN;202208-202304
TOYOTA STOP & START SYSTEM-WITHOUT
sub90068-10029
main90099-10223i1GDFTV..GUN126..6FC..GCC;1GDFTV..GUN126..6F..(GCC,TH);2GDFTV..GUN125,135..H..(GCC,TH)202208-202307
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH
27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH
27312PLATE, RETAINER
DENSO
TOYOTA STOP & START SYSTEM-WITHOUT
SEG
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH
27330ROTOR ASSY, ALTERNATOR
main27330-0L140i2TRFE..TGN121..6FC..H;2TRFE..TGN126..THP..LA;2GDFTV..GUN125..6FC..S..GEN;2TRFE..TGN126..6FC..(H,S)..GCC;1G#,2GDFTV..GGN125,GUN122,125,126,13#..THP..(GCC,LA)202208-202310
main27330-0L180i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202211-202310
SEG
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
main27330-0T300i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202211-202310
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
main27330-37220i1GDFTV..GUN126..6FC..GCC;1GDFTV..GUN126..6F..(GCC,TH);2GDFTV..GUN125,135..H..(GCC,TH)202208-202307
TOYOTA STOP & START SYSTEM-WITH
27360COIL ASSY, ALTERNATOR
main27360-0C080i2TRFE..TGN121..6FC..H;2TRFE..TGN126..THP..LA;2TRFE..TGN126..6FC..(H,S)..GCC202208-202310
main27360-0C110i2TRFE..TGN121..5F..H;2TRFE..TGN126..6FC..L;2TRFE..TGN126..H..GEN;2TRFE..TGN126..5F..(GCC,GEN);1TRFE,2TRFE..TGN120,121,136..THP..(L,S)202208-202307
main27360-0L140i2GDFTV..GUN125..6FC..S..GEN;1GDFTV,2GDFTV..GUN122,125,126,13#..THP..(GCC,LA)202208-202307
main27360-0L190i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202211-202310
DENSO
DENSO
TOYOTA STOP & START SYSTEM-WITHOUT
main27360-30240i1GDFTV..GUN126..6FC..GCC;1GDFTV..GUN126..6F..(GCC,TH);2GDFTV..GUN125,135..H..(GCC,TH)202208-202307
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH
27360ABOLT(FOR ALTERNATOR COIL)
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
main90068-04050i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202211-202310
DENSO
main90099-04626i1GDFTV..GUN126..6FC..GCC;1GDFTV..GUN126..6F..(GCC,TH);2GDFTV..GUN125,135..H..(GCC,TH)202208-202307
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH
27370HOLDER ASSY, ALTERNATOR BRUSH
main27370-0M040i1GDFTV..GUN126..THP..6F;1G#,2GDFTV..GGN125,GUN120,121,122,125,13#..THP;1GDFTV..GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202208-202307
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
main27370-0T300i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202211-202310
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
main27370-31220i1GDFTV..GUN126..6FC..GCC;1GDFTV..GUN126..6F..(GCC,TH);2GDFTV..GUN125,135..H..(GCC,TH)202208-202307
TOYOTA STOP & START SYSTEM-WITH
27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)
main90068-00023i1GDFTV..GUN126..THP..6F;1GDFTV..GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN);1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN120,121,122,125,13#,TGN12#,136..THP202208-202307
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
main90068-00037i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202211-202310
DENSO
main90099-00197i1GDFTV..GUN126..6FC..GCC;1GDFTV..GUN126..6F..(GCC,TH);2GDFTV..GUN125,135..H..(GCC,TH)202208-202307
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH
27387INSULATOR, TERMINAL
DENSO
main27387-0C020i1GDFTV..GUN126..THP..6F;1GDFTV..GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN);1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN120,121,122,125,13#,TGN12#,136..THP202208-202307
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
27411PULLEY, ALTERNATOR
27444PACKING, ALTERNATOR BEARING COVER
main27444-0T300i2GDFTV..GUN135..6F..BZAG;2GDFTV..GUN135..6FC..L..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG202211-202310
DENSO
main27444-0Y180i1GDFTV..GUN126..THP..6F;1GDFTV..GUN126..THP..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN);1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN120,121,122,125,13#,TGN12#,136..THP202208-202307
TOYOTA STOP & START SYSTEM-WITHOUT
DENSO
TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL
TOYOTA STOP & START SYSTEM-WITH
8719
9006805009
main90068-05009
90119T0141
main90119-T0141
90178T0018
main90178-T0018
21 parts on this diagram · 10 diagrams in section
