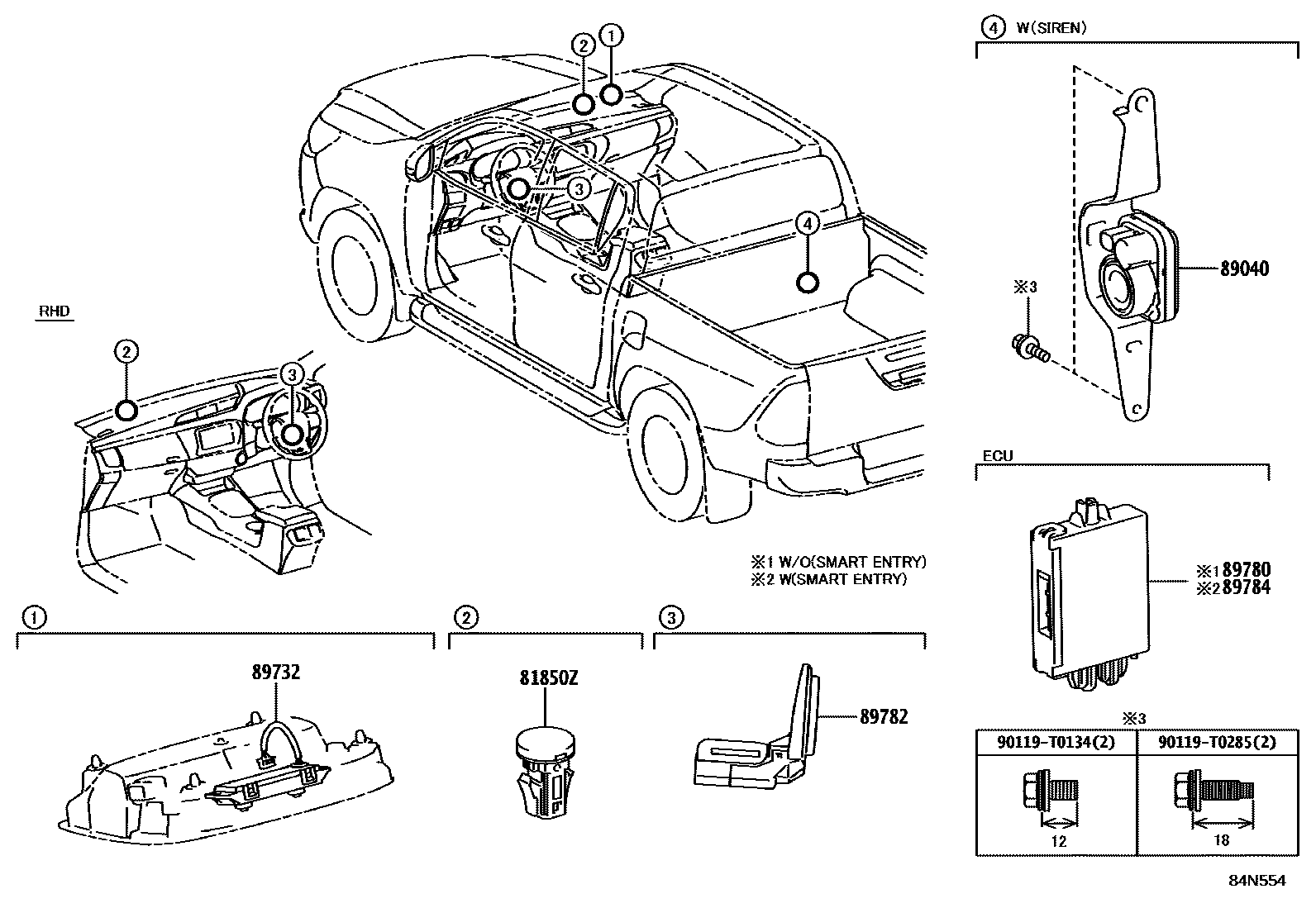

ANTI-THEFT DEVICE
81850ZLAMP ASSY, THEFT WARNING INDICATOR
89040SIREN ASSY, THEFT WARNING
89732SENSOR, THEFT WARNING RADAR
89780COMPUTER ASSY, TRANSPONDER KEY
main89780-0K070iGUN125..6FC..S..GEN;GUN125,126,TGN121,126..H..GCC; GUN125..H..GEN;GUN126..LHD..6FC..H..GEN; GUN125..L..MA;GUN136..6F..S;GUN136..6F..LA;GUN125..H..(GCC,SA);TGN126..H..(GCC,GEN);GUN126..GCC,GHA,LA,SA;GUN122,TGN120,121,136;GUN125,136..6FC..S..(ARL,MA);GUN126..(L,S)..(ARL,BZAG,GEN);GGN125,GUN120,121,136,LAN125..(5F,6FC)..(SA,TH);GUN125,135,TGN126,138..(L,S)..(ARL,BZAG,GCC,GEN,GHA,KEN,LA,PH,SA,TH,VN); GUN125..RHD..H..GEN;GUN126..LHD..6FC..H..GEN; TGN126..S..LA;GUN125..AGTP..6FC; TGN136..S..LA;GUN126..LHD..H..(LA,SA)202108-202201
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON); WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY; WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main89780-0K071iGUN125..H..GEN;GUN126..LHD..6FC..H..GEN; GUN125..L..MA;GUN136..6F..S;GUN136..6F..LA;TGN126..H..(GCC,GEN);GUN122,TGN120,121,136;GUN125,136..6FC..S..(ARL,MA);GUN125,126..H..(GCC,GHA,LA,SA);GGN125,GUN120,121,136,LAN125..(5F,6FC)..(SA,TH);GUN125,126,135,TGN126,138..(L,S)..(ARL,BZAG,GCC,GEN,GHA,KEN,LA,PH,PKN,SA,TH,VN); GUN126,136..H..BZAG202202-202207
WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main89780-0K072iGUN126,136..H..BZAG; GUN126..H..LA;GUN136..6F..LA;GUN125,126,13#,TGN126,13#..AGTP..(L,S)202208-202210
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
89782COIL, TRANSPONDER KEY
main89782-0K120iGUN122,125,135,LAN125,TGN121,126..L..SA; GUN126,136..S..SA; GUN135..S..SA;GUN125..RHD..6F..S..SA202109-202301
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITHOUT; EXPORT FROM SA&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&WIRELESS DOOR LOCK-WITHOUT
main89782-0K150iGUN126,136..H..BZAG; GUN135..AGTP..S;GUN135..L..BZAG;GUN126..AGTP..(L,S);GUN126..AGTP..H..LA;GUN136..AGTP..6F..LA;GUN125,TGN126,136..AGTP..S..LA;GUN125,136,TGN13#..(L,S)..BZAG202109-202210
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
89784COMPUTER, IMMOBILIZER CODE
90119T0134
main90119-T0134
90119T0285
main90119-T0285
8 parts on this diagram · 1 diagram in section
