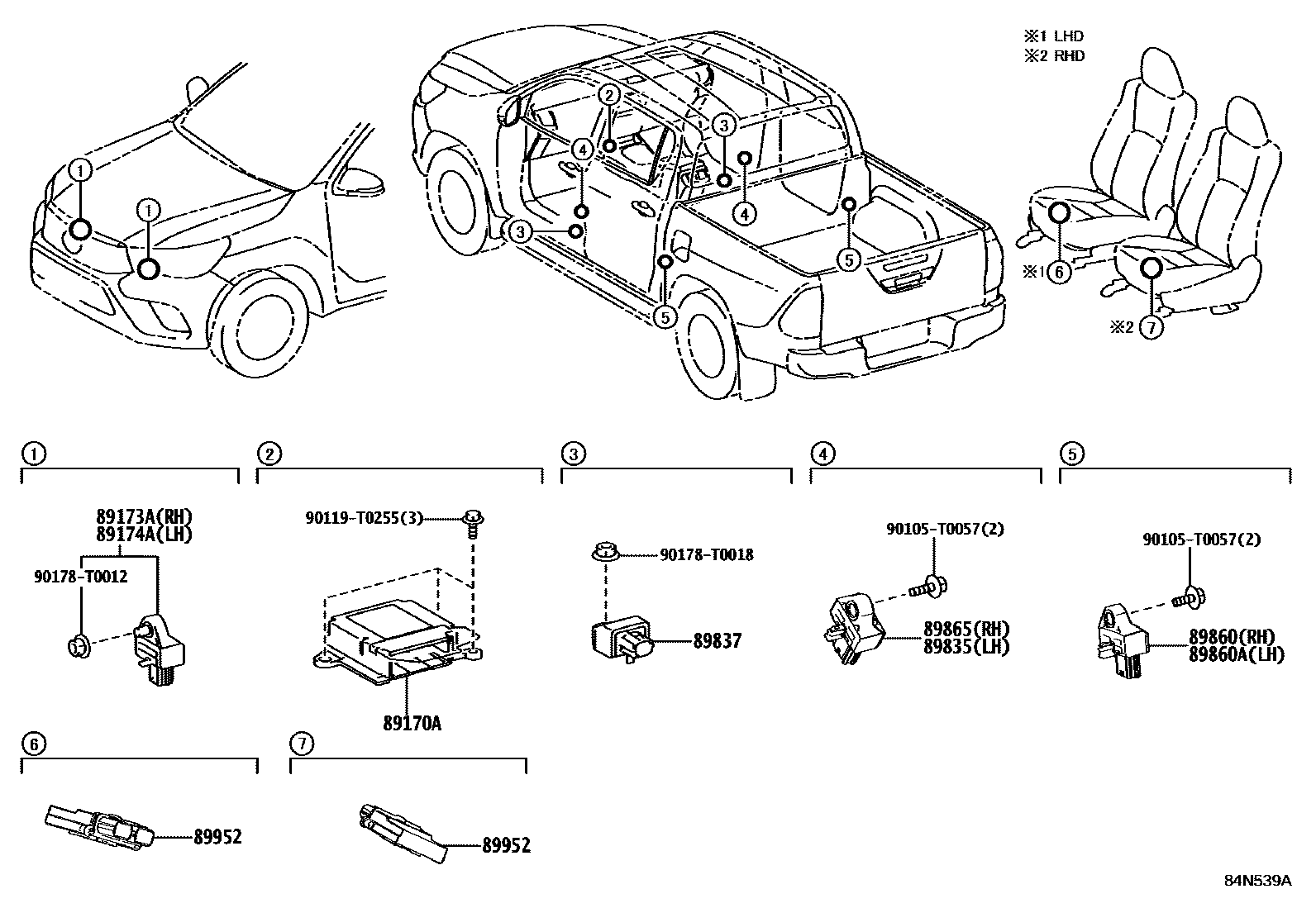

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
ASIA COLD COUNTRY SPEC&VSC-WITHOUT
VSC-WITHOUT
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&VSC-WITHOUT
VSC-WITHOUT
VSC-W(*HSAC & *TSC)
VSC-WITHOUT
ASEAN GENERAL SPEC&VSC-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)
VSC-WITHOUT
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
ASEAN GENERAL SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER)
BRUNEI SPEC&REAR HEADREST-WITH(RH/LH/CENTER)
main89170-0KB50iGUN135..L..VN;GUN125..6FC..L..GEN;GUN135..(L,S)..(GEN,PH);GUN125,135..S..(IDN,TH)202108-202207
ASEAN GENERAL SPEC
main89170-0KB50iGUN135..L..VN;GUN125..6FC..L..GEN;GUN135..(L,S)..(GEN,PH);GUN125,135..S..(IDN,TH)202108-202207
ASEAN GENERAL SPEC&REAR HEADREST-WITH(RH/LH/CENTER)
main89170-0KB50iGUN135..L..VN;GUN125..6FC..L..GEN;GUN135..(L,S)..(GEN,PH);GUN125,135..S..(IDN,TH)202108-202207
CAMBODIA SPEC
main89170-0KB50iGUN135..L..VN;GUN125..6FC..L..GEN;GUN135..(L,S)..(GEN,PH);GUN125,135..S..(IDN,TH)202108-202207
VSC-W(*HSAC & *TSC)
main89170-0KB50iGUN135..L..VN;GUN125..6FC..L..GEN;GUN135..(L,S)..(GEN,PH);GUN125,135..S..(IDN,TH)202108-202207
SRS AIR BAG-WITH(*DRP)
CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASEAN GENERAL SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASEAN GENERAL SPEC&VSC-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED))& WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CU
main89170-0KB80iGUN135..H..(PH,TH);GUN135..THP..L..LA;GUN135..THP..S..(LA,VN);GUN126..THP..(LA,PH,TH,VN);GUN125,136..THP..6F..(LA,VN);GUN125,TGN126,136..THP..(5F,6FC)..(IDN,LA)202108-202207
CAMBODIA SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KB80iGUN135..H..(PH,TH);GUN135..THP..L..LA;GUN135..THP..S..(LA,VN);GUN126..THP..(LA,PH,TH,VN);GUN125,136..THP..6F..(LA,VN);GUN125,TGN126,136..THP..(5F,6FC)..(IDN,LA)202108-202207
BRUNEI SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KB80iGUN135..H..(PH,TH);GUN135..THP..L..LA;GUN135..THP..S..(LA,VN);GUN126..THP..(LA,PH,TH,VN);GUN125,136..THP..6F..(LA,VN);GUN125,TGN126,136..THP..(5F,6FC)..(IDN,LA)202108-202207
CENTRAL AND SOUTH AMERICA SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KB80iGUN135..H..(PH,TH);GUN135..THP..L..LA;GUN135..THP..S..(LA,VN);GUN126..THP..(LA,PH,TH,VN);GUN125,136..THP..6F..(LA,VN);GUN125,TGN126,136..THP..(5F,6FC)..(IDN,LA)202108-202207
ASEAN GENERAL SPEC
main89170-0KB80iGUN135..H..(PH,TH);GUN135..THP..L..LA;GUN135..THP..S..(LA,VN);GUN126..THP..(LA,PH,TH,VN);GUN125,136..THP..6F..(LA,VN);GUN125,TGN126,136..THP..(5F,6FC)..(IDN,LA)202108-202207
ASEAN GENERAL SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE &CURTAIN)
main89170-0KB80iGUN135..H..(PH,TH);GUN135..THP..L..LA;GUN135..THP..S..(LA,VN);GUN126..THP..(LA,PH,TH,VN);GUN125,136..THP..6F..(LA,VN);GUN125,TGN126,136..THP..(5F,6FC)..(IDN,LA)202108-202207
ASEAN GENERAL SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KB80iGUN135..H..(PH,TH);GUN135..THP..L..LA;GUN135..THP..S..(LA,VN);GUN126..THP..(LA,PH,TH,VN);GUN125,136..THP..6F..(LA,VN);GUN125,TGN126,136..THP..(5F,6FC)..(IDN,LA)202108-202207
CAMBODIA SPEC
main89170-0KB80iGUN135..H..(PH,TH);GUN135..THP..L..LA;GUN135..THP..S..(LA,VN);GUN126..THP..(LA,PH,TH,VN);GUN125,136..THP..6F..(LA,VN);GUN125,TGN126,136..THP..(5F,6FC)..(IDN,LA)202108-202207
VSC-W(*HSAC & *TSC)
main89170-0KB80iGUN135..H..(PH,TH);GUN135..THP..L..LA;GUN135..THP..S..(LA,VN);GUN126..THP..(LA,PH,TH,VN);GUN125,136..THP..6F..(LA,VN);GUN125,TGN126,136..THP..(5F,6FC)..(IDN,LA)202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
CAMBODIA SPEC&VSC-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)
ASEAN GENERAL SPEC&VSC-WITHOUT&REAR HEADREST-WITH(RH/LH/CENTER)
ASEAN GENERAL SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER)
CAMBODIA SPEC&VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&REAR HEADREST-WITH(RH/LH/CENTER)
CENTRAL AND SOUTH AMERICA SPEC&VSC-W(*HSAC & *TSC)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
CENTRAL AND SOUTH AMERICA SPEC&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
BOLIVIA URUGUAY SPEC&VSC-W(*HSAC & *TSC)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIRBAG-WITH(*DRS & SIDE & CURTAIN)
ECUADOR SPEC&VSC-W(*HSAC & *TSC)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
COLOMBIA SPEC&VSC-W(*HSAC & *TSC)&REAR HEADREST-WITH(RH/LH/CENTER)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASIA COLD COUNTRY SPEC
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)
SRS AIR BAG-WITH(*DRP)
ASIA COLD COUNTRY SPEC&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
NEPAL,SRI LANKA SPEC(EURO 4 REGULATION)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
EXPORT FROM SA&VSC-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89835SENSOR, DOOR SIDE AIRBAG, LH
main89831-0K040iGUN135..H;GUN126..LHD..GEN;GUN125..LHD..H..GEN;GUN135..THP..6F..(ARL,LA);GUN125..THP..6F..(ARL,LA,VN);GUN122,TGN136..LHD..THP..L..(GEN,LA);GUN125,135..THP..6FC..(AR202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89837SENSOR, FRONT FLOOR SIDE AIRBAG
89860SENSOR ASSY, SIDE AIRBAG, RH
main89831-0K050iGUN135..H;GUN126..LHD..GEN;GUN125..LHD..H..GEN;GUN135..THP..6F..(ARL,LA);GUN125..THP..6F..(ARL,LA,VN);GUN122,TGN136..LHD..THP..L..(GEN,LA);GUN125,135..THP..6FC..(AR202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89860ASENSOR ASSY, SIDE AIRBAG, LH
main89831-0K050iGUN135..H;GUN126..LHD..GEN;GUN125..LHD..H..GEN;GUN135..THP..6F..(ARL,LA);GUN125..THP..6F..(ARL,LA,VN);GUN122,TGN136..LHD..THP..L..(GEN,LA);GUN125,135..THP..6FC..(AR202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89865SENSOR, DOOR SIDE AIRBAG, RH
main89831-0K040iGUN135..H;GUN126..LHD..GEN;GUN125..LHD..H..GEN;GUN135..THP..6F..(ARL,LA);GUN125..THP..6F..(ARL,LA,VN);GUN122,TGN136..LHD..THP..L..(GEN,LA);GUN125,135..THP..6FC..(AR202108-202207
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89952COMPUTER, OCCUPANT DETECTION
90105T0057
main90105-T0057
90119T0255
main90119-T0255
90178T0012
main90178-T0012
90178T0018
main90178-T0018
13 parts on this diagram · 1 diagram in section
