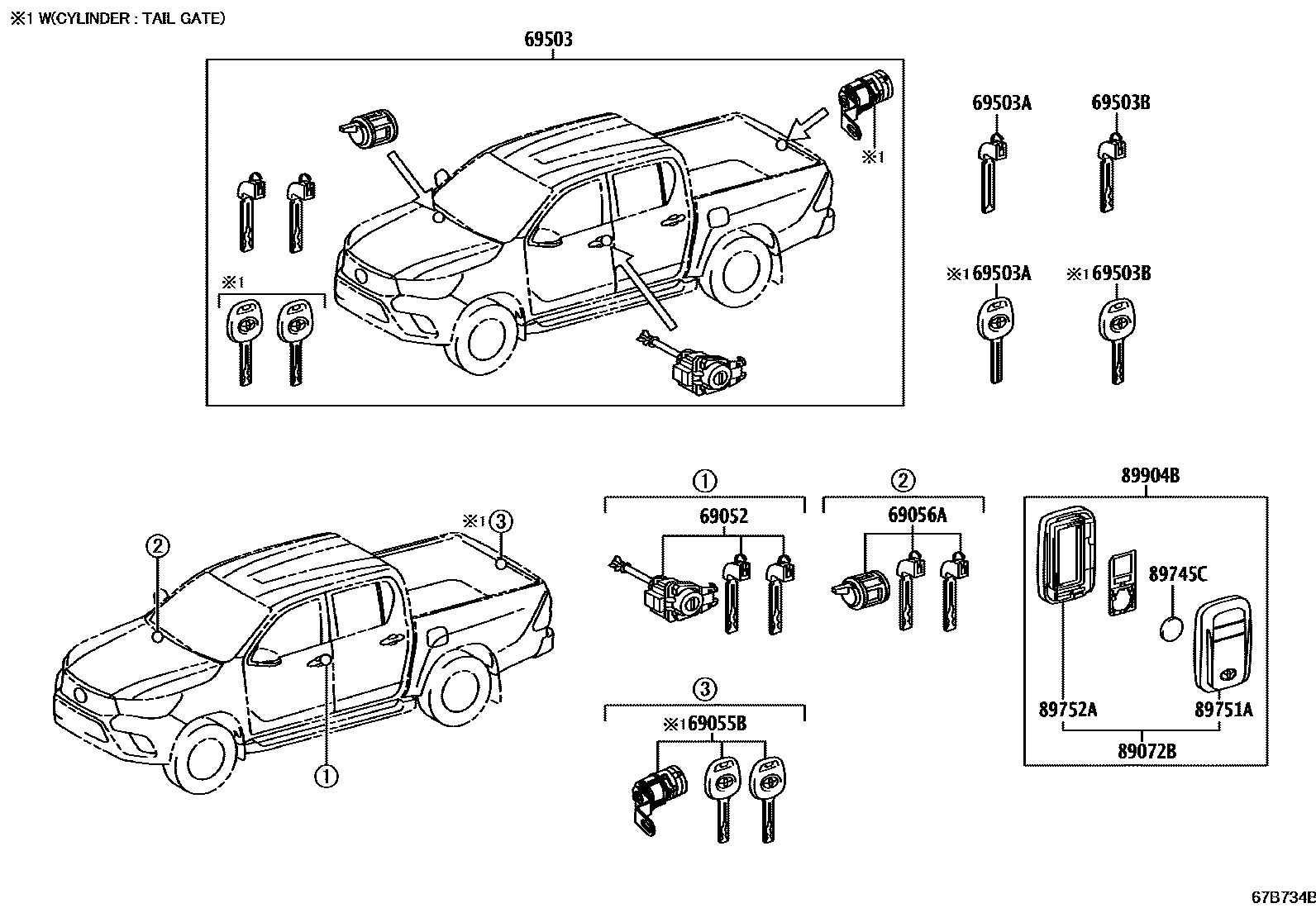

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-0K050iGUN135..THP..L..LA;GUN125,TGN121,126,136..THP..(5F,6FC)..L..(GCC,LA);GUN122,125,126,TGN120..THP..MTM..L..(GCC,GEN,IDN,LA,PH)202108-202207
WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
69055BCYLINDER & KEY SET, BACK DOOR LOCK
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-0K050iTGN121,126..L..GCC;GUN125..RHD..H..GEN;GUN126..LHD..6FC..H..GEN;GUN125..LHD..L..(GCC,GEN);GUN122,126,TGN120..MTM..L..(GCC,GEN,LA)202108-202207
WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
69503CYLINDER SET, LOCK
KEY PLATE-SMART KEY(2) & SUB KEY(2)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&KEY PLATE-SMART KEY(2)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
JORDAN SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main89704-0KV70iGUN120,121,122..TH;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH);GUN126..RHD..6FC..S..GEN202202-202207
WIRELESS DOOR LOCK-WITH
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR
TAIL GATE-FOR A DECK(WITH KEY)&WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY
AZERBAIJAN SPEC&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-WITHOUT
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
main89704-0KW70iTGN136..LHD..SA;TGN126..5F..S..SA;GUN125,126,LAN125..LHD..(H,S)..(GHA,SA)202202-202303
JORDAN SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main89704-F0350iGUN120,121,122..TH;GUN125..6FC..L..GEN;GUN135..L..(GEN,TH);GUN126..RHD..6FC..S..GEN202110-202202
WIRELESS DOOR LOCK-WITH
BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR
TAIL GATE-FOR A DECK(WITH KEY)&WIRELESS DOOR LOCK-WITH&KEY PLATE-MASTER KEY(2) & SUB KEY
AZERBAIJAN SPEC&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-WITHOUT
REAR DECK-WITH(SIDE PANEL TOP RAIL)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-WITHOUT
CAMBODIA SPEC&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
JORDAN SPEC&MLM ADVENTURE PACKAGE&REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&BACK MONITOR-WITH
MEXICO SPEC
main89704-0KX20iTGN126..(H,S)..GCC;GUN125,TGN121..H..GCC;GUN122,TGN121..5F..S..GCC..CBU202108-202110
JORDAN SPEC
MEXICO SPEC&WIRELESS DOOR LOCK-WITH
REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR
REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR
JORDAN SPEC
MEXICO SPEC
main89704-F0530iTGN126..(H,S)..GCC;GUN125,TGN121..H..GCC;GUN122,TGN121..5F..S..GCC..CBU202110-202202
JORDAN SPEC
MEXICO SPEC&WIRELESS DOOR LOCK-WITH
REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR
JORDAN SPEC&MLM ADVENTURE PACKAGE&REAR DECK-A DECK,WITH(ROPE HOOK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-FOR MLM&BACK MONITOR-WITH
JORDAN SPEC
69503AKEY, BLANK
MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),SMARTKEY,INSIDE CUT
MASTER KEY,W(*68),ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),INSIDE CUT TYPE
MASTER KEY,W(*68),OUTSIDE CUT TYPE
69503BKEY, CUT
MASTER KEY,W(*68),SMART KEY,INSIDE CUT
MASTER KEY,W(*68),INSIDE CUT TYPE
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
MEXICO SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
GR SPORT&KEY PLATE-SMART KEY(2) & SUB KEY(2)
GR SPORT
BRAZIL SPEC&GR SPORT
SUB-SAHARAN AFRICA SPEC(EURO 2)&GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
MLM ADVENTURE PACKAGE
MLM ADVENTURE PACKAGE&KEY PLATE-SMART KEY(2) & SUB KEY(2)
MLM ADVENTURE PACKAGE&KEY PLATE-SMART KEY(2) & SUB KEY(2)
89745CBATTERY, TRANSMITTER
CR2032
89751ACOVER, TRANSMITTER HOUSING
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
BRAZIL SPEC&GR SPORT
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
MLM ADVENTURE PACKAGE&KEY PLATE-SMART KEY(2) & SUB KEY(2)
89752ACASE, TRANSMITTER HOUSING
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
MEXICO SPEC&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
MLM ADVENTURE PACKAGE&KEY PLATE-SMART KEY(2) & SUB KEY(2)
MLM ADVENTURE PACKAGE
BRAZIL SPEC&GR SPORT
GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)&WIRELESS DOOR LOCK-WITH(*SES &ANSWER BACK & PANIC BUTTON)
main89904-0KM40×2iGUN125..6F..S..MA;GUN125..H..(GEN,MA);GUN126..LHD..6F..H..GEN;GGN125,GUN135..H..(GCC,GEN);GUN126..6FC..H..(GEN,MA,MMR)202108-202207
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)&BACK DOOR OR TAIL GATE OUTSIDE HANDLE-MATERIAL COLOR
GR SPORT
GR SPORT
BRAZIL SPEC&GR SPORT
GR SPORT&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
MLM ADVENTURE PACKAGE&WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
MLM ADVENTURE PACKAGE
MLM ADVENTURE PACKAGE
MLM ADVENTURE PACKAGE&KEY PLATE-SMART KEY(2) & SUB KEY(2)
MLM ADVENTURE PACKAGE
11 parts on this diagram · 6 diagrams in section
