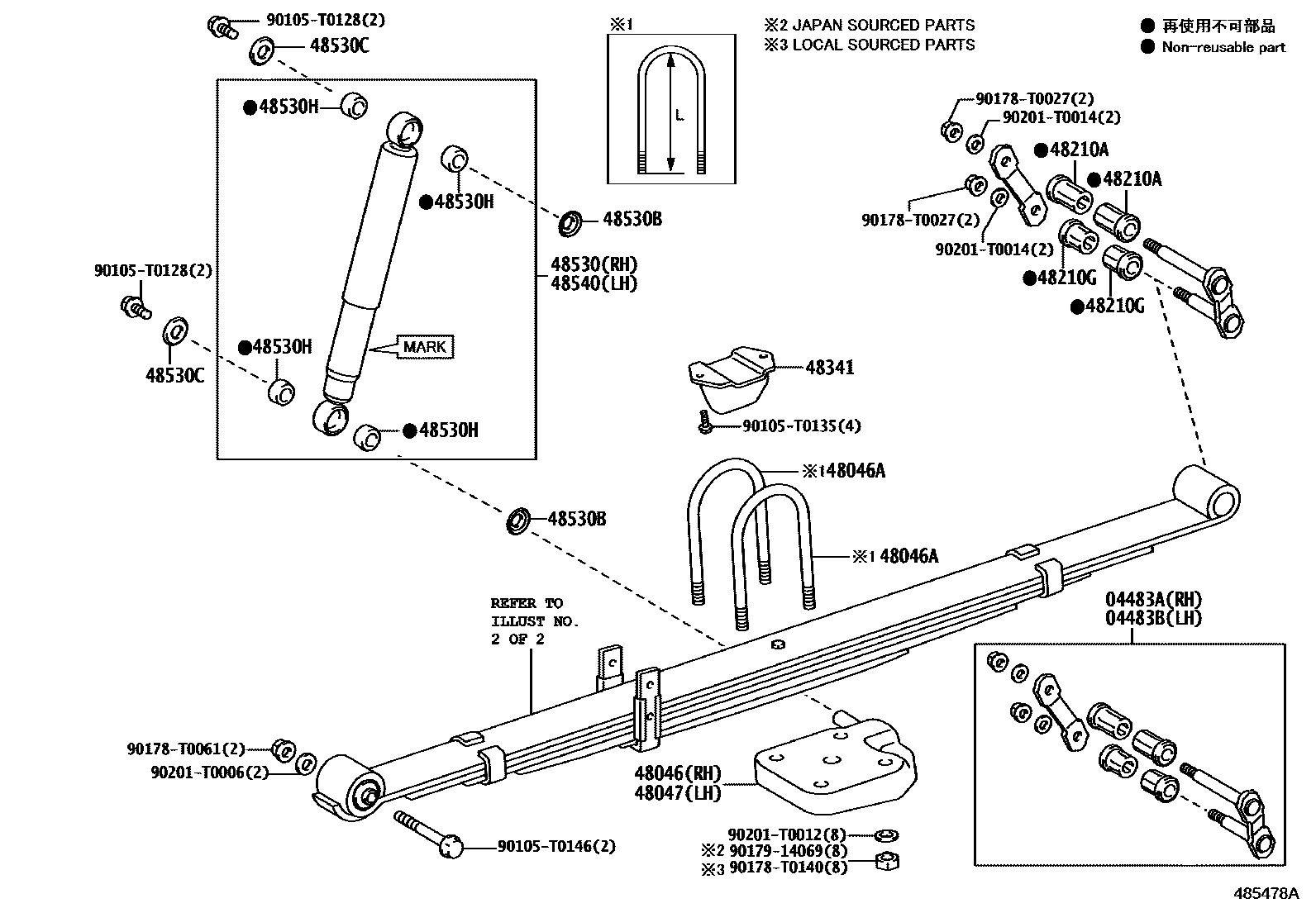

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 13-LEAF 0004 15-LEAF 0005 15-LEAF 0006 15-LEAF 0007 15-LEAF 0008 15-LEAF 0009 15-LEAF, 1 TON PAY LOAD PACKAG0010 15-LEAF

04483ASHACKLE KIT, REAR SPRING, RH

main04483-KK000iGUN122,TGN121..SA202108-202301

main04483-KK030iGGN125,GUN125,126,13#,TGN126,136..THP202108-202303

04483BSHACKLE KIT, REAR SPRING, LH

main04483-KK000iGUN122,TGN121..SA202108-202301

main04483-KK030iGGN125,GUN125,126,13#,TGN126,136..THP202108-202303

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-0K011iGUN122,TGN121..SA202108-202301

main48046-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202303

48046ABOLT, U(FOR REAR SPRING)

main90117-F0001iGGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,SA202109-202303

L=180

main90117-S0001iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202111-202210

L=180

main90117-T0003iGUN122,TGN121..SA202108-202301

L=175

main90117-T0006iGUN125,126..MA202108-202301

L=180

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-0K011iGUN120,121,122,TGN120,121..THP202108-202301

main48046-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AGTP202108-202303

48210SPRING ASSY, REAR RH

main48210-0K430iGUN122,TGN120,121..THP..(5F,6FC)202108-202207

5-LEAF

main48210-0K450iGUN120,121,122..TH202108-202207

5-LEAF

main48210-0K470iGUN122,TGN121..SA202109-202301

5-LEAF

main48210-0K730iGUN126..H..PKN202202-202301

5-LEAF

main48210-0K770iGUN126..(L,S)..PKN202202-202301

5-LEAF

main48210-0KC20iGUN126..6FC..TH202108-202210

5-LEAF

main48210-0KC20iGUN126..6FC..TH202108-202207

5-LEAF,GR SPORT

main48210-0KC20iGUN126..6FC..TH202108-202207

5-LEAF,HEADLAMP-LED

main48210-0KC20iGUN126..6FC..TH202108-202207

5-LEAF,HEADLAMP LEVELING DEVICE-WITH(AUTO)

main48210-0KC30iGGN125,GUN126,136..H..(GHA,KEN,SA)202109-202303

5-LEAF

main48210-0KC40iGUN125,TGN136..AGTP..(5F,6FC)..S202111-202210

5-LEAF,HEADLAMP LEVELING DEVICE-WITH(AUTO)

main48210-0KC40iGUN125,TGN136..AGTP..(5F,6FC)..S202111-202210

5-LEAF

main48210-0KC50iGUN125,126..H..MA202110-202208

5-LEAF

main48210-0KC60iTGN126..H..GEN202108-202207

5-LEAF

main48210-0KC60iTGN126..H..GEN202108-202207

5-LEAF,ASIA COLD COUNTRY SPEC

main48210-0KC80iGUN125,126..H..GEN;GUN126..LHD..S..GEN202108-202209

5-LEAF

main48210-0KC80iTGN126..L..GEN;GUN126..RHD..THP..S;GUN126,TGN126..THP..(L,S)..(GCC,LA);GUN125,13#,TGN136..THP..(L,S)..(ARL,GCC,GEN,IDN,LA,PH,VN)202108-202207

5-LEAF,HEADLAMP-4-BULB HALOGEN MULTI

main48210-0KC90iGUN126,136..S..SA;GUN125,135,LAN125,TGN126,136..GHA,KEN,SA202109-202303

5-LEAF

main48210-0KD00iGUN136..6FC..LA;GUN126,136..H..BZAG202111-202210

5-LEAF,HEADLAMP-4-BULB HALOGEN MULTI

main48210-0KD00iGUN125,135,TGN128,13#..AGTP;GUN126,136,TGN126..AGTP..(L,S)202111-202210

5-LEAF

main48210-0KD10iGUN125..(L,S)..MA202110-202208

5-LEAF

main48210-0KD20iGUN125..LHD..H..GEN202108-202207

5-LEAF

main48210-0KD20iGUN125..LHD..(L,S)..GEN;GUN125,TGN126..(5F,6FC)..L..GEN202108-202207

5-LEAF,HEADLAMP-4-BULB HALOGEN MULTI

main48210-0KD20iGUN125..LHD..(L,S)..GEN;GUN125,TGN126..(5F,6FC)..L..GEN202108-202207

5-LEAF,ASIA COLD COUNTRY SPEC&HEADLAMP-4-BULB HALOGEN MULTI

main48210-0KD20iGUN125..LHD..(L,S)..GEN;GUN125,TGN126..(5F,6FC)..L..GEN202108-202207

5-LEAF,ASIA COLD COUNTRY SPEC

main48210-0KD60iGUN125,126,135..TH202108-202207

3-LEAF

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-T0014iGUN122,TGN121..SA202108-202301

main90385-T0020iGUN125,126..MA202108-202303

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-T0017iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

48341BUMPER, REAR SPRING

main48341-0K090iGUN122,TGN121..SA202108-202301

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09B20iGUN122,TGN120,121..THP..(5F,6FC)202108-202207

MARK 48531-0K510

main48531-09B30iGUN120,121,122..TH202108-202207

MARK 48531-0K530

main48531-8Z003iGUN122,TGN121..SA202109-202301

MARK 48531-0K550

main48531-8Z023iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

MARK 48531-0K580

main48531-8Z024iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

MARK 48531-0K590

main48531-8Z025iGUN13#,TGN13#..AGTP202111-202210

MARK 48531-0K860

main48531-8Z026iGUN13#,TGN136..SA202109-202301

MARK 48531-0KA40

main48531-8Z028iGUN126..TWN202108-202207

MARK 48531-0KC30

main48531-8Z029iGUN125,126..MA202110-202208

MARK 48531-0K570

main48531-8Z030iGUN126..H..PKN202202-202301

MARK 48531-0K740

main48531-8Z030iGUN126..PKN202202-202301

MARK 48531-0K740,GR SPORT

main48531-8Z031iGGN125,GUN125,126,TGN126..THP..(ARL,GCC,GEN,IDN,LA,PH,VN)202108-202210

MARK 48531-0K780

main48531-8Z032iGUN13#,TGN136..THP..(ARL,GEN,LA,PH,VN)202108-202207

MARK 48531-0KA50

main48531-8Z033iGUN125,126,135..TH202108-202207

MARK 48531-0KA60

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-T3001iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-T3002iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

48530HBUSH, REAR SHOCK ABSORBER

main90385-T0019iGGN125,GUN12#,13#,TGN120,121,126,136..THP202108-202303

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09B20iGUN122,TGN120,121..THP..(5F,6FC)202108-202207

MARK 48531-0K510

main48531-09B30iGUN120,121,122..TH202108-202207

MARK 48531-0K530

main48531-8Z003iGUN122,TGN121..SA202109-202301

MARK 48531-0K550

main48541-09420iGGN125,GUN125,126,TGN126,128..AGTP202111-202210

MARK 48541-0K330

main48541-09430iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,SA202109-202303

MARK 48541-0K390

main48541-09440iGUN13#,TGN13#..AGTP202111-202210

MARK 48541-0K450

main48541-09450iGUN13#,TGN136..SA202109-202301

MARK 48541-0K460

main48541-09470iGUN126..TWN202108-202207

MARK 48541-0K490

main48541-09480iGUN125,126..MA202110-202208

MARK 48541-0K320

main48541-09490iGUN126..H..PKN202202-202301

MARK 48541-0K420,GR SPORT

main48541-09490iGUN126..PKN202202-202301

MARK 48541-0K420

main48541-09500iGUN126..MMR202108-202210

MARK 48541-0K430

main48541-09510iGUN13#,TGN136..THP..(ARL,GEN,LA,PH,VN)202108-202207

MARK 48541-0K470

main48541-09520iGUN125,126,135..TH202108-202207

MARK 48541-0K480

90105T0128

main90105-T0128

90105T0135

main90105-T0135

90105T0146

main90105-T0146

90178T0027

main90178-T0027

90178T0061

main90178-T0061

90178T0140

main90178-T0140

9017914069

main90179-14069

90201T0006

main90201-T0006

90201T0012

main90201-T0012

90201T0014

main90201-T0014

24 parts on this diagram · 10 diagrams in section
