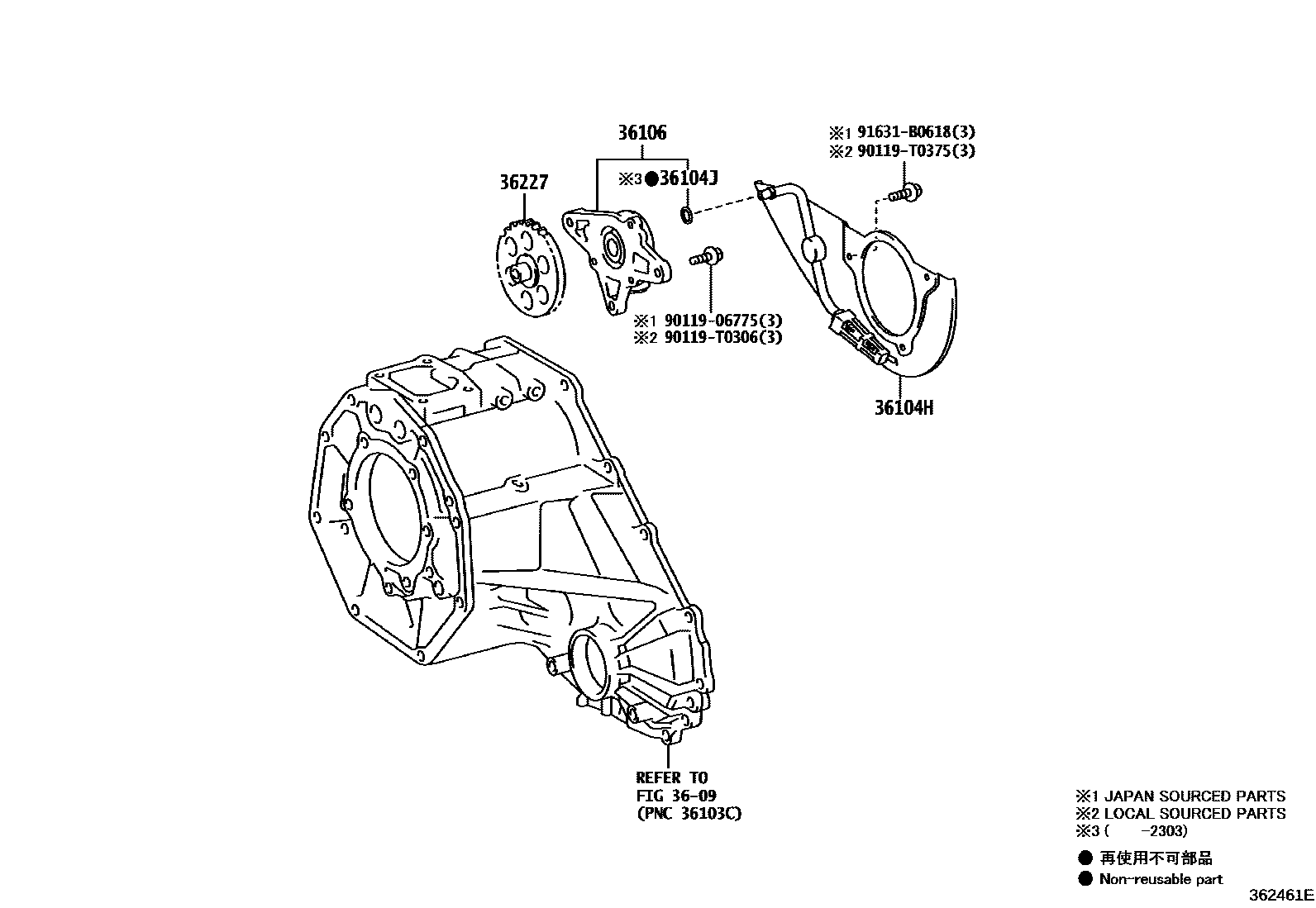

TRANSFER OIL PUMP

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36104HSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-35021iGUN125,126..MA202108-202208

*382,*381

36104JRING, O (FOR TRANSFER OIL PUMP BODY)

main96721-19009iGGN125,GUN125,126,TGN126..THP202108-202207

*382,*381

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-0K010iGUN126..PKN202108-202301

*382

main36106-35031iGGN125,GUN125,126,TGN126,128..AGTP202108-202210

*381

36227GEAR, TRANSFER OIL PUMP

main36227-0K010iGGN125,GUN125,126,LAN125,TGN126..GHA,KEN,MMR,SA202108-202303

*382

main36227-35020iGUN126..6FC..(GHA,KEN)202108-202302

*381

9011906775

main90119-06775

90119T0306

main90119-T0306

90119T0375

main90119-T0375

91631B0618

main91631-B0618

9 parts on this diagram · 1 diagram in section
