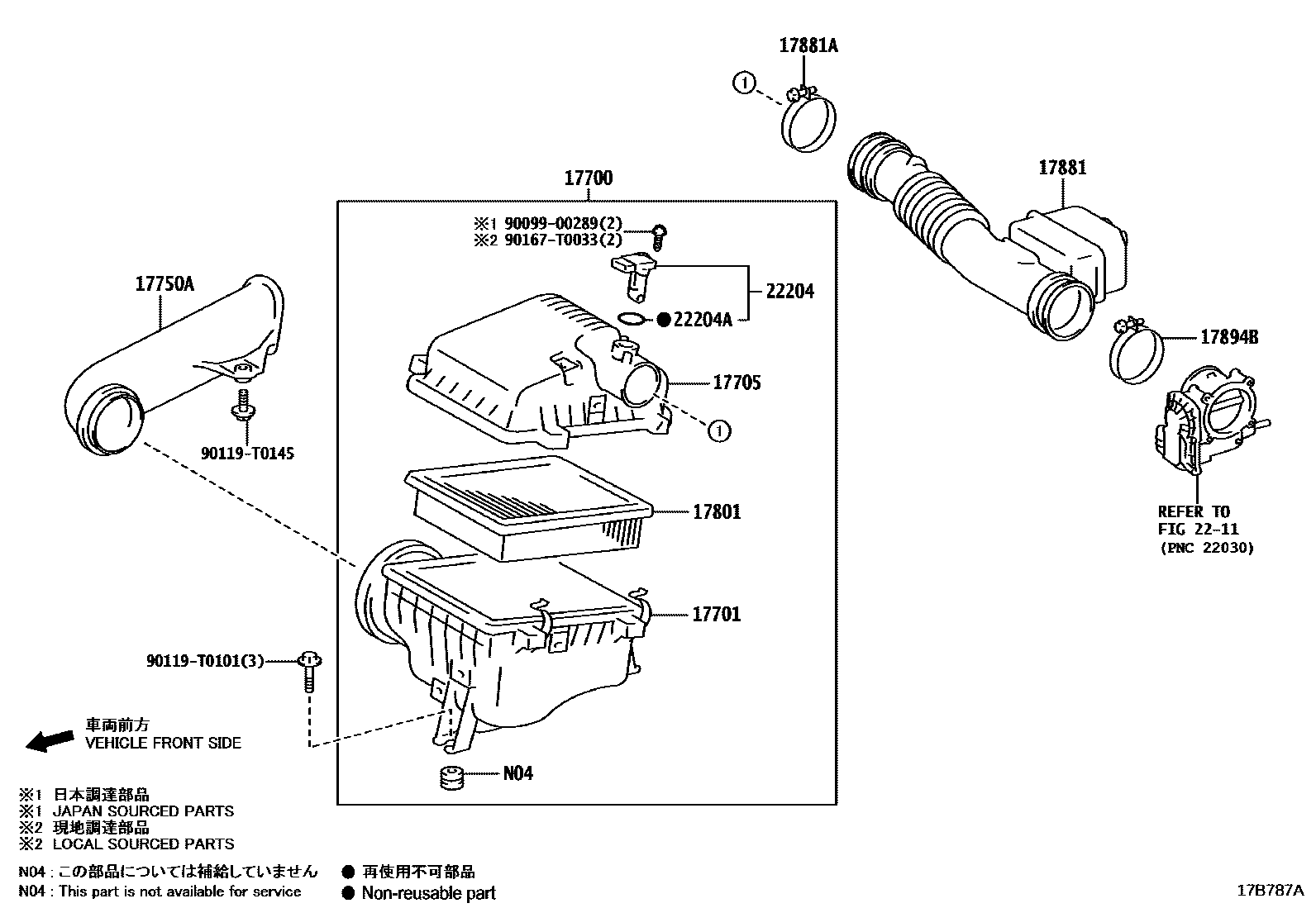

AIR CLEANER

0001 1 0002 1W(INTERCOOLER (AIR COOLED TYP0004 1W(INTERCOOLER (WATER COOLED T0006 1 0007 1

17700CLEANER ASSY, AIR

main17700-0C180i1GRFE..GGN125..GCC202108-202207

main17700-0C190i1GRFE..GGN125..SA202109-202301

main17700-0C200i1GRFE..GGN125..AGTP202111-202210

main17700-0C210i1TRFE,2TRFE..TGN120,121,126,136..THP202108-202207

main17700-0C240i2TRFE..TGN121,126,136..SA202109-202301

main17700-0C250i2TRFE..TGN126,128,13#..AGTP202111-202210

main17700-0L290i5LE..LAN125202109-202301

main17700-0L350i1GDFTV,2GDFTV..GUN12#,13#..THP202108-202301

THA SOURCED PARTS

main17700-0L370i1GDFTV..GUN126..IND202203-202209

IND SOURCED PARTS

main17700-0L380i1GDFTV,2GDFTV..GUN122,125,126,13#..GHA,KEN,SA202109-202303

ZAF SOURCED PARTS

main17700-0L390i1GDFTV,2GDFTV..GUN125,126,13#..AGTP202111-202210

ARG SOURCED PARTS

17701CASE SUB-ASSY, AIR CLEANER

main17701-0C160i1GDFTV..GUN126..IND202203-202209

IND SOURCED PARTS

main17701-0C170i1G#,2GDFTV..GGN125,GUN12#,13#..THP202108-202301

THA SOURCED PARTS

main17701-0C180i5LE..LAN125202109-202303

main17701-0C190i1G#,2GDFTV..GGN125,GUN125,126,13#..AGTP202111-202210

ARG SOURCED PARTS

main17701-0C200i1TRFE,2TRFE..TGN120,121,126,136..THP202108-202207

main17701-0C220i2TRFE..TGN121,126,136..SA202109-202301

main17701-0C230i2TRFE..TGN126,128,13#..AGTP202111-202210

17705CAP SUB-ASSY, AIR CLEANER

main17705-0C160i1TRFE,2TRFE..TGN120,121,126,136..THP202108-202207

main17705-0C170i2TRFE..TGN121,126,136..SA202109-202301

main17705-0C180i2TRFE..TGN126,128,13#..AGTP202111-202210

main17705-0C190i1GRFE..GGN125..GCC202108-202207

main17705-0C200i1GRFE..GGN125..SA202109-202301

main17705-0C210i1GRFE..GGN125..AGTP202111-202210

main17705-0L280i5LE..LAN125202109-202301

main17705-0L290i1GDFTV..GUN126..MMR,PKN202108-202301

THA SOURCED PARTS

main17705-0L310i1GDFTV..GUN126..IND202203-202209

IND SOURCED PARTS

main17705-0L320i1GDFTV,2GDFTV..GUN122,125,126,13#..GHA,KEN,SA202109-202303

ZAF SOURCED PARTS

main17705-0L330i1GDFTV,2GDFTV..GUN125,126,13#..AGTP202111-202210

ARG SOURCED PARTS

17750AINLET ASSY, AIR CLEANER

main17750-05031i5LE..LAN125202109-202301

main17750-0L050i1GRFE..GGN125..SA202108-202301

main17750-0L060i1GDFTV..GUN126..MMR202108-202210

MARK = 17750-0L060

main17750-0L070i1GDFTV,2GDFTV..GUN122,125,126,13#..GHA,KEN,SA202109-202303

main17750-0L090i1GRFE..GGN125..AGTP202111-202210

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0L040i2TRFE..TGN126,128,13#..AGTP202108-202303

main17801-0L050i1GDFTV..GUN126..IND202203-202209

MARK 17801-0L050

17881HOSE, AIR CLEANER, NO.1

main17881-05060i5LE..LAN125202109-202301

main17881-0C110i1TRFE,2TRFE..TGN120,121,126,136..THP202108-202301

THA SOURCED PARTS

main17881-0E020i1GDFTV,2GDFTV..GUN12#,13#..THP202108-202303

THA SOURCED PARTS

main17881-0E040i1GDFTV..GUN126..IND202203-202209

IND SOURCED PARTS

main17881-0E050i1GDFTV,2GDFTV..GUN122,125,126,13#..GHA,KEN,SA202109-202303

ZAF SOURCED PARTS

main17881-0P160i1GRFE..GGN125..SA202108-202301

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-T0005i1GDFTV..GUN126..PKN202108-202303

main90460-T0020i1TRFE,2TRFE..TGN120,121,126,136..THP202108-202301

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main90460-T0020i1G#,2GDFTV..GGN125,GUN12#,13#..THP202108-202303

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1GRFE..GGN125..GCC202108-202301

main22204-30030i1GDFTV,2GDFTV..GUN12#,13#..THP202108-202303

main22204-75040i2TRFE..TGN121,126,136..SA202108-202301

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1GRFE..GGN125..SA202108-202301

9009900289

main90099-00289

90119T0101

main90119-T0101

90119T0145

main90119-T0145

90167T0033

main90167-T0033

15 parts on this diagram · 5 diagrams in section
