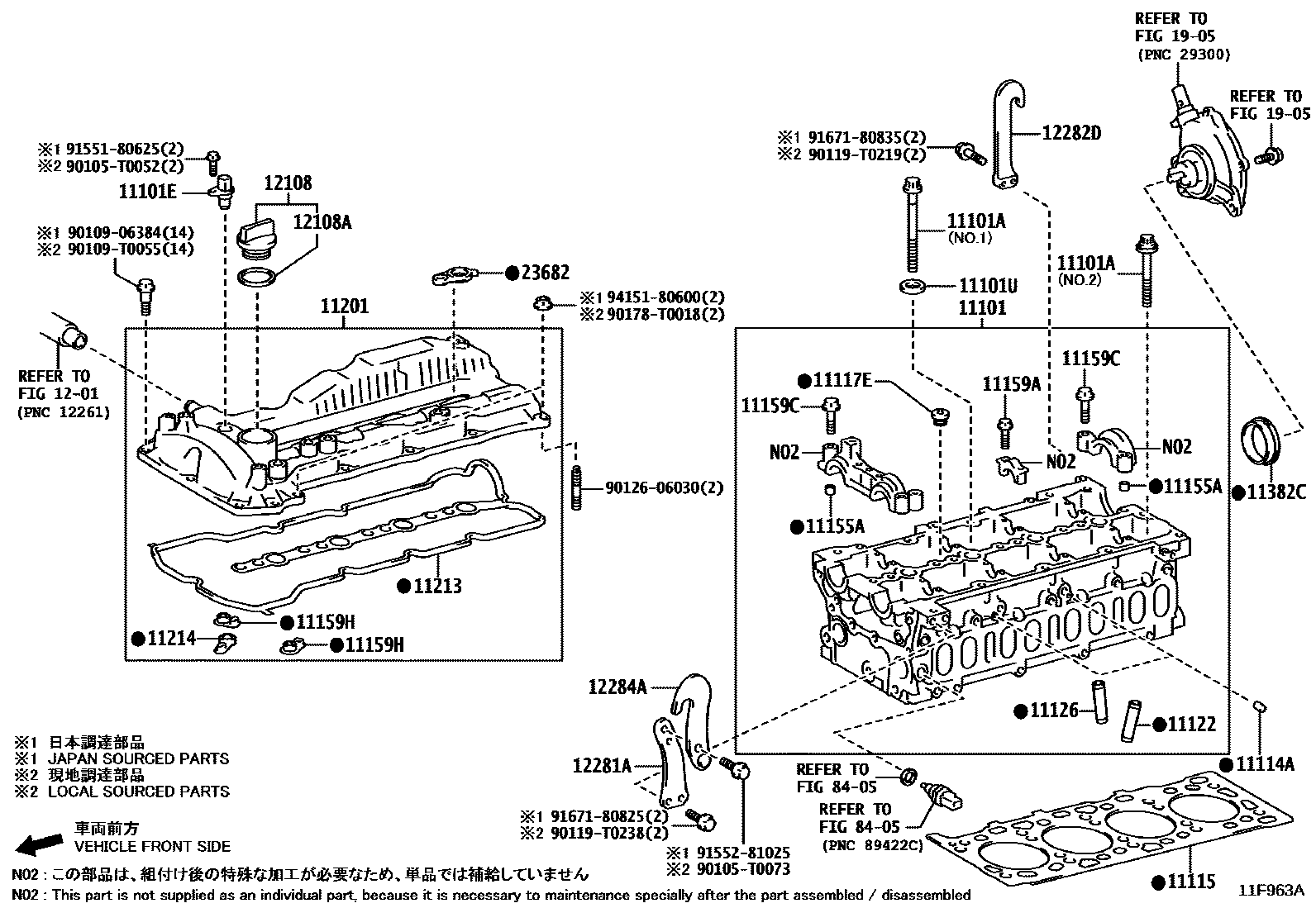

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-0C091
main11101-0C100i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202207
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER 13-02
sub11101-0C101
main11101-0C100i2TRFE..TGN136..GEN;2TRFE..TGN121..5F..ARL;2TRFE..TGN126..(H,S)..GEN;2TRFE..TGN121,126..6FC..(ARL,GCC)202108-202210
TYPE A:REFER 13-02
sub11101-0C101
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),TYPE A:REFER 13-02
sub11101-0C111
EGYPT SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(L),TYPE A:REF.13-02
sub11101-0C111
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(L),TYPE A:REF.13-02
sub11101-0C111
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(L),TYPE A:REF.13-02
sub11101-0C111
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(L),TYPE A:REF.13-02
sub11101-0C111
(L),TYPE A:REF.13-02,TYPE A:REFER 13-02
sub11101-0C111
THA SOURCED PARTS
main11101-0E021i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
IND SOURCED PARTS
main11101-11161i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202108-202210
JAPAN SOURCED PARTS
main11101-11161i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J),TYPE A:REF.13-02
sub11101-75311
(J),TYPE A:REF.13-02
sub11101-75311
EGYPT SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J),TYPE A:REF.13-02
sub11101-75311
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J),TYPE A:REF.13-02
sub11101-75311
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J),TYPE A:REF.13-02
sub11101-75311
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
(J),NO.2
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J),NO.2
(J),NO.1
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J),NO.1
(L),NO.1
(L),NO.2
11101ESENSOR, CAM POSITION
11101USPACER(FOR CYLINDER HEAD SET BOLT)
main90560-15022i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
(J)
main90560-15022i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(L)
11114APIN, STRAIGHT
main90250-05027i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
L=8,OD=5,(J)
main90250-05027i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
L=8,OD=5,MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
L=8,OD=5,(L)
11115GASKET, CYLINDER HEAD
(L)
(L)
MARK A,(L),REFER R/M
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK A,(L),REFER R/M
MARK B,(L),REFER R/M
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK B,(L),REFER R/M
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK C,(L),REFER R/M
MARK C,(L),REFER R/M
MARK D,(L),REFER R/M
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK D,(L),REFER R/M
MARK E,(L),REFER R/M
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK E,(L),REFER R/M
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK A,(J),REFER R/M
MARK A,(J),REFER R/M
MARK B,(J),REFER R/M
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK B,(J),REFER R/M
MARK C,(J),REFER R/M
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK C,(J),REFER R/M
MARK D,(J),REFER R/M
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK D,(J),REFER R/M
MARK E,(J),REFER R/M
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK E,(J),REFER R/M
(J)
(J)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
BOLIVIA URUGUAY SPEC
main90341-14015i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
main90341-14015i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
(J)
main90341-14015i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
COSTA RICA SPEC
*582
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05,MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
O/S 0.05
O/S 0.05,MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
STD
O/S 0.05
STD,MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
STD
STD,MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
O/S 0.05,MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
O/S 0.05,MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
STD
STD
STD,MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
STD,MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
O/S 0.05
STD
O/S 0.05
11155APIN, RING W/HEAD
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
main90253-11021i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
(J)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
NO.1
NO.1
BOLIVIA URUGUAY SPEC,NO.1
COSTA RICA SPEC,NO.1
(J)
NO.2
main90119-07013i2TRFE..TGN126..L..GEN;2TRFE..TGN121..LHD..THP..5F;2TRFE..TGN126,136..THP..5F..(GCC,LA)202108-202207
SYRIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J)
main90119-07013i2TRFE..TGN126..L..GEN;2TRFE..TGN121..LHD..THP..5F;2TRFE..TGN126,136..THP..5F..(GCC,LA)202108-202207
(J)
main90119-07013i2TRFE..TGN126..L..GEN;2TRFE..TGN121..LHD..THP..5F;2TRFE..TGN126,136..THP..5F..(GCC,LA)202108-202207
EGYPT SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J)
main90119-07013i2TRFE..TGN126..L..GEN;2TRFE..TGN121..LHD..THP..5F;2TRFE..TGN126,136..THP..5F..(GCC,LA)202108-202207
SUDAN SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J)
main90119-07013i2TRFE..TGN126..L..GEN;2TRFE..TGN121..LHD..THP..5F;2TRFE..TGN126,136..THP..5F..(GCC,LA)202108-202207
AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),(J)
(L)
(L)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(L)
main91551-80840i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202108-202210
(J)
main91551-80840i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1,*651
main11159-0C020i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207
NO.1,*652
(L)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*272
main11159-11010i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
*272
NO.1,*657
main1115A-0C010i2TRFE..TGN126..H..GEN;2TRFE..TGN136..THP..LA;1TRFE,2TRFE..TGN120,121,126..LHD..THP..5F202108-202301
NO.2,*651
main1115A-0C020i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207
NO.2,*652
NO.2,*657
NO.3,*651
main1115B-0C020i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207
NO.3,*652
NO.3,*657
11201COVER SUB-ASSY, CYLINDER HEAD
IDN SOURCED PARTS
main11201-0C060i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207
THA SOURCED PARTS
main11201-11082i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
(J)
main11201-11082i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
11213GASKET, CYLINDER HEAD COVER
IDN SOURCED PARTS
main11213-0C030i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207
THA SOURCED PARTS
(L)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*272
*272
JAPAN SOURCED PARTS
11214GASKET, CYLINDER HEAD COVER, NO.2
(L)
main11214-11010i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),*272
*272
11382CRETAINER, CAMSHAFT OIL SEAL
(L)
main11382-11020i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
(J)
1201
12108CAP SUB-ASSY, OIL FILLER
(L)
main12180-38010i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202301
(J)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
12108AGASKET(FOR OIL FILLER CAP)
(L)
(J)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
12281AHANGER, ENGINE, NO.1
IDN SOURCED PARTS
main12281-0C030i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
main12281-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL202108-202207
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
ARG SOURCED PARTS
main12281-0E030i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
BOLIVIA URUGUAY SPEC,ARG SOURCED PARTS
main12281-0E030i2GDFTV..GUN125,135..AGTP;1GDFTV..GUN126,136..BZAG;1GDFTV..GUN126..AGTP..H..LA;1GDFTV..GUN126..AGTP..6F..S..LA202111-202210
COSTA RICA SPEC,ARG SOURCED PARTS
main12281-11050i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
main12281-11050i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
JAPAN SOURCED PARTS
12282DHANGER, ENGINE, NO.2
main12281-0C010i2TRFE..TGN126..H..GEN;2TRFE..TGN136..THP..LA;1TRFE,2TRFE..TGN120,121,126..LHD..THP..5F202108-202301
IDN SOURCED PARTS
main12281-0C030i2TRFE..TGN126..L..GEN;2TRFE..TGN126..THP..(GCC,LA);1TRFE,2TRFE..TGN120,121,136..THP202108-202207
THA SOURCED PARTS
(L)
(J)
main12282-11080i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
12284AHANGER, ENGINE, NO.1 UPPER
(L)
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
main12284-11010i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
(J)
1905
23682GASKET, NOZZLE HOLDER
(L)
main23682-11020i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
(J)
main23682-11020i2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..THP..(GCC,LA,PH,TH,VN)202108-202207
MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
8405
90105T0052
main90105-T0052
90105T0073
main90105-T0073
9010906384
main90109-06384
90109T0055
main90109-T0055
90119T0219
main90119-T0219
90119T0238
main90119-T0238
9012606030
main90126-06030
90178T0018
main90178-T0018
9155180625
main91551-80625
9155281025
main91552-81025
9167180825
main91671-80825
9167180835
main91671-80835
9415180600
main94151-80600
39 parts on this diagram · 7 diagrams in section
