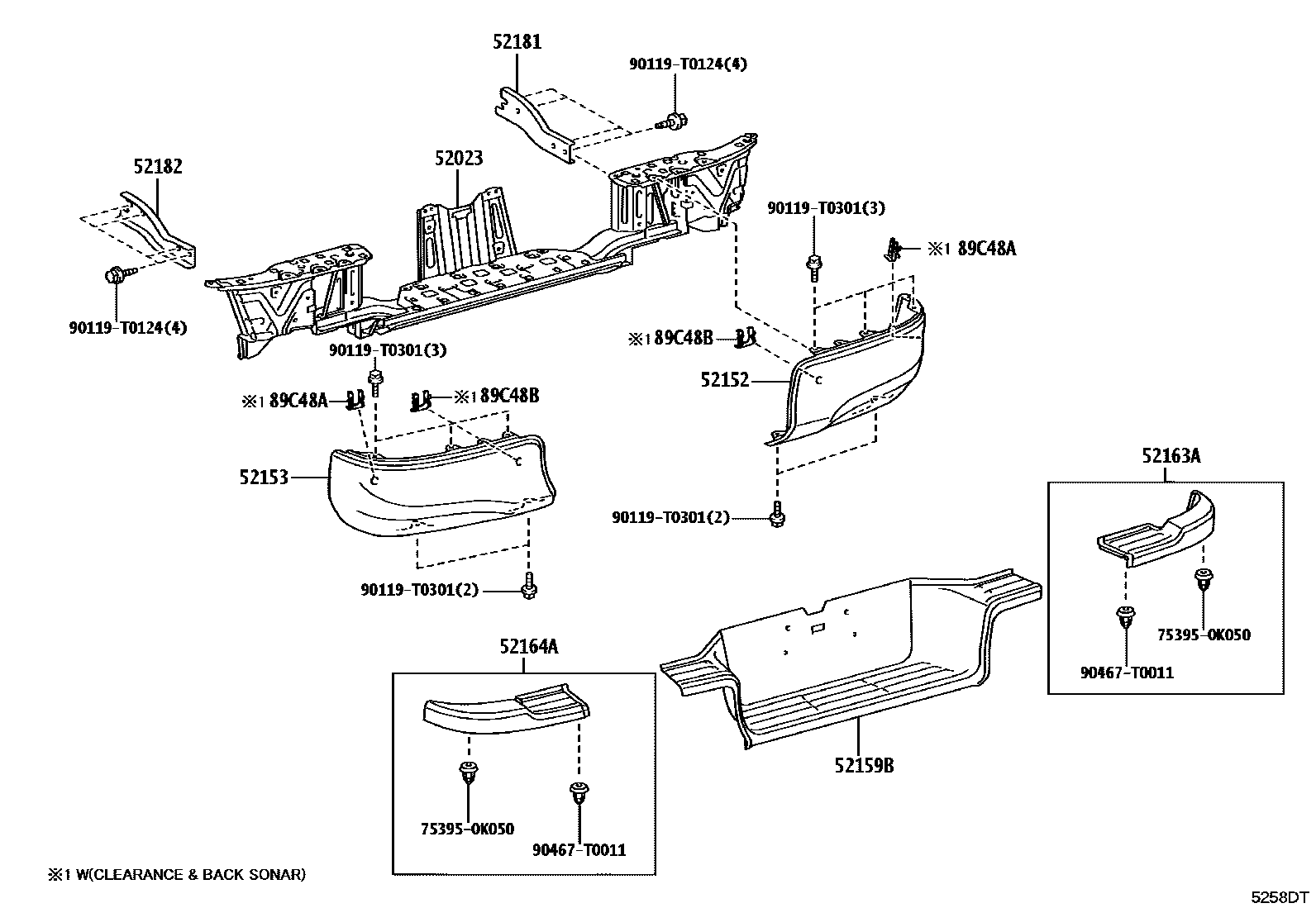

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
main52023-0K031iGUN112,125..L..GCC; GUN122,TGN121..LHD..THP..CBU;GUN125,126,135..THP..(H,S)..CBU;GUN11#,125,13#,TGN11#,120,126..THP..(ARL,GCC,LA)..CBU; GUN122..RHD..GEN;GUN125,135..L..(GEN,IDN,TH); GUN135..L..TH202408
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT
main52023-0K051iGUN122,125,135,TGN120..RHD..SCB..L..SA..CBU; GUN125,LAN125,TGN121..LHD..L..SA; GUN125..RHD..6F..S..SA..CBU; GUN126..6F..H..SA; GUN126..6F..H..SA;GUN125..RHD..6F..S..SA..CBU; GUN126..S..SA;GUN125..S..KEN;GUN125..XTR..SA;GUN122,125,LAN125,TGN121..LHD..SCB..SA202411
EXPORT FROM SA&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED); EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; EXPORT FROM SA&REAR BUMPER-STEP TYPE(PLATED); EXPORT FROM SA&REAR BUMPER-STEP TYPE(PLATED)&CLEARANCE & BACK SONAR-WITHOUT; REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
52152BAR, REAR BUMPER, RH
main52151-0K040iGUN125,136..S..(ARL,GEN); GUN125..THP..LA;GUN125,136..S..(ARL,GEN);GUN122,135,TGN121..LHD..THP..(GEN,LA)..CBU; TGN126..THP..LA;GUN122..RHD..GEN;GUN125..LHD..L..GEN;GUN125,135..RHD..THP..(L,S)..CBU202408
NO PAINT REQ.; NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)
main52151-0K050iGUN112,125..L..GCC; GUN125..S..GEN;GUN135,TGN121..L..(GEN,TH)..CBU; GUN135..S..TH;GUN125..GCC,TH;GUN11#,122,126,TGN11#,12#..THP..(GCC,LA)..CBU202408
PLATED; PLATED,REAR BUMPER-STEP TYPE(PLATED); PLATED,REAR BUMPER-WITHOUT
NO PAINT REQ.
main52151-0K080iGUN122,125,135,TGN120..RHD..SCB..L..SA..CBU; GUN125,LAN125,TGN121..LHD..L..SA; GUN125..RHD..6F..S..SA..CBU; GUN126..6F..H..SA; GUN126..S..SA;GUN125..S..KEN;GUN125..XTR..SA;GUN122,125,LAN125,TGN121..LHD..SCB..SA202411
NO PAINT REQ.; NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-WITHOUT
main52151-0K110supersedes 52151-0K120iGUN125..BZAG;GUN126,135..AGTP;GUN125..AGTP..LA..CBU; TGN126..AGTP202411
NO PAINT REQ.; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)
PLATED; PLATED,CLEARANCE & BACK SONAR-WITH; PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)
main52151-0K220iGUN125..6FC..CBU; GUN125..RHD..6F..S..SA..CBU; GUN135..SCB..6F..S; GUN135..XTR..SA; GUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202411
PLATED; PLATED,CLEARANCE & BACK SONAR-WITH; PLATED,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH; PLATED,MLM Z-PLUS PACKAGE; PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
main52151-0K090supersedes 52151-0K170iGUN125..RHD..S..SA..CBU; GUN126..6F..H..SA; GUN135,TGN136..SCB..MTM..S202411
NO PAINT REQ.; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
PLATED; PLATED,CLEARANCE & BACK SONAR-WITHOUT; PLATED,REAR BUMPER-WITH(*RUPD(PLATED))
main52151-0K190iGUN125,135..S..TH; GUN126..H..TH;GUN135..6FC..H; GUN126..THP..H;GUN135..6FC..H202408
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY))
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,EXPORT FROM SA&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)
main52151-0K270iGUN125..6FC..CBU; GUN125..RHD..6F..S..SA..CBU; GUN126,136..XTR..SA; GUN135..SCB..6F..S202411
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.,MLM Z-PLUS PACKAGE
52153BAR, REAR BUMPER, LH
main52152-0K040iGUN125,136..S..(ARL,GEN); GUN125..THP..LA;GUN125,136..S..(ARL,GEN);GUN122,135,TGN121..LHD..THP..(GEN,LA)..CBU; TGN126..THP..LA;GUN122..RHD..GEN;GUN125..LHD..L..GEN;GUN125,135..RHD..THP..(L,S)..CBU202408
NO PAINT REQ.; NO PAINT REQ.,MLM Z-PLUS PACKAGE; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)
main52152-0K050iGUN112,125..L..GCC; GUN125..S..GEN;GUN135,TGN121..L..(GEN,TH)..CBU; GUN135..S..TH;GUN125..GCC,TH;GUN11#,122,126,TGN11#,12#..THP..(GCC,LA)..CBU202408
PLATED; PLATED,REAR BUMPER-STEP TYPE(PLATED); PLATED,REAR BUMPER-WITHOUT
NO PAINT REQ.
main52152-0K080iGUN122,125,135,TGN120..RHD..SCB..L..SA..CBU; GUN125,LAN125,TGN121..LHD..L..SA; GUN125..RHD..6F..S..SA..CBU; GUN126..6F..H..SA; GUN126..S..SA;GUN125..S..KEN;GUN125..XTR..SA;GUN122,125,LAN125,TGN121..LHD..SCB..SA202411
NO PAINT REQ.; NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITHOUT; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-WITHOUT
main52152-0K110supersedes 52152-0K120iGUN125..BZAG;GUN126,135..AGTP;GUN125..AGTP..LA..CBU; TGN126..AGTP202411
NO PAINT REQ.; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)
PLATED; PLATED,CLEARANCE & BACK SONAR-WITH; PLATED,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)
main52152-0K220iGUN125..6FC..CBU; GUN125..RHD..6F..S..SA..CBU; GUN135..SCB..6F..S; GUN135..XTR..SA; GUN135..XTR..SA;GUN135..SCB..6FC;GUN126,136..H..SA202411
PLATED; PLATED,CLEARANCE & BACK SONAR-WITH; PLATED,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH; PLATED,MLM Z-PLUS PACKAGE; PLATED,TIRE & DISC WHEEL-265/65R17 ALUMINUM&REAR BUMPER-WITH(*RUPD(PLATED))&CLEARANCE & BACK SONAR-WITH
main52152-0K090supersedes 52152-0K170iGUN125..RHD..S..SA..CBU; GUN126..6F..H..SA; GUN135,TGN136..SCB..MTM..S202411
NO PAINT REQ.; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITHOUT
main52152-0K170supersedes 52152-0K090iGUN125..RHD..S..SA..CBU; GUN126..6F..H..SA; GUN135,TGN136..SCB..MTM..S202411
PLATED; PLATED,CLEARANCE & BACK SONAR-WITHOUT; PLATED,REAR BUMPER-WITH(*RUPD(PLATED))
main52152-0K190iGUN125,135..S..TH; GUN126..H..TH;GUN135..6FC..H; GUN126..THP..H;GUN135..6FC..H202408
NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED); NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-STEP TYPE(PAINTED)&LANE CHANGE ASSIST-WITH(*BSM & *RCTA(ACCESSORY))
NO PAINT REQ.,CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,EXPORT FROM SA&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-STEP TYPE(PAINTED)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,EXPORT FROM SA&REAR BUMPER-STEP TYPE(PAINTED)
main52152-0K270iGUN125..6FC..CBU; GUN125..RHD..6F..S..SA..CBU; GUN126,136..XTR..SA; GUN135..SCB..6F..S202411
NO PAINT REQ.,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED))&CLEARANCE & BACK SONAR-WITH; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&CLEARANCE & BACK SONAR-WITH
NO PAINT REQ.,MLM Z-PLUS PACKAGE&REAR BUMPER-STEP TYPE(PAINTED)
NO PAINT REQ.,MLM Z-PLUS PACKAGE
NO PAINT REQ.,MLM Z-PLUS PACKAGE
52159BPLATE, REAR BUMPER
main52159-0K291iGUN112,125..L..GCC; GUN122..RHD..GEN;GUN125,135..L..(GEN,IDN,TH); GUN125..XTR..GEN;GUN122..LHD..THP..CBU;GUN126,135..THP..(H,S)..CBU;GUN125..(MAP,THP)..(GCC,LA,MA,TH);GUN11#,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA)..CBU; GUN135..L..TH202408
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT
main52159-0K301iGUN122,125,135,TGN120..RHD..SCB..L..SA..CBU; GUN125,LAN125,TGN121..LHD..L..SA; GUN125..XTR..L..CBU;GUN122,125..LHD..L..SA;GUN125,135..S..(KEN,SA)..CBU;GUN126,136,LAN125,TGN121,136..SA202411
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
52163APLATE, REAR BUMPER, RH
main52163-0K030iGUN112,125..L..GCC; GUN122..RHD..GEN;GUN125,135..L..(GEN,IDN,TH); GUN125..XTR..GEN;GUN122..LHD..THP..CBU;GUN126,135..THP..(H,S)..CBU;GUN125..(MAP,THP)..(GCC,LA,MA,TH);GUN11#,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA)..CBU; GUN135..L..TH202408
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT
main52163-0K040iGUN122,125,135,TGN120..RHD..SCB..L..SA..CBU; GUN125,LAN125,TGN121..LHD..L..SA; GUN125..XTR..L..CBU;GUN122,125..LHD..L..SA;GUN125,135..S..(KEN,SA)..CBU;GUN126,136,LAN125,TGN121,136..SA202411
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
52164APLATE, REAR BUMPER, LH
main52164-0K030iGUN112,125..L..GCC; GUN122..RHD..GEN;GUN125,135..L..(GEN,IDN,TH); GUN125..XTR..GEN;GUN122..LHD..THP..CBU;GUN126,135..THP..(H,S)..CBU;GUN125..(MAP,THP)..(GCC,LA,MA,TH);GUN11#,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA)..CBU; GUN135..L..TH202408
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT
main52164-0K040iGUN122,125,135,TGN120..RHD..SCB..L..SA..CBU; GUN125,LAN125,TGN121..LHD..L..SA; GUN125..XTR..L..CBU;GUN122,125..LHD..L..SA;GUN125,135..S..(KEN,SA)..CBU;GUN126,136,LAN125,TGN121,136..SA202411
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
52181ARM, REAR BUMPER, RH
main52181-0K060iGUN112,125..L..GCC; GUN122..RHD..GEN;GUN125,135..L..(GEN,IDN,TH); GUN125..XTR..GEN;GUN122..LHD..THP..CBU;GUN126,135..THP..(H,S)..CBU;GUN125..(MAP,THP)..(GCC,LA,MA,TH);GUN11#,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA)..CBU; GUN135..L..TH202408
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT
main52181-0K070iGUN122,125,135,TGN120..RHD..SCB..L..SA..CBU; GUN125,LAN125,TGN121..LHD..L..SA; GUN125..XTR..L..CBU;GUN122,125..LHD..L..SA;GUN125,135..S..(KEN,SA)..CBU;GUN126,136,LAN125,TGN121,136..SA202411
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
52182ARM, REAR BUMPER, LH
main52182-0K060iGUN112,125..L..GCC; GUN122..RHD..GEN;GUN125,135..L..(GEN,IDN,TH); GUN125..XTR..GEN;GUN122..LHD..THP..CBU;GUN126,135..THP..(H,S)..CBU;GUN125..(MAP,THP)..(GCC,LA,MA,TH);GUN11#,13#,TGN11#,12#..THP..(ARL,GCC,GEN,LA)..CBU; GUN135..L..TH202408
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-STEP TYPE(PLATED); REAR BUMPER-WITHOUT
main52182-0K070iGUN122,125,135,TGN120..RHD..SCB..L..SA..CBU; GUN125,LAN125,TGN121..LHD..L..SA; GUN125..XTR..L..CBU;GUN122,125..LHD..L..SA;GUN125,135..S..(KEN,SA)..CBU;GUN126,136,LAN125,TGN121,136..SA202411
REAR BUMPER-STEP TYPE(PAINTED); REAR BUMPER-WITHOUT
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
main89348-71020×2iGUN125,135..S..TH; GUN135..S..TH;GUN135..SCB..6F..S;GUN125..XTR..S..(SA,TH); GUN135..XTR..SA;GUN135..SCB..6FC;GUN125,126,13#..H202408
CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
main89348-71030×2iGUN125,135..S..TH; GUN135..S..TH;GUN135..SCB..6F..S;GUN125..XTR..S..(SA,TH); GUN135..XTR..SA;GUN135..SCB..6FC;GUN125,126,13#..H202408
CLEARANCE & BACK SONAR-WITH; FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
753950K050CLIP, BACK DOOR MOULDING, NO.1
main75395-0K050
90119T0124
main90119-T0124
90119T0301
main90119-T0301
90467T0011
main90467-T0011
14 parts on this diagram · 1 diagram in section
