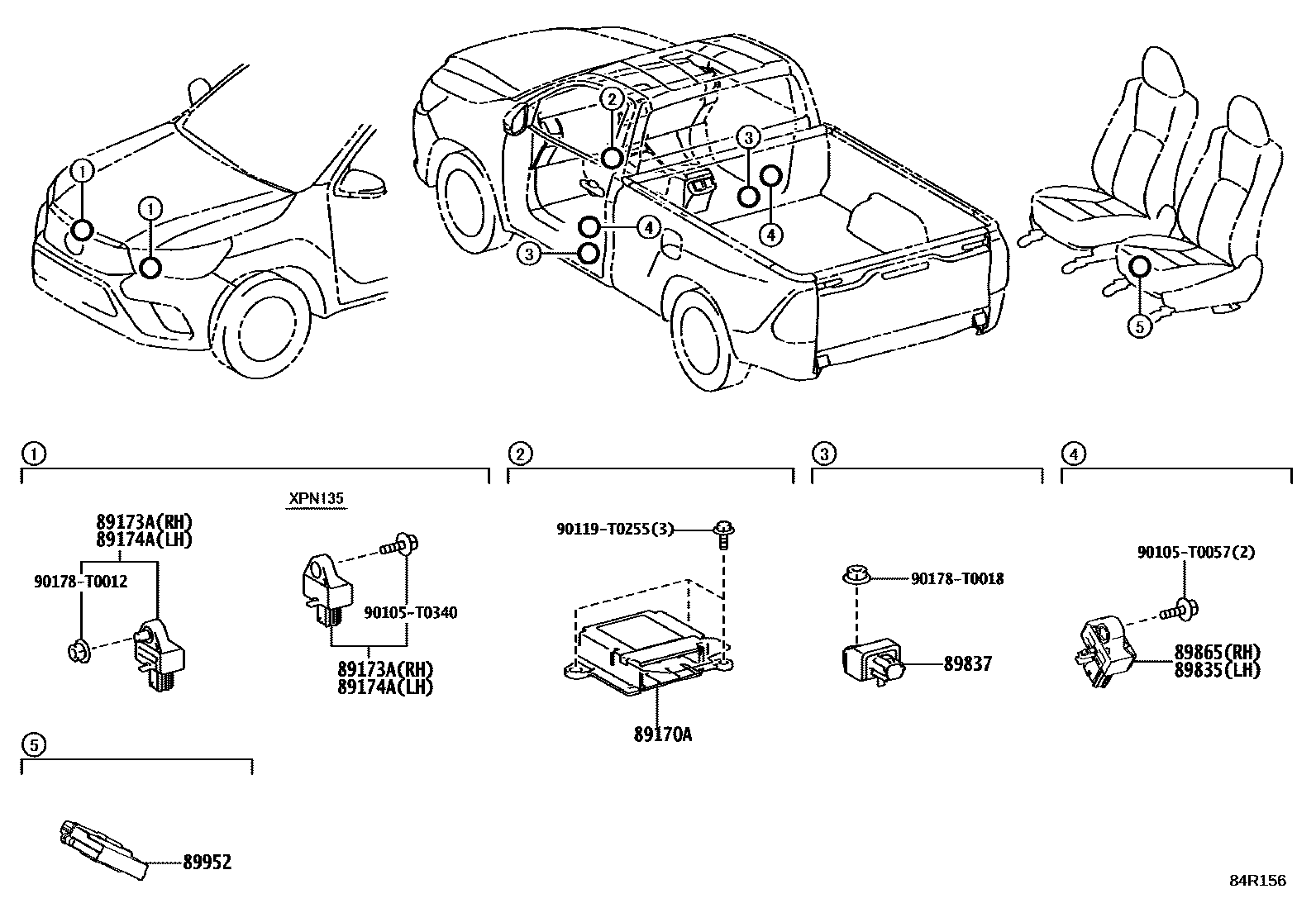

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-0K400supersedes 89170-0KG30iGUN125,135..RHD..L..SA; GUN125,LAN125..LHD..L..SA202308-202410
VSC-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT; COSTA RICA SPEC&VSC-WITHOUT; PERU SPEC&VSC-WITHOUT; URUGUAY SPEC&VSC-WITHOUT
main89170-0K560supersedes 89170-0K420iGUN125,126,13#..SCB..6FC..SA; GUN125,135..RHD..SCB..6F..S..SA; TGN136..SA202402-202410
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITH(*HSAC & *TSC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0K710supersedes 89170-0K720iGUN122..RHD..SA; GUN122..RHD..SA..CBU; TGN120..SA; TGN121..SA202402-202410
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)); VSC-WITHOUT&POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)); VSC-WITHOUT&POWER DOOR LOCK-WITHOUT
main89170-0KB50supersedes 89170-0KB30iGUN125..RHD..GEN; GUN126..6F..L..TH; GUN126..6FC..L;GUN125,135..THP..S;GUN125,135,TGN126..THP..LA; GUN135..L..TH;GUN126..6F..L..TH202308-202407
CENTRAL AND SOUTH AMERICA SPEC; VSC-WITH(*HSAC & *TSC); VSC-WITH(*HSAC & *TSC)&WIRELESS DOOR LOCK-WITHOUT
main89170-0KC00supersedes 89170-0K240iGUN112,120,121,122,TGN121..SCB..TH; GUN112..IDN; GUN122..LHD..GEN; TGN121..GEN;GUN122,TGN110..IDN,PH202308-202407
ASEAN GENERAL SPEC&VSC-WITHOUT; CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT; VSC-WITHOUT; WIRELESS DOOR LOCK-WITHOUT
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
OCEANIA GENERAL SPEC; SRS AIR BAG-WITH(*DRP)
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
*614
main89170-0K240iGUN112,120,121,122,TGN121..SCB..TH; GUN112..IDN; GUN122..LHD..GEN; TGN121..GEN,TH;GUN112,120,121,122..TH202308-202407
ASEAN GENERAL SPEC; CENTRAL AND SOUTH AMERICA SPEC; VSC-WITH(*HSAC & *TSC); VSC-WITH(*HSAC & *TSC)&WIRELESS DOOR LOCK-WITHOUT
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
VSC-WITHOUT
VSC-WITH(*HSAC & *TSC)&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITH(*HSAC & *TSC)&POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
main89170-0KB20iGUN125,135..THP..LA; GUN125..IDN; GUN125..LHD..L..GEN; GUN125..RHD..GEN; GUN126..6F..L..TH202308-202407
ASEAN GENERAL SPEC&WIRELESS DOOR LOCK-WITH; CAMBODIA SPEC&WIRELESS DOOR LOCK-WITH; CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT; VSC-WITHOUT; WIRELESS DOOR LOCK-WITHOUT
ASEAN GENERAL SPEC&VSC-WITHOUT&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIRBAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); VSC-WITHOUT&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
ASEAN GENERAL SPEC&FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN); SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
VSC-WITHOUT&POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&SRS AIR BAG-W(*DRP) &W/O(SRS KNEE AIR BAG); VSC-WITHOUT&POWER DOOR LOCK-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG); VSC-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
VSC-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
VSC-WITHOUT&POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG); VSC-WITHOUT&SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
89173ASENSOR, AIRBAG, FRONT RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
89174ASENSOR, AIRBAG, FRONT LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
89835SENSOR, DOOR SIDE AIRBAG, LH
main89831-0K040iGUN125,135..H;GUN125,13#,TGN121..ARL;GUN126..RHD..THP..(H,S); GUN135..S..TH;GUN125..S..GEN;GUN125..IDN,TH;GUN112,122,TGN110..GEN,IDN202308-202407
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89837SENSOR, FRONT FLOOR SIDE AIRBAG
89865SENSOR, DOOR SIDE AIRBAG, RH
main89831-0K040iGUN126..H..SA;GUN125,135..BZAG;GUN136,TGN136..H,L;GUN125,135..6FC..SA; TGN120,136..SA;GUN125,135..RHD..6F..S..SA202308-202410
SRS AIR BAG-WITH(*DRS & SIDE & CURTAIN)
89952COMPUTER, OCCUPANT DETECTION
90105T0057
main90105-T0057
90105T0340
main90105-T0340
90119T0255
main90119-T0255
90178T0012
main90178-T0012
90178T0018
main90178-T0018
12 parts on this diagram · 2 diagrams in section
