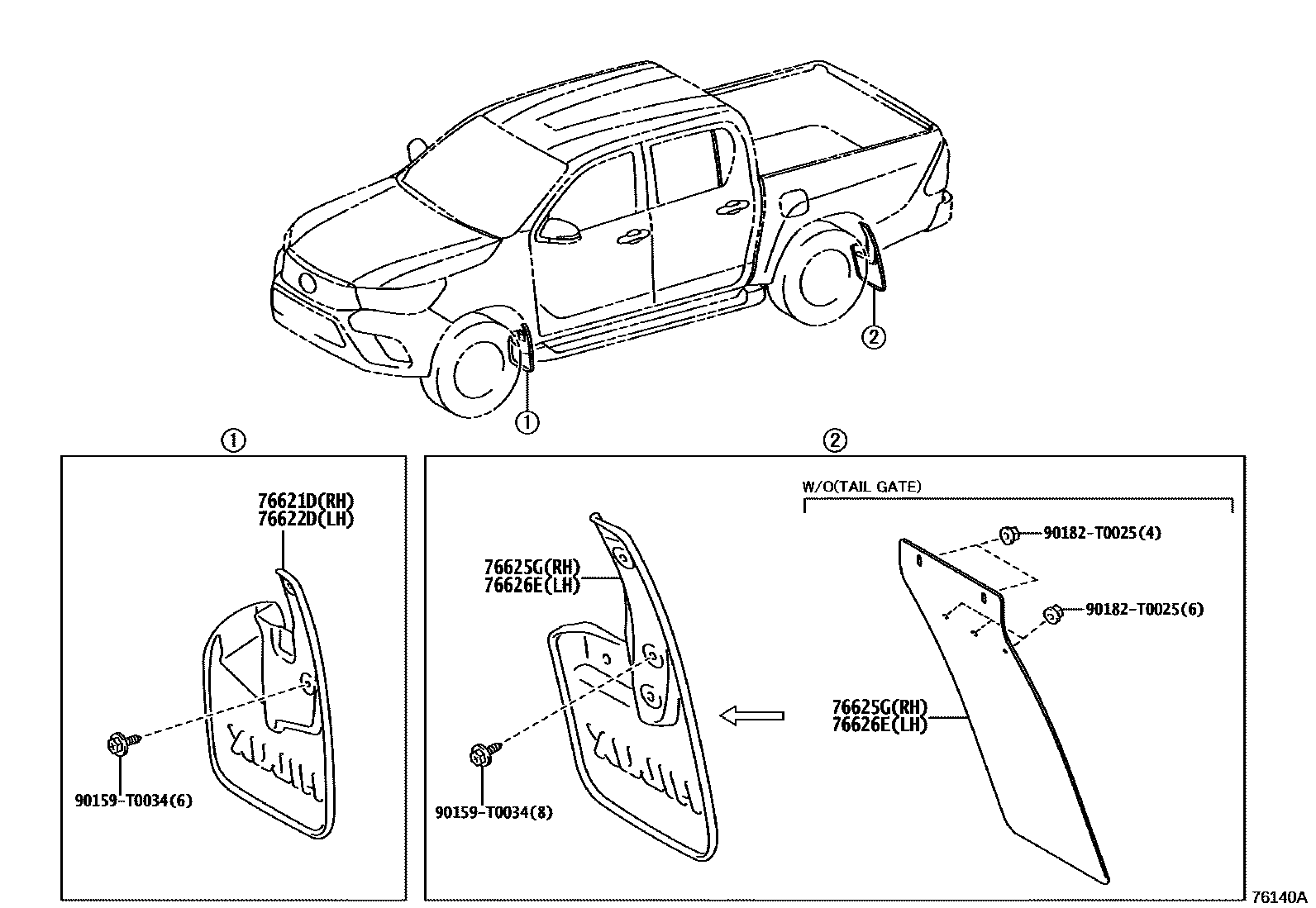

SPOILER & SIDE MUDGUARD
76621DMUDGUARD, FRONT FENDER, RH
main76621-0K130iGUN125..THP..LA;TGN121..GEN..CBU; TGN121..GEN..IV3; TGN126..THP;GUN125..6F..L..(ARL,GEN);GUN112,120,121,122..GEN,TH;GUN126,135,TGN121..SCB..THP..(ARL,LA,TH)202308-202407
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(FRONT ONLY)
main76621-0K150iGUN122,125..SA..IV3; GUN135,TGN136..SCB..MTM..S; GUN135..RHD..SCB..L..CBU;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..(KEN,SA)..CBU202402-202410
MUD GUARD-WITH(FRONT ONLY); TIRE & DISC WHEEL-225/70R17C STEEL&SPEED METER-KM/H
main76621-0K160iGUN125,126..RHD..S..SA..CBU; GUN125..LHD..SCB..S; GUN125..SA..IV3; GUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA202402-202410
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT ONLY)&SPEED METER-KM/H &WITH(*MID); TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPEED METER-KM/H & WITH(*MID); TIRE & DISC WHEEL-265/65R17 STEEL
main76621-0K170iGUN125..AGTP..LA;GUN126..BZAG..CBU; GUN126..BZAG..IV3;GUN125,TGN136..AGTP..IV3; GUN135..AGTP;GUN125..BZAG..CBU;GUN126,TGN126..AGTP..LA202311-202410
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(FRONT ONLY)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
76622DMUDGUARD, FRONT FENDER, LH
main76622-0K130iGUN125..THP..LA;TGN121..GEN..CBU; TGN121..GEN..IV3; TGN126..THP;GUN125..6F..L..(ARL,GEN);GUN112,120,121,122..GEN,TH;GUN126,135,TGN121..SCB..THP..(ARL,LA,TH)202308-202407
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(FRONT ONLY)
main76622-0K150iGUN122,125..SA..IV3; GUN135,TGN136..SCB..MTM..S; GUN135..RHD..SCB..L..CBU;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..(KEN,SA)..CBU202402-202410
MUD GUARD-WITH(FRONT ONLY); TIRE & DISC WHEEL-225/70R17C STEEL&SPEED METER-KM/H
main76622-0K160iGUN125,126..RHD..S..SA..CBU; GUN125..LHD..SCB..S; GUN125..SA..IV3; GUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA202402-202410
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&MUD GUARD-WITH(FRONT ONLY)&SPEED METER-KM/H &WITH(*MID); TIRE & DISC WHEEL-265/65R17 ALUMINUM&SPEED METER-KM/H & WITH(*MID); TIRE & DISC WHEEL-265/65R17 STEEL
main76622-0K170iGUN125..AGTP..LA;GUN126..BZAG..CBU; GUN126..BZAG..IV3;GUN125,TGN136..AGTP..IV3; GUN135..AGTP;GUN125..BZAG..CBU;GUN126,TGN126..AGTP..LA202311-202410
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(FRONT ONLY)
MLM Z-PLUS PACKAGE&TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM)& WITH(COLOR MOULDING)
76625GMUDGUARD, QUARTER PANEL, REAR RH
main76625-0K240iTGN120..GCC; TGN121..(GCC,TH)..CBU;GUN11#,120,121,122,TGN11#..(GCC,GEN,TH)..CBU; TGN121..GEN..CBU202308-202407
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(REAR ONLY)
main76625-0K250iGUN125,126..L..(GEN,IDN,TH);GUN135,TGN126..SCB..THP..CBU; GUN125..GCC; GUN125..THP..LA202308-202407
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(REAR ONLY)
main76625-0K300iGUN125..AGTP..LA;GUN126..BZAG..CBU; GUN125..BZAG..CBU;GUN135,TGN126..AGTP..CBU202311-202410
MUD GUARD-WITH(FRONT & REAR)
main76625-0K320iGUN135,TGN136..SCB..MTM..S; GUN135..RHD..SCB..L..CBU;GUN125,126,LAN125..SCB..(L,S)..(KEN,SA)..CBU202402-202410
TIRE & DISC WHEEL-225/70R17C STEEL
main76625-0K330iGUN125..LHD..SCB..S; GUN125..RHD..6F..S..SA..CBU; GUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA; GUN126..S..SA;GUN125..6FC..CBU;GUN125..LHD..SCB..S202402-202410
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL
TAIL GATE-WITHOUT
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
76626EMUDGUARD, QUARTER PANEL, REAR LH
main76626-0K240iTGN120..GCC; TGN121..(GCC,TH)..CBU;GUN11#,120,121,122,TGN11#..(GCC,GEN,TH)..CBU; TGN121..GEN..CBU202308-202407
MUD GUARD-WITH(FRONT & REAR); MUD GUARD-WITH(REAR ONLY)
main76626-0K300iGUN125..AGTP..LA;GUN126..BZAG..CBU; GUN125..BZAG..CBU;GUN135,TGN126..AGTP..CBU202311-202410
MUD GUARD-WITH(FRONT & REAR)
main76626-0K320iGUN135,TGN136..SCB..MTM..S; GUN135..RHD..SCB..L..CBU;GUN125,126,LAN125..SCB..(L,S)..(KEN,SA)..CBU202402-202410
TIRE & DISC WHEEL-225/70R17C STEEL
main76626-0K330iGUN125..LHD..SCB..S; GUN125..RHD..6F..S..SA..CBU; GUN126..H..SA;GUN125..XTR..SA;GUN13#,TGN136..(H,S)..SA; GUN126..S..SA;GUN125..6FC..CBU;GUN125..LHD..SCB..S202402-202410
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL
TAIL GATE-WITHOUT
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
90159T0034
main90159-T0034
90182T0025
main90182-T0025
6 parts on this diagram · 1 diagram in section
