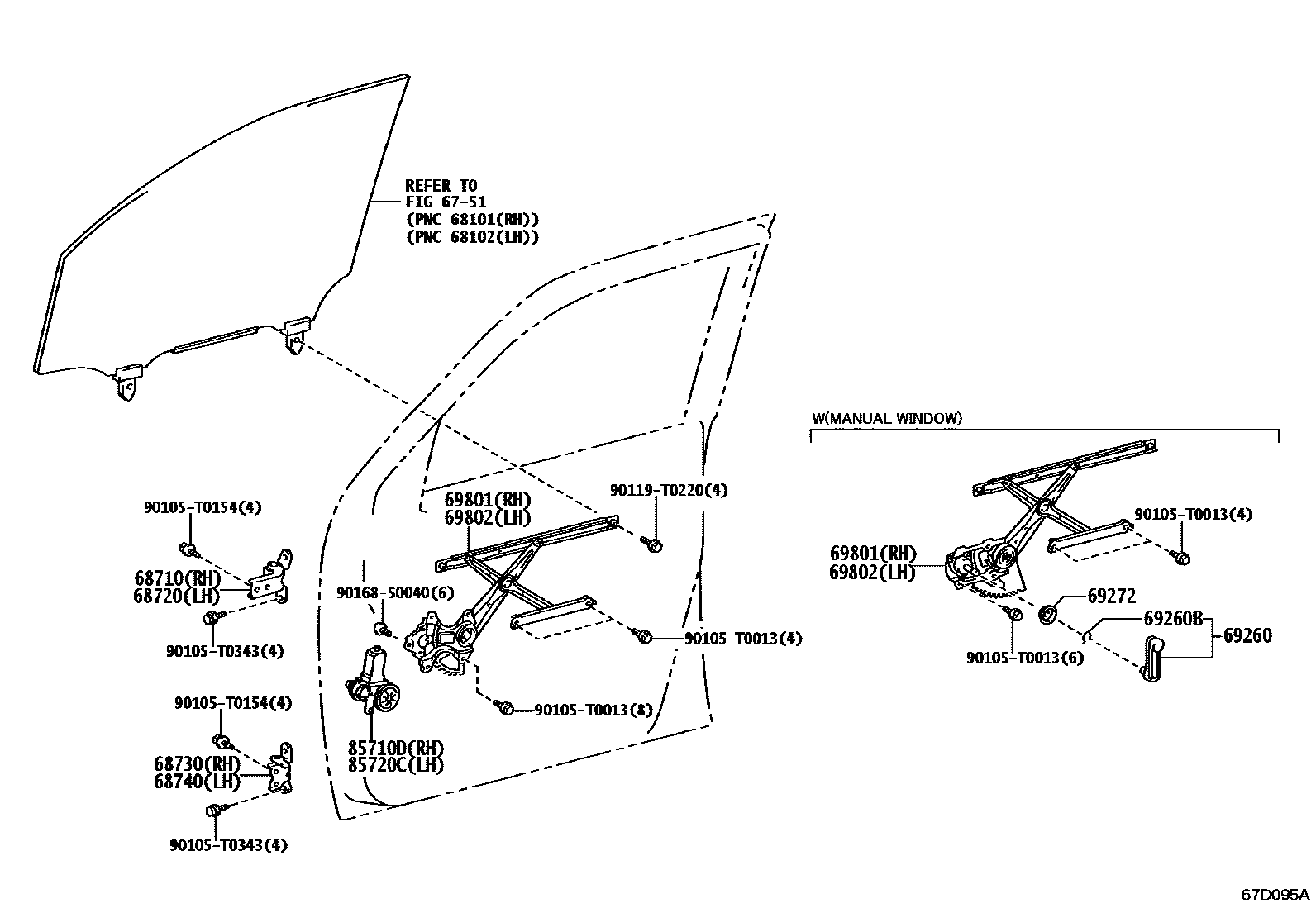

FRONT DOOR WINDOW REGULATOR & HINGE
6751FRONT DOOR PANEL & GLASS
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-0K010-C0×2iGUN112,122,125,TGN120,121..L..GCC; GUN122,125,135,TGN121,126..LHD..THP..L..(GEN,LA); GUN122..LHD..(GEN,PH);GUN112,125,135,TGN110,121,126..THP..L..(GEN,IDN,LA); GUN125..RHD..GEN; GUN126..6F..L..TH;GUN112,120,121,122,TGN121..SCB..TH; TGN121..GCC..IV3;GUN112,122,125,TGN120..L..GCC202308-202407
BLACK,TRIM2#; BLACK,TRIM2#,3#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#,3#; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT,BLACK,TRIM2#; POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#; POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main69260-0K040-C0×2iGUN125,135..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA; GUN125..XTR..L..CBU;GUN125..RHD..6F..S..SA..CBU;GUN122,126..RHD..SCB..MTM..SA..CBU202402-202410
BLACK,TRIM2#; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01274×2iGUN122..LHD..THP..L;GUN135,TGN110,126..THP..(IDN,LA);GUN112,125,TGN120,121..THP..L..(GCC,GEN,IDN,LA); GUN125..RHD..GEN; GUN126..6F..L..TH;GUN112,120,121,122,TGN121..SCB..TH; TGN121..GCC..IV3;TGN121,126..THP..(GEN,LA);GUN112,122,125,135,TGN120..LHD..THP..L..(GCC,GEN,LA)202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT; POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY); POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69268-04020×2iGUN122..LHD..THP..L;GUN135,TGN110,126..THP..(IDN,LA);GUN112,125,TGN120,121..THP..L..(GCC,GEN,IDN,LA); GUN125..RHD..GEN; GUN126..6F..L..TH;GUN112,120,121,122,TGN121..SCB..TH; TGN121..GCC..IV3;TGN121,126..THP..(GEN,LA);GUN112,122,125,135,TGN120..LHD..THP..L..(GCC,GEN,LA)202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT; POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY); POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-0D351iGUN112,122,125,TGN121..TH;GUN112,122,TGN121..S..GCC;GUN111,120,121,126,135,TGN11#,126,XPN135..GCC,TH; TGN126..THP..LA;TGN121..GCC..IV3;GUN112,122,125,135,TGN120..THP..L..(GCC,LA)202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69801-0K140iGUN122,125,TGN121..LHD..L..GEN; GUN125..ARL;GUN125..XTR..GEN;GUN122,126,13#,TGN121..RHD..(ARL,GEN); GUN125..RHD..GEN202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY); POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main69801-0K150iGUN125,135..RHD..SCB..L..SA; GUN125,135..RHD..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA; GUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,136,TGN120,136..RHD..SA202402-202410
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main69810-0K240iGUN122..LHD..THP..L;GUN135,TGN110,126..THP..(IDN,LA);GUN112,125,TGN120,121..THP..L..(GCC,GEN,IDN,LA); GUN126..6F..L..TH;GUN112,120,121,122,TGN121..SCB..TH202308-202407
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main69810-0K270iGUN122..RHD..SA..CBU;GUN125..RHD..6F..S..SA..CBU; GUN125,135..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA; GUN126..S..SA;GUN125..XTR..L..CBU202402-202410
EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-0K140iGUN122,125,TGN121..LHD..L..GEN; GUN125..ARL;GUN125..XTR..GEN;GUN122,126,13#,TGN121..RHD..(ARL,GEN); GUN125..RHD..GEN202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY); POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main69802-0K150iGUN125,135..RHD..SCB..L..SA; GUN125,135..RHD..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA; GUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,136,TGN120,136..RHD..SA202402-202410
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main69820-0K260iGUN122..LHD..THP..L;GUN135,TGN110,126..THP..(IDN,LA);GUN112,125,TGN120,121..THP..L..(GCC,GEN,IDN,LA); GUN126..6F..L..TH;GUN112,120,121,122,TGN121..SCB..TH202308-202407
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85710-0K180iGUN122,125,TGN121..LHD..L..GEN; GUN125..RHD..GEN; GUN125..S..GEN;GUN122..RHD..GEN202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85720-0D570iGUN112,122,125,TGN121..TH;GUN112,122,TGN121..S..GCC;GUN111,120,121,126,135,TGN11#,126..(L,S)..(GCC,TH); TGN126..THP..LA;TGN121..GCC..IV3;GUN112,122,125,135,TGN120..THP..L..(GCC,LA)202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main85720-0K180iGUN122..LHD..GEN; GUN122..RHD..GEN;GUN125,126,13#,TGN121..(L,S)..ARL; GUN125..RHD..GEN202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY); POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
90105T0013
main90105-T0013
90105T0154
main90105-T0154
90105T0343
main90105-T0343
90119T0220
main90119-T0220
9016850040
main90168-50040
17 parts on this diagram · 1 diagram in section
