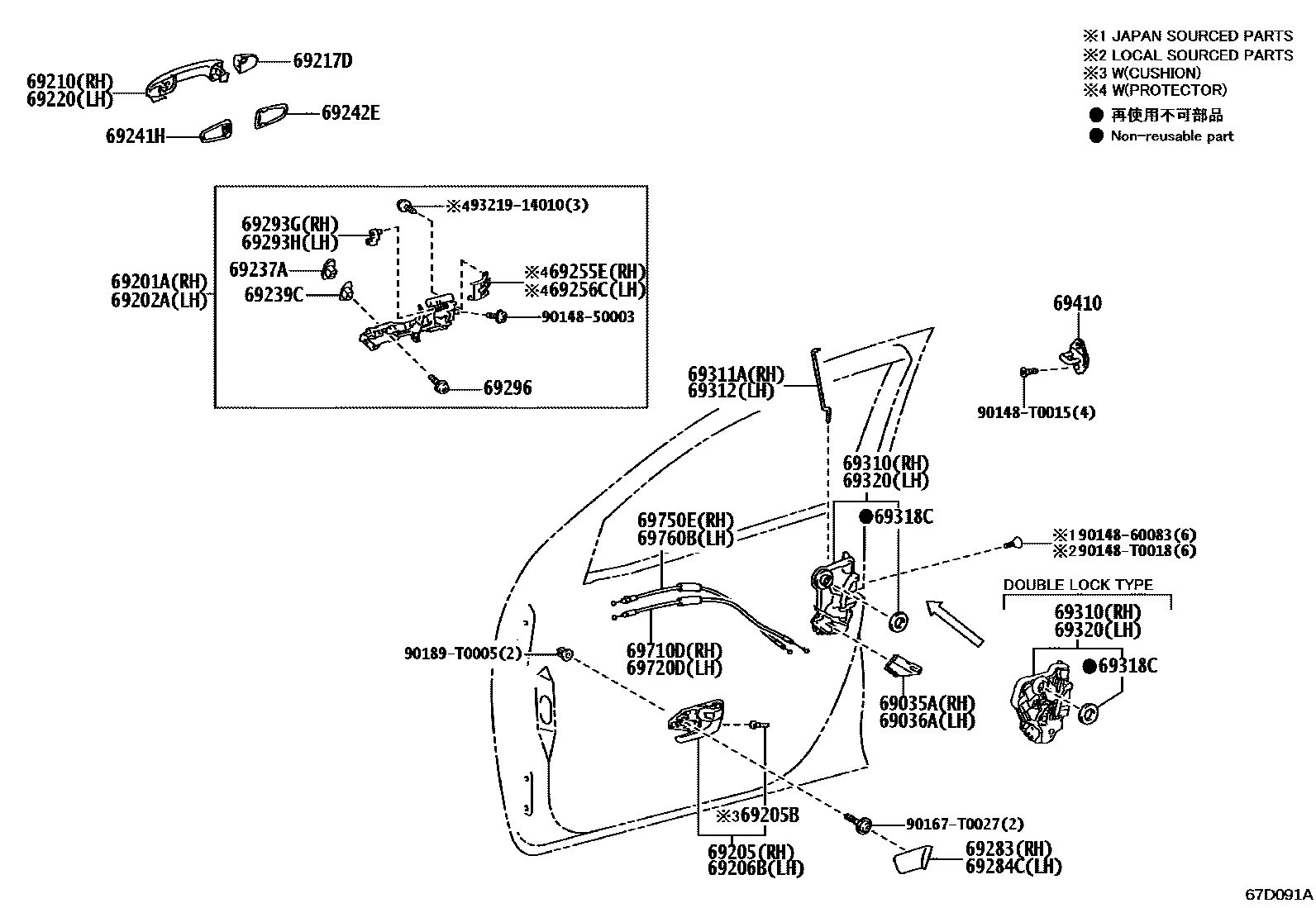

FRONT DOOR LOCK & HANDLE
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0K061iTGN126..THP..LA;TGN121..LHD..IV3;GUN112,122,125,135,TGN120..LHD..THP..L..(GCC,GEN,LA)202308-202407
WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY
WIRELESS DOOR LOCK-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69201-0K160iGUN122..L..GCC;GUN125..RHD..THP;GUN125..LHD..THP..L;GUN112,121,TGN120,121,XPN135..L;GUN120,122,126,13#,TGN110,126..THP..(ARL,GEN,IDN,LA,PH,TH)202308-202312
sub69201-0K161
main69201-0K161iGUN122..L..GCC;GUN125..RHD..THP;GUN125..LHD..THP..L;GUN112,121,TGN120,121,XPN135..THP..L;GUN120,122,126,13#,TGN110,126..THP..(ARL,GEN,IDN,LA,PH,TH)202401-202410
main69201-0K171iGUN126..6F..SA;GUN125..RHD..SA;GUN125..LHD..L..SA;GUN126,136..SCB..H;GUN122,135,LAN125,TGN120,121,136..SA202402-202410
MLM ADVENTURE PACKAGE
sub69201-0K181
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
MLM ADVENTURE PACKAGE
main69202-0K160iGUN122,TGN136..LHD;GUN11#,125,126,135,TGN11#,12#..THP..(GCC,GEN,IDN,LA)202308-202312
WIRELESS DOOR LOCK-WITHOUT
sub69202-0K161
WIRELESS DOOR LOCK-WITHOUT
WIRELESS DOOR LOCK-WITHOUT
main69202-0K171iGUN125..LHD..S..SA;GUN125,135..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA202402-202410
WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
main69202-0K171iGUN125..LHD..S..SA;GUN125,135..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA202402-202410
EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT
main69202-0K171iGUN125..LHD..S..SA;GUN125,135..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA202402-202410
EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
main69205-0K100-C1iGUN135..SCB..THP;GUN125,126,136..THP..(L,S)..(ARL,GEN,IDN,LA,TH);GUN112,120,121,122,TGN110,121,126,XPN135..THP..L..(ARL,GEN,IDN,LA,PH,TH)202308-202407
BLACK,TRIM2#,3#
BLACK,TRIM2#
DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-0K090-C1iGUN135..SCB..THP;GUN125,126,136..THP..(L,S)..(ARL,GEN,IDN,LA,TH);GUN112,120,121,122,TGN110,121,126,XPN135..THP..L..(ARL,GEN,IDN,LA,PH,TH)202308-202407
BLACK,TRIM2#,3#
main69206-0K090-C1iGUN135..SCB..THP;GUN125,126,136..THP..(L,S)..(ARL,GEN,IDN,LA,TH);GUN112,120,121,122,TGN110,121,126,XPN135..THP..L..(ARL,GEN,IDN,LA,PH,TH)202308-202408
BLACK,TRIM2#
BLACK,TRIM2#
DOOR TRIM-FABRIC & PAINT(SILVER),BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATINUM WHITE PEARL MC.,089
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
PLATED
PLATED,MLM ADVENTURE PACKAGE
PLATED,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
PLATED
main69210-0K200iGUN122..L..GCC;GUN135..(L,S)..TH;GUN120,122,125..THP..S;GUN11#,125,126,TGN11#,12#..GCC202308-202407
PLATED,DOOR OUTSIDE HANDLE-*CR
NO PAINT REQ.
main69210-0K210iGUN135..SCB..THP;GUN112,12#,TGN110,121,126..THP..L..(ARL,GEN,IDN,LA,PH,TH)202308-202407
NO PAINT REQ.,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY
PLATED,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDERDRIVER SIDE ONLY
PLATED
PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-0K370iGUN126..THP..(H,S)..CBU;GUN135,TGN110,126..GCC,TH;GUN11#,120,122,125,TGN111,121..THP..(H,S)202308-202407
*CR,DRIVER & PASSENGER
main69217-0K370iGUN126..THP..(H,S)..CBU;GUN135,TGN110,126..GCC,TH;GUN11#,120,122,125,TGN111,121..THP..(H,S)202308-202407
*CR,DOOR OUTSIDE HANDLE-*CR,DRIVER & PASSENGER
*CR,DRIVER SIDE
*CR,MLM ADVENTURE PACKAGE,DRIVER SIDE
*CR,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
*CR,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-0K380iGUN126..THP..(H,S)..CBU;GUN135,TGN110,126..GCC,TH;GUN11#,120,122,125,TGN111,121..THP..(H,S)202308-202407
*CR,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
*CR,PASSENGER SIDE
BLACK MATERIAL,WIRELESS DOOR LOCK-WITHOUT,DRIVER & PASSENGER
BLACK MATERIAL,DRIVER SIDE
main69217-0K430iGUN135..ARL;GUN122..RHD..THP..L;GUN112,120,121,125,126,TGN121..L..(ARL,TH)202308-202407
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
main69217-0K430iGUN135..ARL;GUN122..RHD..THP..L;GUN112,120,121,125,126,TGN121..L..(ARL,TH)202308-202407
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVERSIDE ONLY,DRIVER SIDE
main69217-0K430iGUN135..ARL;GUN122..RHD..THP..L;GUN112,120,121,125,126,TGN121..L..(ARL,TH)202308-202407
BLACK MATERIAL,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
main69217-0K430iGUN135..ARL;GUN122..RHD..THP..L;GUN112,120,121,125,126,TGN121..L..(ARL,TH)202308-202407
BLACK MATERIAL,DRIVER & PASSENGER
main69217-0K440iTGN121..GEN..IV3;GUN125..THP..L..(GEN,LA);GUN122,135,TGN126..LHD..THP..(GEN,LA)202308-202408
BLACK MATERIAL,PASSENGER SIDE
main69217-0K440iTGN121..GEN..IV3;GUN125..THP..L..(GEN,LA);GUN122,135,TGN126..LHD..THP..(GEN,LA)202308-202407
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,PASSENGER SIDE
main69217-0K440iTGN121..GEN..IV3;GUN125..THP..L..(GEN,LA);GUN122,135,TGN126..LHD..THP..(GEN,LA)202308-202407
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVERSIDE ONLY,PASSENGER SIDE
main69217-0K440iTGN121..GEN..IV3;GUN125..THP..L..(GEN,LA);GUN122,135,TGN126..LHD..THP..(GEN,LA)202308-202407
BLACK MATERIAL,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),DRIVER SIDE
main69217-0K450iGUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,TGN120,136..RHD..SCB..MTM..SA202402-202412
BLACK MATERIAL,DRIVER SIDE
main69217-0K450iGUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,TGN120,136..RHD..SCB..MTM..SA202402-202410
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH(PANIC BUTTON),DRIVER SIDE
main69217-0K450iGUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,TGN120,136..RHD..SCB..MTM..SA202402-202412
BLACK MATERIAL,DRIVER & PASSENGER
main69217-0K450iGUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,TGN120,136..RHD..SCB..MTM..SA202402-202410
BLACK MATERIAL,WIRELESS DOOR LOCK-WITHOUT,DRIVER & PASSENGER
main69217-0K450iGUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,TGN120,136..RHD..SCB..MTM..SA202402-202410
BLACK MATERIAL,WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB,DRIVER & PASSENGER
main69217-0K450iGUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,TGN120,136..RHD..SCB..MTM..SA202402-202410
BLACK MATERIAL,EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT,DRIVER & PASSENGER
main69217-0K450iGUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,TGN120,136..RHD..SCB..MTM..SA202402-202410
BLACK MATERIAL,EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB,DRIVER & PASSENGER
BLACK MATERIAL,ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),PASSENGER SIDE
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH(PANIC BUTTON),PASSENGER SIDE
BLACK MATERIAL,PASSENGER SIDE
BLACK MATERIAL,DRIVER & PASSENGER
BLACK MATERIAL,WIRELESS DOOR LOCK-WITH,DRIVER SIDE
LESS COLOR,DRIVER SIDE
LESS COLOR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDEHANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,DRIVER SIDE
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
LESS COLOR,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)&DOOR OUTSIDEHANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY,PASSENGER SIDE
main69217-0K920iGUN126..6F..H..TH;GUN135..(H,S)..TH;GUN120,122,125..XTR..THP..(L,S)..CBU202308-202407
LESS COLOR,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATINUM WHITE PEARL MC.,089
PLATED,MLM ADVENTURE PACKAGE&DOOR OUTSIDE HANDLE-*BP,KEY CYLINDER DRIVER SIDE ONLY
PLATED
PLATED,MLM ADVENTURE PACKAGE
PLATED,WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
PLATED
main69210-0K200iGUN122..L..GCC;GUN135..(L,S)..TH;GUN120,122,125..THP..S;GUN11#,125,126,TGN11#,12#..GCC202308-202407
PLATED,DOOR OUTSIDE HANDLE-*CR
main69210-0K210iGUN135..SCB..THP;GUN112,12#,TGN110,121,126..THP..L..(ARL,GEN,IDN,LA,PH,TH)202308-202407
NO PAINT REQ.,DOOR OUTSIDE HANDLE-*MB,KEY CYLINDER DRIVER SIDE ONLY
NO PAINT REQ.
PLATED,DOOR OUTSIDE HANDLE-*CR,KEY CYLINDER DRIVER SIDE ONLY
PLATED,WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR OUTSIDE HANDLE-*CR,KEY CYLINDERDRIVER SIDE ONLY
PLATED
NO PAINT REQ.
NO PAINT REQ.
PAINT REQ.
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED,KEY CYLINDER DRIVER SIDE ONLY
69237ANUT, FRONT DOOR HANDLE
main69237-0E010iGUN126..6F..SA;GUN126,136..SCB..H;GUN122,125,135,LAN125,TGN120,121,136..SA202402-202410
MLM ADVENTURE PACKAGE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69255EPROTECTOR, DOOR OUTSIDE HANDLE, RH
main69255-0K050iGUN122..L..GCC;GUN125..LHD..L;GUN125..RHD..THP;GUN112,121,TGN120,121,XPN135..L;GUN120,122,126,13#,TGN110,126..ARL,BZAG,GEN,IDN,LA,PH,TH202308-202312
sub69255-0K051
main69255-0K081iGUN126..6F..SA;GUN125..RHD..SA;GUN125..LHD..L..SA;GUN126,136..SCB..H;GUN122,135,LAN125,TGN120,121,136..SA202402-202410
MLM ADVENTURE PACKAGE
69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH
WIRELESS DOOR LOCK-WITHOUT
sub69256-0K051
WIRELESS DOOR LOCK-WITHOUT
main69256-0K081iGUN125..LHD..S..SA;GUN125,135..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA202402-202410
WIRELESS DOOR LOCK-WITHOUT
main69256-0K081iGUN125..LHD..S..SA;GUN125,135..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA202402-202410
WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
main69256-0K081iGUN125..LHD..S..SA;GUN125,135..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA202402-202410
EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT
main69256-0K081iGUN125..LHD..S..SA;GUN125,135..SCB..L..SA;GUN122,LAN125,TGN121..LHD..SA202402-202410
EXPORT FROM SA&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-*MB
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
main69296-30010iGUN126..(AGTP,SAP)..6F;GUN126,136,TGN136..SCB..(5F,6FC)..SA;GUN122,125,135,LAN125,TGN12#..AGTP,SAP202311-202412
69310LOCK ASSY, FRONT DOOR, RH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITHOUT
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITHOUT
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
main69750-0K140iGUN126..S..SA;GUN125,135..L..SA;GUN125..LHD..S..SA;GUN122,LAN125,TGN121..LHD..SA202308-202412
9014850003
main90148-50003
9014860083
main90148-60083
90148T0015
main90148-T0015
90148T0018
main90148-T0018
90167T0027
main90167-T0027
90189T0005
main90189-T0005
9321914010
main93219-14010
38 parts on this diagram · 1 diagram in section
