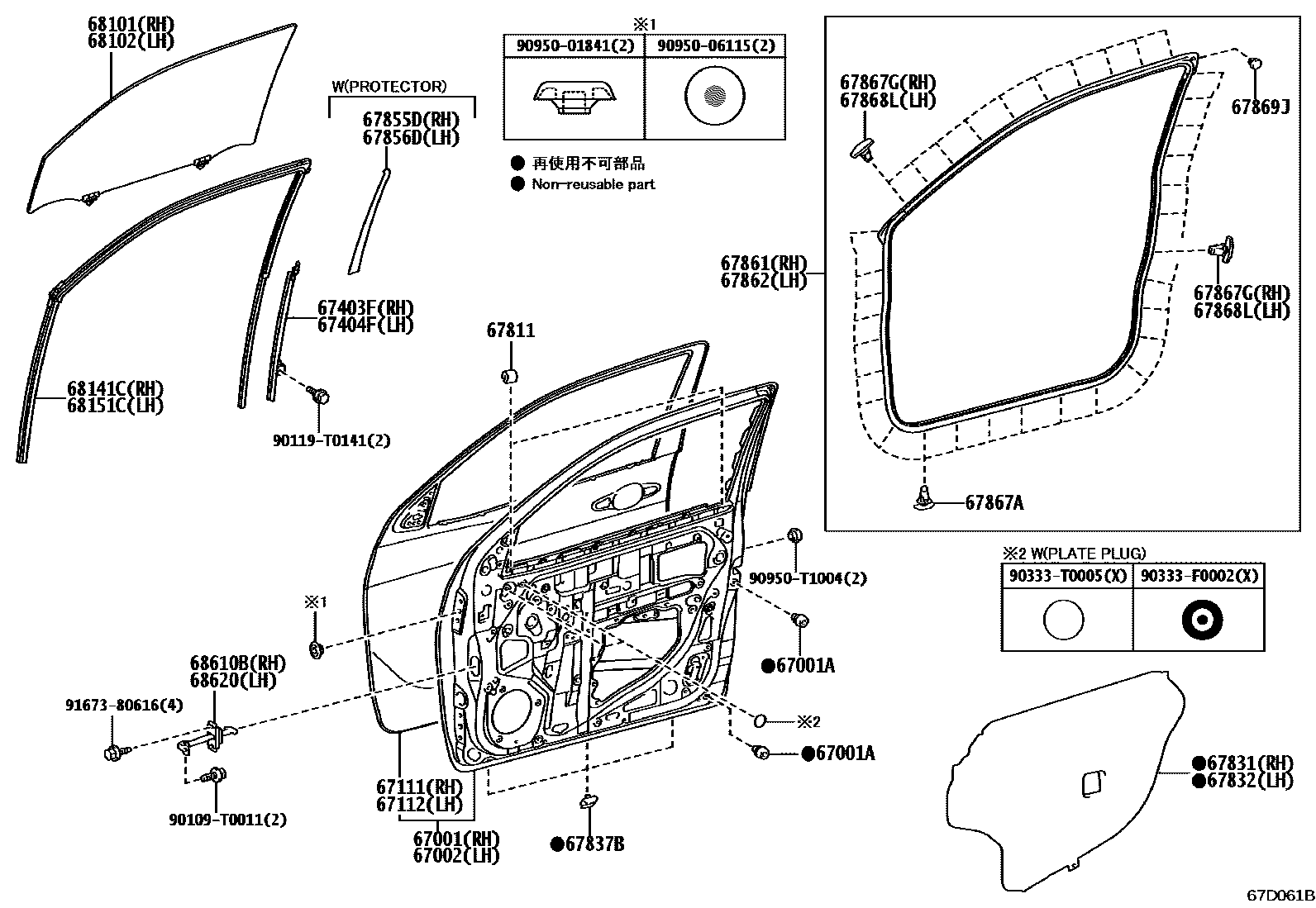

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM,W(POWER WINDOW) 0004 1DOOR TRIM,W/O(POWER WINDOW)

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-KK020iGUN122,126,TGN121..PKN202308

main67001-KK030iGUN120,122,125,126,13#..XTR..THP202308-202407

67001ACUSHION, FRONT DOOR PANEL

main90541-09131×2iGUN122,125,126,13#,LAN125,TGN12#,136..SCB..(AGTP,SAP); GUN125,126,13#..XTR..SA202308-202410

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-KK020iGUN125..MA202308-202408

main67002-KK030iGUN125,126,13#..XTR..SA202308-202410

67111PANEL, FRONT DOOR, OUTER RH

main67111-KK020iGUN11#,12#,135,TGN11#,12#,XPN135..SCB..THP202308-202407

main67111-KK030iGUN125,126,13#..XTR..SA202308-202410

67112PANEL, FRONT DOOR, OUTER LH

main67112-KK020iGUN11#,12#,135,TGN11#,12#,XPN135..SCB..THP202308-202407

main67112-KK030iGUN120,122,125,126,13#..XTR..THP202308-202407

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0K070iGUN122,126,TGN121..PKN202308

main67403-0K080iGUN125,126,135,TGN126,136..AGTP202311-202410

main67403-0K100iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202402-202410

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0K070iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

main67404-0K080iGUN125,126,135,TGN126,136..AGTP202311-202410

main67404-0K100iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202402-202410

67811PAD, FRONT DOOR SILENCER

main69759-0K030×4iGUN122,126,TGN121..PKN202308

main69759-0K060×4iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202402-202410

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0K130iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

main67831-0K180iGUN122,126,TGN121..PKN202412

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0K130iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

main67832-0K180iGUN122,126,TGN121..PKN202412

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K093×6iGUN120,122,125,126,135..XTR..TH; GUN126..ARL..CBU;GUN126..THP..(L,S);GUN125,136..THP..(ARL,GCC,GEN,IDN,LA);GUN11#,120,121,122,135,TGN11#,12#,XPN135..SCB..THP202308-202407

PLANT TMT

main67837-0K103×6iGUN125,135..KEN202402-202412

main67837-0K211×6iGUN125..MA202309-202408

67855DPROTECTOR, FRONT DOOR PANEL, RH

main67855-0K110iGUN126,136..SCB..SA;GUN122,125,135,LAN125,TGN120,121,136..KEN,SA202402-202410

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-0K070iGUN126,136..SCB..SA;GUN122,125,135,LAN125,TGN120,121,136..KEN,SA202402-202410

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0K130iGUN122,126,TGN121..PKN202308

main67861-0K140iGUN125,126,13#..XTR..SA202308-202410

main67861-0K170iGUN125,135..KEN202402-202412

main67861-0K180iGUN125,126,135,TGN126,136..AGTP202311-202410

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0K130iGUN11#,12#,135,TGN11#,12#,XPN135..SCB..THP202308-202407

main67862-0K140iGUN125,126,13#..XTR..SA202308-202410

main67862-0K170iGUN122,125,126,13#,LAN125,TGN120,121,136..SCB..SA202402-202410

main67862-0K180iGUN125,126,135,TGN126,136..AGTP202311-202410

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-12150×48iGUN125,135..KEN202308-202412

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52020×11iGUN125,135..KEN202308-202412

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52010×11iGUN125,126,13#..XTR..SA202308-202410

main67867-52030×11iGUN125..MA202308-202408

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-22030×2iGUN122,126,TGN121..PKN202308

main67869-26050×2iGUN120,122,125,126,13#..XTR..THP202308-202407

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0K221iGUN126..SCB..THP;GUN125,135..THP..L;GUN11#,120,121,122,TGN11#,12#,XPN135..THP202308-202407

main68101-0K230iGUN125..LHD..SCB..SA;GUN125..RHD..(KEN,SA);GUN122,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202402-202410

main68101-0K240iGUN125,126,135,TGN126,136..AGTP202311-202410

main68101-0K301iGUN125,126,13#..XTR..THP..(H,S)202308-202407

main68101-0K310iGUN125,126,13#..XTR..(H,S)..SA202402-202410

main68101-0K340iGUN125..MA202309-202408

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0K221iGUN122,126,TGN121..PKN202308

main68102-0K230iGUN125..LHD..SCB..SA;GUN125..RHD..(KEN,SA);GUN122,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202402-202410

main68102-0K240iGUN125,126,135,TGN126,136..AGTP202311-202410

main68102-0K301iGUN125,126,13#..XTR..THP..(H,S)202308-202407

main68102-0K310iGUN125,126,13#..XTR..(H,S)..SA202402-202410

main68102-0K340iGUN125..MA202309-202408

68141CRUN, FRONT DOOR GLASS, RH

main68141-0K080iGUN125..MA202308-202408

main68141-0K110iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202402-202410

main68141-0K120iGUN125,126,135,TGN126,136..AGTP202311-202410

68151CRUN, FRONT DOOR GLASS, LH

main68151-0K080iGUN125..MA202308-202408

main68151-0K110iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202402-202410

main68151-0K120iGUN125,126,135,TGN126,136..AGTP202311-202410

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0K091iGUN122,126,TGN121..PKN202308

main68610-0K100iGUN125,126,135,TGN126,136..AGTP202311-202410

main68610-0K110iGUN125,135..KEN202402-202412

68620CHECK ASSY, FRONT DOOR, LH

main68610-0K091iGUN122,126,TGN121..PKN202308

main68610-0K100iGUN125,126,135,TGN126,136..AGTP202311-202410

main68610-0K110iGUN125,135..KEN202402-202412

90109T0011

main90109-T0011

90119T0141

main90119-T0141

90333F0002

main90333-F0002

90333T0005

main90333-T0005

9095001841

main90950-01841

9095006115

main90950-06115

90950T1004

main90950-T1004

9167380616

main91673-80616

33 parts on this diagram · 4 diagrams in section
