REAR BODY GUARD FRAME & TAIL GATE

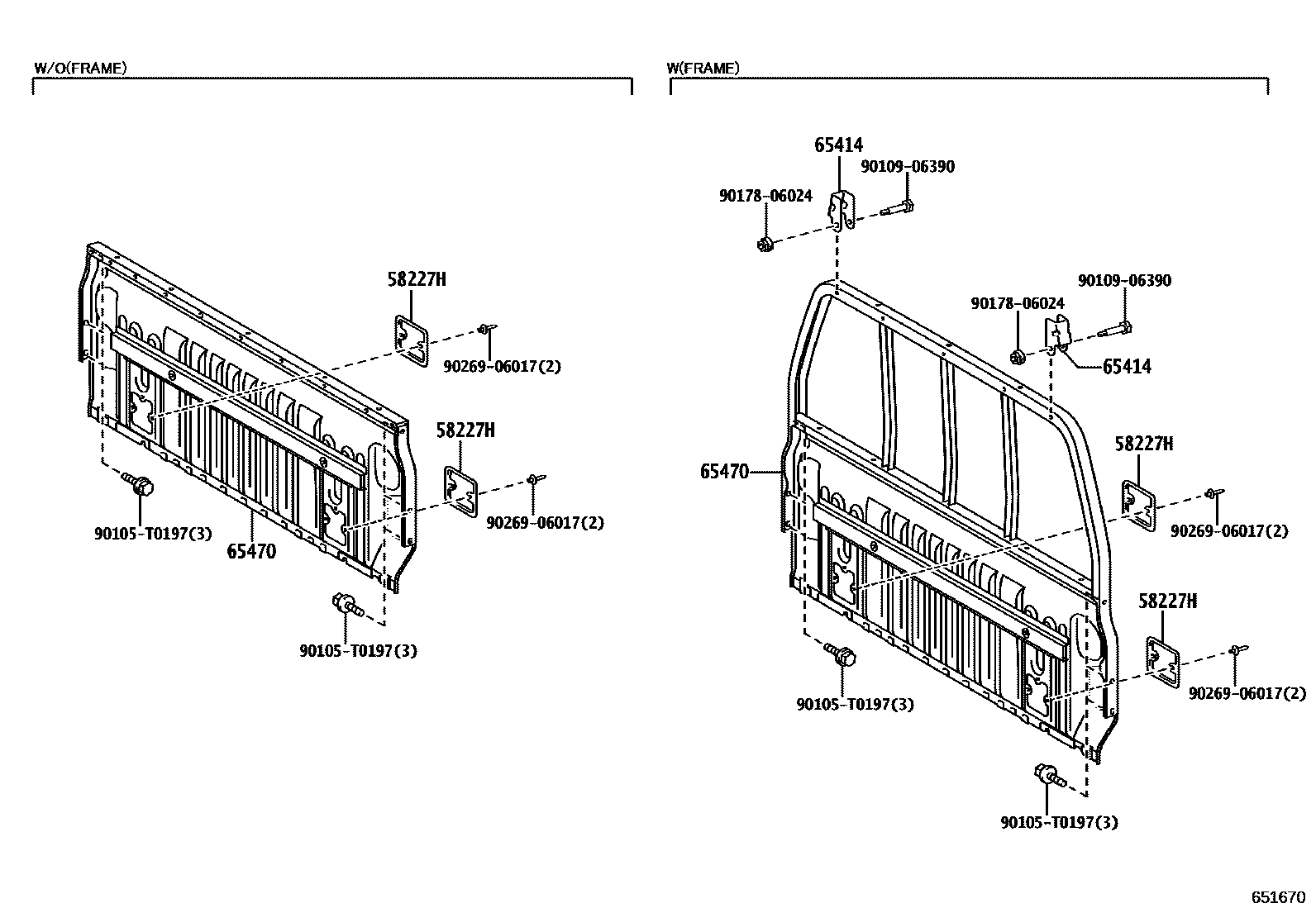

0001 1HEADER BOARD & GUARD FRAME 0002 1TAIL GATE(LATCH TYPE) 0003 1TAIL GATE(LOCK TYPE)

58227HCOVER, HEADER PANEL, NO.1

main58227-0K031iGUN11#,12#,13#,TGN11#,12#,XPN135..THP..CBU202308-202407

DECK GUARD FRAME-WITHOUT&TAIL GATE-WITHOUT

main58227-0K031iGUN125..MA202308-202412

65414STOPPER, GUARD FRAME

main65414-KK010iGUN112,125,TGN110..IDN;GUN120,122,XPN135..SCB..TH..CBU202308-202410

DECK GUARD FRAME-WITH(STOPPER)

main65414-KK010iGUN112,125,TGN110..IDN;GUN120,122,XPN135..SCB..TH..CBU202308-202407

DECK GUARD FRAME-WITHOUT&TAIL GATE-WITHOUT

main65414-KK010iGUN125..MA202308-202412

65470BOARD ASSY, HEADER

main65470-KK010iGUN120,122,125,126,13#..XTR..THP..CBU202308-202410

main65470-KK020iGUN120,122..SCB..TH..CBU202308-202407

DECK GUARD FRAME-WITHOUT

main65470-KK020iGUN135..SCB..(BZAG,SA)..CBU;GUN122,125,126,136,LAN125,TGN12#,136..SCB..(AGTP,SAP)..CBU202308-202410

main65470-KK030iGUN122..THP..5F..CBU;GUN11#,121,125,126,135,TGN11#,12#..SCB..THP..(GCC,GEN,LA,TH)..CBU202308-202407

DECK GUARD FRAME-WITHOUT&TAIL GATE-WITHOUT

main65470-KK030iGUN120,122..SCB..TH..CBU202308-202410

DECK GUARD FRAME-WITH(STOPPER)

main65470-KK030iGUN125..MA202308-202412

90105T0197

main90105-T0197

9010906390

main90109-06390

9017806024

main90178-06024

9026906017

main90269-06017

7 parts on this diagram · 3 diagrams in section
