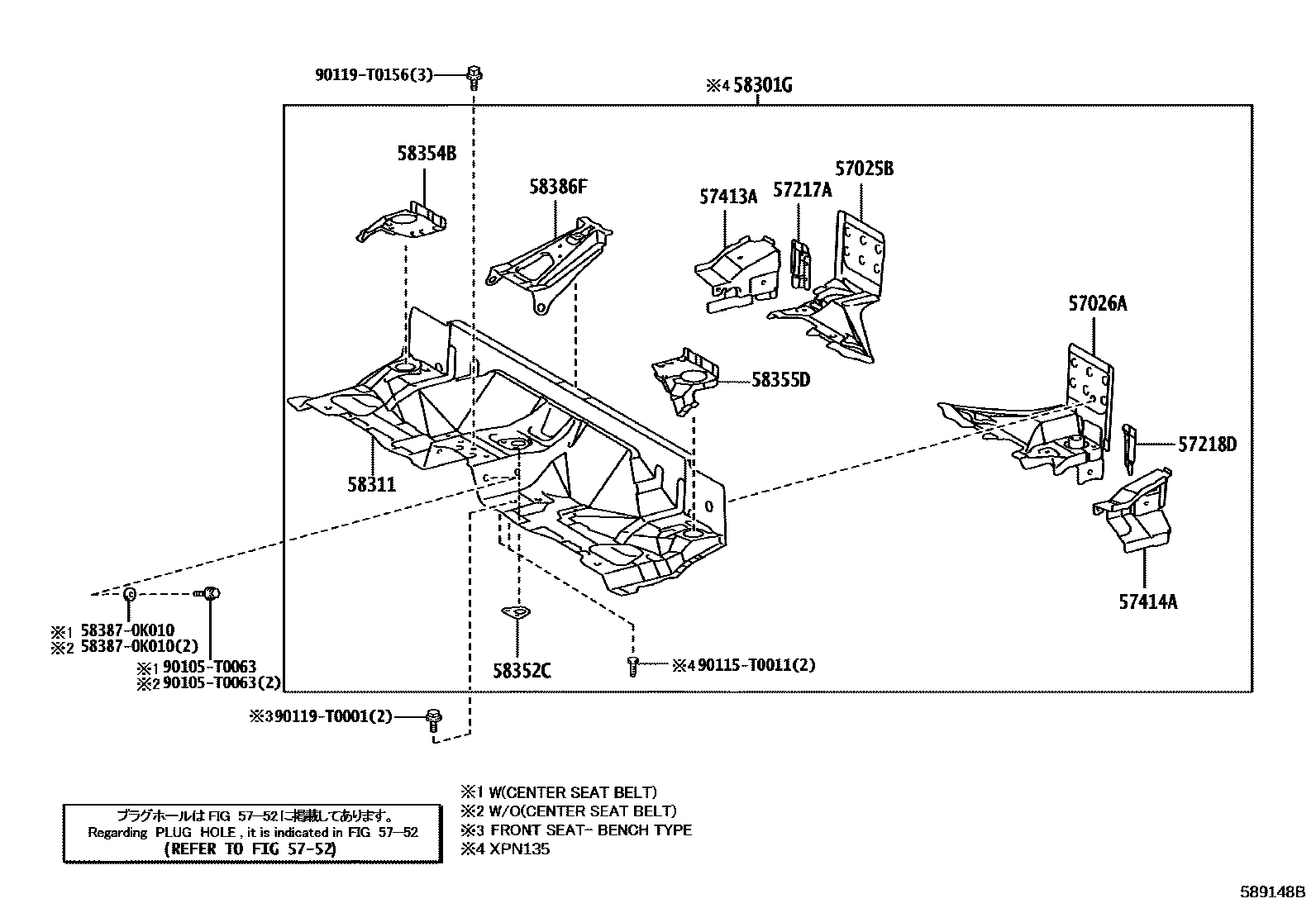

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57025BBRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH

main57025-KK010iGUN125..SCB..S;GUN125..SCB..(AGTP,SAP)..L;GUN122,126,13#,LAN125,TGN12#,136..SCB..(AGTP,SAP)202308-202410

57026ABRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH

main57026-KK010iGUN125..MA202308-202408

57217ABRACKET, BODY MOUNTING, NO.4 RH

main57217-0K020iGUN11#,12#,135,TGN11#,12#,XPN135..SCB..THP202308-202407

57218DBRACKET, BODY MOUNTING, NO.4 LH

main57218-0K020iGUN125..SCB..S;GUN125..SCB..(AGTP,SAP)..L;GUN122,126,13#,LAN125,TGN12#,136..SCB..(AGTP,SAP)202308-202410

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57403-KK030iGUN125,126,13#..XTR..SA202308-202410

main57413-KK030iGUN125..MA202308-202408

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57404-KK030iGUN125,126,13#..XTR..SA202308-202410

main57414-KK030iGUN125..MA202308-202408

5752HOLE PLUG

→ Go to FIG 57-52

58301GPAN SUB-ASSY, REAR FLOOR

main58301-KK440iXPN135202311-202407

58311PAN, REAR FLOOR

main58311-KK040iGUN122..S..IV3;TGN121..GEN..IV3;GUN112,125,TGN110..L..(GEN,IDN);GUN122,TGN111,121,126..LHD..(GCC,GEN)..CBU; GUN126..SCB..THP..6FC;GUN122,TGN121..RHD..(ARL,GEN);GUN120,125,135,XPN135..SCB..(ARL,TH);GUN126,TGN126..SCB..THP..MTM..(ARL,LA)202308-202407

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)

main58311-KK050iGUN125,135..LHD..THP..L;GUN11#,122,126,TGN11#,12#..LHD..MTM..(GCC,GEN,PH)202308-202407

main58311-KK060iGUN125..RHD..THP..L..CBU;GUN112,121,122,126,TGN110,121..SCB..MTM..(IDN,TH)202308-202407

main58311-KK080iGUN125,126,136..XTR..ARL; GUN125..S..GEN202308-202407

REAR SEAT-WITH(BACK PANEL CUSHION & SEAT CUSHION)

main58311-KK180iGUN125,126,13#..XTR..SA202308-202410

58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2

main58352-KK010iGUN125..MA202308-202408

58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4

main58354-0K050iGUN11#,12#,135,TGN11#,12#,XPN135..SCB..THP202308-202407

58355DREINFORCEMENT, REAR FLOOR PANEL, NO.5

main58355-0K050iGUN11#,12#,135,TGN11#,12#,XPN135..SCB..THP202308-202407

58386FGUSSET, LOWER BACK PANEL, NO.2

main58386-KK010iGUN11#,12#,135,TGN11#,12#,XPN135..SCB..THP202308-202407

583870K010PLATE, REAR FLOOR FINISH

main58387-0K010

90105T0063

main90105-T0063

90115T0011

main90115-T0011

90119T0001

main90119-T0001

90119T0156

main90119-T0156

18 parts on this diagram · 2 diagrams in section
