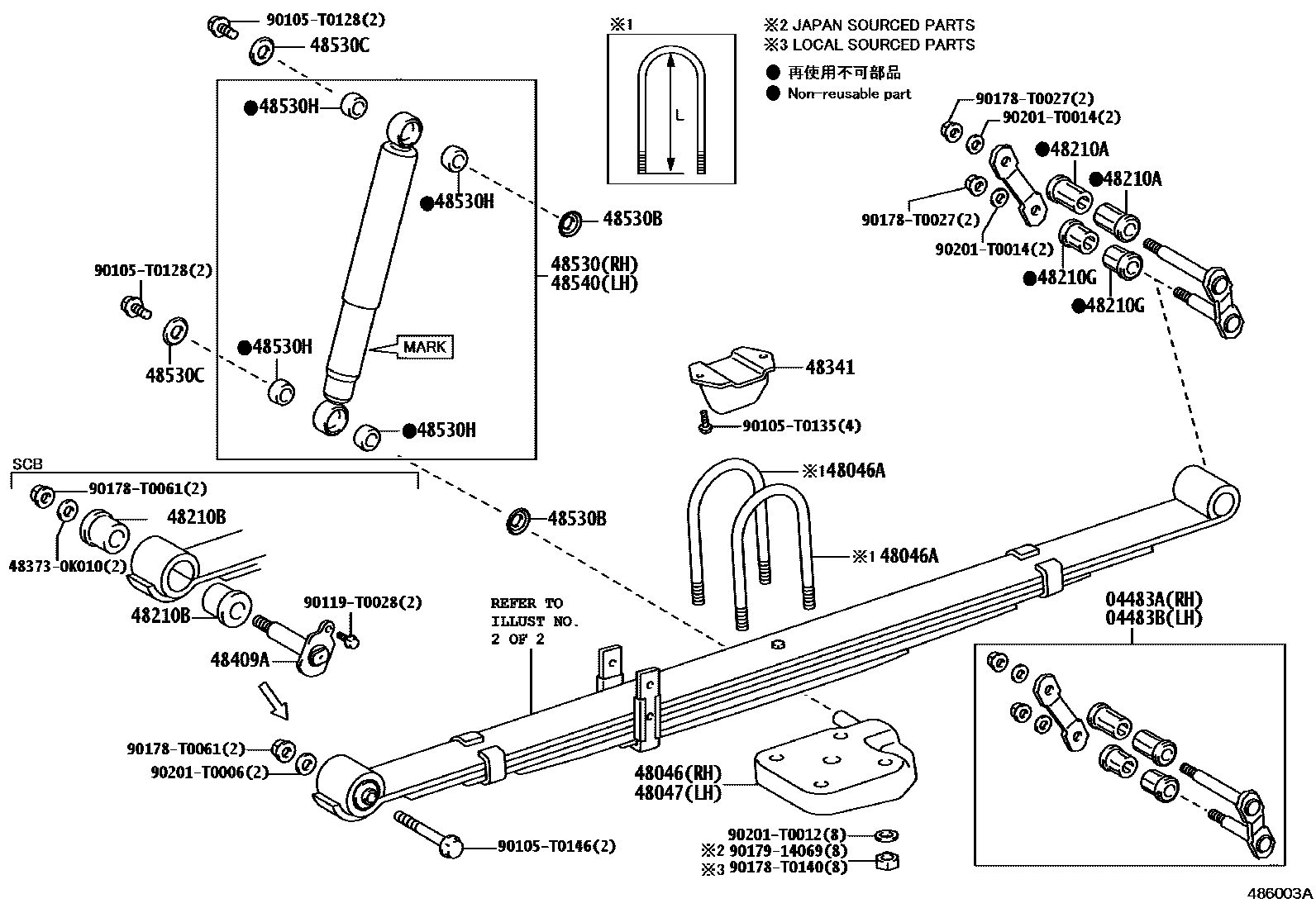

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 13-LEAF 0004 15-LEAF 0005 15-LEAF 0007 15-LEAF 0008 15-LEAF 0009 15-LEAF 0012 15-LEAF 0013 15-LEAF 0014 15-LEAF

04483ASHACKLE KIT, REAR SPRING, RH

main04483-KK030iGUN125,126,13#,LAN125,TGN136..SA202308-202410

main04483-KK060iGUN125,126,135,TGN126,136..AGTP202311-202410

main04483-KK080iGUN11#,120,121,122,TGN11#,120,121..THP202308-202407

main04483-KK090iGUN122,TGN120,121..SA202402-202410

04483BSHACKLE KIT, REAR SPRING, LH

main04483-KK030iGUN126..PKN202308

main04483-KK070iGUN125,126,135,TGN126,136..AGTP202311-202410

main04483-KK080iGUN11#,120,121,122,TGN11#,120,121..THP202308-202407

main04483-KK090iGUN122,TGN120,121..SA202402-202410

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-0K011iGUN122,TGN121..PKN202308

main48046-KK010iGUN125,135..KEN202308-202412

48046ABOLT, U(FOR REAR SPRING)

main90117-F0001×4iGUN125,135..KEN202402-202412

L=180

main90117-S0001×4iGUN125,126,135,TGN126,136..AGTP202311-202410

L=180

main90117-T0003×4iGUN122,TGN120,121..SA202308-202410

L=175

main90117-T0006×4iGUN125..MA202308-202408

L=180

main90117-T0008×4iGUN120,122..TH..IV3202308-202407

L=200,FLEXIBLE PACKAGE&REAR DECK-FLAT TYPE

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-0K011iGUN11#,120,121,122,TGN11#,120,121..THP202308-202407

main48046-KK010iGUN126..PKN202308

48210SPRING ASSY, REAR RH

main48210-0K440iGUN11#,TGN11#202308-202311

5-LEAF

main48210-0K450iGUN120,122..XTR202308-202407

5-LEAF

main48210-0K460iGUN122,TGN120,121..SA202402-202410

5-LEAF

main48210-0K500iGUN125,126,135,LAN125,TGN136..SCB..(L,S)..SA202402-202410

5-LEAF

main48210-0K830iGUN126,136..SCB..H202402-202410

5-LEAF

main48210-0KA80iGUN126..PKN202308

5-LEAF

main48210-0KB80iGUN125,126,135,TGN126,136..AGTP202311-202410

5-LEAF

main48210-0KC00iGUN125..MA202309-202408

5-LEAF

main48210-0KC20iGUN125,126,136..XTR..S..(ARL,GEN)202308-202407

5-LEAF,HEADLAMP-LED(MLM)

main48210-0KC30iGUN135..XTR..SA202402-202410

5-LEAF,HEADLAMP-LED(MLM)

main48210-0KC80iGUN125,126,136..XTR..(L,S)..(ARL,GEN)202308-202407

5-LEAF

main48210-0KC90iGUN125,135..XTR..SA202402-202410

5-LEAF

main48210-0KD60supersedes 48210-0KD70iGUN135..L..TH202308-202407

3-LEAF

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-T0014×4iGUN11#,120,121,122,TGN11#,120,121..THP202308-202407

main90385-T0020×4iGUN125,135..KEN202308-202412

48210BBUSH(FOR REAR SPRING PIN)

main90385-T0016×4iGUN11#,120,121,122,TGN11#,120,121..SCB..THP202308-202407

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-T0017×4iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,SAP202308-202410

48341BUMPER, REAR SPRING

main48341-0K090×2iGUN122,TGN120,121..SA202308-202410

48409APIN SUB-ASSY, REAR SPRING BRACKET

main48409-0K010×2iGUN11#,120,121,122,TGN11#,120,121..SCB..THP202308-202407

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-09B30iGUN120,122..XTR202308-202407

MARK 48531-0K530

main48531-09B40iGUN135..SCB..THP202308-202407

MARK 48531-0K610

main48531-09B80iGUN125..MA202309-202408

MARK 48531-0K870

main48531-8Z001iGUN11#,120,121,122,TGN11#,120,121..SCB..THP202308-202407

MARK 48531-0K500

main48531-8Z002iGUN122,TGN120,121..SA202402-202410

MARK 48531-0K540

main48531-8Z004iGUN122,TGN121..PKN202412

MARK 48531-0KB20

main48531-8Z005iGUN125,126,TGN126..SCB..THP202308-202407

MARK 48531-0K600

main48531-8Z007iGUN125,126,LAN125..SCB..SA202402-202410

MARK 48531-0K660

main48531-8Z008iGUN135..KEN202402-202412

MARK 48531-0K670

main48531-8Z017iGUN126..PKN202412

MARK 48531-0KB00

main48531-8Z019iGUN125,126,TGN126..AGTP202311-202410

MARK 48531-0K790

main48531-8Z020iGUN135,TGN136..AGTP202311-202410

MARK 48531-0K800

main48531-8Z024iGUN125,126..XTR..SA202402-202410

MARK 48531-0K590

main48531-8Z026iGUN13#..XTR..SA202402-202410

MARK 48531-0KA40

main48531-8Z031iGUN125,126..XTR..(ARL,GEN)202308-202407

MARK 48531-0K780

main48531-8Z032iGUN136,XPN135..THP202308-202407

MARK 48531-0KA50

main48531-8Z033iGUN125,126,135..XTR..TH202308-202407

MARK 48531-0KA60

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-F3001×4iGUN125,135..KEN202402-202412

MADE IN SOUTH AFRICA

main90948-T3001×4iGUN125,126,135,TGN126,136..AGTP202308-202410

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-F3002×4iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202402-202410

MADE IN SOUTH AFRICA

main90948-T3002×4iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202402-202410

MADE IN THAILAND

48530HBUSH, REAR SHOCK ABSORBER

main90385-T0019×8iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-09B30iGUN120,122..XTR202308-202407

MARK 48531-0K530

main48531-8Z001iGUN11#,120,121,122,TGN11#,120,121..SCB..THP202308-202407

MARK 48531-0K500

main48531-8Z002iGUN122,TGN120,121..SA202402-202410

MARK 48531-0K540

main48531-8Z004iGUN122,TGN121..PKN202412

MARK 48531-0KB20

main48531-8Z032iXPN135202311-202407

MARK 48531-0KA50

main48541-09210iGUN135..SCB..THP202308-202407

MARK 48541-0K140

main48541-09250iGUN125..MA202309-202408

MARK 48541-0K340

main48541-09280iGUN125,126,TGN126..SCB..THP202308-202407

MARK 48541-0K130

main48541-09300iGUN125,126,LAN125..SCB..SA202402-202410

MARK 48541-0K190

main48541-09310iGUN13#,TGN136..SCB..SA202402-202410

MARK 48541-0K200

main48541-09341iGUN125,126,TGN126..AGTP202311-202410

MARK 48541-0K260

main48541-09351iGUN135,TGN136..AGTP202311-202410

MARK 48541-0K270

main48541-09400iGUN126..PKN202412

MARK 48541-0K400

main48541-09430iGUN125,126..XTR..SA202402-202410

MARK 48541-0K390

main48541-09450iGUN13#..XTR..SA202402-202410

MARK 48541-0K460

main48541-09500iGUN125,126..XTR..(ARL,GEN)202308-202407

MARK 48541-0K430

main48541-09510iGUN136..ARL202308-202407

MARK 48541-0K470

main48541-09520iGUN125,126,135..XTR..TH202308-202407

MARK 48541-0K480

483730K010SPACER, REAR SPRING

main48373-0K010

90105T0128

main90105-T0128

90105T0135

main90105-T0135

90105T0146

main90105-T0146

90119T0028

main90119-T0028

90178T0027

main90178-T0027

90178T0061

main90178-T0061

90178T0140

main90178-T0140

9017914069

main90179-14069

90201T0006

main90201-T0006

90201T0012

main90201-T0012

90201T0014

main90201-T0014

28 parts on this diagram · 11 diagrams in section
