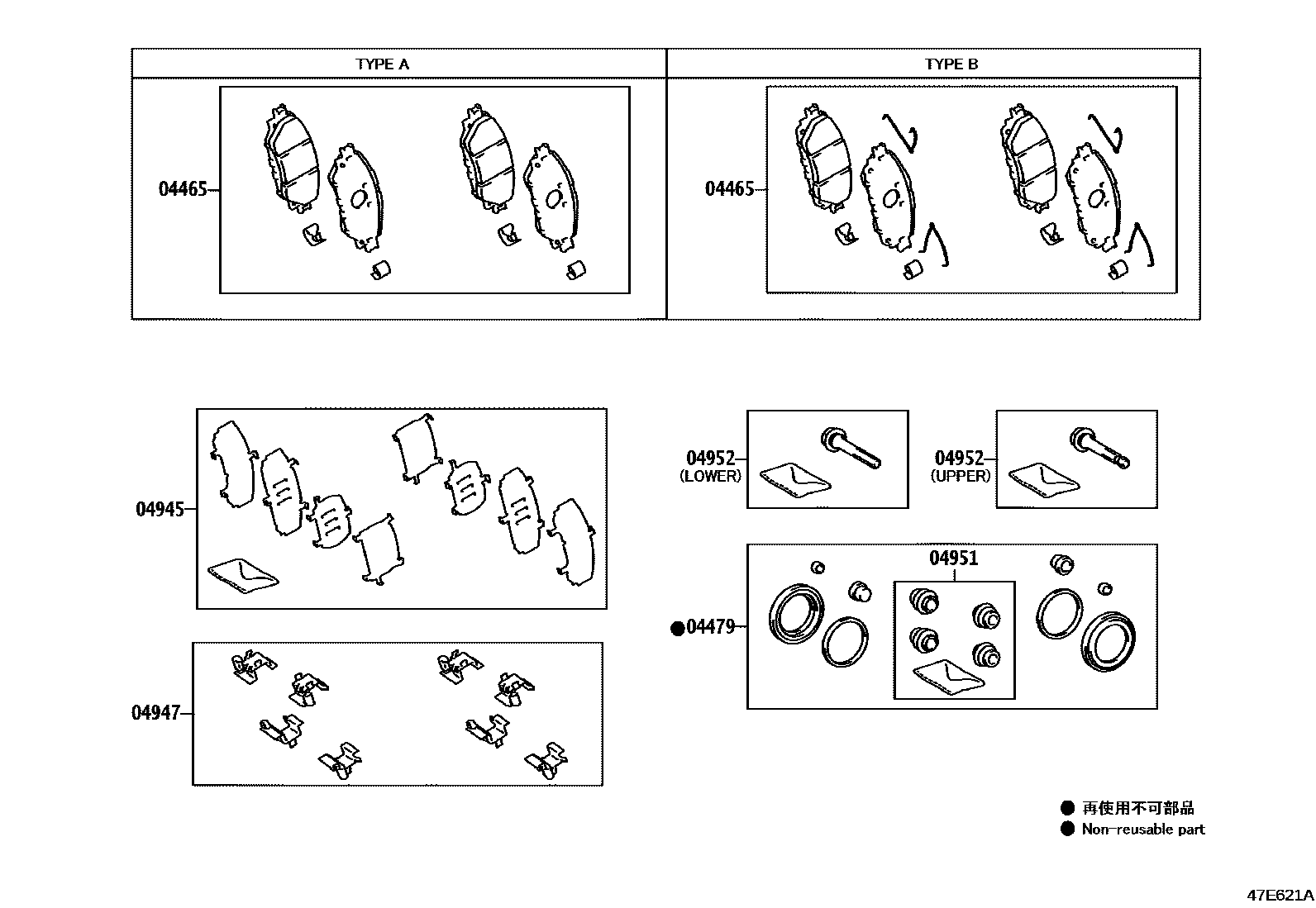

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK ADVICS PS558H,PNC 04945=TYPE A
main04465-0K391iGUN125,135,TGN126..THP..LA202308-202407 MARK AK NS265H,COSTA RICA SPEC,PNC 04945=TYPE B
main04465-0K401iGUN125,126,135,TGN126,136..AGTP202311-202410 MARK AK NS265H,PNC 04945=TYPE B
main04465-0K420supersedes 04465-0K610iGUN112,122..GEN,IDN202308-202407 MARK ADVICS VC060H,TYPE A:REFER ILLUST.
MARK ADVICS PS558H,PNC 04945=TYPE C
main04465-0K610supersedes 04465-0K420iTGN121..GEN202308-202407 MARK ADVICS VC084H,TYPE B:REFER ILLUST.
04479CYLINDER KIT, DISC BRAKE, FRONT
main04478-0K170iGUN11#,120,121,122,TGN11#,120,121..THP202308-202407 main04478-0K221iGUN125,126,135,TGN126,136..AGTP202311-202410 04945SHIM KIT, ANTI SQUEAL, FRONT
main04945-0K280supersedes 04945-0K321iGUN112,122..GEN,IDN202308-202407 VSC-WITHOUT
main04945-0K321supersedes 04945-0K280iGUN112,120,121,122,TGN121..TH202308-202407 CENTRAL AND SOUTH AMERICA SPEC&VSC-WITHOUT
main04945-0K341iGUN125,135,TGN126..THP..LA202308-202407 CENTRAL AND SOUTH AMERICA SPEC,TYPE B:REFER ILLUST.
04947FITTING KIT, DISC BRAKE, FRONT
main04947-0K110iGUN125,135,TGN126..THP..LA202308-202407 TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-205R16C STEEL,TYPE B:REFER ILLUST.
main04947-71010iGUN125,126,135,TGN126,136..AGTP202311-202410 TYPE A:REFER ILLUST.
04951BUSH KIT, DISC BRAKE, FRONT
04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
main04952-0K030×2iGUN11#,120,121,122,TGN11#,120,121..THP202308-202407 UPPER SIDE
6 parts on this diagram · 4 diagrams in section
