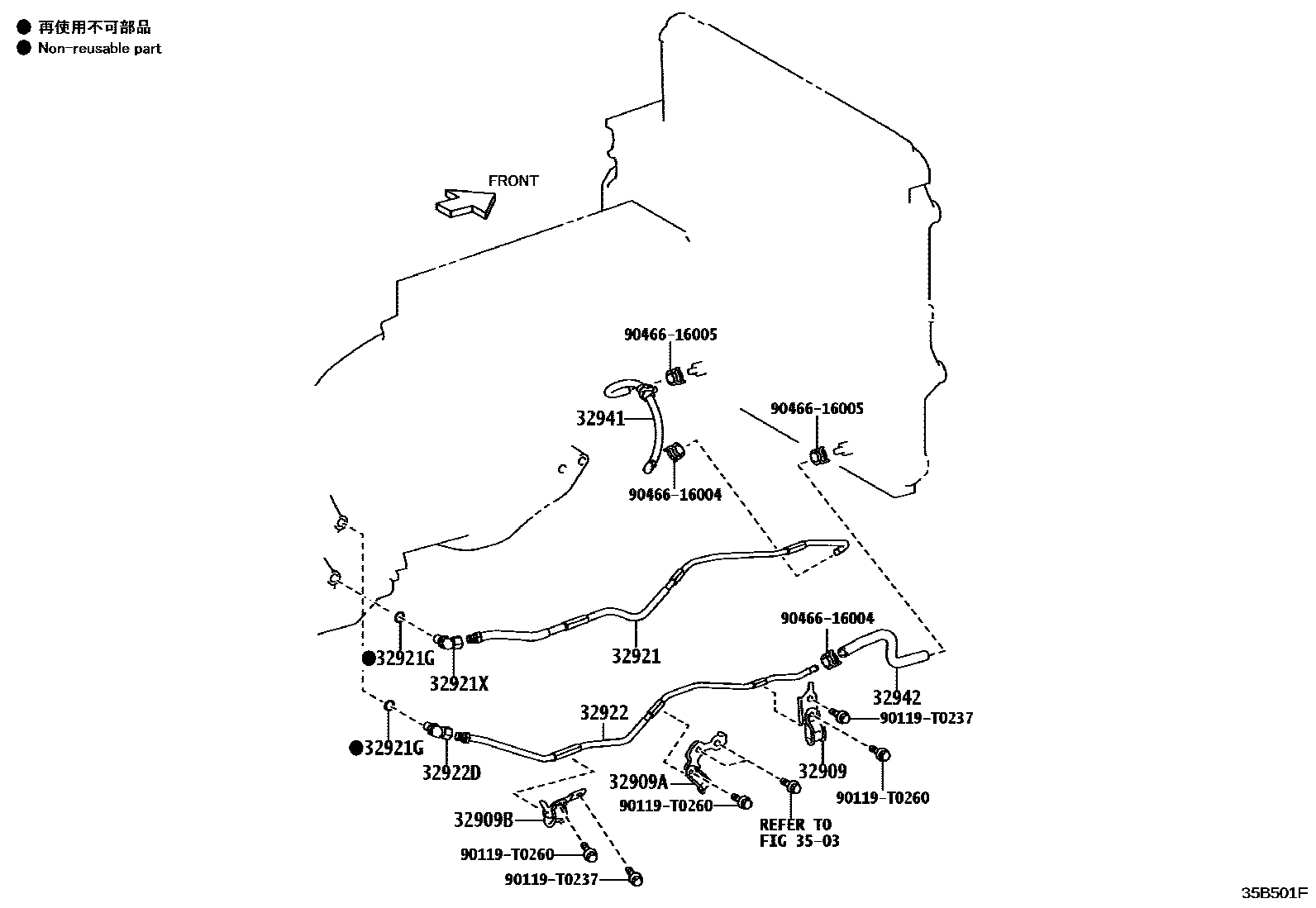

OIL COOLER & TUBE (ATM)

0001 1AC60E,AC60F 0002 1AC60E

32909CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1

main32909-KK030iGUN120,125,126,13#..THP..6FC202308-202407

main32909-KK090iTGN121..6FC202308-202407

32909ACLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.2

main32909-KK020iGUN125,126,13#..6FC..SA202308-202410

main32909-KK080iTGN121..6FC202308-202407

32909BCLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.3

main32909-KK010iGUN125,126,13#..6FC..SA202308-202410

main32909-KK070iTGN121..6FC202308-202407

32921TUBE, OIL COOLER INLET, NO.1

main32921-0K090iGUN120,125,126,13#..THP..6FC202308-202407

main32921-0K110iTGN121..6FC202308-202407

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iGUN126,135..THP..6FC; GUN126..6FC..(GCC,TH);GUN135..6FC..(L,S)..TH202308-202407

TOYOTA STOP & START SYSTEM-WITH,TYPE A:REFER 35-01; TYPE A:REFER 35-01

main90301-T0069×2iGUN120,125,126,13#,TGN121..THP..6FC202308-202407

TYPE B:REFER 35-01

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-16009iGUN120,125,126,13#,TGN121..THP..6FC202308-202407

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0K090iGUN125,126,13#..6FC..SA202308-202410

main32922-0K110iTGN121..6FC202308-202407

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-16009iGUN120,125,126,13#,TGN121..THP..6FC202308-202407

32941HOSE, OIL COOLER INLET, NO.1

main32941-0K010iGUN120,125,126,13#..THP..6FC202308-202407

main32941-0K030iTGN121..6FC202308-202407

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0K010iGUN125,126,13#..6FC..SA202308-202410

main32942-0K060iTGN121..6FC202308-202407

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

90119T0237

main90119-T0237

90119T0260

main90119-T0260

9046616004

main90466-16004

9046616005

main90466-16005

15 parts on this diagram · 2 diagrams in section
