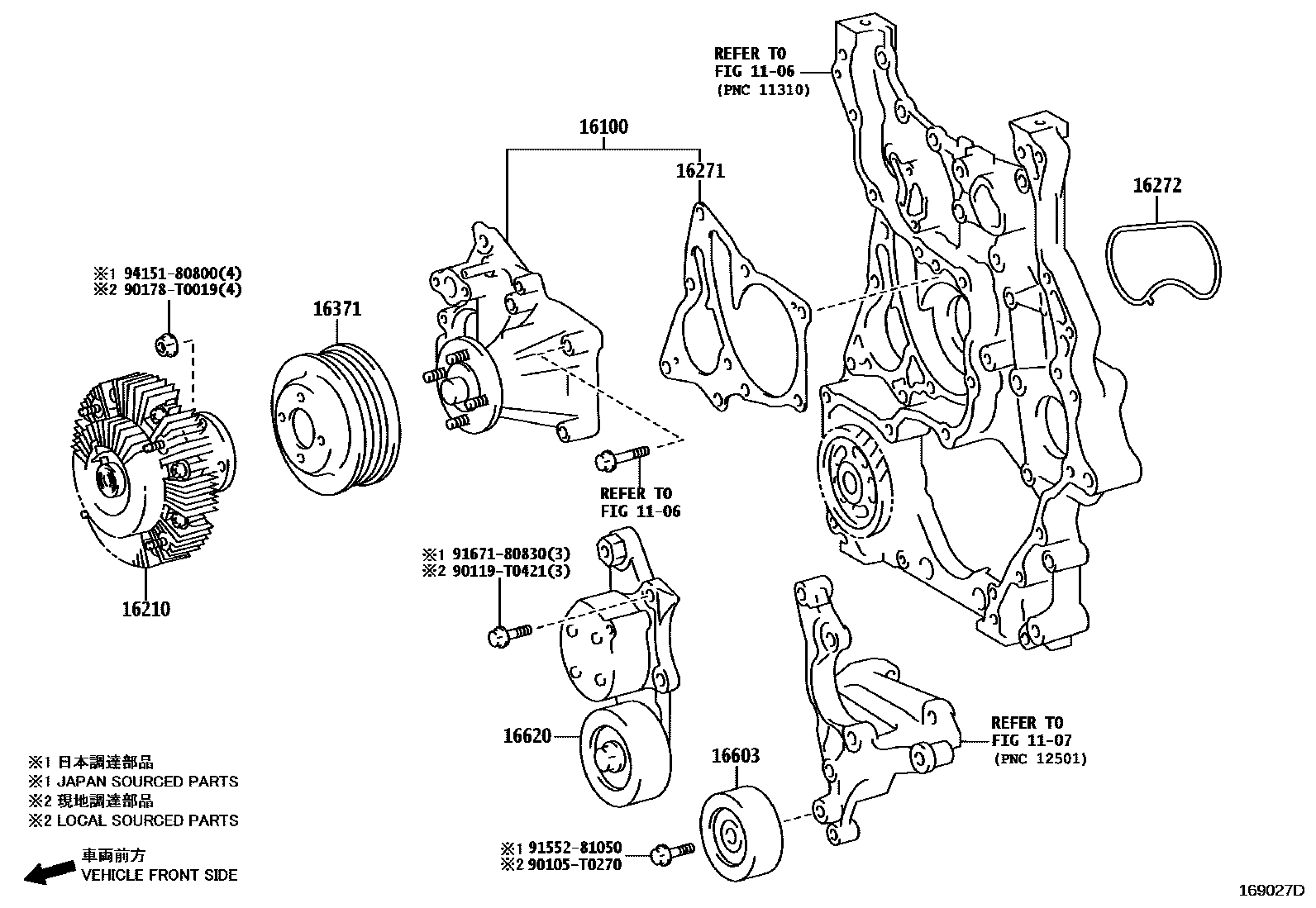

WATER PUMP
1106TIMING GEAR COVER & REAR END PLATE
1107MOUNTING
16100PUMP ASSY, ENGINE WATER
main16100-09460i1TRFE,2TRFE..TGN11#,12#..THP; 1TRFE,2TRFE..TGN111,12#..GCC..CBU; 2TRFE..TGN121,126..GCC..CBU; 2TRFE..TGN121,126..S; 2TRFE..TGN121..TH; 2TRFE..TGN126..S;2TRFE..TGN121..L..GCC..CBU202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
16210COUPLING ASSY, FLUID
main16210-0C010i1TRFE,2TRFE..TGN11#,12#..THP; 1TRFE,2TRFE..TGN111,12#..GCC..CBU; 2TRFE..TGN121,126..GCC..CBU; 2TRFE..TGN121,126..S; 2TRFE..TGN121..TH; 2TRFE..TGN126..S;2TRFE..TGN121..L..GCC..CBU202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS); IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
main16210-0E010i2GDFTV..GUN112..L..GCC; 2GDFTV..GUN112..L..GCC;2GDFTV..GUN122..GCC..CBU; 2GDFTV..GUN122..GCC..CBU; 2GDFTV..GUN122..L..GCC; 2GDFTV..GUN122..LHD..GEN; 2GDFTV..GUN125..ARL,GEN;2GDFTV..GUN122..RHD..GEN;2GDFTV..GUN135..SCB..THP; 2GDFTV..GUN125..THP..LA;2GDFTV..GUN122..LHD..GEN202308-202407
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT; CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT; EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT; IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT; JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT; SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT; SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT
main16210-0E020i2GDFTV..GUN120,125,135..TH; 2GDFTV..GUN122..LHD..GEN;2GDFTV..GUN125..THP..(GCC,IDN,LA,TH);2GDFTV..GUN112,120,122,135..GCC,IDN,PH,TH; 2GDFTV..GUN125..GCC; 2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..RHD..GEN; 2GDFTV..GUN125..S..GEN202308-202407
CAMBODIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
16271GASKET, WATER PUMP
THA SOURCED PARTS
IND SOURCED PARTS
main16271-11010i2GDFTV..GUN120,125,135..GCC,TH; 2GDFTV..GUN120,125,135..TH; 2GDFTV..GUN125..GCC202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
16272GASKET, WATER PUMP, NO.2
THA SOURCED PARTS
IND SOURCED PARTS
main16272-11010i2GDFTV..GUN120,125,135..GCC,TH; 2GDFTV..GUN120,125,135..TH; 2GDFTV..GUN125..GCC202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
16371PULLEY, FAN
(L)
main16371-0C010i1TRFE,2TRFE..TGN11#,12#..THP; 1TRFE,2TRFE..TGN111,12#..GCC..CBU; 2TRFE..TGN121,126..GCC..CBU; 2TRFE..TGN121,126..S; 2TRFE..TGN121..TH; 2TRFE..TGN126..S;2TRFE..TGN121..L..GCC..CBU202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THASOURCED PARTS; IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; IRAQ SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS; THA SOURCED PARTS; UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS),IDN SOURCED PARTS; IDN SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
main16371-11010i2GDFTV..GUN120,125,135..GCC,TH; 2GDFTV..GUN120,125,135..TH; 2GDFTV..GUN125..GCC202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
(J)
16603PULLEY SUB-ASSY, IDLER, NO.1
main16603-0C013i1GDFTV..GUN126..TH;2GDFTV..GUN122..LHD..GEN;2GDFTV..GUN125..THP..(GCC,IDN,LA,TH);1GDFTV,2GDFTV..GUN112,120,121,122,135..GCC,IDN,PH,TH; 2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..RHD..GEN; 2GDFTV..GUN125..S..GEN202308-202407
CAMBODIA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA, NO PAINTED; COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA, NO PAINTED; EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA, NO PAINTED; THA, NO PAINTED
main16603-0E010i1TRFE,2TRFE..TGN11#,12#..THP; 2GDFTV..GUN112..L..GCC; 2GDFTV..GUN112..L..GCC;2GDFTV..GUN122..GCC..CBU; 2GDFTV..GUN122..GCC..CBU; 2GDFTV..GUN122..L..GCC; 2GDFTV..GUN122..LHD..GEN; 2GDFTV..GUN125..ARL,GEN;2GDFTV..GUN122..RHD..GEN;1GDFTV,2GDFTV..GUN111,126,13#..THP..(ARL,GCC,LA); 2GDFTV..GUN125..THP..LA;2GDFTV..GUN122..LHD..GEN202308-202407
(L); ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED; CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED; EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED; IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED; JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED; SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED; SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,THA, BLACK PAINTED; THA, BLACK PAINTED
main16603-31040i2GDFTV..GUN120,125,135..GCC,TH; 2GDFTV..GUN120,125,135..TH; 2GDFTV..GUN125..GCC202308-202407
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS; JAPAN SOURCED PARTS; SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
(J)
16620TENSIONER ASSY, V-RIBBED BELT
(L)
main16620-0E020i2GDFTV..GUN125..AGTP..LA; 2GDFTV..GUN125..L..SA;2GDFTV..GUN122..LHD..SA;2GDFTV..GUN125..LHD..S..SA;1GDFTV..GUN126..SCB..6F..(BZAG,SA);1GDFTV,2GDFTV..GUN125,126,13#..6FC..SA;2GDFTV..GUN135..(AGTP,SAP)..L..(LA,SA)202308-202410
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,WATER PROOF SPEC; WATER PROOF SPEC
main16620-11010i2GDFTV..GUN120,125,135..GCC,TH; 2GDFTV..GUN120,125,135..TH; 2GDFTV..GUN125..GCC202308-202407
(J); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); GCC SPEC EURO4 2022MY&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J); SAUDI ARABIA SPEC&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),(J)
90105T0270
main90105-T0270
90119T0421
main90119-T0421
90178T0019
main90178-T0019
9155281050
main91552-81050
9167180830
main91671-80830
9415180800
main94151-80800
15 parts on this diagram · 3 diagrams in section
