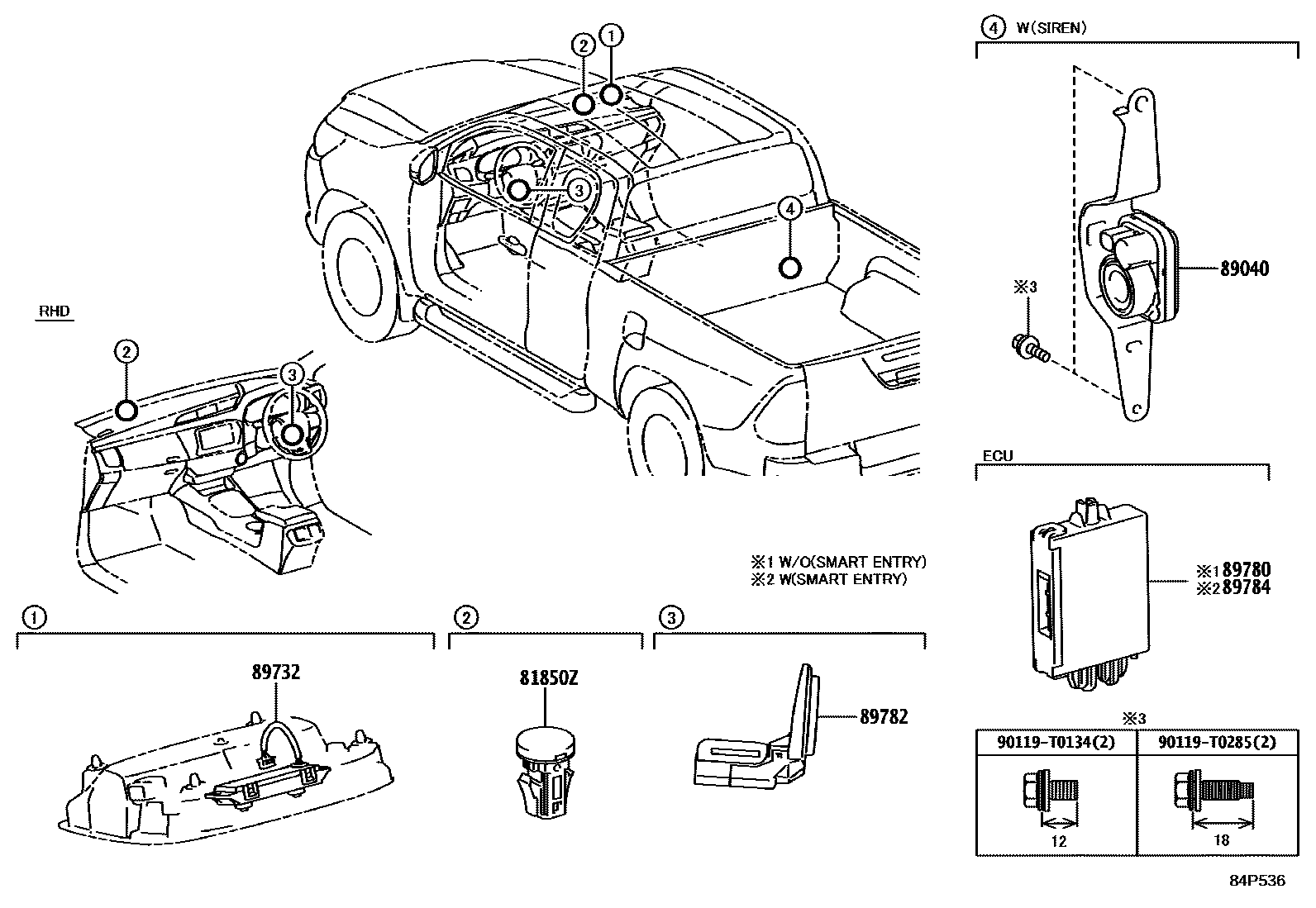

ANTI-THEFT DEVICE
81850ZLAMP ASSY, THEFT WARNING INDICATOR
89040SIREN ASSY, THEFT WARNING
main89040-0K020iGUN122,LAN125,TGN121..LHD..SA; GUN125,135..RHD..SCB..L..SA; GUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,136,TGN120,136..RHD..SA202301-202401
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
89732SENSOR, THEFT WARNING RADAR
main89732-71020iGUN122..SA..IV3; GUN125,135..RHD..S..SA;GUN126,136,TGN120,136..SA; GUN125..LHD..S..SA;GUN122..RHD..SA..CBU202301-202401
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN & *IS); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN & *IS)&FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
89780COMPUTER ASSY, TRANSPONDER KEY
89782COIL, TRANSPONDER KEY
main89782-0K110iTGN126..IV3;GUN122..LHD..THP..L;GUN135,TGN110,126..THP..(IDN,LA);GUN112,125,TGN120,121..THP..MTM..L..(GCC,GEN,IDN,LA)202208-202307
main89782-0K130iGUN125..ARL,TH;GUN112,122,125,TGN121..LHD..THP..S;GUN112,122,TGN121..RHD..(ARL,GEN,TH);GUN125,TGN126..(5F,6FC)..(GCC,GEN)..CBU;GUN111,120,121,126,13#,TGN11#..(L,S)..(ARL,GCC,TH); TGN126..THP..LA;TGN121,126..GCC..IV3;GUN125..RHD..6F..GEN;GUN125..THP..(GCC,LA);GUN112,122,135,TGN120..LHD..THP..L..(GCC,GEN,LA)202208-202307
WIRELESS DOOR LOCK-WITH
main89782-0K150iGUN126..6F..SA;GUN125,135..S..SA;GUN125..XTR..L..CBU;GUN122,126,136,TGN120,136..RHD..SCB..(5F,6FC)..SA202211-202401
89784COMPUTER, IMMOBILIZER CODE
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
90119T0134
main90119-T0134
90119T0285
main90119-T0285
8 parts on this diagram · 1 diagram in section
