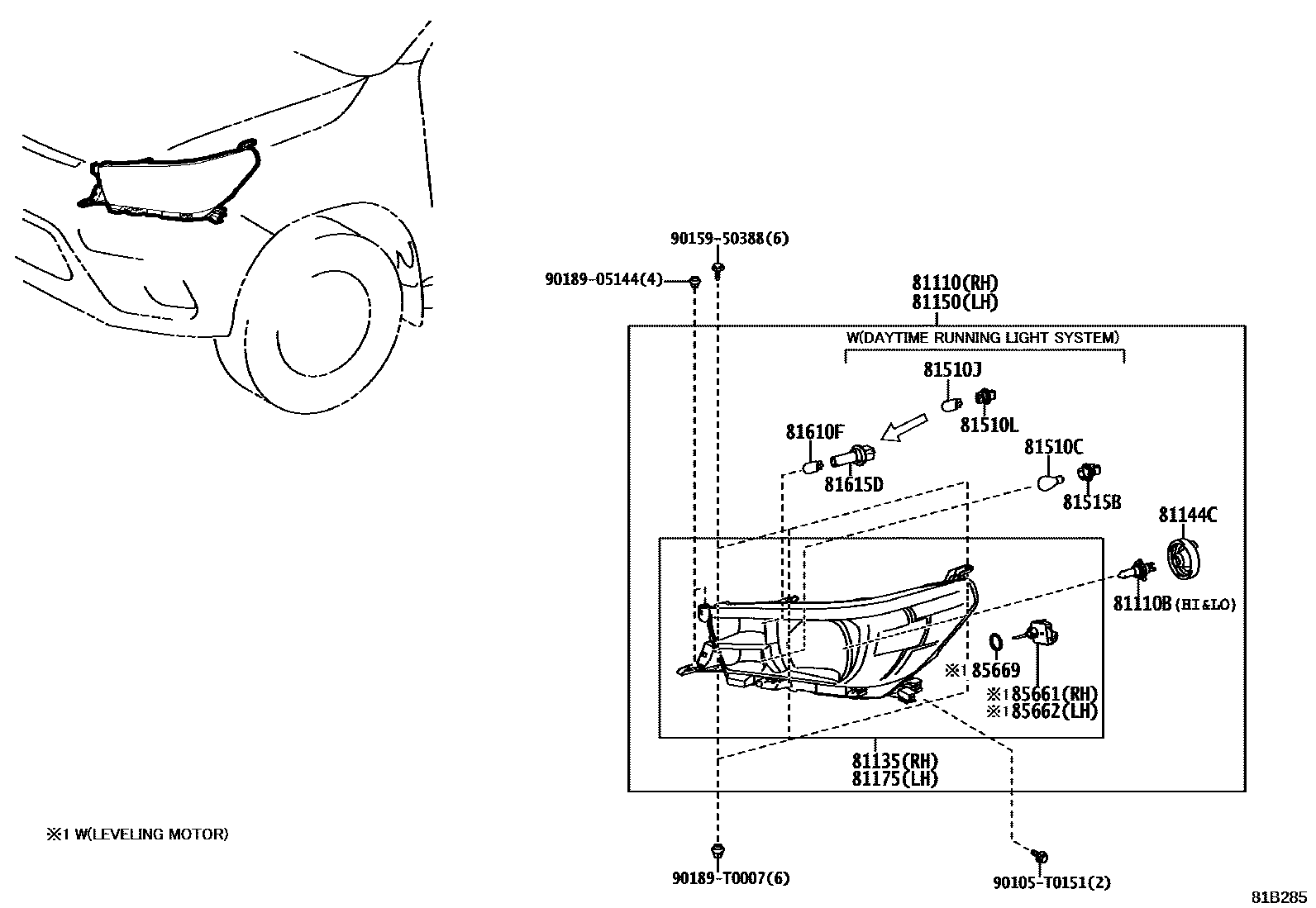

HEADLAMP
81110HEADLAMP ASSY, RH
main81110-0K652iGUN125..RHD..THP..6F..L..CBU;GUN112,120,121,122,126,TGN110,121..RHD..L..(GEN,IDN,PKN,TH)202208
main81110-0K662iGUN11#,122,126,TGN11#,120,126..GCC,PH;GUN125,135,TGN121,136..LHD..SCB..(GCC,GEN,LA)202208-202310
main81110-0K692supersedes 81110-0K832iGUN122..LHD..GEN;GUN125,126,135,TGN136..BZAG; TGN126..LA202208-202310
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
NIGERIA SPEC
main81110-0K772iGUN135..RHD..SCB..L..CBU;GUN122,125,126,TGN120..RHD..SCB..(L,S)..(KEN,SA)202301-202403
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main81110-0KK70iGUN125..RHD..6F..S..SA; GUN125..XTR..L..CBU;GUN135,TGN136..S..SA; GUN126..S..SA;GUN125..6FC..SA202301-202401
FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
DAYTIME RUNNING LIGHT SYSTEM-WITH
ALGERIA SPEC (EURO 3 REGULATION)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO)
main81110-0K832iGUN122..GCC;GUN112,TGN111..S;TGN121..GEN..IV3;GUN125..LHD..L..GEN;TGN121,126..(GCC,GEN)..CBU; GUN122..LHD..GEN202208-202307
DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP-4-BULB HALOGEN MULTI
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&DAYTIME RUNNING LIGHT SYSTEM-WITH; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&DAYTIME RUNNING LIGHT SYSTEM-WITH
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED
main81110-YP061iGUN120,122..S..TH; GUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,126..L..TH; GUN120,122..XTR..L202301-202307
COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); FRONT BUMPER-PAINTED(MLM)&HEADLAMP-4-BULB HALOGEN MULTI; FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW MEHOME)
main81110-YP151iGUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,TGN121..TH; GUN120,122..XTR..L202208-202307
COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM); POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)
MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
81110BBULB(FOR HEADLAMP, NO.1)
main90981-13058×2iGUN135,TGN136..SCB..L;GUN11#,120,121,122,LAN125,TGN11#,12#;GUN125,126..SCB..(AGTP,KENP,PKNP,SAP,THP)..(L,S)202208
12V 60/55W,HALOGEN
main90981-13099×2iGUN120,122..XTR..L;GUN125..RHD..6F..S..SA; GUN135..L..TH;GUN13#,TGN136..S..(ARL,SA);GUN125,126..XTR..(L,S)..(ARL,GEN,SA)202208-202401
12V 65W(SAE),60W(UN); 12V 65W(SAE),60W(UN),FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
81135UNIT ASSY, HEADLAMP, RH
main81130-0K652iGUN125..RHD..THP..6F..L..CBU;GUN112,120,121,122,126,TGN110,121..RHD..L..(GEN,IDN,PKN,TH)202208
main81130-0K662iGUN11#,122,126,TGN11#,120,126..GCC,PH;GUN125,135,TGN121,136..LHD..SCB..(GCC,GEN,LA)202208-202310
main81130-0K692supersedes 81130-0K832iGUN122..LHD..GEN;GUN125,126,135,TGN136..BZAG; TGN126..LA202208-202310
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
NIGERIA SPEC
main81130-0K772iGUN135..RHD..SCB..L..CBU;GUN122,125,126,TGN120..RHD..SCB..(L,S)..(KEN,SA)202301-202403
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main81130-0KK70iGUN125..RHD..6F..S..SA; GUN125..XTR..L..CBU;GUN135,TGN136..S..SA; GUN126..S..SA;GUN125..6FC..SA202301-202401
FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
DAYTIME RUNNING LIGHT SYSTEM-WITH
ALGERIA SPEC (EURO 3 REGULATION)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO)
main81130-0K832iGUN122..GCC;GUN112,TGN111..S;TGN121..GEN..IV3;GUN125..LHD..L..GEN;TGN121,126..(GCC,GEN)..CBU; GUN122..LHD..GEN202208-202307
DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
DAYTIME RUNNING LIGHT SYSTEM-WITH
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&DAYTIME RUNNING LIGHT SYSTEM-WITH; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&DAYTIME RUNNING LIGHT SYSTEM-WITH
main81130-YP060iGUN120,122..S..TH; GUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,126..L..TH; GUN120,122..XTR..L202301-202307
COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); FRONT BUMPER-PAINTED(MLM)&HEADLAMP-4-BULB HALOGEN MULTI; FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW MEHOME)
main81130-YP150iGUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,TGN121..TH; GUN120,122..XTR..L202208-202307
COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM); POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
81144CCOVER, HEADLAMP SOCKET
main90075-65002×2iGUN135..RHD..SCB..L..CBU;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..(KEN,SA)202301-202403
main90075-65006×4iGUN120,122..XTR..L;GUN125..RHD..6F..S..SA; GUN135..L..TH;GUN13#,TGN136..S..(ARL,SA);GUN125,126..XTR..(L,S)..(ARL,GEN,SA)202208-202401
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT; HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
81150HEADLAMP ASSY, LH
main81150-0K652iGUN125..RHD..THP..6F..L..CBU;GUN112,120,121,122,126,TGN110,121..RHD..L..(GEN,IDN,PKN,TH)202208
main81150-0K662iGUN11#,122,126,TGN11#,120,126..GCC,PH;GUN125,135,TGN121,136..LHD..SCB..(GCC,GEN,LA)202208-202310
main81150-0K692supersedes 81150-0K832iGUN122..LHD..GEN;GUN125,126,135,TGN136..BZAG; TGN126..LA202208-202310
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
NIGERIA SPEC
main81150-0K772iGUN135..RHD..SCB..L..CBU;GUN122,125,126,TGN120..RHD..SCB..(L,S)..(KEN,SA)202301-202403
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main81150-0KK70iGUN125..RHD..6F..S..SA; GUN125..XTR..L..CBU;GUN135,TGN136..S..SA; GUN126..S..SA;GUN125..6FC..SA202301-202401
FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
DAYTIME RUNNING LIGHT SYSTEM-WITH
ALGERIA SPEC (EURO 3 REGULATION)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO)
main81150-0K832iGUN122..GCC;GUN112,TGN111..S;TGN121..GEN..IV3;GUN125..LHD..L..GEN;TGN121,126..(GCC,GEN)..CBU; GUN122..LHD..GEN202208-202307
DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
DAYTIME RUNNING LIGHT SYSTEM-WITH
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&DAYTIME RUNNING LIGHT SYSTEM-WITH; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&DAYTIME RUNNING LIGHT SYSTEM-WITH
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main81150-YP061iGUN120,122..S..TH; GUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,126..L..TH; GUN120,122..XTR..L202301-202307
COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); FRONT BUMPER-PAINTED(MLM)&HEADLAMP-4-BULB HALOGEN MULTI; FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW MEHOME)
main81150-YP151iGUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,TGN121..TH; GUN120,122..XTR..L202208-202307
COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM); POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)
MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
81175UNIT ASSY, HEADLAMP, LH
main81170-0K652iGUN125..RHD..THP..6F..L..CBU;GUN112,120,121,122,126,TGN110,121..RHD..L..(GEN,IDN,PKN,TH)202208
main81170-0K662iGUN11#,122,126,TGN11#,120,126..GCC,PH;GUN125,135,TGN121,136..LHD..SCB..(GCC,GEN,LA)202208-202310
main81170-0K692supersedes 81170-0K832iGUN122..LHD..GEN;GUN125,126,135,TGN136..BZAG; TGN126..LA202208-202310
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
NIGERIA SPEC
main81170-0K772iGUN135..RHD..SCB..L..CBU;GUN122,125,126,TGN120..RHD..SCB..(L,S)..(KEN,SA)202301-202403
TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main81170-0KK70iGUN125..RHD..6F..S..SA; GUN125..XTR..L..CBU;GUN135,TGN136..S..SA; GUN126..S..SA;GUN125..6FC..SA202301-202401
FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
DAYTIME RUNNING LIGHT SYSTEM-WITH
ALGERIA SPEC (EURO 3 REGULATION)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO)
main81170-0K832iGUN122..GCC;GUN112,TGN111..S;TGN121..GEN..IV3;GUN125..LHD..L..GEN;TGN121,126..(GCC,GEN)..CBU; GUN122..LHD..GEN202208-202307
DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
HEADLAMP LEVELING DEVICE-WITHOUT
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&DAYTIME RUNNING LIGHT SYSTEM-WITH; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&DAYTIME RUNNING LIGHT SYSTEM-WITH
main81170-YP060supersedes 81170-0KF52iGUN120,122..S..TH; GUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,126..L..TH; GUN120,122..XTR..L202301-202307
COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); FRONT BUMPER-PAINTED(MLM)&HEADLAMP-4-BULB HALOGEN MULTI; FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW MEHOME)
main81170-YP150iGUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,TGN121..TH; GUN120,122..XTR..L202208-202307
COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM); FRONT BUMPER-PAINTED(MLM); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM); POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(MANUAL)
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&HEADLAMP-LED
MLM ADVENTURE PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-15021×2iGUN120,122..XTR..L;GUN125..RHD..6F..S..SA; GUN135..L..TH;GUN13#,TGN136..S..(ARL,SA);GUN125,126..XTR..(L,S)..(ARL,GEN,SA)202208-202401
12V 21W,AMBER; 12V 21W,AMBER,FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
12V 21W,AMBER
12V 21W,AMBER,HEADLAMP-2-BULB HALOGEN(VALEO); 12V 21W,AMBER,HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT; 12V 21W,AMBER,HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
81510JBULB(FOR DAYTIME RUNNING LAMP)
main90981-13088×2iGUN122,TGN111..GCC;TGN121,126..(GCC,GEN)..CBU; GUN122..GCC;GUN112,TGN111..S;TGN121..GEN..IV3;GUN125..6F..L..GEN;TGN121,126..(GCC,GEN)..CBU; GUN135..RHD..THP..L;GUN125,TGN121..ARL,MA;GUN120,122,126,136..RHD..THP..S;GUN122,TGN126..LHD..THP..(GEN,LA)202208-202307
12V 21/5W; 12V 21/5W,DAYTIME RUNNING LIGHT SYSTEM-WITH; 12V 21/5W,HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
main90981-13101×2supersedes 90981-13088iGUN126..LA; TGN126..AGTP;GUN125,126,135,TGN136..BZAG202211-202310
12V 21/5W,HEADLAMP-2-BULB HALOGEN(VALEO); 12V 21/5W,HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIMERUNNING LIGHT SYSTEM-WITH
81510LSOCKET, DAYTIME RUNNING LAMP
main90075-60086×2iGUN122,TGN111..GCC;TGN121,126..(GCC,GEN)..CBU; GUN122..GCC;GUN112,TGN111..S;TGN121..GEN..IV3;GUN125..6F..L..GEN;TGN121,126..(GCC,GEN)..CBU; GUN135..RHD..THP..L;GUN125,TGN121..ARL,MA;GUN120,122,126,136..RHD..THP..S;GUN122,TGN126..LHD..THP..(GEN,LA)202208-202307
DAYTIME RUNNING LIGHT SYSTEM-WITH; HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
81515BSOCKET, FRONT TURN SIGNAL LAMP
main90075-60028×2iGUN120,122..XTR..L;GUN125..RHD..6F..S..SA; GUN135..L..TH;GUN13#,TGN136..S..(ARL,SA);GUN125,126..XTR..(L,S)..(ARL,GEN,SA)202208-202401
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT; HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
81610FBULB(FOR CLEARANCE LAMP)
main90981-11069×2iTGN136..LA,SA;GUN135..S..SA;GUN125..XTR..SA;GUN122,135..GCC,LA,PH;GUN126..SCB..(GCC,LA,PKN,TH);GUN120,122..RHD..(PKNP,THP)..L;GUN125..(L,S)..(GCC,GEN,IDN,LA);GUN11#,121,TGN11#,12#..GCC,GEN,IDN,PKN,TH202208
12V 5W
main90981-11070×2iGUN135..RHD..SCB..L..CBU;GUN122,125,126,LAN125,TGN120..SCB..(L,S)..(KEN,SA)202301-202403
12V 5W
main90981-13088×2iGUN120,122..S..TH; GUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,126..L..TH; GUN120,122..XTR..L202301-202307
12V 21/5W,COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); 12V 21/5W,FRONT BUMPER-PAINTED(MLM)&HEADLAMP-4-BULB HALOGEN MULTI; 12V 21/5W,FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); 12V 21/5W,MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); 12V 21/5W,POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME)
12V 21/5W,HEADLAMP-2-BULB HALOGEN(VALEO); 12V 21/5W,HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT
81615DSOCKET, CLEARANCE LAMP
main90075-60077×2iGUN122..RHD..L;TGN121..GCC,GEN,PKN,TH;GUN135..L..(KEN,LA,SA);GUN122..LHD..(GCC,PH,SA);GUN120,TGN136..L..(LA,TH);GUN11#,121,LAN125,TGN11#,120,126..GCC,IDN,SA,TH;GUN125,126..SCB..(L,S)..(GCC,GEN,IDN,KEN,LA,PKN,SA,TH)202208
main90075-60089×2iGUN120,122..XTR..L;GUN125..RHD..6F..S..SA; GUN135,TGN136..S..SA;GUN125..XTR..(L,S)..(GEN,SA)202208-202401
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
HEADLAMP-2-BULB HALOGEN(VALEO); HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT
main90075-60086×2iGUN120,122..S..TH; GUN120,122..TH..IV3; GUN120,122..TH..IV3;GUN112,121,126..L..TH; GUN120,122..XTR..L202301-202307
COLD CHAIN PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); FRONT BUMPER-PAINTED(MLM)&HEADLAMP-4-BULB HALOGEN MULTI; FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW ME HOME); POWER SUPPLY PACKAGE&FRONT BUMPER-PAINTED(MLM)&LIGHT CONTROL SYSTEM-WITH(FOLLOW MEHOME)
85661MOTOR, HEADLAMP LEVELING, RH
HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
main85661-0D020iGUN122,TGN111..GCC;TGN121,126..(GCC,GEN)..CBU; GUN122..LHD..GEN;GUN125..6FC..GEN;GUN125,126,135,TGN121..SCB..(ARL,MA); TGN126..THP..LA202208-202307
HEADLAMP LEVELING DEVICE-WITH(MANUAL); HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
85662MOTOR, HEADLAMP LEVELING, LH
HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
85669PACKING, HEADLAMP LEVELING MOTOR BASE
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
90105T0151
main90105-T0151
9015950388
main90159-50388
9018905144
main90189-05144
90189T0007
main90189-T0007
19 parts on this diagram · 7 diagrams in section
